Audiovox D2016 Manuel utilisateur

D2016

PORTABLE 10" LCD MONITOR AND DVD PLAYER

Notice:

1.This Product incorporates copyright protection technology that is pro-

tected by method claims of certain U.S. Patents and other intellectual

propertyrightsownedbyMacrovisionCorporationandotherrightsown-

ers. Use of this copyright protection technology must be authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

2.ApparatusClaimsof U.S.Patent Nos.4,631,603;4,577,216;4,819,098

and 4,907,093 licensed for limited viewing uses only.

Content

A.Introduction............................................................................ 4

B. Cautions and Warnings ........................................................ 4

C.Contents...............................................................................6

D. Powering and installation ..................................................... 6

E. Controls, Indicators, and Connectors ................................... 7

F. Loading and Playing a Disc .................................................. 8

G.Basic Operation......................................................................9

H. Menu .................................................................... 10

I.Display...................................................................................10

J.PlayingAudioCDS................................................................13

K. Playing MP3 Discs .......................................................... 14

L. Playing JPEG file ...........................................................16

M. Connecting to a TV or another monitor.......................... 17

N.Setup .................................................................................... 19

O.Specifications...................................................................... 22

P. Rechargeable Battery Installation and Use ......................... 22

Q.Troubleshooting ................................................................. 25

A. Introduction

Thank you for choosing the D2016 portable DVD player. The main

features include a 10" Wide Screen (16:9Aspect Ratio) Liquid Crys-

tal Display (LCD) monitor and a DVD player. The unit applies the

latest state of the art electronics and is designed for use in vehicles,

hotels,officesor yourhome.Theunit is constructed to provide years

of reliable, trouble-free service, and is compact so that you can take

it with you anywhere and is designed for quick and easy installation.

Please read the entire instruction manual supplied with this product

prior to using. The documentation will assist you in installing the sys-

tem properly to obtain the best equipment performance. Please save

this manual for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod,bracketortabletopreventitfromfalling.Keep the unit away

fromstrongmagnets,heat sources, direct sunlight,excessivedust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit, or remove the disc and leave the unit turned on until the mois-

ture evaporates.

2. Installation

Ensure that the D2016 portable DVD player is installed in accor-

dancewiththe instructionsandillustrationsprovided inthismanual.

3. Caution

Do not push objects of any kind into the unit through openings;

do not spill or spray liquid of any kind on or in the system (this

may result in a fire or electric shock). Do not place anything

heavy on the unit. To ensure proper ventilation and proper

operation, never cover or block the slots and openings with a cloth

or other material. Keep the unit away from an open flame such as

fire, candle etc. It is hazardous to replace the battery incorrectly.

Replace the battery only with the same or equivalent type, in order

toprotecttheenvironment,pleasedisposethebatteryproperly.Do

not use the unit in temperatures higher than 95 degrees Fahren-

heit or 35 degrees Celsius.

4.Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system needs repair.

5. Cleaning Unit

Whencleaning, makesurethe systemisunplugged fromthepower

source. Do not use liquid cleaners or aerosol cleaners. Use a cloth

lightly dampened with water for cleaning the exterior of the system

only.

6. Discs

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources. Do not touch the surface of disc. Handle the

disc by its edge. Clean the disc by wiping the disc from the center

out with a cleaning cloth. Remove the disc from the unit and store

it in its case after playing. Some playback operations of discs may

be intentionally fixed by software producers. Since this unit plays

discs according to the disc contents the software producers de-

signed, some playback features may not be available.Also refer to

the instructions supplied with the discs.

7.Regional Coding

Both the DVD player and disc are coded by region. These

regional codes must match in order for the disc to play. If the

codes don’t match, the disc won’t play. This unit’s code is region

1. DVDs with other regional codes cannot be played in this unit

C. Contents

1. 1 x 10’’ LCD Monitor & DVD Player Combo

2. 1 x Remote Control with battery (CR2025)

3. 1 x Audio/VideoAdapter Cable

4. 1 x AC to DCAdapter

5. 1 x DC PowerAdapter

6. 1 x Instruction Manual

7. 1 x Rechargeable Battery

D. Powering and installation

1. Powering the system indoors (Refer to Figure 1)

Plugone end of theAC toDC adapter into theDC input jack onthe

leftsideofthe main unit, then plug theotherendintothe 110~240V

AC power receptacle.

2. Powering the system in a car

Plug one end of the DC Power adapter into the DC input jack on

the unit, then plug the other end into the vehicle power outlet.

Figure 1

Note: Unplug the D2016 when not in use.

DC 9V

ON OFF

OUT I N

/V TV PORT

USB

11) Cover OpenActuator

12) Charge Indicator

13) Headphone Jack 1*

14) Headphone Jack 2

15) Volume Control

16) Brightness Control

17) LCD Panel Shut Off Switch

18) Wide Button

19)Previous/Next/Pause/Stop/Play

20) Menu Button

21) Up/Down/Left/Right/OK Button

E. Controls, Indicators, and Connectors

1. Unit View (Refer to Figure 2)

Figure 2

1) Battery Release Button

2) DC 9-12V Input Jack

3) AV Jack

4) AV In/Out Switch

5) USB Port

6) Game Port

7) Power On/Off Switch

8) SD Card Slot

9) Power Indicator

10) Remote Control Sensor

8910 11

* Connecting to headphone jack number 1 will disable the

internal speakers

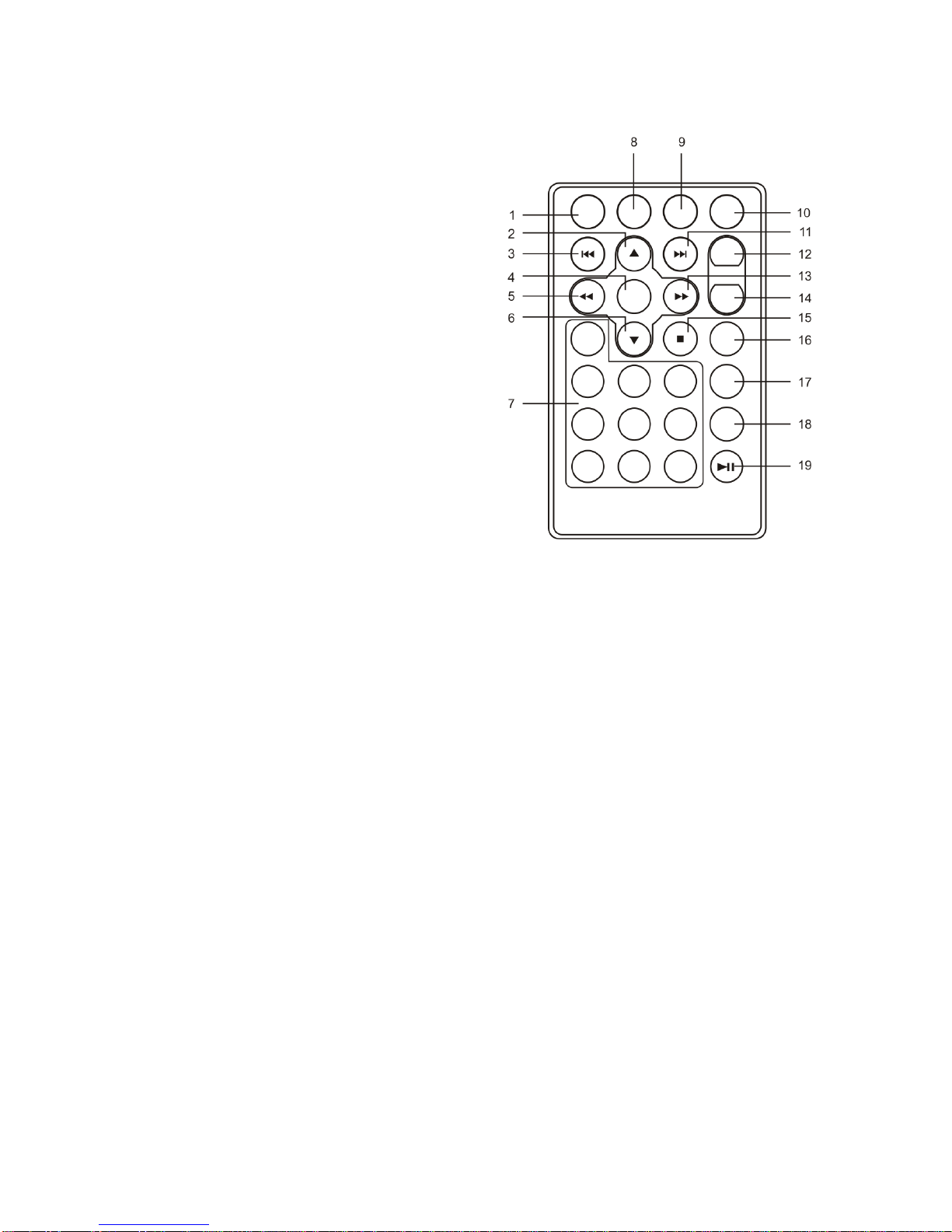

2. Remote Control (Refer to figure 3)

1) Setup Button

2) Up Button

3) Skip- Button

4) Enter Button

5) Reverse/Left Keypad

6) DOWN Button

7) Numeric Button

8) Display Button

9) Zoom Button

10) SD/USB/DVD Button

11) Skip+ Button

12) A-B Repeat Button

13) Forward/Right Keypad

14) 1/All Repeat Button

15) Stop Button

16) Menu Button

17) Subtitle Button

18) Audio Button

19) Play/Pause Button

F. Loading and Playing a Disc

a. After connecting power to the unit, power on “DVD player” with the

power switch. The power indicator will light.

b. Open the disc tray by sliding the OPEN switch in the direction of

the arrow. Place a disc in the tray with label side facing up.

c. Close the tray by pressing the area marked “PRESS” .The unit will

load the disc and start playing.

d. Rotate BRIGHTNESS and VOLUME to adjust the LCD’s bright-

ness and the DVD player’s volume.

e. To stop playing a disc, press STOP.

Figure 3

G. Basic Operation

POWER

OPEN

PLAY /PAUSE

STOP

FORWARD

REVERSE

LEFT/RIGHT/UP/DOWN

ENTER

NUMBERS

REPEAT

A-B

DISPLAY

SUBTITLE

AUDIO

ZOOM

SETUP

Turn the unit on/off

Remove/load the disc

Start Play/Execute item or setting

Still Picture

(1 time) Stop at the present playing point /

(2 times) Stop playing

Go to the next chapter, track or scene

during play back

Go back to the previous chapter, track

or scene during play back

Scan forward at 2, 4, 8,16 or

32 times speed

Scan backward at 2, 4, 8, 16 or

32 times speed

UsedforMenu Navigation

Execute item or confirm setting

Select item or setting

Display the main menu of the disc

Repeat playing title, chapter, or track

Repeat a specific portion from

pointA to point B of the disc

Display information (title, chapter,

track, time, etc.).

Select the subtitle language and turn it

on/off

Select the audio language

Enlarge an image to 2, 3, or 4 times the

original size.1/2 1/3 1/4

Display the setup menu to select and

set items, and exit the setup menu.

H. Menu

A DVD is divided into sections called titles and chapters. When you

play a DVD’s root menu of the disc will appear on the screen of your

TV or Monitor. The contents of the menu vary from disc to disc. Press

MENU during playback to display the menu. Some DVDs only allow

you to select disc playback options using the DVD root menu.

I. Display

1. PLAYING TIME AND REMAINING TIME

a. During playback press the ‘DISPLAY’ button to display the cur-

rent Title Number (1), the total Number of Titles (2), the current

Chapter Number (3), the total Number of Chapters (4), and the

Playing elapsed Time for the title (5). The heading will disappear

automatically after 3 seconds if DISPLAY button is not pressed.

Title, Chapter Number, and Time Screen Display

b. Press ‘DISPLAY’ constantly to choose the options below in se-

quence.

Title Elapsed: The elapsed time of the title

Title Remain: The remaining time of the title

Chapter Elapsed: The elapsed time of the chapter

Chapter Remain: The remaining time of the chapter

Display Off: The DVD’s time Information will not be displayed.

Title Elapsed Title Remain Chapter Elapsed

Chapter Remain

Display Off

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Audiovox Lecteur DVD portable

Audiovox

Audiovox D705PK Manuel utilisateur

Audiovox

Audiovox D1812 - DVD Player - 8 Manuel utilisateur

Audiovox

Audiovox D1809PK - DVD Player - 8 Manuel utilisateur

Audiovox

Audiovox D1929B Manuel utilisateur

Audiovox

Audiovox D1915 - DVD Player - 9 Manuel utilisateur

Audiovox

Audiovox D1998PK - 9" Slim Line Portable DVD Player Manuel utilisateur

Audiovox

Audiovox D1710 Manuel utilisateur

Audiovox

Audiovox 1286808A Manuel utilisateur

Audiovox

Audiovox D9121ESK Manuel utilisateur

Audiovox

Audiovox D710 Manuel utilisateur

Audiovox

Audiovox D1788ES Manuel utilisateur

Audiovox

Audiovox FLO TV DFL710PK Manuel utilisateur

Audiovox

Audiovox DS7521PK Manuel utilisateur

Audiovox

Audiovox D1817PKG Manuel utilisateur

Audiovox

Audiovox D1708PK Manuel utilisateur

Audiovox

Audiovox D7121ESK Manuel utilisateur

Audiovox

Audiovox D1530 Manuel utilisateur

Audiovox

Audiovox DS7321 Manuel utilisateur

Audiovox

Audiovox D1718ES - DVD Player - 7 Manuel utilisateur

Audiovox

Audiovox D1710 Manuel utilisateur

Audiovox

Audiovox DS9106 Manuel utilisateur

Audiovox

Audiovox D1620 Manuel utilisateur

Audiovox

Audiovox DS9341 Manuel utilisateur

Audiovox

Audiovox DT102 Manuel utilisateur

Manuels Lecteur DVD portable populaires d'autres marques

Philips

Philips PET718/77 Manuel utilisateur

Impecca

Impecca DVP775 Manuel utilisateur

NextBase

NextBase MULTI-VISION SET PRO Manuel utilisateur

Impecca

Impecca DVP-1017 Manuel utilisateur

Akura

Akura APDVD6008 Manuel utilisateur

TV Star

TV Star TD3 LCD COMBO Manuel utilisateur

LENCO

LENCO MES-202 Manuel utilisateur

Philips

Philips PET940/98 Manuel utilisateur

Philips

Philips PET702P Manuel utilisateur

Philips

Philips PD7016 Manuel utilisateur

Logik

Logik L7SPDVD11 Manuel utilisateur

LG DP650 Manuel utilisateur

Mustek

Mustek MVP850B Manuel utilisateur

Insignia

Insignia NS-MDDVD10 Manuel utilisateur

Philips

Philips PD9000/12 Manuel utilisateur

LENCO

LENCO DVP-1027 Manuel utilisateur

Philips

Philips PD7010/05 Manuel utilisateur

Technika

Technika PDVDTWINSS10 Guide de l'utilisateur
