Audiovox D1788ES Manuel utilisateur

D1788ES

7” LCD MONITOR, DVD PLAYER

WITH BUILT-IN BATTERY AND EXTRA MONITOR

Notice:

This Product incorporates copyright protection technology that is

protected by method claims of certain U.S. Patents and other

intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology must

be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses only unless otherwise authorized by

Macrovision Corporation. Reverse engineering or disassembly is pro-

hibited.

Notice:

An LCD panel and/or video monitor may be installed in a motor

vehicle and visible to the driver if the LCD panel or video monitor is

used for vehicle information, system control, rear or side observation

or navigation. If the LCD panel or video monitor is used for television

reception, video or DVD play, the LCD panel or video monitor must

be installed so that these features will only function when the vehicle

is in “park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or

DVD play that operates when the vehicle is in gear or when the

parking brake is not applied must be installed to the rear of the driver’s

seat where it will not be visible, directly or indirectly, to the operator of

the motor vehicle.

A. Introduction

Thank you for selecting the D1788ES portable DVD player. The main

features include two 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal

Display (LCD) monitors and a DVD player. The unit applies the latest

state of the art electronics and is designed for use in hotels, offices

home or vehicle. The unit is constructed to provide years of reliable,

trouble-free service, and is compact so that you can take it with you

anywhere and is designed for quick and easy installation. Please read

the entire instruction manual supplied with this product prior to

operation. The documentation will assist you in installing the system

properly to obtain the best equipment performance. Please save this

manuals for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod, bracket or table to prevent it from falling. Keep the unit away

from strong magnets, heat sources, direct sunlight, excessive dust.

If the unit is brought directly from a cold to a warm location,

moisture may condense inside the unit. When you move it from a

cold to a warm location, wait for about one hour before operating

the unit, or remove the disc and leave the unit turned on until the

moisture evaporates.

2. Installation

Ensure that the D1788ES is used in accordance with the

instructions and illustrations provided in this manual.

3. Objects and Liquids

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

cover or block the slots and openings with a cloth or other

material.

4. Disassembly

Do not attempt to disassemble the cabinet. There is a risk of

electric shock and/or exposure to Laser Radiation. Contact

qualified service personnel if your system is in need of repair.

5. Cleaning Unit

When cleaning, make sure the system is unplugged from the power

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available. Also refer to the instructions supplied with the discs.

7. Regional Coding

Both the DVD player and disc are coded by region. These re-

gional codes must match in order for the disc to play. If the codes

don’t match, the disc won’t play. This unit’s code is region 1.

DVD’s with other regional codes cannot be played in this unit.

C. Contents

1. 1 x 7’’ LCD Monitor & DVD Player

2. 1 x7” LCD Monitor

3. 1 xAC to DC Adapters

4. 1 x Remote Control with battery (CR2025)

5. 1 x Instruction Manual

6. 1 x AV Adapter Cable (One to Three Female)

7. 1 x AV Adapter Cable (One to Three Male)

8. 1 xY Type DC Power Adapter

9. 1 x Mounting Bag With Straps for the Monitor

10. 1 x Carry Bag With Straps

D. Powering and Installation

1. Powering the system indoors (Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9-12V jack on

the right side of the main unit, then plug the other end into the 100-

240V AC power receptacle.

2. Powering the system in a car (Refer to Figure 2)

The DC power adapter has two 9V output plugs. Plug the ends of

the DC power adapter output into the DC 9-12V jack on the main

unit and the extra screen and plug the input end into the vehicle

power socket. Connect the main unit AV OUT and extra screen AV

IN with the 2 suppliedAV cables as shown.

Figure 2

Figure 1

Monitor

Main Unit

Monitor Main Unit

7" LCD MONIT OR

E. Vehicle Installation

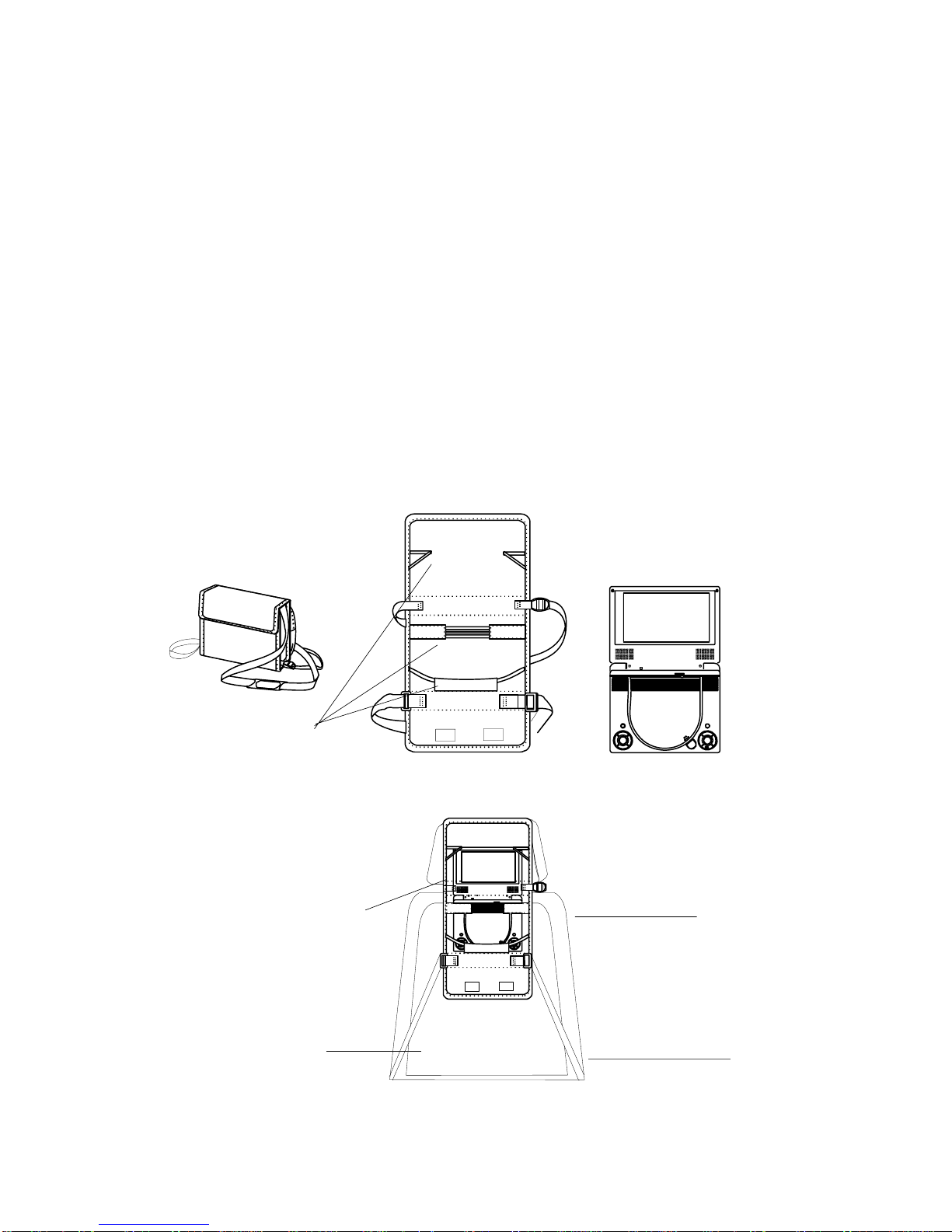

Installing the DVD Player and monitor onto a car seat

(Refer to Figures 3 through 5)

Elastic

Straps

Carry Bag Closed

Vehicle Seat

Back

Vehicle Headrest

Figure 3

Carry Bag Opened

Headrest

Strap

Seat Back

Strap

3. Built-in Battery

Plug one end of the AC to DC adapter into the DC jack on the side of

the player, then plug the other end into the 120V AC power outlet.

Make sure the player is in the “Power Off” mode. Once fully charged,

the LED indicator will turn off. Once the indicator is off, remove the AC

to DC adapter wall plug.

NOTE: Your new battery must be charged a minimum of 8 hours be-

fore the first usage. Each full recharge takes approximately five hours

and one full charge can provide power to the player for approximately 2

hours.

Installing the monitor

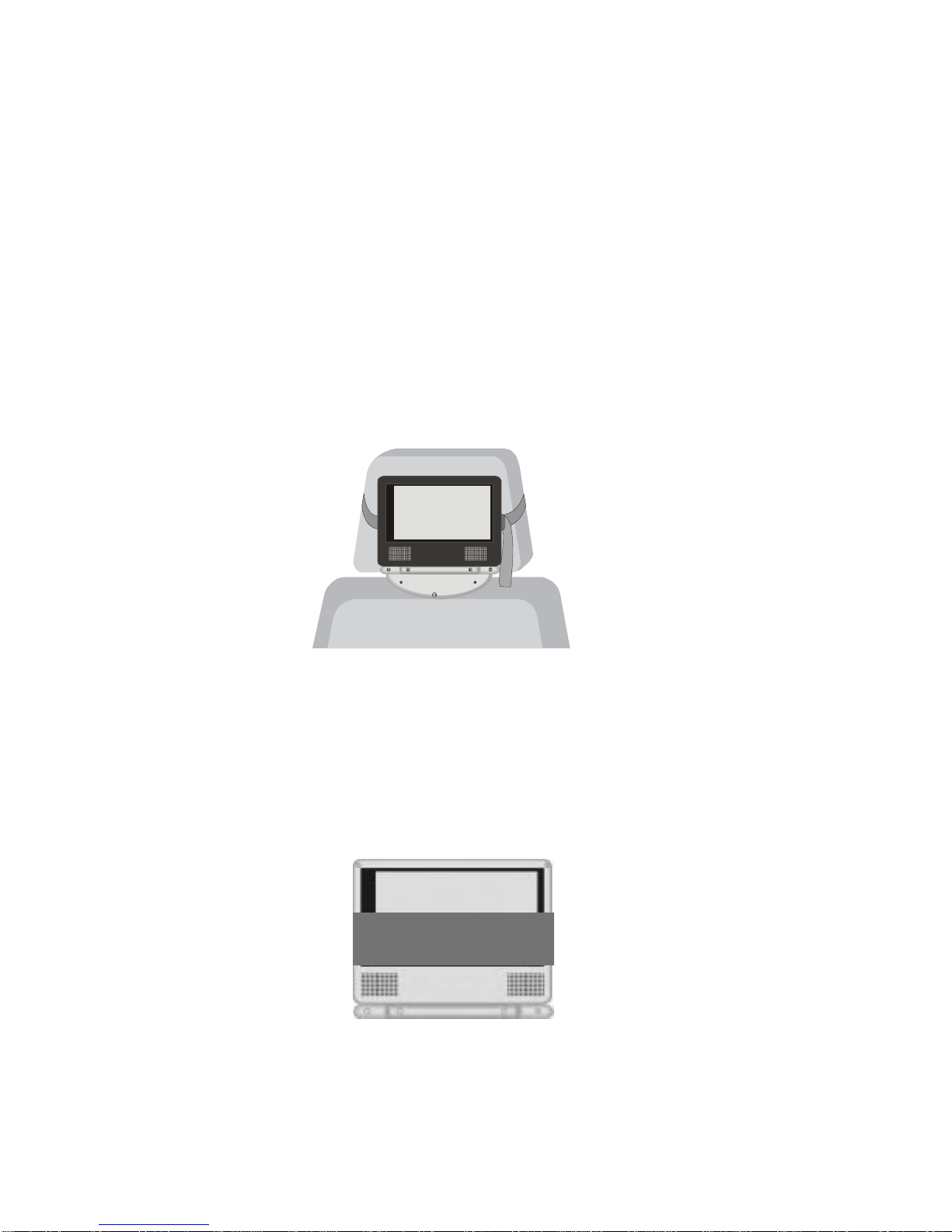

Option 1 Vehicle Headrest (Refer to Figure 4)

Figure 4

Slide the Monitor into the pouch and attach the Velcro straps to se-

cure the Monitor in the pouch. Loop the strap of the pouch around the

headrest and pull the end of the strap while holding the buckle to

secure the pouch to the headrest.

Option 2 Flat Surface (Refer to Figure 5)

Figure 5

Rotate the base of Monitor backward and place on a flat surface.

Adjust the screen for a proper viewing angle. This can be done with

the Monitor inside or outside the pouch.

1). Unfold the carry bag, and place the DVD player on the bag

beneath the elastic straps. Ensure that the unit’s corners are

secured by the elastic straps.

2). Secure the upper portion of the carry bag to headrest support

bars using the headrest strap. Adjust the headrest strap until the

bag is firmly secured.

3). Secure the lower portion of the carry bag to the vehicle seat back

using the seat back strap. Adjust the seat back strap until the

bag is firmly secured.

F. Controls, Indicators, and Connectors

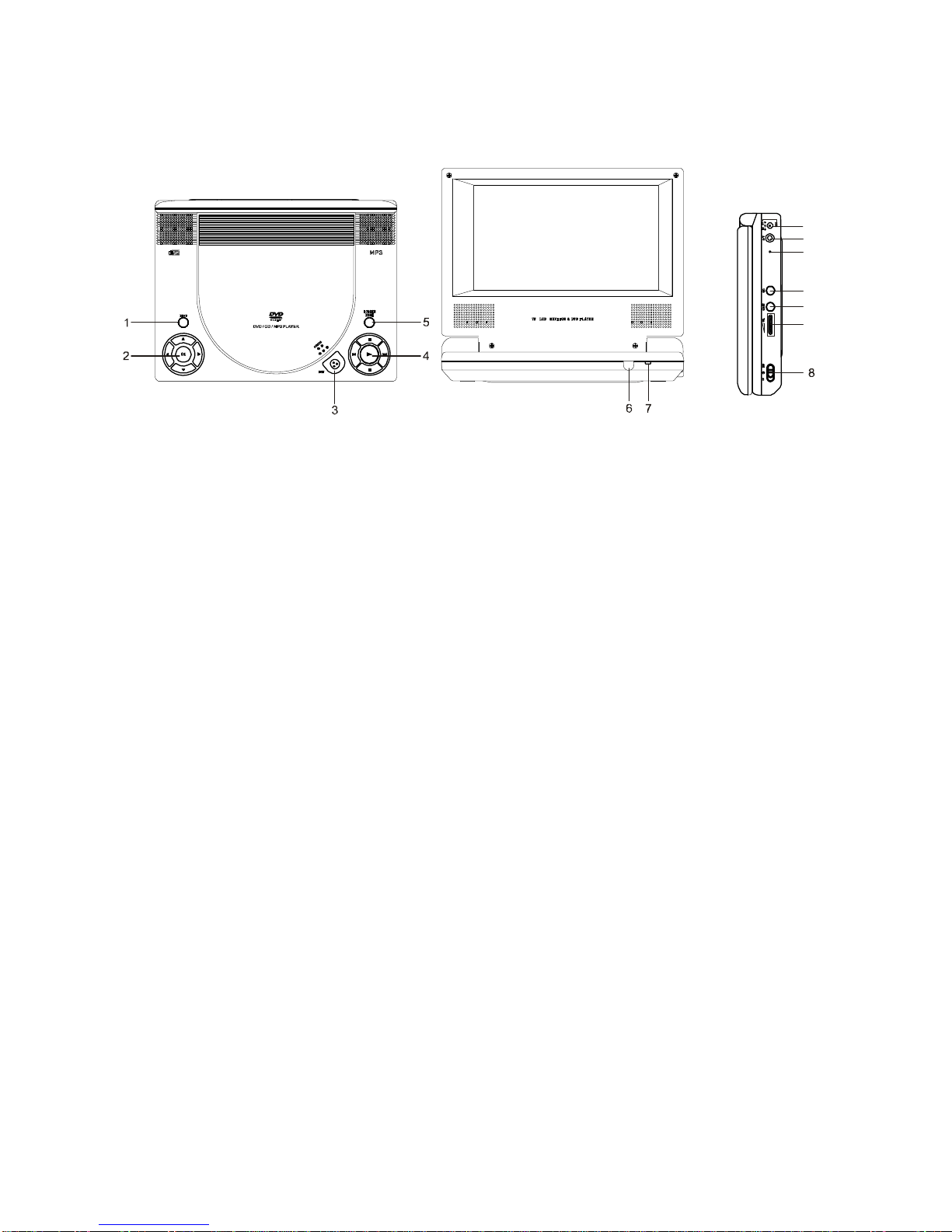

1. Unit View(Refer to Figure 6)

Figure 6

1) Menu Button

2) Up/Down/Left/Right/OK

Buttons

3) Open Button

4) Previous/Next/Pause/

Stop/Play Buttons

5) Screen Mode Button

6) Remote Sensor

7) Power Indicator

8) Power On/Off Switch

9) Volume Up/Down Control

10) Headphone Jack 1

11) Headphone Jack 2

12) Charge Indicator

13) AV Out Jack

14) DC Input Jack

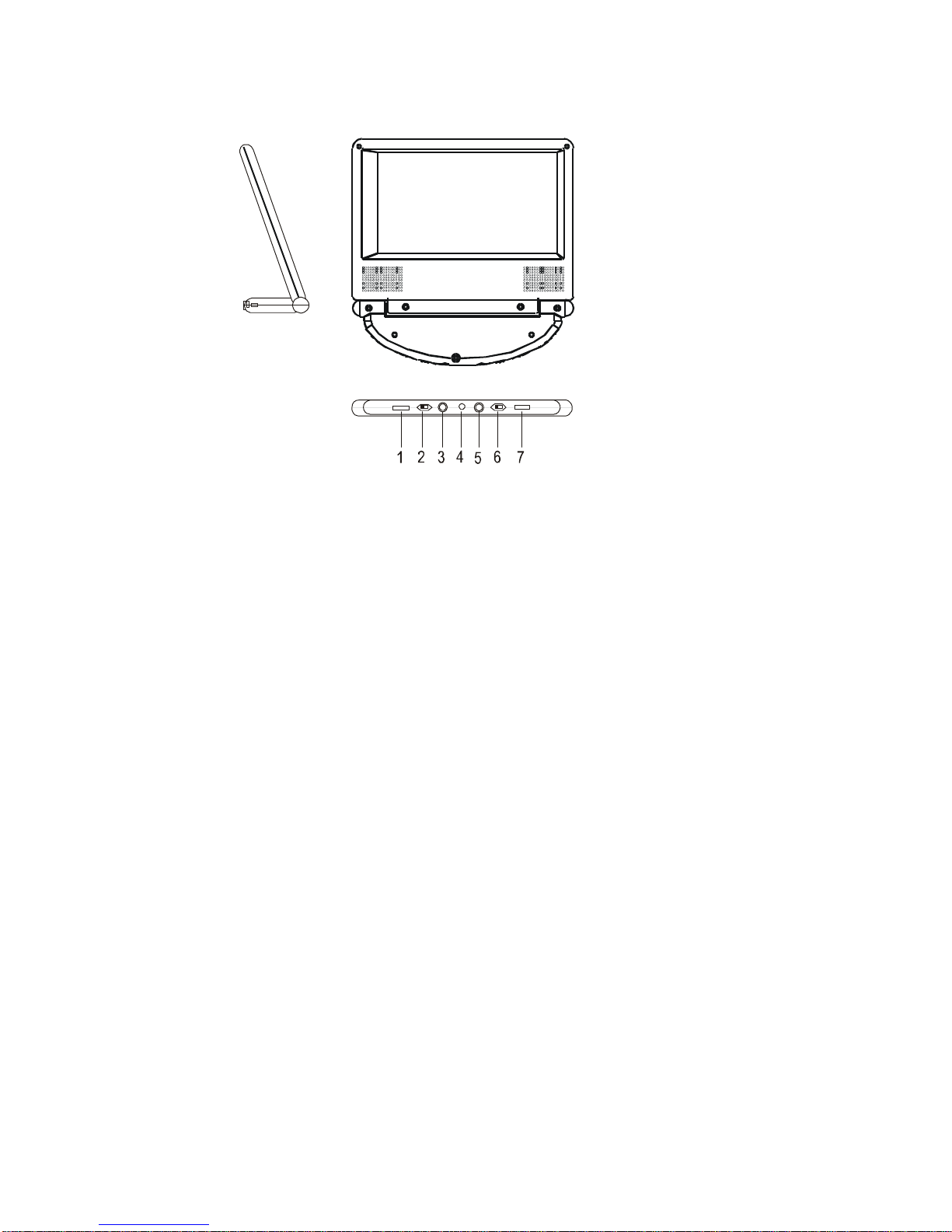

2. MonitorView (Refer to Figure 7)

Figure7

1). Volume Control

2). Reverse Switch

3). Headphone Jack

4). DC 9-12VInput Jack

5). AV InJack

6).PowerOff/OnSwitch

7).Brightness Control

NOTE: Slide theReverse Switch to rotate the picture 180 degrees.

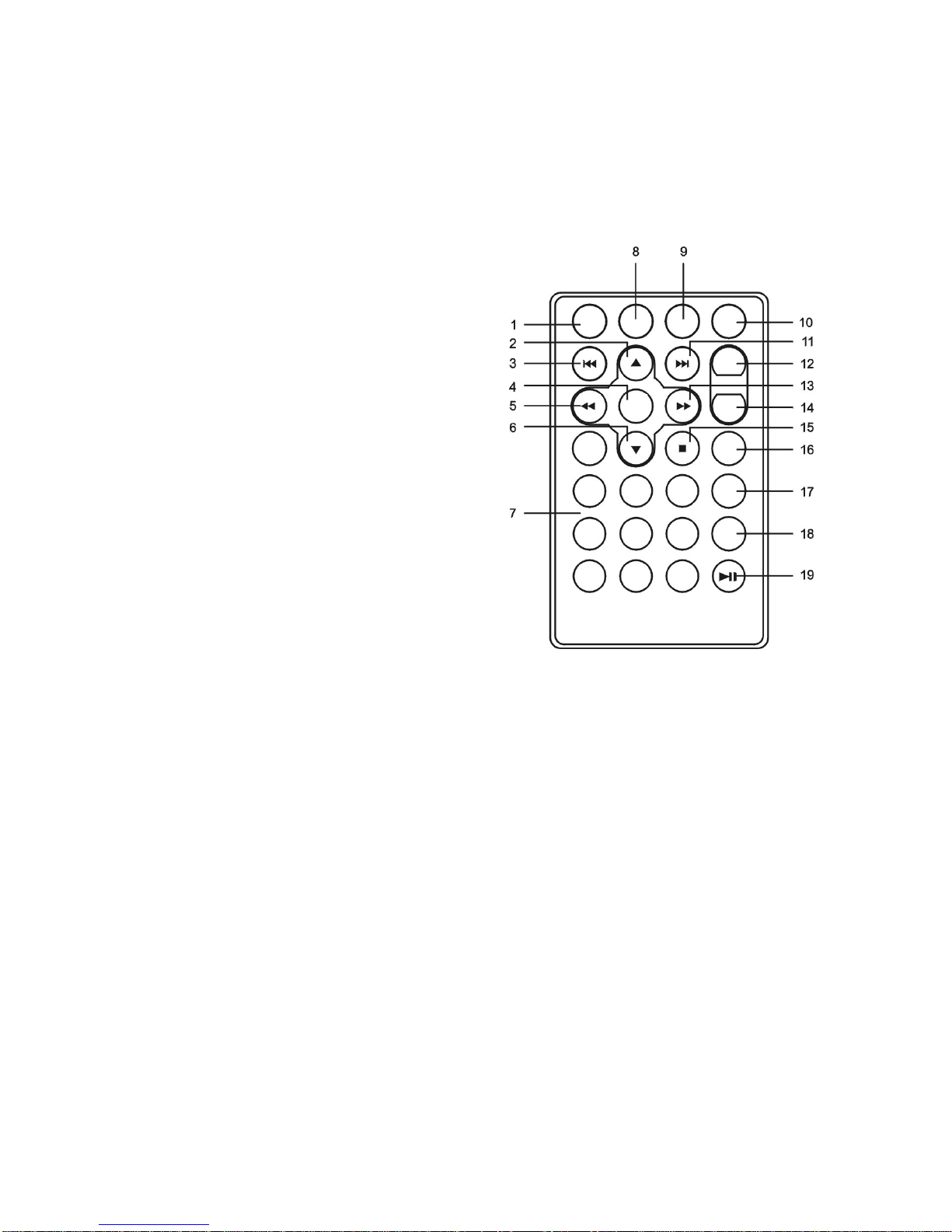

3. Remote Control View (Refer to Figure 8)

1) Setup Button

2) Up Button

3) Previous Button

4) Enter Button

5) Reverse Scan /Left Button

6) Down Button

7) Numeric Keypad

8) Display Button

9) Zoom Button

10) Subtitle Button

11) Next Button

12) A-B Repeat Button

13) Forward Scan /Right Button

14) 1/All Repeat Button

15) Stop Button

16) Menu Button

17) Audio Button

18) Angle Button

19) Play/Pause Button Figure 8

G. Loading and Playing a Disc

a. After connecting power to the unit, apply power to the DVD player

with the power switch. The power indicator will light.

b. Open the disc tray by pressing OPEN button and place a disc into

the tray with the label side facing up.

c. Close the tray by pressing the “PRESS” button. The unit will load

the disc and start playing.

d. Rotate the VOLUME control to adjust the DVD player’s

volume.

e. To stop playing a disc, press STOP.

f. To turn off the DVD player, slide the POWER ON/OFF switch to

OFF.
