Audiovox D1420 Manuel utilisateur

Content

A. Introduction............................................................................. 3

B. Cautons and Warnings ........................................................... 4

C. Package Contents .................................................................. 7

D. Features.................................................................................. 7

E. Powering and Installation ........................................................ 7

F. Using the DVD Player Travel Bag ........................................... 9

G. Controls and Indicators ............................... ........................... 10

H. Control Functions.................................................................... 11

I. Loading and Playing a Disc .................................................... 11

J. Using the Joystick to Navigate the Setup Menu ...................... 11

K. Setup................................................................................... .... 11

L. Menu ....................................................................................... 16

M. Playing Audio CDS ............................................................. .... 16

N. PlayingMP3Discs............................................................ ..... 16

O. PlayingJPEGfiles.................................................................. 17

P. Input and Output Connections ................................................ 18

Q. Specifications......................................................................... 19

Warranty.................................................................................. 20

Notice:

This Product incorporates copyright protection technology that is pro-

tected by method claims of certain U.S. Patents and other intellectual

propertyrightsowned by Macrovision Corporation and other rights own-

ers. Use of this copyright protection technology must be authorized by

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

A. Introduction

Thank you for choosing the D1420/D1420HP 4.2” Personal DVD

player. The main features of this unit include a 4.2" Screen (16:9

aspect ratio) Liquid Crystal Display (LCD) monitor and a DVD

player. Please read the entire instruction manual supplied with the

unit prior to use. The documentation will assist you in operating the

system properly to obtain the best equipment performance. Please

save this manual for later use.

An LCD panel and/or video monitor may be installed in a motor vehicle

and visible to the driver if the LCD panel or video monitor is used for

vehicle information, system control, rear or side observation or

navigation. If the LCD panel or video monitor is used for television

reception, video or DVD play, the LCD panel or video monitor must be

installed so that these features will only function when the vehicle is in

“park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or

DVD play that operates when the vehicle is in gear or when the parking

brake is not applied must be installed to the rear of the driver’s seat

where it will not be visible, directly or indirectly, to the operator of the

motor vehicle.

B. Cautions and Warnings

Follow Instructions --Followalloperatingandmaintenanceinstruc-

tions and adhere to all warnings.

Cleaning -- Unplug this product from the wall outlet before cleaning.

Do not use liquid or aerosol cleaners.

Accessories -- Do not use accessories not recommended in this

instruction book as they may be hazardous.

Water and Moisture -- Hazard of electric shock. Do not use this

product near water or moist environments.

Objects and Liquid -- Never allow objects of any kind or liquids to be

pushed or spilled into this product through various openings. Do not

place objects filled with liquids on the unit.

Lightning -- For added protection of this product during a lightning

storm, or when it is left unattended and unused for long periods of

time, disconnect it from the wall outlet. This will prevent damage to

the product due to lightning and power-line surges.

Power Cord Protection -- Route the power cord so that it is not

likely to be walked on or pinched by items placed upon or against

them. Pay particular attention to the plug and the point where the

cord exits the unit.

Condensation -- Moisture will form in the operating section of the

player if the player is brought from a cold environment into a warm

environment. When this occurs, the player may not operate. To

prevent this condition, let the player stand in its new surroundings

for about an hour before switching it on.

Overloading -- Do not overload wall outlets and extension cords

as this can result in risk of fire or electric shock.

Servicing -- Do not service this product yourself. Opening or

removing covers may expose you to dangerous voltage or other

hazards. Refer all servicing to qualified service personnel.

Damage Requiring Service -- Disconnect this product from the wall

outletandallpowersourcesincludingbatteries,and refer servicing to

qualified service personnel under the following conditions:

a) When the power cord or plug is damaged.

b) If any liquid has been spilled onto, or objects have fallen into the

product.

c) If the unit does not operate normally even if you follow the

operating instructions.

d) If the unit has been dropped or the case has been damaged.

Replacement Parts --Whenreplacementparts are required, be sure

the service technician has used replacement parts that are specified

orthathavethesamecharacteristicsastheoriginalpart.Unauthorized

substitutions may result in fire, electric shock, or other hazards.

Safety Check -- Upon completion of any service or repairs to this

product,ask theservice techniciantoperformsafety checkstoensure

that the product is in safe operating order.

Ventilation --Toensureproper ventilationandproper operation,never

cover the unit with a cloth or other material.

Headphones --Adjust the volume of the DVD player to a comfortable

level when using headphones to prevent damage to hearing.

Warning

A DVD player is a Class 1 laser product. This unit uses a visible laser

beam, which could cause hazardous radiation exposure, if the safety

interlocks are defeated.

Be sure to operate the unit correctly as instructed.

The following caution label is located on the rear panel of the player.

Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous

radiationexposure.

Never use this device while driving.

If the unit is being used by a passenger in your vehicle, be sure

that it does not cause distraction to the driver, is secured or held

safely, anddoesnotobstructany safety device (e.g.: airbag,seat

belt, etc.)

Note: Both the DVD player and discs are coded by region. These region

codes must match in order for the disc to play. If the codes do not

match, the disc won’t play. This unit’s region code is 1. DVD’s

with other region codes cannot be played in this unit.

C. Package Contents

l 1 x 4.2’’ LCD Monitor & DVD Player

l 1 x AC to DC Adapter

l 1 x Owner’s Manual

l 1 x AV Adapter Cable

l 1 x Carry Bag

l 1 x DC Power Adapter

l 1 x Headphones* P/N 1363688

*Supplied only with Model Number D1420HP

D. Features

lCompact and Portable

lMulti-functioncontrols

lStand for desktop use

lHigh resolution picture

lBuilt-inRechargeablebattery(Ni-MH)

E. Powering and Charging

1. Using the Adapter (Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack on the

right side of the unit, and plug the other end into a 120V AC power

outlet. Then, slide the ON/OFF switch to ON position.

When in a vehicle, plug one end of the DC power adapter into the

DC 9V jack and the other end into the vehicle power socket.

Figure 1

Using the battery

Remove the AC adapter. Switch the ON/OFF switch to the ON

position. If the battery is charged, it will power the unit.

2. Charging

Abuilt-inrechargeablebattery(Ni-MH) is included for portable use.

A fully charged battery will provide about 2 hours of playtime.

Note: Charge the battery for at least 8 hours before you use it for

the first time.

1) Switch the ON/OFF switch to the OFF position.

2) Connect one end of the AC adapter to the DC jack and the other

end to a 120VAC standard wall outlet. The red charge indicator

willlight. Once the batteryisfully recharged, the redlightwillturn

off.

3) Disconnect the AC adapter.

Note: It takes about 5 hours to charge the battery after its initial

charging.

F. Using the DVD Player Travel Bag

1. Place the unit into the bag as shown in Figure 2. Close the cover

on the bag. Connect the nylon carrying strap to the bag.

2. The front of the bag contains plastic pouches for discs as shown in

Figure 3.

Figure 2 Figure 3

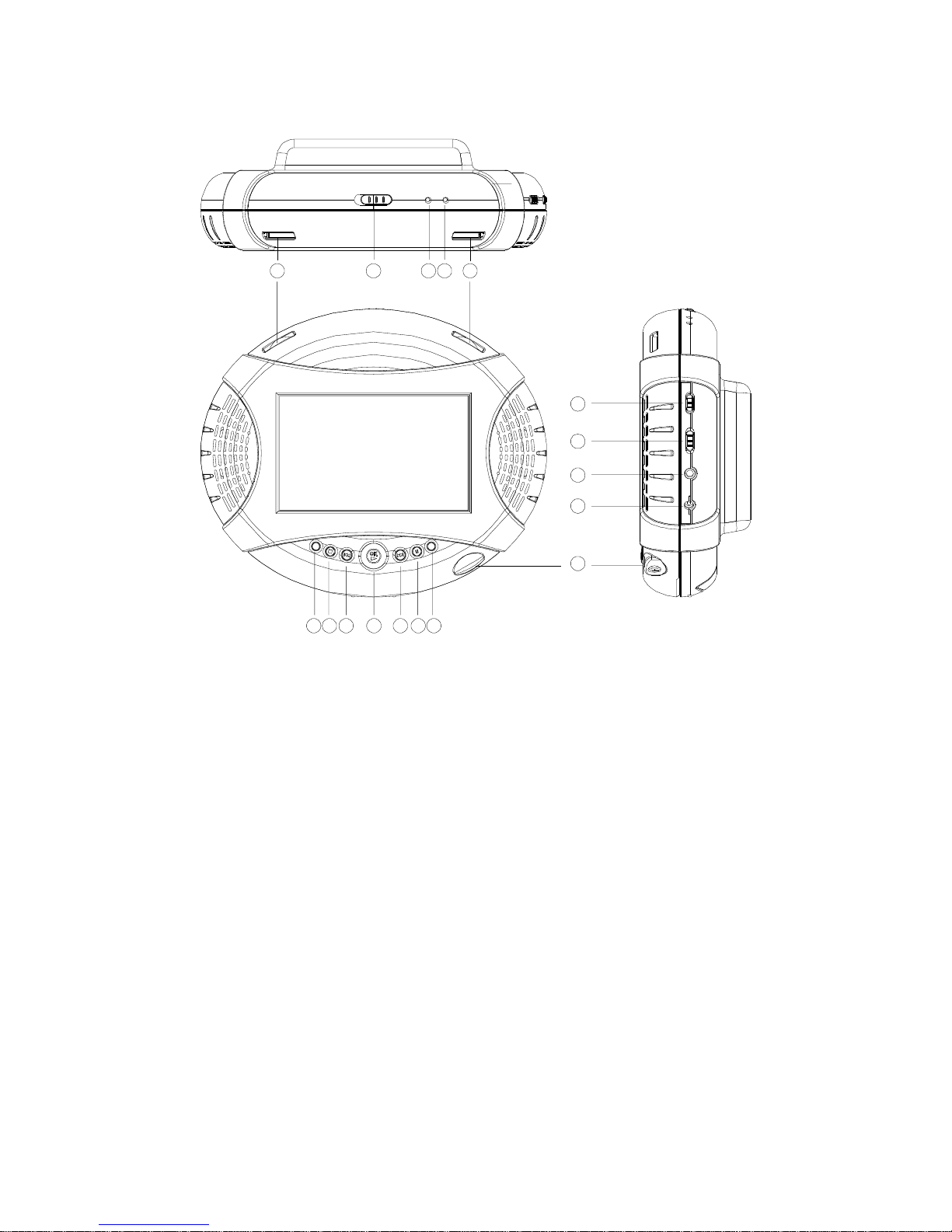

G. Controls and Indicators (Figure 4)

Figure 4

1) Brightness Control

2) OPEN Latch

3) POWER Indicator

4) CHARGEIndicator

5) VOLUMEControl

6) SETUP Button

7) STOP Button

8) PREVIOUSButton

9) PLAY/OK/UP/DOWN/LEFT/RIGHT

Joystick Control

10) NEXTButton

11) PAUSE Button

12) MENUButton

13) Power ON/OFF Switch

14) AVIN/OUTSwitch

15) A/V In/Out Jack

16) DC 9V Input Jack

17) HeadphoneJack

12 3 4 5

6 7 8

10 12
