AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

AudioCodes™ MP-104 Gateway

Quick Start Installation Guide

INTRODUCTION

This quick start guide contains information about how to install and configure the v4.4 Audio-

Codes™ MP-104 Gateway. This gateway is the latest version that is available through the

Inter-Tel®CommSource™ division.

PARTS

This shipment consists of the following items:

•AudioCodes MP-1xx Media Gateway Fast Track Installation Guide

•AudioCodes MP-1xx CD-ROM

•Inter-Tel IP Devices CD-ROM (Part No. 827.9162)

•Inter-Tel AudioCodes Quick Start Guide

•Power cord

ADDITIONAL SUPPLIES NEEDED

In addition to the previously listed parts, you will also need an Ethernet cable.

SYSTEM REQUIREMENTS

The following lists the system requirements for installing the AudioCodes MP-104 Gateway:

•Internet Protocol Resource Card (IPRC) firmware version 1.5.2, 8.2.0, or later

•Axxess®v7.0 or later

The AudioCodes MP-104 Gateway also must meet the following telephony requirements:

•Loop Current: 20mA, preferably down to an 18mA loop current (25 to 45mA may not

suffice and will increase the risk of poor audio).

•Line Voltage: 24 to 48vdc. Must pass the test called out in EIA/TIA-464B 4.1.2.3.3

(generally 42.5V ~56.5V).

•Ring Voltage: 40 to 150 vac ring voltage 20 to 30 Hz. Must pass the requirements

called out in EIA/TIA-464B 4.1.2.2.5 (generally 55~130Vrms for Class A;

40~130Vrms for Class B).

•Db Levels: At least +3dBm without distortion into a 600 ohm load. Must pass the

transmission requirements called out in Section 5 of EIA/TIA-464B.

SYSTEM DATABASE PROGRAMMING

The IPRC firmware version determines how Axxess is programmed to support the gateways.

For details about system database programming, refer to the documents listed below.

If you are installing the gateway on a:

•v1.5.1 firmware IPRC, see the latest version of the IP Devices Manual.

•v8.2.x or later firmware IPRC, see the Addendum to the v8.0 Installation and Mainte-

nance Manual.

Document Part Number 835.2741-4

A946/3852A © Inter-Tel, Inc. August 2004 printed in USA

Page 2 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

AUDIOCODES MP-104 GATEWAY INSTALLATION

This section describes how to install and configure the AudioCodes MP-104 gateway, shown

below.

The AudioCodes MP-104 FXO gateway supports up to four loop start line (FXO - foreign

exchange office) ports. Although the MP-104 is similar to the MP-100, each gateway uses a

different switch type for configuring the device. The MP-100 uses DIP switches, and the MP-

104 uses a command line switch (-fb) (see page 7). For details about command-line switches,

refer to the AudioCodes MP-1xx Media Gateway Fast Track Installation Guide.

The MP-104 on a v8.1 or later system with a v8.2.x or later firmware IPRC supports the peer-

to-peer (P2P) audio feature. This feature allows certain IP and SIP devices to transmit and

receive audio directly with each other. With this feature, the audio is not transmitted or

received through the system cabinet. This reduces delay and removes the audio stream from

the Time Division Mulitplex (TDM) highway.

To use P2P audio:

•The devices must be members of the same Network Group.

•The IPRC and IP devices must be upgraded to version 8.1 firmware. (SIP endpoints do

not require firmware upgrades.)

•The devices must terminate on an IPRC with v8.2.x or later firmware.

•There cannot be a NAT or firewall between the communicating devices.

•For SIP endpoints, the latest version of SIP Server (v1.1 or later) must be installed.

Because the devices are not using cabinet resources, devices connected in a P2P call cannot

use the following features:

•Agent Help

•Record-A-Call

•Station Monitor

The MP-104 on a v8.2.x or later IPRC firmware also does not support the following features:

•Tick Tone as an audio source for CO calls. This is normally used for features that

require audio sources, such as the Music-On-Hold feature.

•Pause digits. These digits are normally used to program a speed-dial or other digit

string.

NOTE: The MP-104 must be running software version 4.2 or later when connected to an IPRC

running version 8.1 or later firmware.

RESTART BUTTON

Page 3 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

Quick Start Installation Outline

The following steps outline the MP-104 installation. For details, refer to the pages

shown in parentheses in each step.

To install the MP-104:

1. Unpack the box and check the parts list to make sure nothing is missing from the

shipment.

2. Set up the MP-104 gateway device through the AudioCodes BootP/TFTP Server

program (see page 4).

NOTE: Ensure you have added the -fb command to the ramMP1XXFXO.cmp

and this file is selected as the Boot file (see page 7)

3. Reset the Server. Progress can be viewed in the BootP/TFTP Server window

(make sure it is not paused). See page 9.

4. Configure the MP-104 application through the AudioCodes MP-104 Web

administrator (see page 19).

5. Verify that the Call Agent IP address in the Advanced Configuration - Protocol

Management page matches the IPRC IP address (see page 12).

6. Configure the IPRC ports through the IPRC Administrative Session Web page

and verify the following:

• The gateway is configured as an MGCP gateway and endpoint (the first cir-

cuit), and each additional endpoint is attached to the correct circuit (see

page 19).

• All information is correct (MAC address, IP address, etc.).

• The connection is active in the Circuit Status page.

The AudioCodes MP-104 Gateway is now ready for connection to the CO.

Page 4 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

Setting Up the MP-104

Follow the instructions below to set up the MP-104.

To set up the MP-104:

1. Attach the Ethernet cable to the ETH-1 RJ-45 connector to connect to your LAN.

2. Plug in the AC power cord and connect the DC power supply. The green lamps on the

LAN and Ready light-emitting diodes (LEDs) light. For details on LED indicators, refer

to the MP-104 User’s Manual & Installation Guide. The back view of an MP-104 is

shown below.

3. Attach up to four phone lines (e.g., loop start lines) to the RJ-11 connectors.

NOTE: Up to 200 m (660 ft) of 24AWG twisted pair cable can be used for phone lines.

4. Create a new directory (e.g., Audiocodes MP_104) in the Windows Explorer on the PC

that is connected to the MP-104.

NOTE: Make sure the MP-104 and BootP/TFTP Server are on the same submit

because the BootP/TFTP Server does not work across subnets.

5. Unzip the MP104v44 zip file (part no. 841.0165) that is provided in the Inter-Tel IP

Devices CD into this folder.

6. You may want to create a subfolder for the BootP zip file within the same folder, and

unzip the BootP zip file into this folder. The folder looks like the one shown below.

WARNING

DO NOT use the manufacturer-provided CD-ROM that contains generic downloading files

and the Media Pack MP-1xx Media Gateway Fast Track Installation Guide. For the Audio-

Codes MP-100/104 Gateway to work properly with the Inter-Tel Axxess system, you must

use the customized downloading files and the quick start guide that are provided on the

Inter-Tel IP Devices CD-ROM (part number 827.9162). Using the manufacturer-provided

files may cause application errors, and the system may not work properly.

Page 5 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

7. Copy the following files that you just unzipped and paste them into the BootP server

folder (under C:\Program Files\AudioCodes\BootP). This will allow the system to find

the required files automatically.

NOTE: The file names may be different depending on the version and date that the

files are created.

ALSO: The_usa files are for US systems, and the_uk files are for European systems.

• BOOT file (e.g., ramMP10X.cmp) — Contains a compressed, downloadable soft-

ware image file.

• INI file (e.g., MP1XXFXO_usa/uk.ini) — Contains the default settings for the

MP-104.

• Coefficient file (e.g., MP1xx12-1-12khz-fxo_usa.dat or MP1xx10-2-

16khz-TBR21-fxo_uk.dat) — Contains a set of parameters for the signal

processor of the loop interface devices.

• Call Progress Tone file (e.g., call_progress_usa/uk.dat) — Contains the

definitions of the call progress tones that the MP-104 will detect/generate.

8. Open the MP1XXFXO_usa/uk.ini file by using a word processor, such as Notepad,

Microsoft®Word, etc. and add the following settings:

• The MP-104 needs to communicate with an IPRC. Determine the IPRC that you

are going to use and enter the IPRC IP address (e.g., 10.1.1.50) in the CallAgentIP

field, as shown below.

NOTE: Programming the IPRC IP address in the .ini file provides a more reliable

Call Agent ID setting for the MP-104, when files are loaded via the TFTP server. If

not modified in the .ini file, this value is overwritten every time the MP-104 files are

reloaded during a reset, using the value in this file. If the .ini file is “read only” by

default, you may need to modify this characteristic to allow updating. To change the

attributes, right-click the file name in the Windows Explorer and open Properties.

Uncheck Read-only in the Attributes field and click OK.

• Enter the endpoint name in the EndpointName field and the gateway name in the

GateWayName field, if necessary. The default values are set to “ACgw” and

“MP104,” respectively. These values must match those in Axxess Database Pro-

gramming (under System\Devices and Feature Codes\Trunks) and in the Audio-

Codes Web administrator (see page 11).

Enter the endpoint name here.

Enter the IPRC IP address here.

Enter the gateway name here.

Page 6 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

9. Save and close the file as .ini file.

10. Double-click SETUP.EXE in the BootP folder to install the AudioCodes BootP/TFTP

Server application.

11. Double-click bootp.exe (under C:\Program Files\AudioCodes\BootP) to launch the

AudioCodes BootP/TFTP Server program. A reminder message about unpausing the

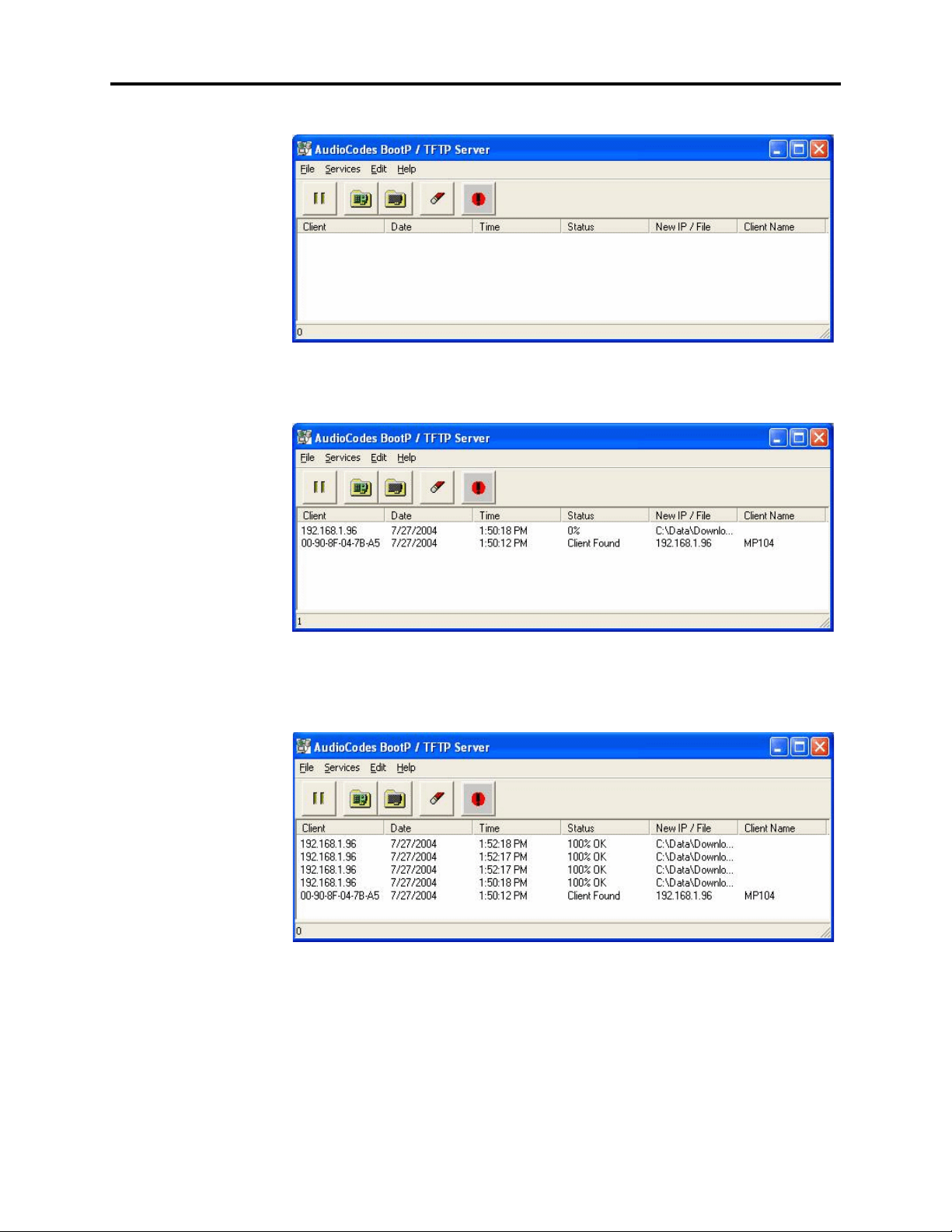

program after configuring appears. Click OK. The following screen appears.

NOTE: Ensure the AudioCodes BootP/TFTP Server application is the only BootP

server running. If another server is running at the same time, it may cause problems

with the download.

12. Select Preferences from the Edit menu. The following dialog box appears. Select (or

browse to) the directory path, where the four MP-104 configuration files and BootP

files are located, in the Directory text box.

Page 7 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

13. In the main BootP/TFTP Server screen, select Clients from the Services menu or click

the Edit Clients icon ( ). The following blank dialog appears. This Client Configura-

tion dialog allows the client (AudioCodes MP-104 gateway) to connect to the server

application for code and configuration updates.

14. Click the Add New Client icon ( ), and configure the settings as described below.

After configuring, the dialog should look like the one shown on the following page.

• Client MAC: Enter the MAC address, which can be found on the bottom of the

MP-104 device.

• Client Name: Enter the desired name (e.g., mp104).

• Temp lat e: Select <none>.

• IP: Obtain the IP address of the MP-104 from your network administrator, and

enter the value in this field.

• Subnet: Enter the subnet mask of the MP-104.

• Gateway: Obtain the default gateway IP address of the MP-104 from your network

administrator, and enter the value in this field.

• TFTP Server IP: Enter the IP address of the computer that the BootP/TFTP

Server application is running.

• Boot File: Select ramMP10X.cmp from the drop-down list. Then, add the -fb

switch after the file name (ramMP10X.cmp -fb). This switch automatically

burns the ram.cmp into the flash memory.

NOTE: If you do not add the -fb switch, the system will not burn the boot file into

the flash memory automatically.

• INI File: Select MP1XXFXO_usa/uk.ini from the drop-down list.

Add New Client Icon

Page 8 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

15. Highlight the desired client (if you have more than one client) in the list on the left.

Click OK.

NOTE: Make sure the Pause icon ( ) in the main screen is not pressed.

16. Reset the MP-104 by doing one of the following:

—ClickApply & Reset in the Client Configuration dialog.

— Click the RESET button ( ) on the main screen. When prompted, enter the IP

address of the MP-104 and click Reset and Close.

— Unplug the AC power cord from the back of the MP-104 and plug it in again.

— Press the RESTART button, shown on page 2, using a long pinhole tool (such as a

bent paper clip). You should hear a “click” when you press the button.

The green lamps of the LAN and Ready LEDs should change to yellow and return to

green. If the color of the lamps don’t change, try resetting the client by pressing

RESTART button using a long pinhole tool.

NOTE: If you have more than one AudioCodes MP-104 gateway, repeat steps 8

through 14. The endpoint name and gateway name in the .ini file for each gateway

must also be renamed accordingly.

Page 9 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

17. Click Apply. The following blank screen appears.

After a couple of minutes, the BootP status appears, as shown below. If the status does

not appear in the screen, try resetting the client by pressing RESTART button using a

long pinhole tool, and click Apply.

When complete, four files should have loaded and all four should show “100% OK.”

The green lamps on the LAN and Ready LEDs also light. If not, there is a problem with

the file location. Verify that the file location is accurate and reconfigure the Client Con-

figuration dialog, if necessary.

Follow the instructions on the following pages to launch the MP-104 Web administrator and

configure the application.

Page 10 of 19

AudioCodes™ MP-104 Gateway Quick Start Installation Guide

August 2004

Configuring the MP-104

Once the BootP Client is set up, configure the MP-104 in the AudioCodes Web administrator.

To configure the MP-104:

1. Open the Web browser and enter the IP address of your MP-104 gateway in the Address

field. Then, press ENTER. The following home page appears.

NOTE: The IP address can be found in the IP field in the Client Configuration dialog,

shown on page 7.

2. When the login dialog box appears, enter the username and password. The default user-

name and password are both Admin (case-sensitive). If you are unable to log on, verify

that the Client Configuration is set up correctly (see page 7).

3. The MP-104 has the following options:

• Quick Setup (see page 11)

• Protocol Management (see page 12)

• Advanced Configuration (see page 13)

• Status and Diagnostics (see page 17)

• Software Update (see page 18)

• Save Configuration (see page 18)

• Reset (see page 18)

To configure the settings, click any of the options and follow the instructions on the fol-

lowing pages.

NOTE: Make sure that the Call Agent IP address in the Advanced Configuration - Pro-

tocol Management page matches the IPRC IP address (see page 12).

Autres manuels pour MP-104

Table des matières

Autres manuels AudioCodes Porte

AudioCodes

AudioCodes Mediant 3100 Instructions de montage

AudioCodes

AudioCodes Media Pack MP-11x Manuel utilisateur

AudioCodes

AudioCodes MediaPack MP-124 Manuel utilisateur

AudioCodes

AudioCodes MediaPack Series Instructions de montage

AudioCodes

AudioCodes Mediant 500L MSBR Manuel utilisateur

AudioCodes

AudioCodes Mediant 1000 Manuel utilisateur

AudioCodes

AudioCodes Mediant 500 E-SBC Manuel utilisateur

AudioCodes

AudioCodes Mediant 1000B Manuel utilisateur

AudioCodes

AudioCodes Media Pack MP-11x Instructions de montage

AudioCodes

AudioCodes Mediant 600 Manuel utilisateur

AudioCodes

AudioCodes MediaPack 114 Manuel utilisateur

AudioCodes

AudioCodes Media Pack MP-124 Manuel utilisateur

AudioCodes

AudioCodes Mediant 2000 Manuel utilisateur

AudioCodes

AudioCodes MediaPack MP-124 Manuel utilisateur

AudioCodes

AudioCodes Mediant 8000 Manuel d'instructions

AudioCodes

AudioCodes E-SBC Manuel utilisateur

AudioCodes

AudioCodes MediaPack MP-124 Manuel utilisateur

AudioCodes

AudioCodes Mediant 600 Instructions de montage

AudioCodes

AudioCodes MP-11 Manuel utilisateur

AudioCodes

AudioCodes Mediant 800B Manuel utilisateur

AudioCodes

AudioCodes MediaPack MP-402 Manuel utilisateur

AudioCodes

AudioCodes Mediant 1000B Manuel utilisateur

AudioCodes

AudioCodes MediaPack MP-262-DB Manuel utilisateur

AudioCodes

AudioCodes M500L Instructions de montage

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
