Asus RT-AC66U Manuel utilisateur

K7417 / First Edition / July 2014

RT-AC66U Dual Band

3x3 802.11AC Gigabit Router

Quick Start Guide

apac7417_rt-ac66u_qsg_korean_added.indb 1 2014/8/4 15:06:08

NOTE /

注意

/ 注意 / 참고/CATATAN / หมายเหต

• For more details, refer to the user manual included

in the support CD.

• 更多資訊，請參考驅動程式與公用程式光碟中的使用手

冊。

• 更多信息，請參考驅動程序與應用程序光盤中的

用戶手冊。

• 보다 자세한 내용은 동봉된 CD 에 담긴 사용자 매뉴얼을

참조하십시오

• Untuk rincian lebih lanjut, lihat panduan pengguna

yang disertakan dalam CD dukungan.

• สำ�หรับร�ยละเอียดเพิ่มเติม

ให้ดูคู่มือผู้ใช้ที่ให้ม�ในแผ่น CD สนับสนุน

Table of contents

English.............................................................................................3

繁體中文 ........................................................................................16

簡體中文 ........................................................................................29

한국어.............................................................................................42

Bahasa Indonesia.........................................................................55

ไทย

..................................................................................................68

apac7417_rt-ac66u_qsg_korean_added.indb 2 2014/8/4 15:06:09

English

Package contents

RT-AC66U AC adapter

Network cable Quick Start Guide

Support CD (User Manual/utilities) Warranty card

Stand

A quick look

1) Power LED 5) 5GHz LED 9) USB 2.0 ports

2) LAN LED 6) USB 2.0 LED 10) Reset button

3) WAN LED 7) Power (DC-IN) port 11) Internet & LAN ports

4) 2.4GHz LED 8) Power switch 12) WPS button

NOTE: If any of the items is damaged or missing, contact your retailer.

7 9 10 12

1 2 3

apac7417_rt-ac66u_qsg_korean_added.indb 3 2014/8/4 15:06:09

English

NOTES:

• USB External HDD/Flash disk:

• The wireless router works with most USB HDDs/Flash disks up to

2TB and supports read-write access for FAT16, FAT32, EXT2, EXT3,

and NTFS.

• To safely remove the USB disk, launch the web GUI

(http://192.168.1.1), then in the Network Map page's upper right

corner, click the USB icon and click Eject USB 1.

• Incorrect removal of the USB disk may cause data corruption.

• For the list of le system and hard disk partitions that the

wireless router supports, visit http://event.asus.com/networks/

disksupport

• For the list of printers that the wireless router supports, visit

http://event.asus.com/networks/printersupport

apac7417_rt-ac66u_qsg_korean_added.indb 4 2014/8/4 15:06:09

English

Positioning your wireless router

For the best wireless signal transmission between the wireless router and the

network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage

for the network devices.

• Keep the device away from metal obstructions and away from direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz

computer peripherals, Bluetooth devices, cordless phones, transformers,

heavy-duty motors, uorescent lights, microwave ovens, refrigerators, and other

industrial equipment to prevent signal interference or loss.

• To ensure the best wireless signal, orient the three detachable antennas as

shown in the drawing below.

• For optimum performance, adjust the internal cooling system. Refer to the user

manual for details.

• Always update to the latest rmware. Visit the ASUS website at

http://www.asus.com to get the latest rmware updates.

450

900

apac7417_rt-ac66u_qsg_korean_added.indb 5 2014/8/4 15:06:09

English

Mounting to the stand

• Align and insert the stand’s mounting hooks

to the wireless router’s mounting holes.

Before you proceed

1. Unplug and disconnect the wires/cables from your existing modem setup

and release your computer’s outmoded IP address.

a: Unplug the AC adapter from the power outlet and disconnect it from your

cable/ADSL modem.

b: Disconnect the network cable from your cable/ADSL modem.

c: Reboot your computer (recommended).

Modem

OFF!

apac7417_rt-ac66u_qsg_korean_added.indb 6 2014/8/4 15:06:10

English

WARNING! Before disconnecting the wires/cables, ensure that your

cable/ADSL modem has been turned o for at least two minutes. If your

modem has a backup battery, remove it as well.

2. Set up your wireless environment.

a: Insert your wireless router’s AC adapter to the DC-IN port and plug it to a

power outlet.

b: Using the bundled network cable, connect your computer to your wireless

router’s LAN port.

IMPORTANT! Ensure that the WAN and LAN LEDs are blinking.

c: Using another network cable, connect your modem to your wireless router’s

WAN port.

d: Insert your modem’s AC adapter to the DC-IN port and plug it to a power

outlet.

RT-AC66U

Computer

Modem

LAN

Power

Wall Power Outlet

Power

WAN

apac7417_rt-ac66u_qsg_korean_added.indb 7 2014/8/4 15:06:10

English

3. Disable some settings on your computer.

A. Disable the proxy server, if enabled.

B. Set the TCP/IP settings to automatically obtain an IP address.

C. Disable the dial-up connection, if enabled.

NOTE: For more details on disabling your computer settings, refer to

Frequently Asked Questions (FAQs).

1. Congure your wireless settings via the wireless router’s web graphics

user interface (web GUI).

a: Launch your web browser such as Internet Explorer, Firefox, Google Chrome,

or Safari.

Getting started

apac7417_rt-ac66u_qsg_korean_added.indb 8 2014/8/4 15:06:10

English

NOTE: If QIS does not launch automatically, follow these steps to

manually launch QIS:

• On your web browser, key in http://192.168.1.1 and run the Quick

Internet Setup (QIS) Wizard again.

• Disable the proxy settings, dial-up connection, and set your TCP/IP

settings to automatically obtain an IP address. For more details, refer

to the FAQs section or use the Setup Wizard in the support CD for

auto-diagnosis.

b: The wireless router’s Quick Internet Setup (QIS) feature automatically detects

if your ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP.

Key in the necessary information for your connection type.

IMPORTANT! Obtain the necessary information about your Internet

connection type from your Internet Service Provider (ISP).

NOTE: The auto-detection of your ISP connection type takes place

when you congure the wireless router for the rst time or when your

wireless router is reset to its default settings.

NOTE: You can assign a network name with up to 32 characters.

c: Assign the network name (SSID)

and security key for your 2.4GHz

and 5GHz wireless connection. Click

Apply when done.

d: Your Internet and wireless settings

are displayed. Click Next to contin-

ue.

e: Read the wireless network con-

nection tutorial. When done, click

Finish.

apac7417_rt-ac66u_qsg_korean_added.indb 9 2014/8/4 15:06:10

English

Frequently Asked Questions (FAQs)

After following the steps, I still cannot access the wireless router’s web

graphics user interface (web GUI) to congure the wireless router settings.

A. Disable the proxy server, if enabled.

Windows® 7

1. Click Start > Internet Explorer to launch the web

browser.

2. Click Tools > Internet options > Connections tab

> LAN settings.

3. From the Local Area Network (LAN) Settings

screen, untick Use a proxy server for your

LAN.

4. Click OK when done.

apac7417_rt-ac66u_qsg_korean_added.indb 10 2014/8/4 15:06:11

Autres manuels pour RT-AC66U

Table des matières

Autres manuels Asus Routeur réseau

Asus

Asus RT-AX56U Manuel utilisateur

Asus

Asus RT-AC88U Manuel utilisateur

Asus

Asus RT-AX92U Manuel utilisateur

Asus

Asus RT-AC2600 Manuel utilisateur

Asus

Asus DSL-AC88U Manuel utilisateur

Asus

Asus RT-G32 - Wireless Router Manuel utilisateur

Asus

Asus AAM6000EV Manuel

Asus

Asus SuperSpeed N RT-N13 Manuel utilisateur

Asus

Asus RT-AC750L Manuel d'instructions

Asus

Asus DSL-N11 Manuel utilisateur

Asus

Asus BLUE CAVE Manuel utilisateur

Asus

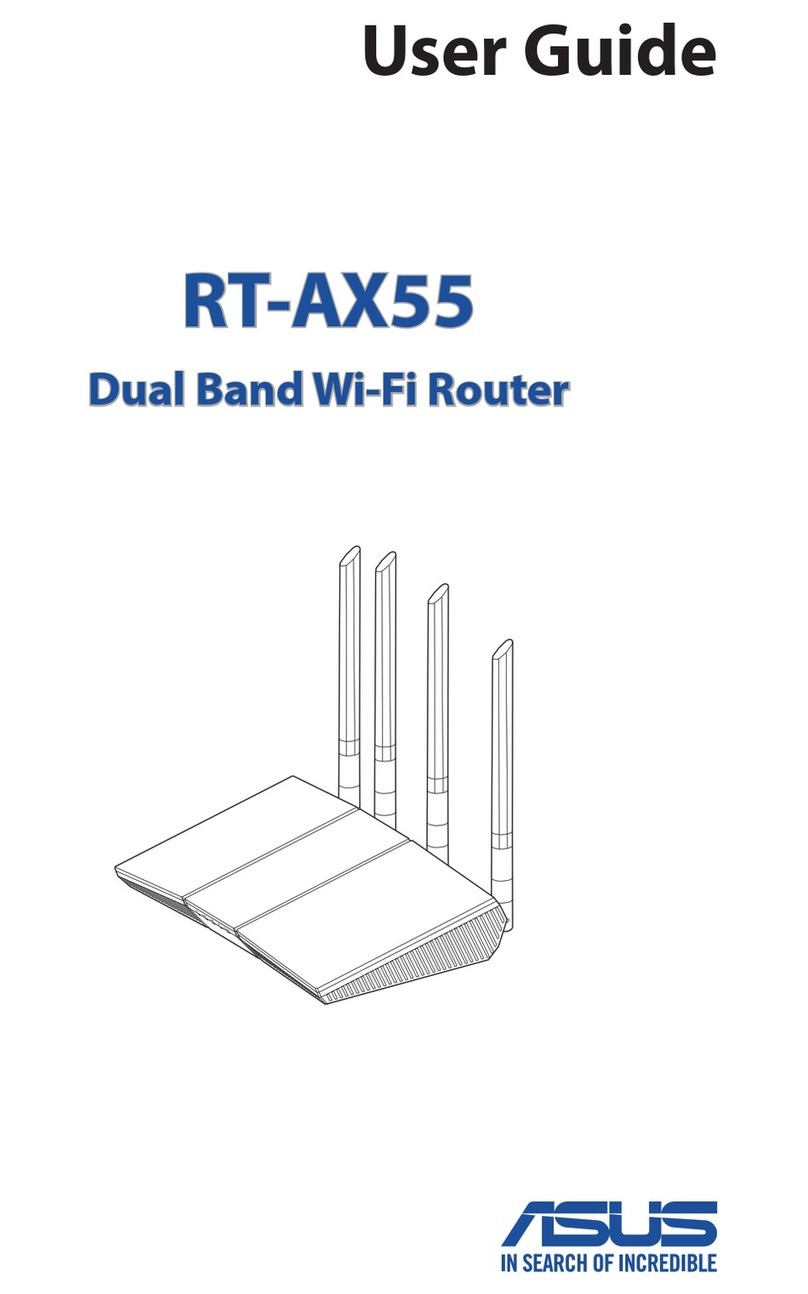

Asus RT-AX55 Manuel utilisateur
