User Guide

No part of this manual, including the products and software described

in it, may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the express

written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired,

modiﬁed or altered, unless such repair, modiﬁcation of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,

EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,

OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS

AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR

PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE

FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE

AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A

COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY

FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used

only for identiﬁcation or explanation and to the owners’ beneﬁt, without intent

to infringe.

E7658

First Edition

August 2012

Table of contents

1 A quick look

Package contents ........................................................................................ 5

Your wireless router .................................................................................... 5

2 Creating your network

Positioning your router.............................................................................. 8

What you need ............................................................................................. 9

Setting up your wireless router ............................................................10

Wired connection...............................................................................10

Wireless connection ..........................................................................11

Mounting to the stand.............................................................................12

Before you proceed...................................................................................13

A. Disable the proxy server, if enabled...................................13

B. Set the TCP/IP settings to automatically obtain

an IP address. .............................................................................14

C. Disable the dial-up connection, if enabled.....................16

3 ConguringviathewebGUI

Logging into the web GUI ......................................................................17

Setting up the Internet connection ....................................................18

Quick Internet Setup (QIS) with auto-detection .....................18

Setting up the wireless security settings ..........................................22

Managing your network clients ...........................................................24

Monitoring your USB device..................................................................25

Creating your Guest Network ...............................................................27

Using the Trac Manager.......................................................................28

Managing QoS (Quality of Service) Bandwidth.......................28

Monitoring Trac ..............................................................................29

Using the USB Extension ........................................................................29

Using AiDisk for Files Sharing ........................................................30

Table of contents

Using the Servers Center service ..................................................33

Using the Network Place (Samba) Share service ....................34

Using the FTP Share service............................................................35

Using the Miscellaneous setting...................................................37

Conguring the Advanced settings....................................................38

Setting up the DHCP Server ...........................................................38

Upgrading the rmware ..................................................................40

Restoring/Saving/Uploading settings ........................................41

Setting up your network printer ..........................................................42

4 Usingtheutilities

Device Discovery .......................................................................................46

Firmware Restoration...............................................................................47

5 Troubleshooting

Troubleshooting ........................................................................................49

ASUS DDNS Service ..................................................................................52

Frequently Asked Questions (FAQs) ............................................52

Appendices

Notices...........................................................................................................54

ASUS Contact information .....................................................................67

Networks Global Hotline Information................................................68

1 A quick look

Package contents

NOTES:

• If any of the items is damaged or missing, contact ASUS for

technical inquiries and support, Refer to the ASUS Support

Hotline list at the back of this user manual.

• Keep the original packaging material in case you would need

future warranty services such as repair or replacement.

RT-N66R Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

Support CD (Manual, utility software) Warranty card

Stand

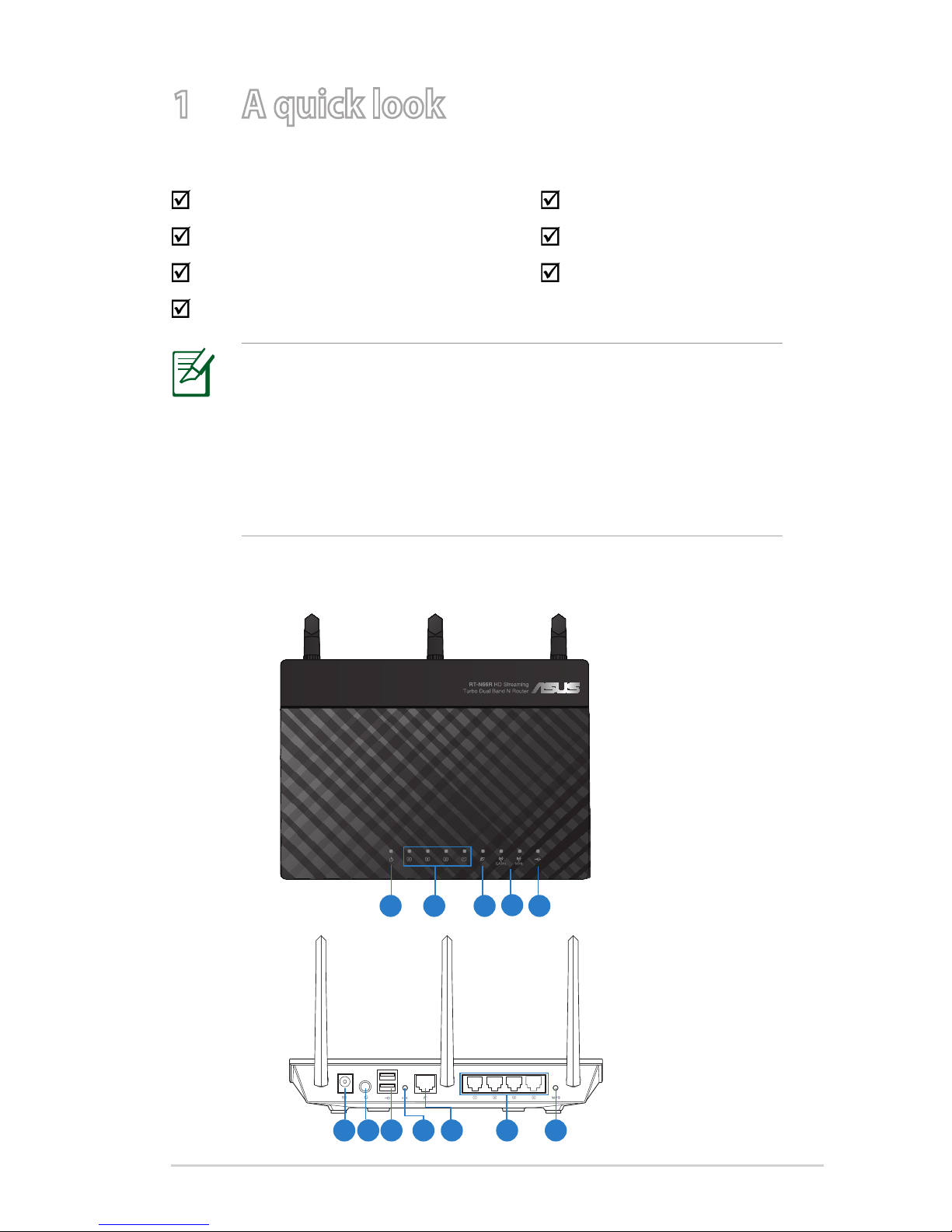

Your wireless router

51 2 3 4

6 87 10 12119

1Power LED

Off: No power.

On: Device is ready.

Flashing slow: Rescue mode

Flashing quick:WPS is processing.

2LAN LED

Off: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

3WAN LED

Off: No power or no physical connection.

On: Has physical connection to a wide area network (WAN).

42.4GHz LED / 5GHz LED

Off: No 2.4GHz or 5GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

5USB LED

Off: No power or no physical connection.

On: Has physical connection to USB devices.

6Power (DC-In) port

Insert the bundled AC adapter into this port and connect your router to a power source.

7Power button

Press this button to power on or off the stystem.

8USB 2.0 ports

Insert USB 2.0 devices such as USB hard disks or USB ﬂash drives into these ports.

Insert your iPad’s USB cable into one of these ports to charge your iPad.

9Reset button

This button resets or restores the system to its factory default settings.

10 WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

11 LAN 1 ~ 4 ports

Connect network cables into these ports to establish LAN connection.

12 WPS button

This button launches the WPS Wizard.

On Off

NOTES:

• Use only the adapter that came with your package. Using

other adapters may damage the device.

• Speciﬁcations:

DC Power adapter DC Input: +19V with max 1.58A current;

+12V with max 2A current

Operating

Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

2 Creating your network

Positioning your router

For the best wireless signal transmission between the wireless

router and the network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the device away from metal obstructions and away from

direct sunlight.

• Keep the device away from 802.11g or 20MHz only Wi-Fi

devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, ﬂuorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Always update to the latest ﬁrmware.Visit the ASUS website at

http://www.asus.com to get the latest ﬁrmware updates.

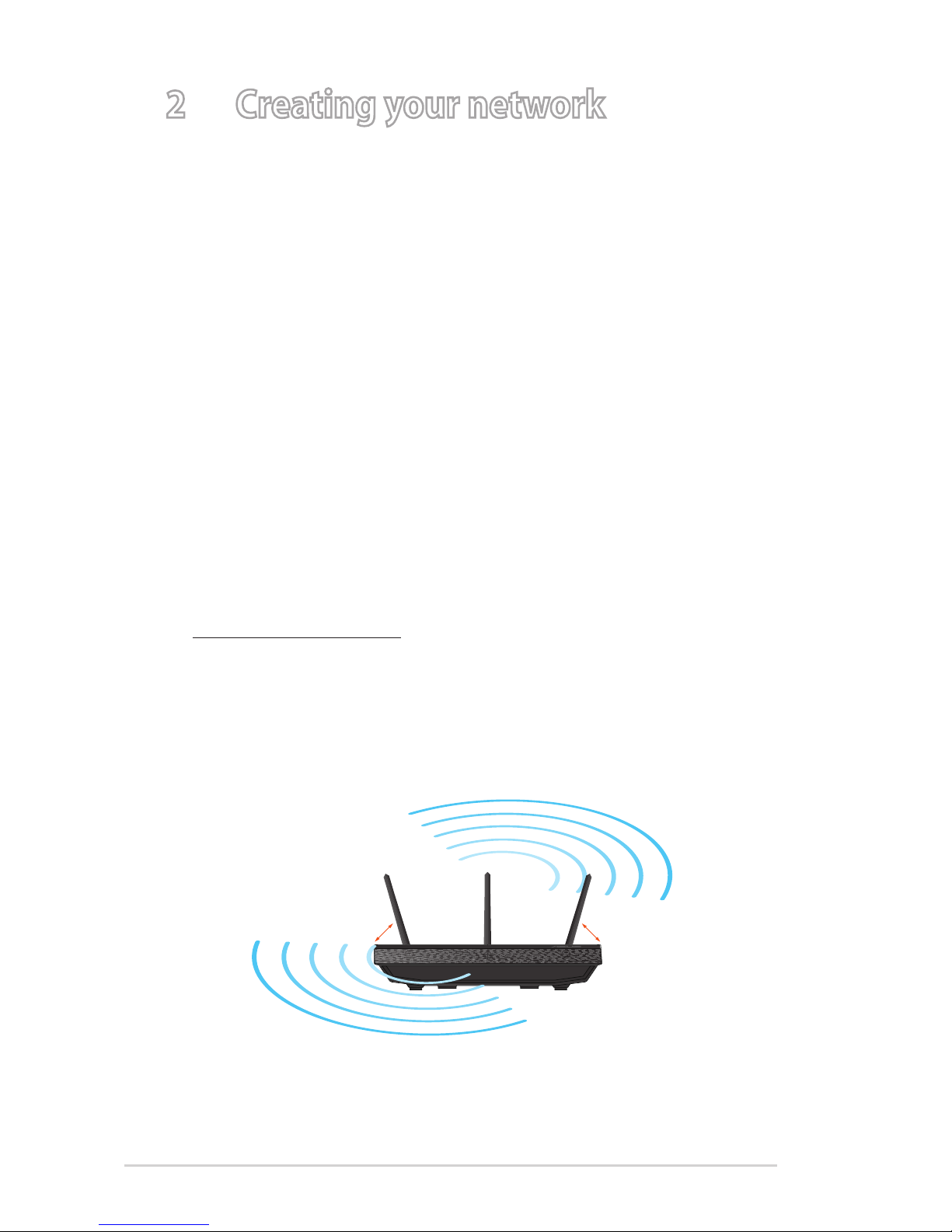

• To ensure the best wireless signal, orient the three detachable

antennas as shown in the drawing below.

• For optimum performance, please switch on the cooling

system.

45°45°

90°

What you need

To set up your network, you need one or two computers that meet

the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/

1000BaseTX)

• IEEE 802.11a/b/g/n wireless capability

• An installed TCP/IP service

• Web browser such as Internet Explorer, Firefox, Safari, or

Google Chrome

NOTES:

• If your computer does not have built-in wireless capabilities,

you may install an IEEE 802.11a/b/g/n WLAN adapter to your

computer to connect to the network.

• With its dual band technology, your wireless router supports

2.4GHz and 5GHz wireless signals simultaneously.This allows

you to do Internet-related activities such as Internet surﬁng or

reading/writing e-mail messages using the 2.4GHz band while

simultaneously streaming high-deﬁnition audio/video ﬁles

such as movies or music using the 5GHz band.

• If you are using only one computer with single band

IEEE 802.11b/g/n WLAN adapter, you will only be able to use

the 2.4GHz band.

• If you are using only one computer with dual band

IEEE 802.11a/b/g/n WLAN adapter, you will be able to use the

2.4GHz or 5GHz band.

• If you are using two computers with both

IEEE 802.11a/b/g/n WLAN adapters, you will be able to use

both 2.4GHz and 5GHz bands simultaneously.

• The Ethernet RJ-45 cables that will be used to connect the

network devices should not exceed 100 meters.

Setting up your wireless router

Wired connection

IMPORTANT!

• Use wired connection in setting up your wireless router to

avoid possible setup problems due to wireless uncertainty.

• Before setting up your ASUS wireless router, do the following:

• If you are replacing an existing router, disconnect it from

your network.

• Disconnect the cables/wires from your existing modem

setup. If your modem has a backup battery, remove it as

well.

• Reboot your computer (recommended).

NOTE: Your wireless router has an integrated auto-crossover

function, so use either straight-through or crossover cable for

wired connection.

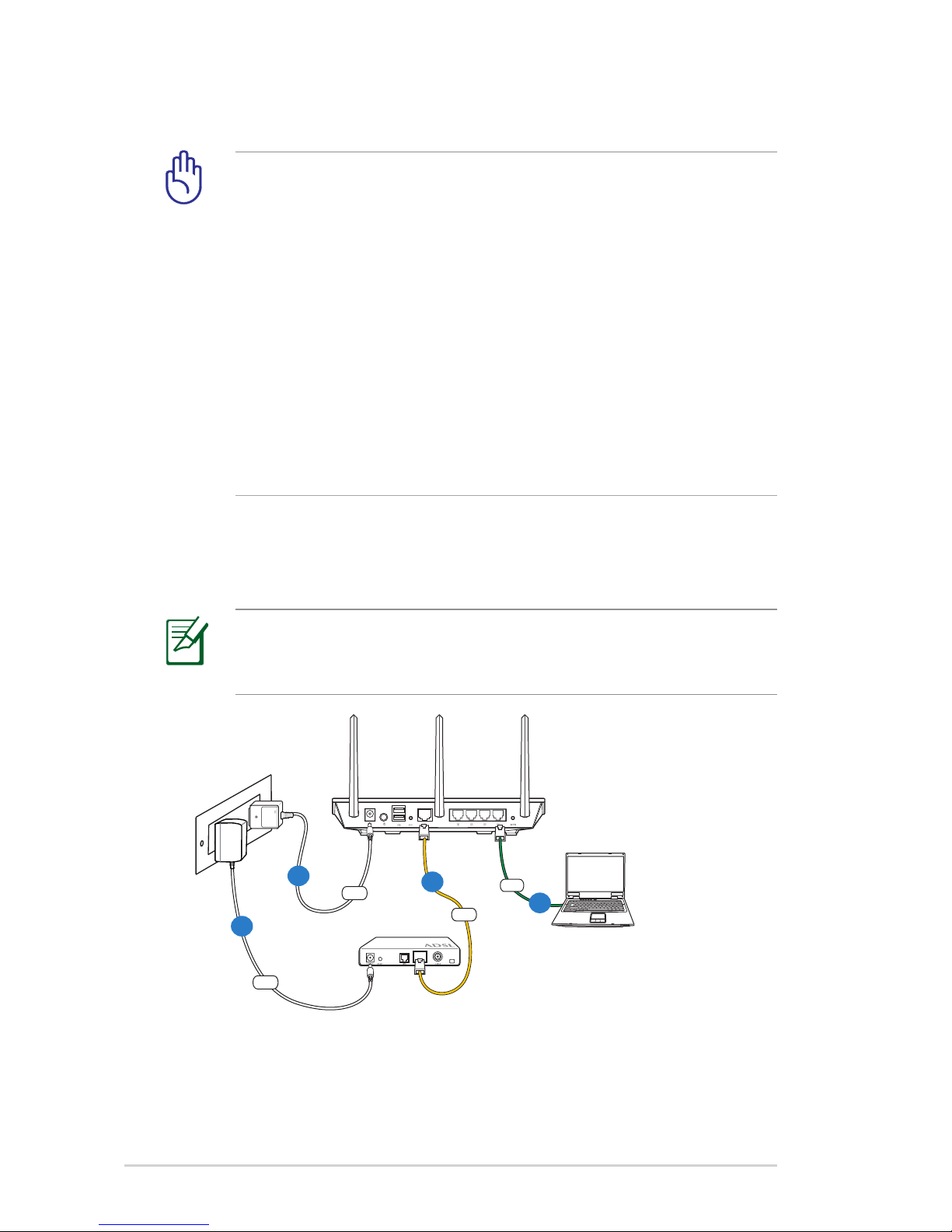

RT-N66R

Computer

Modem

LAN

Power

Wall Power Outlet

Power

WAN

To set up your wireless router via wired connection:

1. Insert your wireless router’s AC adapter to the DC-In port and

plug it to a power outlet.

Autres manuels pour RT-N66R Dark Knight

Table des matières

Autres manuels Asus Routeur réseau

Asus

Asus WL-500W SuperSpeed N Manuel utilisateur

Asus

Asus ROG Rapture GT-AC5300 Manuel utilisateur

Asus

Asus RT-AC66U Manuel utilisateur

Asus

Asus DSL-N10S Manuel utilisateur

Asus

Asus DSL-N16 Manuel utilisateur

Asus

Asus RX3041H Manuel utilisateur

Asus

Asus DSL-AC68VG Manuel utilisateur

Asus

Asus 4G-N12 B1 Manuel utilisateur

Asus

Asus RTN10UB Manuel utilisateur

Asus

Asus ROG Rapture GT-AC2900 Manuel utilisateur

Asus

Asus RT-AC2600 Manuel utilisateur

Asus

Asus ZenWiFi Pro ET12 Manuel utilisateur

Asus

Asus RT-AC3100 Manuel utilisateur

Asus

Asus RT-AC66U Manuel utilisateur

Asus

Asus RT-AC1300G PLUS Manuel utilisateur

Asus

Asus RT-AC1300G PLUS Manuel utilisateur

Asus

Asus RT-N10LX Manuel utilisateur

Asus

Asus 90IG0401-BU9000 Manuel utilisateur

Asus

Asus Republic of Gamers Rapture GT-AX11000 Manuel utilisateur

Asus

Asus WL-500gP V2 Manuel utilisateur

Asus

Asus RT-AC66U Feuille d'instructions

Asus

Asus ROG Rapture GT-AXE11000 Manuel utilisateur

Asus

Asus RT-N14UHP Manuel utilisateur

Asus

Asus DSL-AC88U Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
