1.1 Welcome!

Thank you for purchasing an ASUS RT-AX86S Wireless Router!

The strikingly designed black chassis with gaming-inspired red

accents, RT-AX86S features a 2.4GHz and 5GHz dual bands for

an unmatched concurrent wireless HD streaming; SMB server,

UPnP AV server, and FTP server for 24/7 le sharing; a capability

to handle 300,000 sessions; and the ASUS Green Network

Technology, which provides up to 70% power-saving solution.

1.2 Package contents

RT-AX86S Wireless Router Network cable (RJ-45)

Power adapter Quick Start Guide

Warranty card

NOTES:

• If any of the items are damaged or missing, contact ASUS for

technical inquiries and support. Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keep the original packaging material in case you would need future

warranty services such as repair or replacement.

1.3 Your wireless router

WPS LED

O:WPS is not processing.

On:WPS is processing.

LAN 1~4 LEDs

O: No power or no physical connection.

On: Has physical connection to a local area network (LAN).

WAN (Internet) LED

Red: No IP or no physical connection.

On: Has physical connection to a wide area network (WAN).

USB LED

O: No power or no physical connection.

On: Has physical connection to USB devices.

2.4GHz LED

O: No 2.4GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

5GHz LED

O: No 5GHz signal.

On:Wireless system is ready.

Flashing:Transmitting or receiving data via wireless connection.

Power LED

O: No power.

On: Device is ready.

Flashing slow: Rescue mode.

LED On/O button

This button turns on/off the LED indicators.

Power (DCIN) port

Insert the bundled AC adapter into this port and connect your router to a power source.

Power switch

Press this button to power on or off the system.

Reset button

This button resets or restores the system to its factory default settings.

USB 2.0 port

Insert a USB 2.0 device such as a USB hard disk or a USB ﬂash drive into this port.

Insert your iPad’s USB cable into this port to charge your iPad.

USB 3.0 port

Insert a USB 3.0 device such as a USB hard disk or a USB ﬂash drive into this port.

Insert your iPad’s USB cable into this port to charge your iPad.

WAN (Internet) port

Connect a network cable into this port to establish WAN connection.

LAN 1~4 ports

Connect network cables into these ports to establish LAN connection.

WPS button

This button launches the WPS Wizard.

NOTES:

• Use only the adapter that came with your package. Using other

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +12V with 3A current

+19.5V with 2.31A current

Operating Temperature 0~40oCStorage 0~70oC

Operating Humidity 50~90% Storage 20~90%

1.4 Positioning your wireless router

For optimal wireless transmission between the wireless router and

connected wireless devices, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the wireless router away from metal obstructions and

away from direct sunlight.

• Keep the wireless router away from 802.11g or 20MHz only

Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, ﬂuorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Always update to the latest ﬁrmware.Visit the ASUS website at

http://www.asus.com to get the latest ﬁrmware updates.

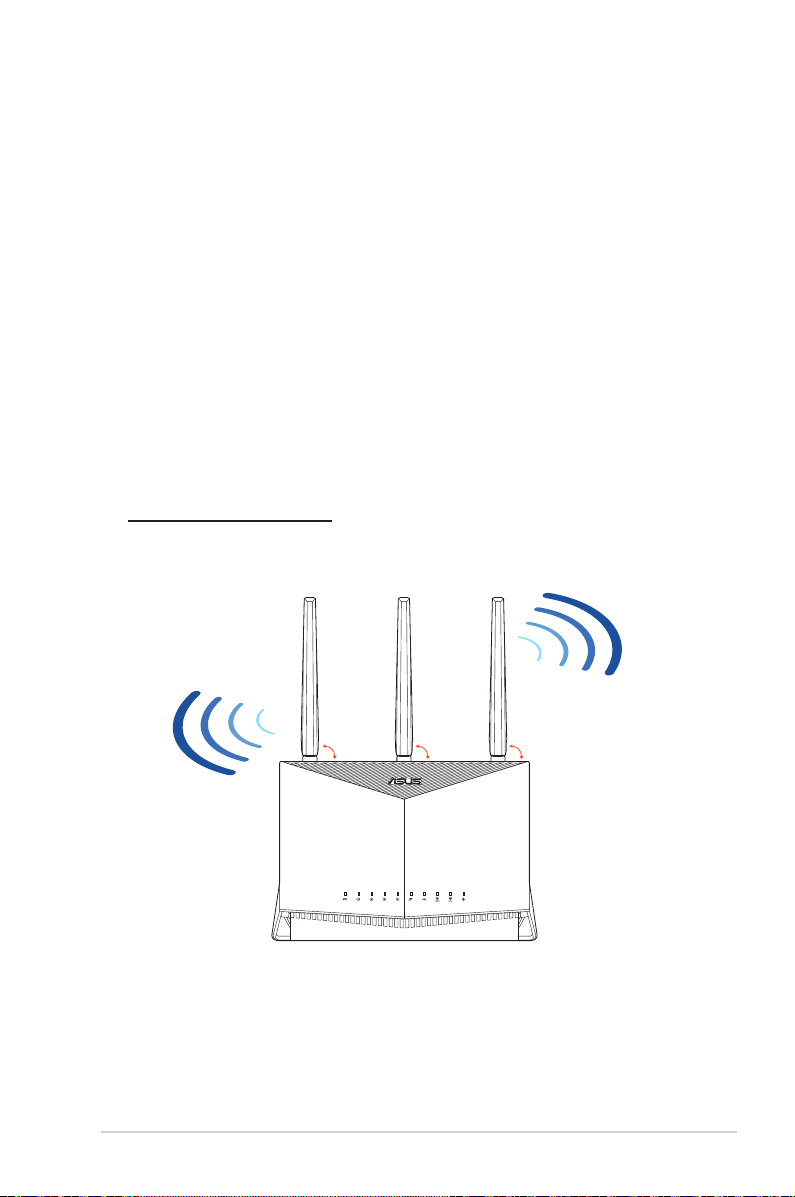

• Orient the antennas as shown in the drawing below.

90°90 °90 °

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-

TX/1000BaseTX)

• IEEE 802.11a/b/g/n/ac/ax wireless capability

• An installed TCP/IP service

• Web browser such as Internet Explorer, Firefox, Safari, or

Google Chrome

NOTES:

• If your computer does not have built-in wireless capabilities, you may

install an IEEE 802.11a/b/g/n/ac/ax WLAN adapter to your computer

to connect to the network.

• With its dual band technology, your wireless router supports 2.4GHz

and 5GHz wireless signals simultaneously. This allows you to do

Internet-related activities such as Internet surng or reading/writing

e-mail messages using the 2.4GHz band while simultaneously

streaming high-denition audio/video les such as movies or music

using the 5GHz band.

• Some IEEE 802.11n devices that you want to connect to your network

may or may not support 5GHz band. Refer to the device's manual for

specications.

• The Ethernet RJ-45 cables that will be used to connect the network

devices should not exceed 100 meters.

IMPORTANT!

• Some wireless adapters might have connectivity issues to 802.11ax

WiFi APs.

• If you’re experiencing such issue, please ensure you update the driver

to the latest version. Check your manufacturer's ocial support site

where software drivers, updates, and other related information can

be obtained.

• Realtek: https://www.realtek.com/en/downloads

• Mediatek:https://www.mediatek.com/products/connectivity-

and-networking/broadband-wi

• Intel: https://downloadcenter.intel.com/

Autres manuels pour RT-AX86S

Table des matières

Autres manuels Asus Routeur réseau

Asus

Asus RT-G32 - Wireless Router Manuel utilisateur

Asus

Asus AM602 Manuel utilisateur

Asus

Asus RX3081 Manuel utilisateur

Asus

Asus RT-AC1900P Manuel utilisateur

Asus

Asus RT-AC85U Manuel utilisateur

Asus

Asus WL-AM604 Manuel utilisateur

Asus

Asus ZenWiFi XD5 Manuel utilisateur

Asus

Asus RT-N19 Manuel utilisateur

Asus

Asus RT-AC51U Feuille d'instructions

Asus

Asus DSL-N11 Manuel utilisateur

Asus

Asus DSL-N14U B1 Manuel utilisateur

Asus

Asus RT-AC66U B1 Manuel utilisateur

Asus

Asus 4G-AC68U Manuel utilisateur

Asus

Asus RT-AC1900P Manuel utilisateur

Asus

Asus ZenWiFi Pro AX11000 Manuel utilisateur

Asus

Asus INET-810 Manuel utilisateur

Asus

Asus DSL-AC87VG Manuel utilisateur

Asus

Asus DSL-N11 Manuel utilisateur

Asus

Asus RT-AC66U Manuel utilisateur

Asus

Asus RT-N56U Manuel utilisateur

Asus

Asus RT-AC58U Manuel utilisateur

Asus

Asus AiMesh-AC1900 Manuel utilisateur

Asus

Asus RT-N10U Instructions d'utilisation et d'entretien

Asus

Asus RT-N300 B1 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
