ASROCK X99 WS Manuel utilisateur

Version 1.0

Published August 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

English

X99 WS

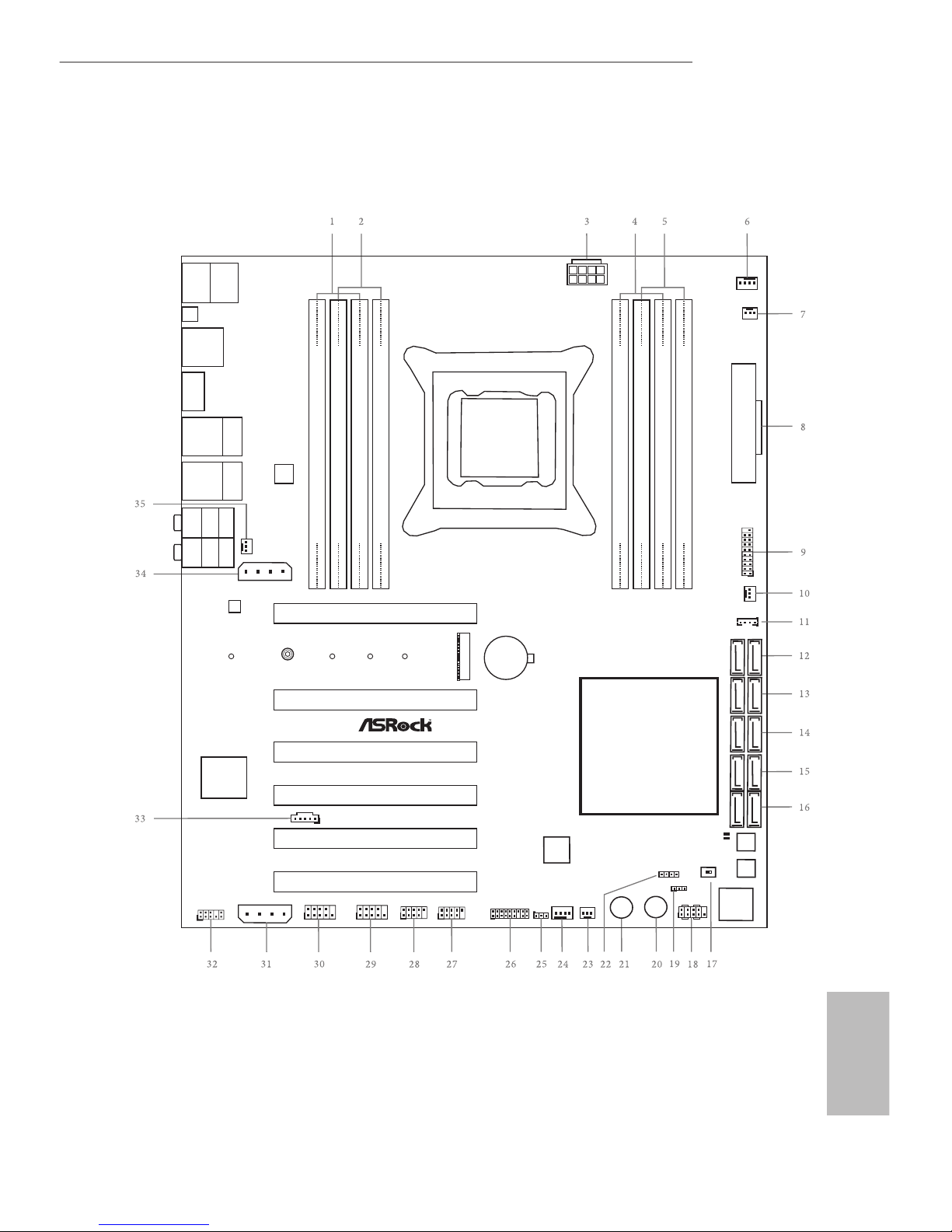

Motherboard Layout

Intel

X99

ATX12V1

Super

I/O

ATXPWR1

USB3_5_6

LAN

PCIE1

PLED1

SPE AK ER1

HDL ED RE SET

PLE D PWR BTN

PANE L1

USB5_ 6

USB7_ 8

COM1

HD_AUDIO1

X99 WS

S_SATA3 _2 _3

SATA3 _4 _5

SATA3 _2 _3

SATA3 _0 _1

CHA_FAN1

CPU_FAN1

CPU_FA N2

PWR_FAN1

RoHS

S_SATA3 _0 _1

DDR4_A2 (64 bit, 284-pin module)

DDR4_A1 (64 bit, 284-pin module)

DDR4_B2 (64 bit, 284-pin module)

DDR4_B1 (64 bit, 284-pin module)

Purity

Sound 2

Ul tra M. 2

PC Ie Gen 3 x4

128Mb

BIOS

BIOS_B

128Mb

BIOS

BIOS_A

BIO S_A_ LED

TPMS1

CMOS

Battery

CLRMO S1

M2_1

CT2CT3CT4CT5

TBT 1

CHA_FAN2

CHA_FAN3

PCIE_PWR1

SATA_P WR_1

CT1

2011-3 Socket

DDR4_D1 (64 bit, 284-pin module)

DDR4_D2 (64 bit, 284-pin module)

DDR4_C1 (64 bit, 284-pin module)

DDR4_C2 (64 bit, 284-pin module)

LAN

BIO S_B_ LED

PCIE_PWR2

Dr.

Debug

Power

Reset

BIOS_ SE L1

A B

COM2

PCIE2

PCIE3

PCIE4

PCIE5

PCIE6

Top:

Central/Bass

Center :

REAR SPK

Top:

LINE IN

Center :

FRONT

Bottom :

Optica l

SPDIF

Bottom :

MIC IN

CLRC

BTN1

eSATA1

Top:

RJ-45

USB 3.0

T: USB1

B: USB2

USB 2.0

T: USB3

B: USB4

USB 2.0

T: USB1

B: USB2

PS2

Keyboard

/Mous e

Top:

RJ-45

USB 3.0

T: USB3

B: USB4

English

No. Description

1 2 x 284-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

2 2 x 284-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

3 ATX 12V Power Connector (ATX12V1)

4 2 x 284-pin DDR4 DIMM Slots (DDR4_D2, DDR4_C2)

5 2 x 284-pin DDR4 DIMM Slots (DDR4_D1, DDR4_C1)

6 CPU Fan Connector (CPU_FAN1)

7 CPU Fan Connector (CPU_FAN2)

8 ATX Power Connector (ATXPWR1)

9 USB 3.0 Header (USB3_5_6)

10 Chassis Fan Connector (CHA_FAN3)

11 HDD Saver Connector (SATA_PWR_1)

12 SATA3 Connectors (S_SATA3_0_1)

13 SATA3 Connectors (S_SATA3_2_3)

14 SATA3 Connectors (SATA3_4_5)

15 SATA3 Connectors (SATA3_2_3)

16 SATA3 Connectors (SATA3_0_1)

17 BIOS Selection Switch (BIOS_SEL1)

18 System Panel Header (PANEL1)

19 Power LED Header (PLED1)

20 Power Switch (PWRBTN1)

21 Reset Switch (RSTBTN1)

22 Chassis Speaker Header (SPEAKER1)

23 Chassis Fan Connector (CHA_FAN2)

24 Chassis Fan Connector (CHA_FAN1)

25 Clear CMOS Jumper (CLRCMOS1)

26 TPM Header (TPMS1)

27 USB 2.0 Header (USB7_8)

28 USB 2.0 Header (USB5_6)

29 COM Port Header (COM2)

30 COM Port Header (COM1)

31 PCIe Power Connector (PCIE_PWR2)

32 Front Panel Audio Header (HD_AUDIO1)

33 underbolt AIC Connector (TBT1)

English

X99 WS

No. Description

34 PCIe Power Connector (PCIE_PWR1)

35 Power Fan Connector (PWR_FAN1)

English

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB12) 9 Optical SPDIF Out Port

2 LAN RJ-45 Port (Intel® I210AT)* 10 USB 3.0 Ports (USB3_34)

3 LAN RJ-45 Port (Intel® I217LM)* 11 USB 3.0 Ports (USB3_12)

4 Central / Bass (Orange) 12 eSATA Connector***

5 Rear Speaker (Black) 13 USB 2.0 Ports (USB_34)

6 Line In (Light Blue) 14 Clear CMOS Switch

7 Front Speaker (Lime)** 15 PS/2 Mouse/Keyboard Port

8 Microphone (Pink)

15 891011121314

2 3 5

English

X99 WS

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

Line In

(No. 6)

2V -- -- --

4V V -- --

6V V V --

8V V V V

*** e eSATA connector supports SATA with cables within 1 meters. e S_SATA3_3 connector is

shared with the eSATA port.

To enable Multi-Streaming, you need to connect a front panel audio cable to the

front panel audio header. Aer restarting your computer, you will nd the “Mixer”

tool on your system. Please select “Mixer ToolBox” , click “Enable playback

multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then

you are allowed to select “Realtek HDA Primary output” to use the Rear Speaker,

Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use

the front panel audio.

ACT/LINK LED

SPEED LED

LAN Port

English

Chapter 1 Introduction

ank you for purchasing ASRock X99 WS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock X99 WS Motherboard (EATX Form Factor)

• ASRock X99 WS Quick Installation Guide

• ASRock X99 WS Support CD

• 1 x I/O Panel Shield

• 2 x ASRock SLI_Bridge Cards

• 1 x ASRock SLI_Bridge_3S Card

• 1 x ASRock 3-Way SLI Bridge Card

• 4 x Serial ATA (SATA) Data Cables (Optional)

• 1 x HDD Saver Cable

• 1 x Screw for Ultra M.2 Socket

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

X99 WS

1.2 Specications

Platform • EATX Form Factor

• 2oz Copper PCB

• High Density Glass Fabric PCB

CPU • Supports Intel® CoreTM i7 and Xeon® E5-1600/2600 v3

Processor Family for the LGA 2011-3 Socket, up to 18 Cores

and 160W

• Digi Power design

• 12 Power Phase design

• Supports Intel® Turbo Boost 2.0 Technology

• Supports Untied Overclocking Technology

Chipset • Intel® X99

Memory • Quad Channel DDR4 Memory Technology

• 8 x DDR4 DIMM Slots

• Supports DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400

(OC)/2133/1866/1600/1333/1066 non-ECC, un-buered

memory

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

• Supports non-ECC RDIMM (Registered DIMM)

• Supports DDR4 ECC, un-buered memory/RDIMM with

Intel® Xeon® processors E5 series in the LGA 2011-3 Socket

• Max. capacity of system memory: 128GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 2.0

• 15 Gold Contact in DIMM Slots

Expansion

Slot

• 5 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/

PCIE6: single at x16 (PCIE1); dual at x16 (PCIE1) / x16

(PCIE4); triple at x8 (PCIE1) / x8 (PCIE2) / x16 (PCIE4);

quad at x8 (PCIE1) / x8 (PCIE2) / x8 (PCIE4) / x8 (PCIE6))

* If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE4

will run at x16/x0/x4/x8 or x8/x8/x4/x8, and PCIE6 will be

disabled.

* If M.2 PCI Express module is installed, PCIE3 slot will be

disabled.

• 1 x PCI Express 2.0 x16 slot (PCIE5: x4 mode)

English

• Supports AMD Quad CrossFireXTM, 4-Way CrossFireXTM,

3-Way CrossFireXTM and CrossFireXTM

• Supports NVIDIA® Quad SLITM, 4-Way SLITM, 3-Way SLITM

and SLITM

* If you install CPU with 28 lanes, 4-Way CrossFireXTM and

4-Way SLITM are not supported.

• 15 Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)

Audio • 7.1 CH HD Audio with Content Protection (Realtek

ALC1150 Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection (ASRock Full Spike Protection)

• Supports Purity SoundTM 2

- Nichicon Fine Gold Series Audio Caps

- 115dB SNR DAC with Dierential Amplier

- TI® NE5532 Premium Headset Amplier (Supports up to

600 Ohms headsets)

- Direct Drive Technology

- EMI Shielding Cover

- PCB Isolate Shielding

• Supports DTS Connect

LAN • 1 x Intel® I217LM (Gigabit LAN PHY 10/100/1000 Mb/s)

• 1 x Intel® I210AT (Gigabit LAN 10/100/1000 Mb/s)

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports Dual LAN with Teaming

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x Optical SPDIF Out Port

• 1 x eSATA Connector

• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED

LED)

Autres manuels pour X99 WS

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK AB350M Pro4 Manuel utilisateur

ASROCK

ASROCK H410M/ac Manuel utilisateur

ASROCK

ASROCK A780FULLHD - V1.0 Manuel utilisateur

ASROCK

ASROCK 770iCafe Manuel utilisateur

ASROCK

ASROCK H81M-ITX Manuel utilisateur

ASROCK

ASROCK AD2700B-ITX Manuel utilisateur

ASROCK

ASROCK Z68 Pro3 Manuel utilisateur

ASROCK

ASROCK UTX-115 Manuel utilisateur

ASROCK

ASROCK Z690M PG Riptide D5 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-ESATA2 R3.0 Manuel utilisateur

ASROCK

ASROCK H55M Manuel utilisateur

ASROCK

ASROCK H61M-ITX/SI Manuel utilisateur

ASROCK

ASROCK B450 Pro4 Manuel utilisateur

ASROCK

ASROCK M3A790GXH 128M - V1.0 Manuel utilisateur

ASROCK

ASROCK 4Core1333-Viiv Manuel utilisateur

ASROCK

ASROCK 4Core1333-eSATA2 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-ESATA2 PLUS - V1.0 Manuel utilisateur

ASROCK

ASROCK Z690D4U-2L2T Manuel utilisateur

ASROCK

ASROCK P4S55FX+ Manuel utilisateur

ASROCK

ASROCK Q1900B-ITX Manuel utilisateur

ASROCK

ASROCK RIPTIDE Z790 PG Manuel utilisateur

ASROCK

ASROCK x299m Extreme 4 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

ASROCK

ASROCK 960GM-VS3 FX Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
