ASROCK Q1900B-ITX Manuel utilisateur

User Manual

Version 1.0

Published March 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 5

1.4 I/O Panel 7

Chapter 2 Installation 8

2.1 Installing Memory Modules (SO-DIMM) 9

2.2 Expansion Slot (PCI Express Slot) 11

2.3 Jumpers Setup 12

2.4 Onboard Headers and Connectors 13

Chapter 3 Software and Utilities Operation 17

3.1 Installing Drivers 17

3.2 A-Tuning 18

3.3 Intel® Smart Connect Technology 20

3.4 ASRock Cloud 25

3.5 Start8 35

Chapter 4 UEFI SETUP UTILITY 38

4.1 Introduction 38

4.1.1 UEFI Menu Bar 38

4.1.2 Navigation Keys 39

4.2 Main Screen 40

4.3 Advanced Screen 41

4.3.1 CPU Conguration 42

4.3.2 Chipset Conguration 43

4.3.3 Storage Conguration 45

4.3.4 Intel® Smart Connect Technology 46

4.3.5 Super IO Conguration 47

4.3.6 ACPI Conguration 48

4.3.7 USB Conguration 50

4.4 Tools 51

4.5 Hardware Health Event Monitoring Screen 53

4.6 Boot Screen 54

4.7 Security Screen 56

4.8 Exit Screen 57

Q1900B-ITX/D1800B-ITX

PB 1

English

Chapter 1 Introduction

ank you for purchasing ASRock Q1900B-ITX/D1800B-ITX motherboard, a

reliable motherboard produced under ASRock’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRock’s commitment to quality and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock Q1900B-ITX/D1800B-ITX Motherboard (Mini-ITX Form Factor)

• ASRock Q1900B-ITX/D1800B-ITX Quick Installation Guide

• ASRock Q1900B-ITX/D1800B-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

2 3

English

1.2 Specications

Platform • Mini-ITX Form Factor

• Solid Capacitor for CPU power

• High Density Glass Fabric PCB

CPU • Intel® Quad-Core Processor J1900 (2 GHz)

(for Q1900B-ITX)

• Intel® Dual-Core Processor J1800 (2.41 GHz)

(for D1800B-ITX)

Memory • Dual Channel DDR3/DDR3L Memory Technology

• 2 x DDR3/DDR3L SO-DIMM Slots

• Supports DDR3/DDR3L 1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB

(see CAUTION)

Expansion

Slot

• 1 x PCI Express 2.0 x1 Slot

Graphics

• Intel® 7th generation (Gen 7) graphics

• DirectX 11.0, Pixel Shader 5.0

• Dual graphics output: Support HDMI and D-Sub ports by

independent display controllers

• Supports HDMI Technology with max. resolution up to

1920x1200 @ 60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with HDMI Port

• Supports Full HD 1080p Blu-ray (BD) playback with HDMI

Port

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protection)

Q1900B-ITX/D1800B-ITX

2 3

English

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Suppor ts Wa ke- On-WA N

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x Parallel Port (ECP/EPP Support)

• 1 x Serial Port: COM1

• 1 x D-Sub Port

• 1 x HDMI Port

• 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

Connector • 1 x 3W Audio AMP Output Wafer Header

• 1 x COM Port Header

• 1 x TPM Header

• 1 x Chassis Intrusion Header

• 1 x CPU Fan Connector (3-pin)

• 1 x Chassis Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x Front Panel Audio Connector

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

4 5

English

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with GUI support

• Supports Plug and Play

• ACPI 1.1 compliant wake up events

• Supports jumperfree

• SMBIOS 2.3.1 support

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation for

system usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems

do not have such limitations. You can use ASRock XFast RAM to utilize the memory that

Windows® cannot use.

Q1900B-ITX/D1800B-ITX

4 5

English

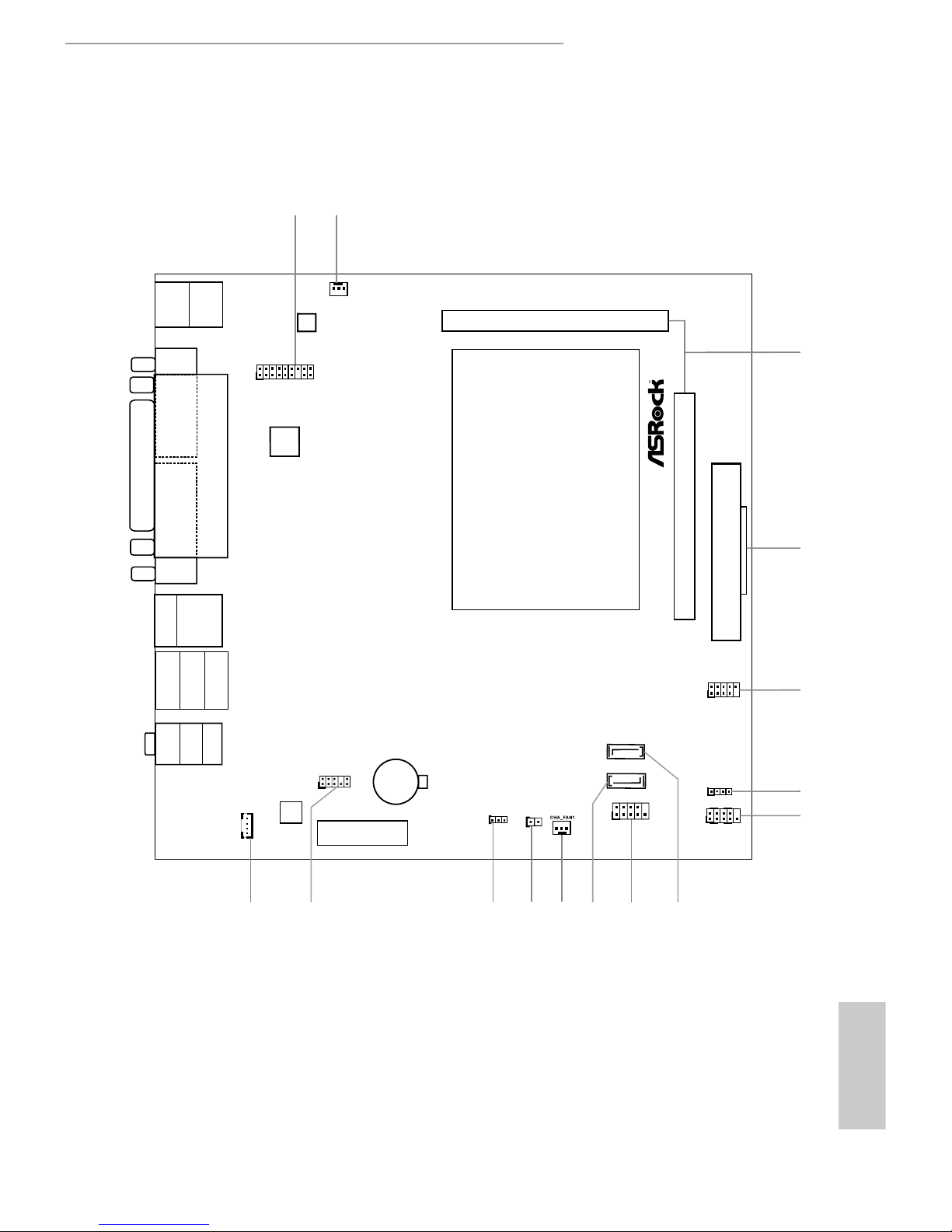

1.3 Motherboard Layout

PCIE1

ATXPWR1

13 12 11

USB 3.0

AUDIO

CODEC

TPMS1

Super

I/O

SATA2_2

Top:

RJ-45

PS2

Keyboard

PS2

Mouse

PARALLEL PORT

COM1 VGA1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB 2.0

T: USB0

B: USB1

HDMI

USB 3.0

USB3

USB 3.0

USB3

USB 2.0

USB2

DDR3_B1

DDR3_A1

CPU_FAN1

USB4_5

HDLED RESET

PLED PWRBTN

PANEL1

SPEAKER1

COM2

CLRCMOS1

CI1

SATA2_

CMOS

Battery

D1800B-ITX

RoHS

HD_AUDIO1

810

64Mb

BIOS

SPEAKER2

6 7

English

No. Description

1TPM Header (TPMS1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 204-pin DDR3/DDR3L SO-DIMM Slots (DDR3_A1, DDR3_B1)

4 ATX Power Connector (ATXPWR1)

5 USB 2.0 Header (USB4_5)

6Chassis Speaker Header (SPEAKER1)

7 System Panel Header (PANEL1)

8 SATA2 Connector (SATA2_1)

9 COM Port Header (COM2)

10 SATA2 Connector (SATA2_2)

11 Chassis Fan Connector (CHA_FAN1)

12 Chassis Intrusion Header (CI1)

13 Clear CMOS Jumper (CLRCMOS1)

14 Front Panel Audio Header (HD_AUDIO1)

15 3W Audio AMP Output Wafer Header (SPEAKER2)
