B450 Pro4

English

Motherboard Layout

BIOS

ROM

ATXPWR1

Super

I/O

CLRCMOS2

USB_3_4

HD_AUDIO1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

RJ-45 LAN

SOCKETAM4

COM1

HDMI1

CMOS

Battery

ATX12V1

M2_1

Ultra M.2

PCIe Gen3 x4

USB3_5_6

CHA_FAN1/WP

HDLED RESET

PLED PWRBTN

PANEL1

RoHS

SPK_PLED1

DDR4_A1 (64 bit, 288-pin module)

DDR4_A2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

PCIE1

M2_2

AMD

Promontory

B450

USB 3.1 Gen1

T: USB1

B: USB2

USB 3.1 Gen1

T: USB3

B: USB4

AMD_FAN_LED1

USB_1_2

TPMS1

SATA3_1

SATA3_2

SATA3_A1

B450 Pro4

PCIE2

PCIE3

PCIE5

PCIE6

PCIE4

CHA_FAN2/WP CHA_FAN3/WP

SATA3_A2

SATA3_3

SATA3_4

USB 3.1 Gen2

T: USB31_TA_1

B: USB31_TC_1

USB 2.0

T: USB5

B: USB6

PS2

Keyboard

/Mouse

VGA1

DISPLAY1

CPU_FAN2/WP

CPU_FAN1

ADDR_LED1

RGB_LED1

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

3 AMD Fan LED Header (AMD_FAN_LED1)

4 CPU Fan / Waterpump Fan Connector (CPU_FAN2/WP)

5 CPU Fan Connector (CPU_FAN1)

6 ATX Power Connector (ATXPWR1)

7 USB 3.1 Gen1 Header (USB3_5_6)

8 SATA3 Connector (SATA3_2)

9 SATA3 Connector (SATA3_1)

10 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

11 SATA3 Connector (SATA3_A1)

12 SATA3 Connector (SATA3_A2)

13 SATA3 Connector (SATA3_3)

14 SATA3 Connector (SATA3_4)

15 Power LED and Speaker Header (SPK_PLED1)

16 System Panel Header (PANEL1)

17 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/WP)

18 Chassis Fan / Waterpump Fan Connector (CHA_FAN2/WP)

19 Clear CMOS Jumper (CLRCMOS2)

20 Addressable LED Header (ADDR_LED1)

21 USB 2.0 Header (USB_3_4)

22 USB 2.0 Header (USB_1_2)

23 COM Port Header (COM1)

24 RGB LED Header (RGB_LED1)

25 TPM Header (TPMS1)

26 Front Panel Audio Header (HD_AUDIO1)

27 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)

B450 Pro4

English

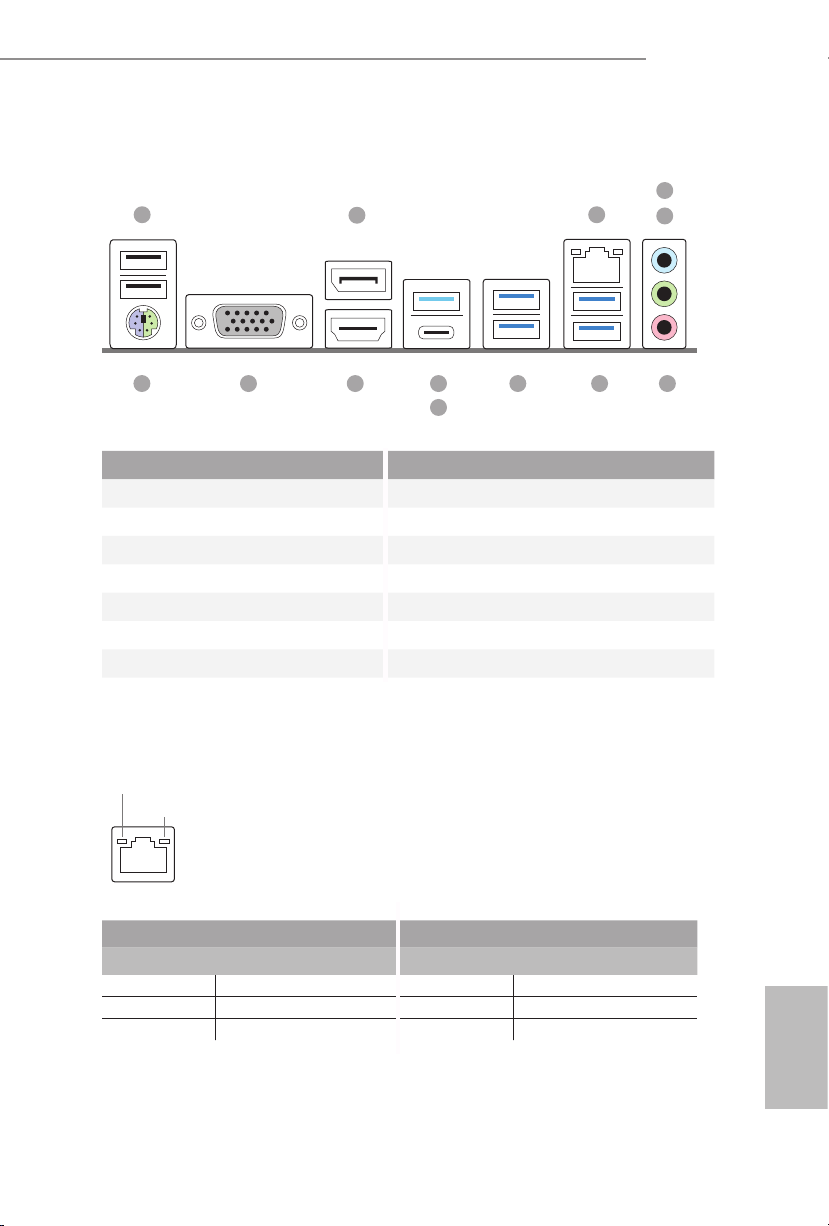

I/O Panel

8 7

1113

No. Description

8 USB 3.1 Gen1 Ports (USB3_12)

9USB 3.1 Gen2 Type-A Port (USB31_TA_1)

10 USB 3.1 Gen2 Type-C Port (USB31_TC_1)

11 HDMI Port

12 D-Sub Port

13 PS/2 Mouse/Keyboard Port

No. Description

1 USB 2.0 Ports (USB56)

2 DisplayPort 1.2

3 LAN RJ-45 Port*

4 Line In (Light Blue)**

5 Front Speaker (Lime)**

6 Microphone (Pink)**

7 USB 3.1 Gen1 Ports (USB3_34)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

English

** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-

channel audio feature through the audio driver.

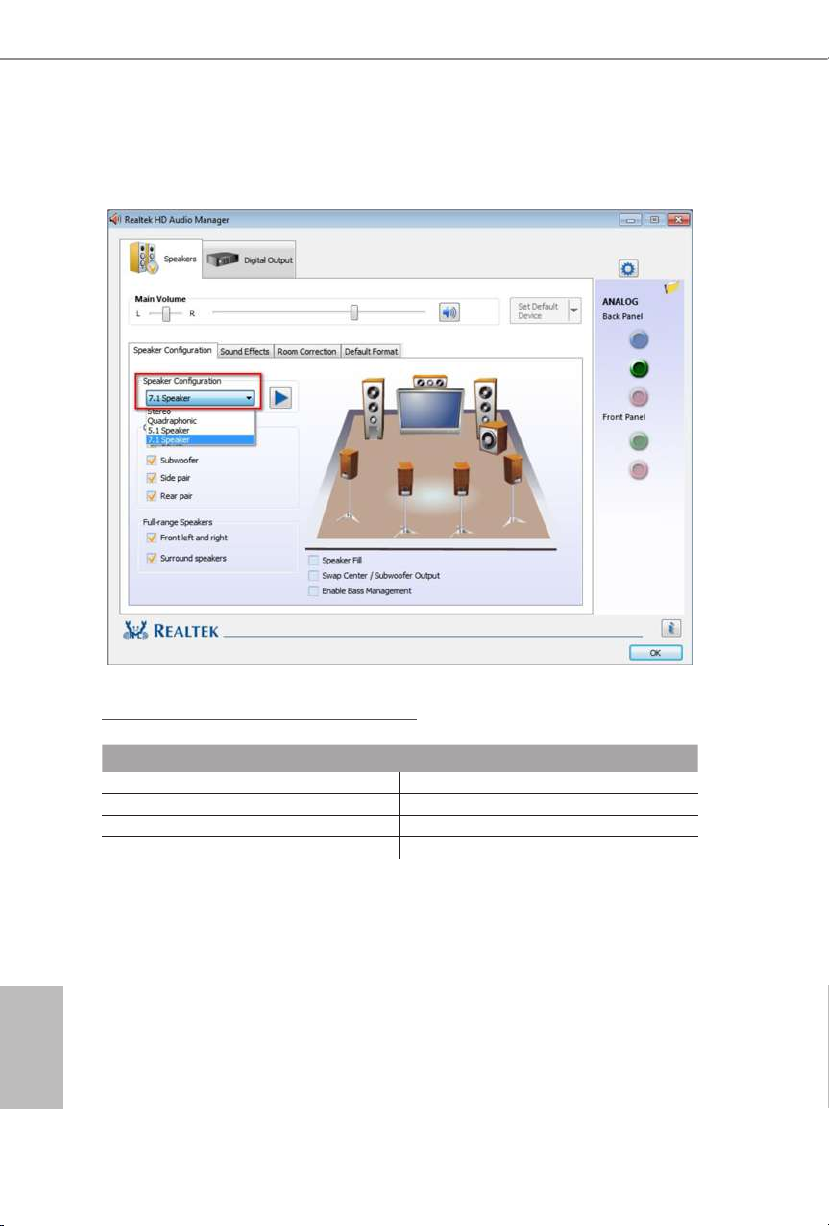

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

B450 Pro4

English

Chapter 1 Introduction

ank you for purchasing ASRock B450 Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock B450 Pro4 Motherboard (ATX Form Factor)

• ASRock B450 Pro4 Quick Installation Guide

• ASRock B450 Pro4 Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Screws for M.2 Sockets (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this manual will be subject to change without notice. In case any modica-

tions of this manual occur, the updated version will be available on ASRock’s website

without further notice. If you require technical support related to this motherboard,

please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well.

ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • ATX Form Factor

• Solid Capacitor design

CPU • AMD AM4 Socket

• Digi Power design

• 9 Power Phase design

• Supports 105W Water Cooling (Pinnacle Ridge); Supports

95W Water Cooling (Summit Ridge); Supports 65W Water

Cooling (Raven Ridge)

Chipset • AMD Promontory B450

Memory • Dual Channel DDR4 Memory Technology

• 4 x DDR4 DIMM Slots

• AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4

3200+(OC)/2933/2667/2400/2133 ECC & non-ECC, un-

buered memory*

• AMD Ryzen series CPUs (Summit Ridge) support DDR4

3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-

buered memory*

• AMD Ryzen series CPUs (Raven Ridge) support DDR4

3200+(OC)/2933(OC)/2667/2400/2133 non-ECC, un-buered

memory*

* For Ryzen Series CPUs (Raven Ridge), ECC is only supported

with PRO CPUs.

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

* Please refer to page 23 for DDR4 UDIMM maximum frequency

support.

• Max. capacity of system memory: 64GB

• 15μ Gold Contact in DIMM Slots

B450 Pro4

English

Expansion

Slot

AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)

• 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4

mode)*

AMD Ryzen series CPUs (Raven Ridge)

• 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4

mode)*

* Supports NVMe SSD as boot disks

* If M2_1 is occupied, PCIE4 will be disabled.

• 4 x PCI Express 2.0 x1 Slots

• Supports AMD Quad CrossFireXTM and CrossFireXTM**

** is feature is only supported with Ryzen Series CPUs (Summit

Ridge, Pinnacle Ridge and Raven Ridge).

Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen

Series APU*

* Actual support may vary by CPU

• DirectX 12, Pixel Shader 5.0

• Max. shared memory 2GB

• Three graphics output options: D-Sub, HDMI and

DisplayPort 1.2

• Supports Triple Monitor

• Supports HDMI with max. resolution up to 4K x 2K

(4096x2160) @ 24Hz / (3840x2160) @ 30Hz

• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K

(4096x2160) @ 60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port

(Compliant HDMI monitor is required)

• Supports HDCP with HDMI and DisplayPort 1.2 Ports

• Supports 4K Ultra HD (UHD) playback with HDMI and

DisplayPort 1.2 Ports

English

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

* To congure 7.1 CH HD Audio, it is required to use an HD

front panel audio module and enable the multi-channel audio

feature through the audio driver.

• Premium Blu-ray Audio support

• Supports Surge Protection

• ELNA Audio Caps

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x HDMI Port

• 1 x DisplayPort 1.2

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Pro-

tection)

• 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Pro-

tection)

• 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*

• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

port NCQ, AHCI and Hot Plug

* M2_2, SATA3_3 and SATA3_4 share lanes. If either one of

them is in use, the others will be disabled.

Autres manuels pour B450 Pro4

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK Fatal1ty B360 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK 985GM-GS3 FX Manuel utilisateur

ASROCK

ASROCK A75M-ITX Manuel utilisateur

ASROCK

ASROCK Z590 Pro4 D4 Manuel utilisateur

ASROCK

ASROCK H61M-GE Manuel utilisateur

ASROCK

ASROCK B85M Pro3 Manuel utilisateur

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Manuel utilisateur

ASROCK

ASROCK K10N78HSLI-GLAN - V1.0 Manuel utilisateur

ASROCK

ASROCK P4S61 Manuel utilisateur

ASROCK

ASROCK PRO BTC+ Series Manuel utilisateur

ASROCK

ASROCK fatality H270 Manuel utilisateur

ASROCK

ASROCK H61DEL Manuel utilisateur

ASROCK

ASROCK AB350 Pro4 Manuel utilisateur

ASROCK

ASROCK 970 Pro Manuel utilisateur

ASROCK

ASROCK Z270 SUPERCARRIER Manuel utilisateur

ASROCK

ASROCK K7VM3 Manuel utilisateur

ASROCK

ASROCK H510M-H2/M2 SE Manuel utilisateur

ASROCK

ASROCK A75 Pro4/MVP Manuel utilisateur

ASROCK

ASROCK B85M DASH/OL R2.0 Manuel utilisateur

ASROCK

ASROCK Z77 Extreme4 Manuel utilisateur

ASROCK

ASROCK ALIVENF5-VST Manuel utilisateur

ASROCK

ASROCK H87M Pro4 Manuel utilisateur

ASROCK

ASROCK FM2A58+ BTC Manuel utilisateur

ASROCK

ASROCK Z75 Pro3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
