ASROCK E3C226D2I Manuel utilisateur

E3C226D2I

E3C224D2I

User Manual

Version 1.0

Published July 2013

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ofcers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in Cali-

fornia, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents............................................... 5

1.2 Specications ...................................................... 6

1.3 Unique Features.................................................. 9

1.4 Motherboard Layout ............................................ 10

1.5 I/O Panel ............................................................. 14

1.6 Block Diagram..................................................... 15

2 Installation ......................................................... 17

2.1 Pre-installation Precautions ................................ 17

2.2 Screw Holes ........................................................ 17

2.3 CPU Installation .................................................. 18

2.4 Installation of Heatsink and CPU fan .................. 21

2.5 Installation of Memory Modules (DIMM) ............. 22

2.6 Expansion Slots .................................................. 24

2.7 Jumpers Setup .................................................... 25

2.8 Onboard Headers and Connectors ..................... 26

2.9 Driver Installation Guide...................................... 32

3 UEFI SETUP UTILITY......................................... 33

3.1 Introduction ......................................................... 33

3.1.1 UEFI Menu Bar........................................... 33

3.1.2 Navigation Keys ......................................... 34

3.2 Main Screen ........................................................ 35

3.3 Advanced Screen ................................................ 36

3.3.1 CPU Conguration ..................................... 37

3.3.2 North Bridge Conguration......................... 40

3.3.3 South Bridge Conguration ........................ 41

3.3.4 Storage Conguration ................................ 42

3.3.5 Super IO Conguration............................... 43

3.3.6 ACPI Conguration..................................... 44

3.3.7 USB Conguration...................................... 46

3.3.8 WHEA Conguration .................................. 47

3.3.9 Intel Server Platform Services.................... 48

3.3.10 Serial Port Console Redirection ............... 49

3.3.11 Voltage Control ......................................... 50

3.4 Hardware Health Event Monitoring Screen......... 51

3.5 Boot Screen ........................................................ 53

3.6 Security Screen................................................... 55

3.7 Event Logs .......................................................... 56

3.8 Server Management............................................ 57

3.9 Exit Screen.......................................................... 58

4 Software Support .............................................. 59

4.1 Install Operating System ..................................... 59

4.2 Support CD Information ...................................... 59

4.2.1 Running Support CD .................................. 59

4.2.2 Drivers Menu .............................................. 59

4.2.3 Utilities Menu.............................................. 59

4.2.4 Contact Information .................................... 59

5 Troubleshooting ................................................ 60

5.1 Troubleshooting Procedures ............................... 60

5.2 Technical Support Procedures ............................ 62

5.3 Returning Merchandise for Service..................... 62

6 Net Framework Installation Guide ................... 63

Chapter 1: Introduction

Thank you for purchasing ASRock E3C226D2I / E3C224D2I motherboard,

a reliable motherboard produced under ASRock’s consistently stringent

quality control. It delivers excellent performance with robust design con-

forming to ASRock’s commitment to quality and endurance.

In this manual, chapter 1 and 2 contains the introduction of the mother-

board and step-by-step hardware installation guide. Chapter 3 and 4 con-

tains the conguration guide of BIOS setup and information of the Support

CD.

Because the motherboard specications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modications of this manual

occur, the updated version will be available on ASRock’s web-

site without further notice. You may nd the latest VGA cards

and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com

If you require technical support related to this motherboard,

please visit our website for specic information about the model

you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock E3C226D2I / E3C224D2I Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Quick Installation Guide

Support CD

6 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1.2 Specications

Physical

Status

Form Factor Mini-ITX

Dimension 6.7'' x 6.7'' (17.0 cm x 17.0 cm)

Processor

System

CPU

E3C226D2I:

Intel®Xeon®processor E3-1200 v3

product family & Haswell i3

* Haswell i5/i7 processor support is

an extended advantage provided by

ASRock Rack. It is out of warranty,

user's discretion is required.

E3C224D2I:

Intel®Xeon®processor E3-1200 v3

product family & Haswell i3

Socket Single socket (LGA1150)

Power Phase 4 power phase design

Chipset Intel®C226 / C224

BIOS BIOS Type 64Mb AMI UEFI Legal BIOS

System

Memory

Max.

Capacity 16GB DDR3 ECC UDIMM

Socket 2 x 240-pin DDR3 DIMM slots

Type Dual Channel DDR3 1600/1333 ECC

UDIMM

Voltage 1.35V, 1.5V

Expansion

Slot

PCIe 3.0 x 16

1 slot (PCIE1: x16 mode)

PCIe 3.0 x 4

N/A

PCIe 2.0 x 1

N/A

PCI

N/A

Storage

SATA

controller

Intel®C226: 6 x SATA3 6.0 Gb/s

Intel®C224: 4 x SATA3 6.0 Gb/s, 2 x

SATA2 3.0 Gb/s

Additional

Controller

N/A

Ethernet

Interface Gigabit LAN 10/100/1000 Mb/s

LAN

Controller

2 x Intel®i210

Managememt

Controller ASPEED AST2300

IPMI

Dedicated

GLAN

Realtek RTL8211E

Graphics

Controller ASPEED AST2300

VRAM DDR3 16MB

Output Supports D-Sub with max. resolution up

to 1920x1200 @ 60Hz

Rear Panel I/O

LAN Port

(RJ45) 2

PS/2 KB/

Mouse 1

VGA Port 1 x D-Sub

USB 2.0 Port 2

USB 3.0 Port 2

Serial Port 1

UID Button/

UID LED 1

Internal

Connector

COM Port

Header N/A

Auxiliary

Panel Header

1 (includes chassis intrusion, location

button & LED, front LAN LED)

TPM Header 1

IPMB Header 1

Buzzer N/A

Fan Header 3 x 4-pin

ATX Power 1 (24-pin) + 1 (4-pin)

USB 2.0

Header

1x USB2.0 header (each supports 2

USB 2.0)

Type A USB

2.0 Port 1

USB 3.0

Header

1x USB3.0 header (each supports 2

USB 3.0)

Mezzanine

card Board

to Board

connector

N/A

* For detailed product information, please visit our website: http://www.asrock.com

Supported OS OS

Microsoft®Windows®:

Server 2008 R2 SP1(x64)

Server 2012 (x64)

Linux:

RedHat Enterprise Linux Server 5.5 /

6.4 (x32 and x64)

CentOS 5.5 / 6.4 (x32 and x64)

SUSE Enterprise Linux Server 11 SP1

(x32 and x64)

FreeBSD 9.1 (x32 and x64)

Fedora Core 18 (x64)

UBuntu 12.04/12.10 (x64)

Virtual:

VMWare ESXi 5.1

ASRock Instant Flash

ASRock Instant Flash is a BIOS ash utility embedded

in Flash ROM. This convenient BIOS update tool allows

you to update your BIOS without entering operating

systems rst like MS-DOS or Windows®. With this util-

ity, you can press the <F6> key during the POST or the

<F2> key to enter into the BIOS setup menu to access

ASRock Instant Flash. Just launch this tool and save

the new BIOS le to your USB ash drive, oppy disk or

hard drive, then you can update your BIOS only in a few

clicks without preparing an additional oppy diskette or

other complicated ash utility. Please be noted that the

USB ash drive or hard drive must use FAT32/16/12 le

system.

1.3 Unique Features

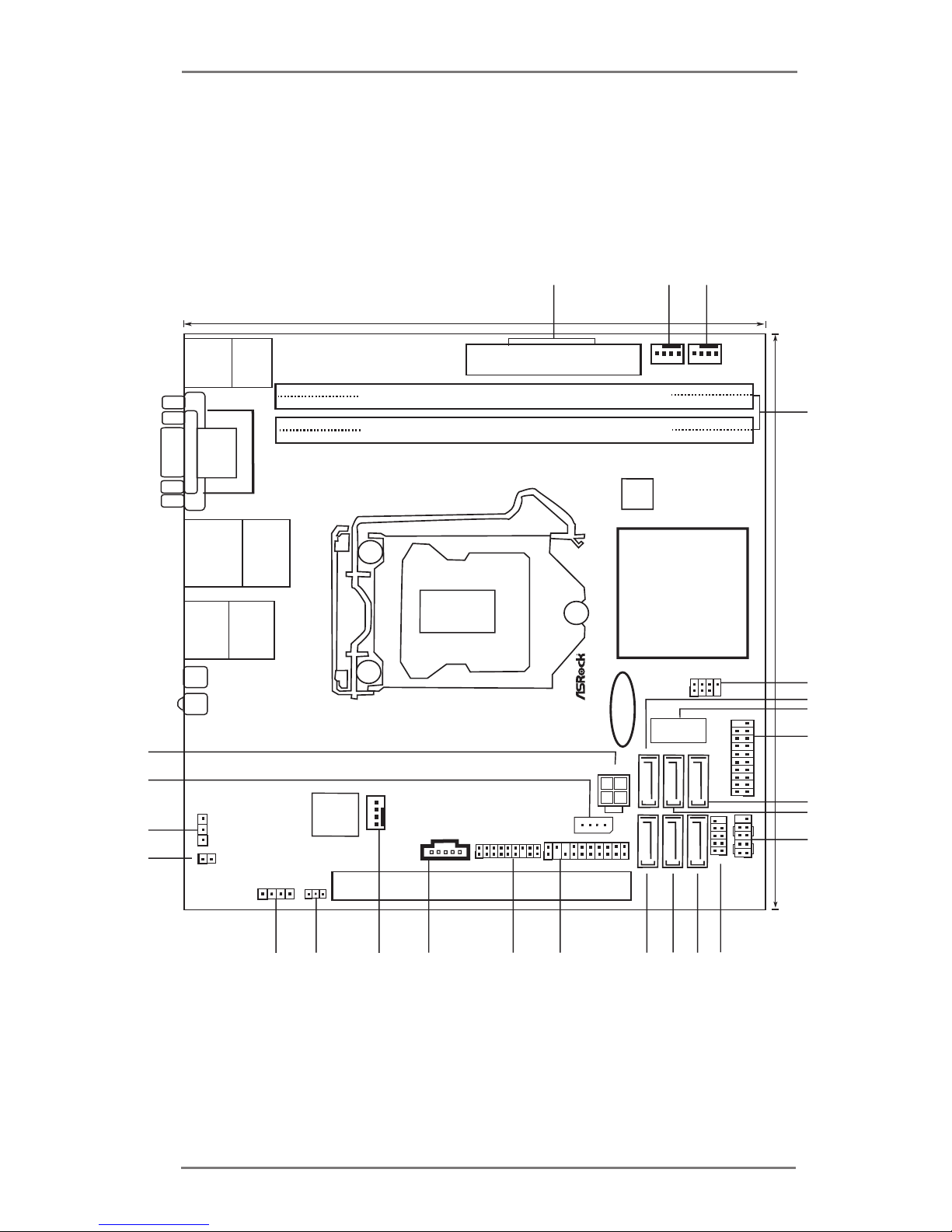

1.4 Motherboard Layout

E3C226D2I

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

Intel

C226

PCIE1

64Mb

BIOS

17.0cm (6.7 in)

ATXPWR1

ATX12V1

CMOS

Battery

FRNT_FAN1

COM1

VGA1

123

14 13

RoHS

BMC

ROM

CPU_FAN1

UID_SW1

UID_LED1

LAN1

LAN2

Top:

IPMI

LAN

USB 3.0

T: USB_0

B: USB_1

Top:

PS/2

Keyboard/

Mouse

USB 2.0

T: USB_0

B: USB_1

ME_RECOVERY1

NMI_BTN1

IPMB_1

SPEAKER1

USB_3-4

USB_2

USB3_2-3

PANEL1

HDLED RESET

PLED PWRBTN

TPM1

AUX_PANEL1

PSU_SMB1

REAR_FAN1

TR1

SATA_ 3 SATA_ 4 SATA_ 5

SGPIO_1

SATA_ 0 SATA_ 1 SATA_ 2

E3C226D2I

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK N68-GS UCC - Manuel utilisateur

ASROCK

ASROCK Super Alloy H110M-HDV Manuel utilisateur

ASROCK

ASROCK AM1B-ITX Manuel utilisateur

ASROCK

ASROCK Z77 Pro3 Manuel utilisateur

ASROCK

ASROCK Z87 Extreme9/ac Manuel utilisateur

ASROCK

ASROCK H310D4-P1 Manuel utilisateur

ASROCK

ASROCK Z97 Pro4 Manuel utilisateur

ASROCK

ASROCK P81 Pro3 Manuel utilisateur

ASROCK

ASROCK A75M Manuel utilisateur

ASROCK

ASROCK J3160DC-ITX Manuel utilisateur

ASROCK

ASROCK Fatal1ty 990FX Professional Manuel utilisateur

ASROCK

ASROCK ALIVENF7G-HDREADY Manuel utilisateur

ASROCK

ASROCK 960GM/U3S3 FX Manuel utilisateur

ASROCK

ASROCK 970 Extreme3 R2.0 Manuel utilisateur

ASROCK

ASROCK 870 Extreme3 R2.0 Manuel utilisateur

ASROCK

ASROCK B450M Pro4-F Manuel utilisateur

ASROCK

ASROCK Z97M-ITX Manuel utilisateur

ASROCK

ASROCK A520M/ac Manuel utilisateur

ASROCK

ASROCK E350M1-USB3 - Manuel utilisateur

ASROCK

ASROCK FM2A88X Pro Manuel utilisateur

ASROCK

ASROCK H61M-DPS Manuel utilisateur

ASROCK

ASROCK 4Core1600-GLAN Manuel utilisateur

ASROCK

ASROCK FM2A88M Pro3+ Manuel utilisateur

ASROCK

ASROCK 890GX Pro3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
