ASROCK FM2A88M Pro3+ Manuel utilisateur

English

FM2A88M Pro3+

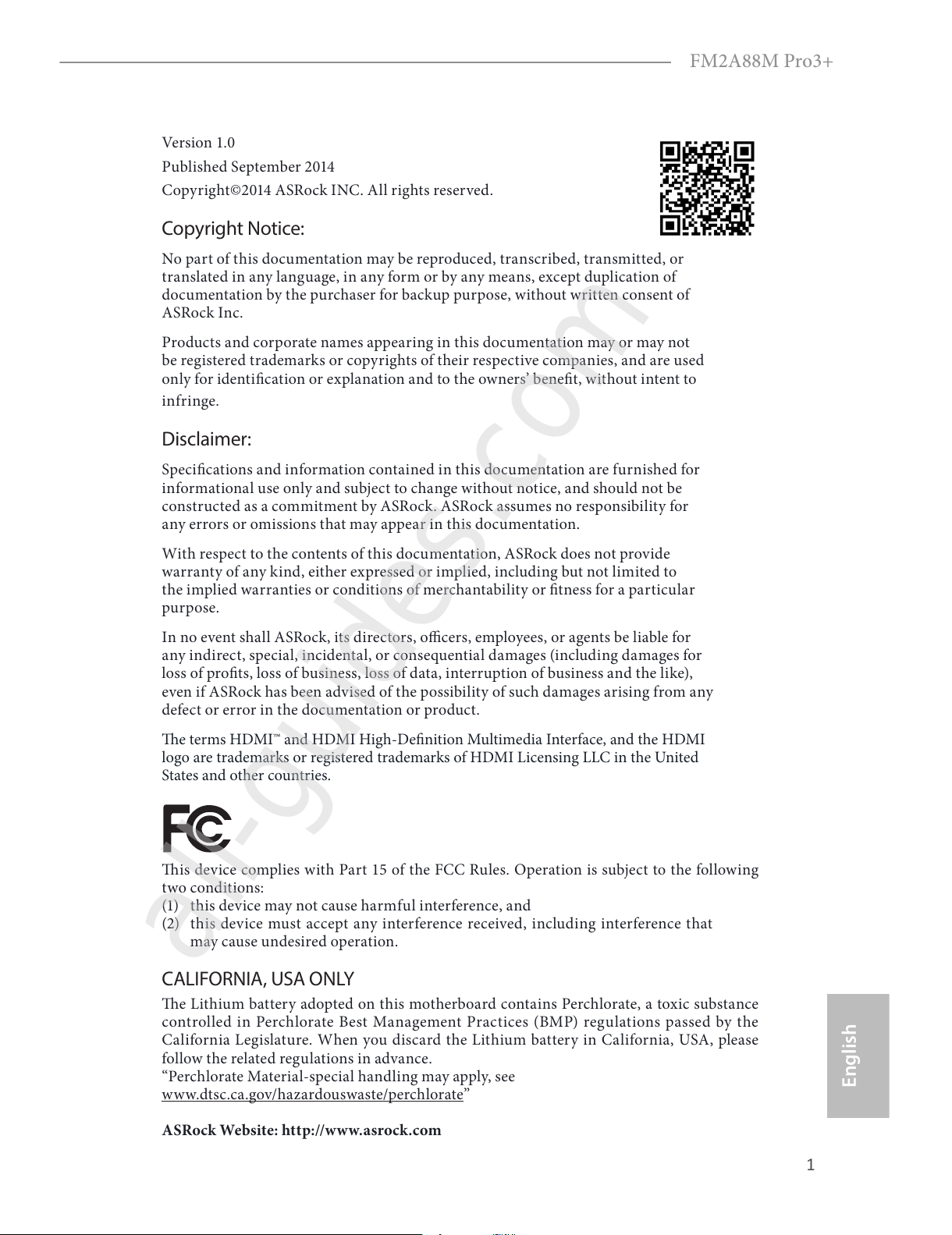

Version 1.0

Published September 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

All manuals and user guides at all-guides.com

all-guides.com

English

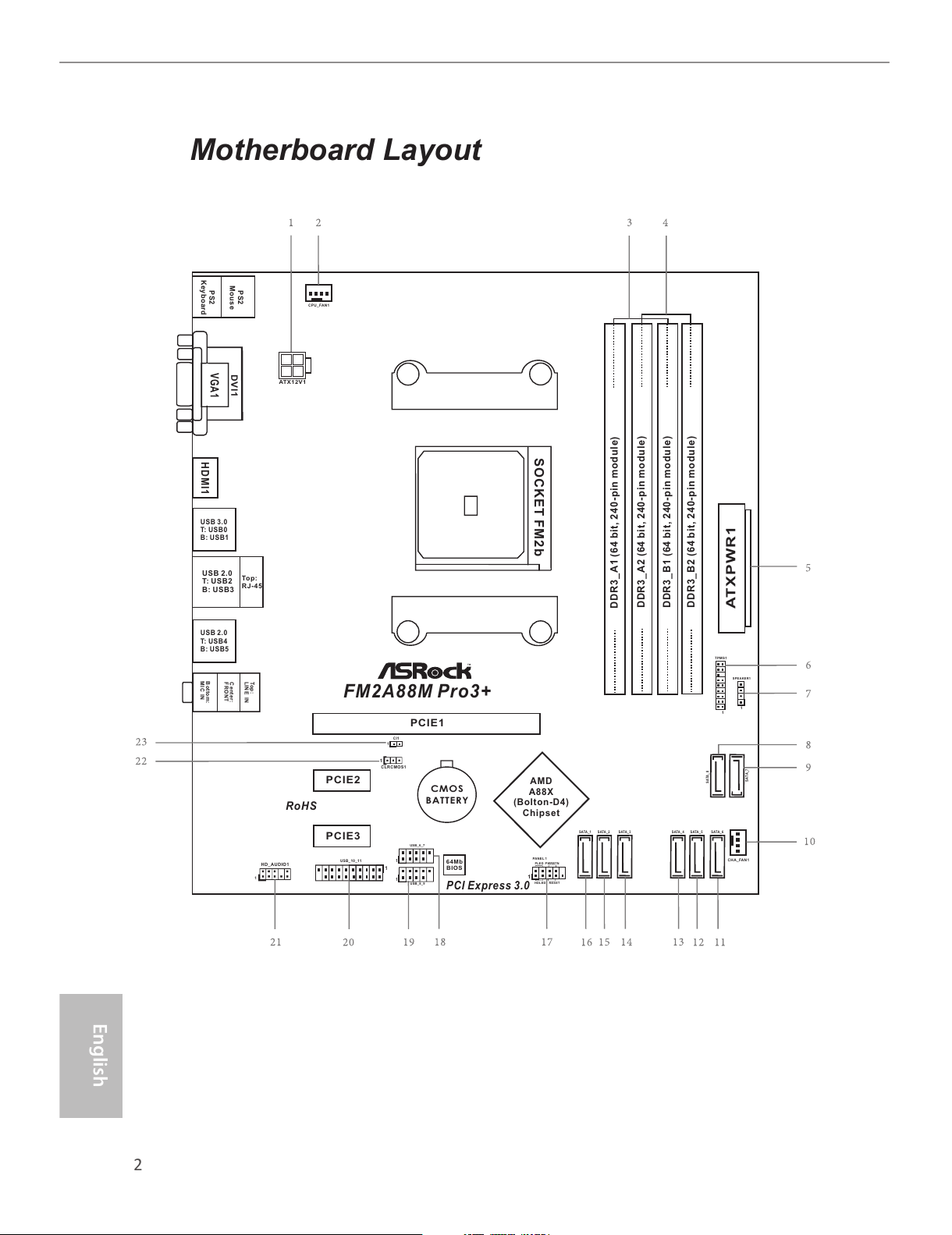

Motherboard Layout

FM2A88M Pro3+

CMOS

BATTERY

ATXPWR1

DDR3_A1 (64 bit, 240-pin module)

DDR3_A2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

64Mb

BIOS

CPU_FAN1

CLRCMO S1

HDL ED R ESE T

PLE D PW RBT N

PANE L 1

SPE AK ER1

USB _6 _7

HD_AUDIO1

PCIE1

RoHS

HDMI1

VGA1

DVI1

USB 3.0

T: USB0

B: USB1

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB_10_ 11

PCIE2

CI1

SOCKET FM2b

AMD

A88X

(Bolton-D4)

Chipset

CHA_FAN1

SATA_ 7

SATA_ 8

TPMS1

PCI Express 3.0

PCIE3

PS2

Keyboard

PS2

Mouse

USB 2.0

T: USB4

B: USB5

ATX12 V1

SATA_ 1 SATA_ 2 S ATA_3 SATA_ 4 SATA_ 5 S ATA_6

USB _8 _9

All manuals and user guides at all-guides.com

English

FM2A88M Pro3+

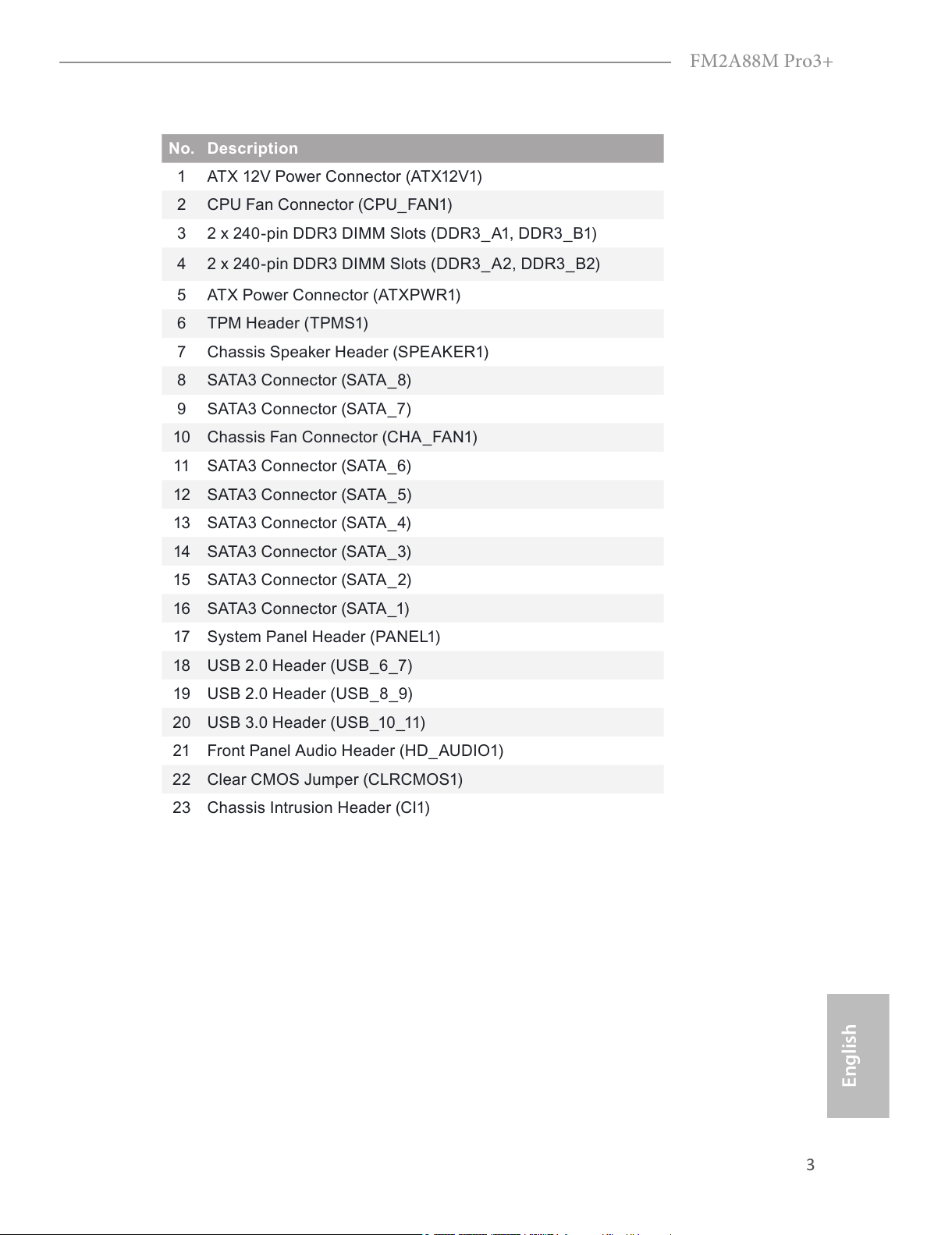

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

5 ATX Power Connector (ATXPWR1)

6 TPM Header (TPMS1)

7 Chassis Speaker Header (SPEAKER1)

8 SATA3 Connector (SATA_8)

9 SATA3 Connector (SATA_7)

10 Chassis Fan Connector (CHA_FAN1)

11 SATA3 Connector (SATA_6)

12 SATA3 Connector (SATA_5)

13 SATA3 Connector (SATA_4)

14 SATA3 Connector (SATA_3)

15 SATA3 Connector (SATA_2)

16 SATA3 Connector (SATA_1)

17 System Panel Header (PANEL1)

18 USB 2.0 Header (USB_6_7)

19 USB 2.0 Header (USB_8_9)

20 USB 3.0 Header (USB_10_11)

21 Front Panel Audio Header (HD_AUDIO1)

22 Clear CMOS Jumper (CLRCMOS1)

23 Chassis Intrusion Header (CI1)

All manuals and user guides at all-guides.com

English

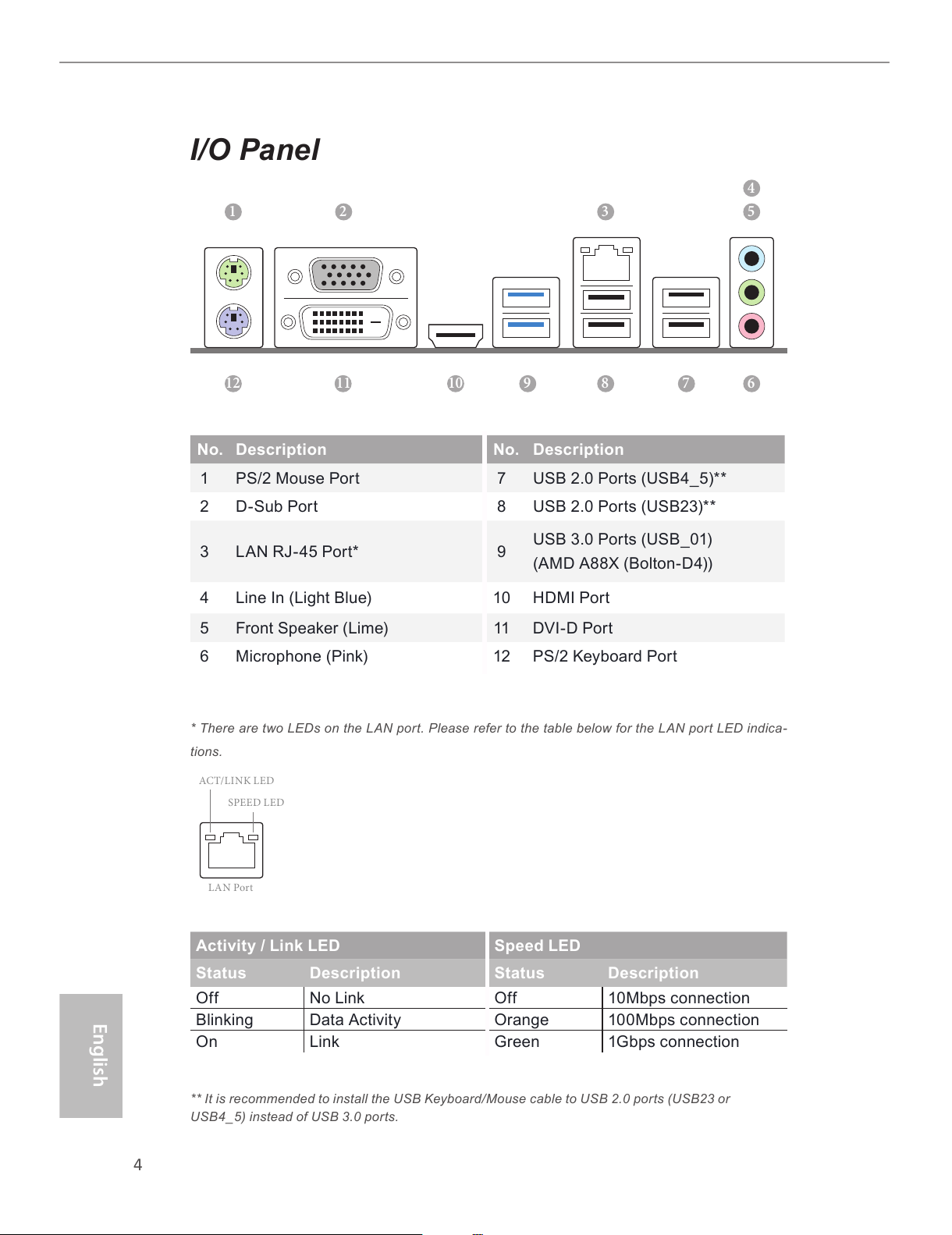

I/O Panel

No. Description No. Description

1 PS/2 Mouse Port 7 USB 2.0 Ports (USB4_5)**

2 D-Sub Port 8 USB 2.0 Ports (USB23)**

3 LAN RJ-45 Port* 9 USB 3.0 Ports (USB_01)

(AMD A88X (Bolton-D4))

4 Line In (Light Blue) 10 HDMI Port

5 Front Speaker (Lime) 11 DVI-D Port

6 Microphone (Pink) 12 PS/2 Keyboard Port

* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-

tions.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB23 or

USB4_5) instead of USB 3.0 ports.

ACT/LINK LED

SPEED LED

LAN Port

1 2 5

8 79101112

All manuals and user guides at all-guides.com

English

FM2A88M Pro3+

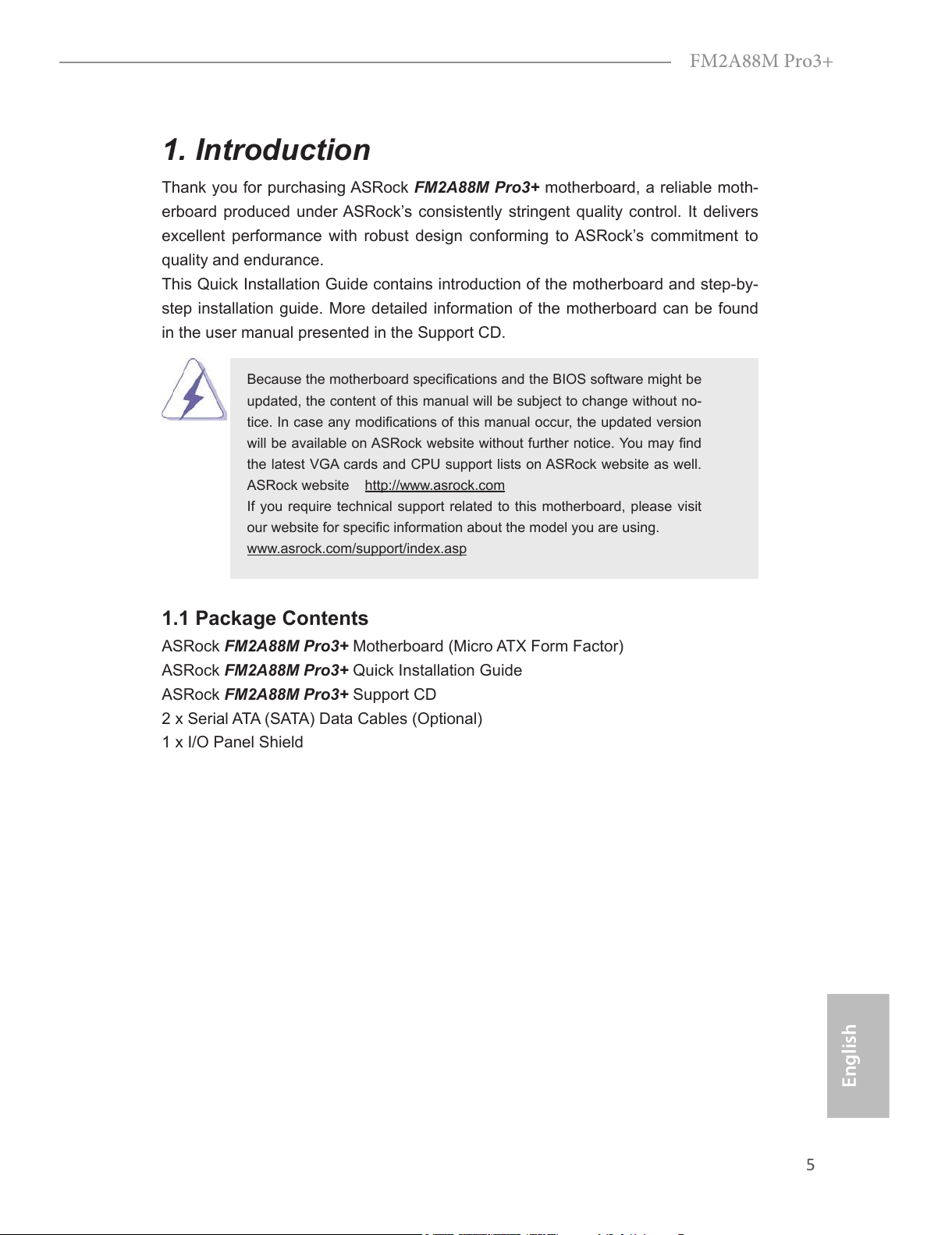

1. Introduction

Thank you for purchasing ASRock FM2A88M Pro3+ motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.



updated, the content of this manual will be subject to change without no-





the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit



www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A88M Pro3+ Motherboard (Micro ATX Form Factor)

ASRock FM2A88M Pro3+ Quick Installation Guide

ASRock FM2A88M Pro3+ Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

All manuals and user guides at all-guides.com

English



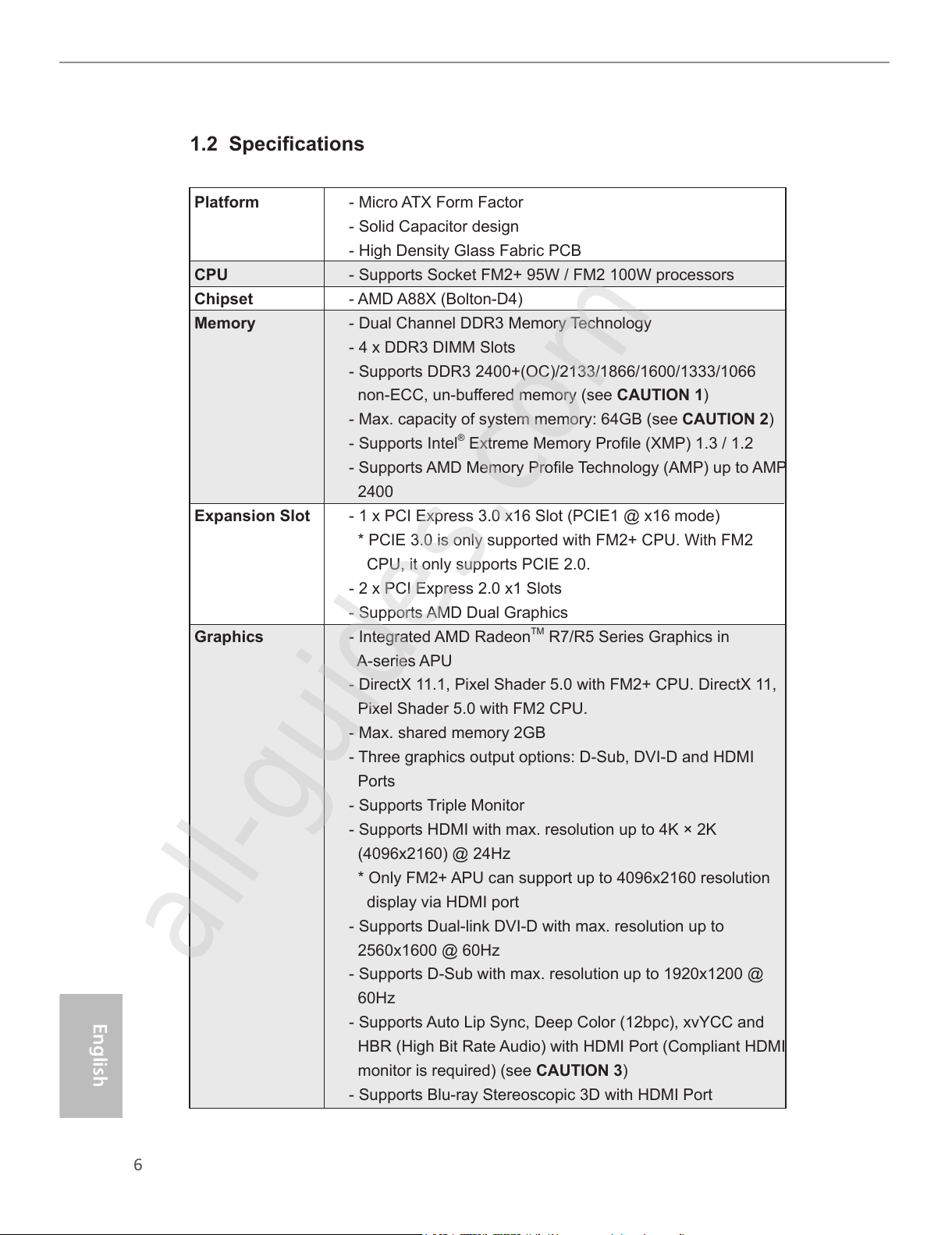

Platform - Micro ATX Form Factor

- Solid Capacitor design

- High Density Glass Fabric PCB

CPU - Supports Socket FM2+ 95W / FM2 100W processors

Chipset - AMD A88X (Bolton-D4)

Memory - Dual Channel DDR3 Memory Technology

- 4 x DDR3 DIMM Slots

- Supports DDR3 2400+(OC)/2133/1866/1600/1333/1066

non-ECC, un-buffered memory (see CAUTION 1)

- Max. capacity of system memory: 64GB (see CAUTION 2)

- Supports Intel®

 

2400

Expansion Slot - 1 x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)

* PCIE 3.0 is only supported with FM2+ CPU. With FM2

CPU, it only supports PCIE 2.0.

- 2 x PCI Express 2.0 x1 Slots

- Supports AMD Dual Graphics

Graphics - Integrated AMD RadeonTM R7/R5 Series Graphics in

A-series APU

- DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11,

Pixel Shader 5.0 with FM2 CPU.

- Max. shared memory 2GB

- Three graphics output options: D-Sub, DVI-D and HDMI

Ports

- Supports Triple Monitor

- Supports HDMI with max. resolution up to 4K × 2K

(4096x2160) @ 24Hz

* Only FM2+ APU can support up to 4096x2160 resolution

display via HDMI port

- Supports Dual-link DVI-D with max. resolution up to

2560x1600 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI

monitor is required) (see CAUTION 3)

- Supports Blu-ray Stereoscopic 3D with HDMI Port

All manuals and user guides at all-guides.com

all-guides.com

English

FM2A88M Pro3+

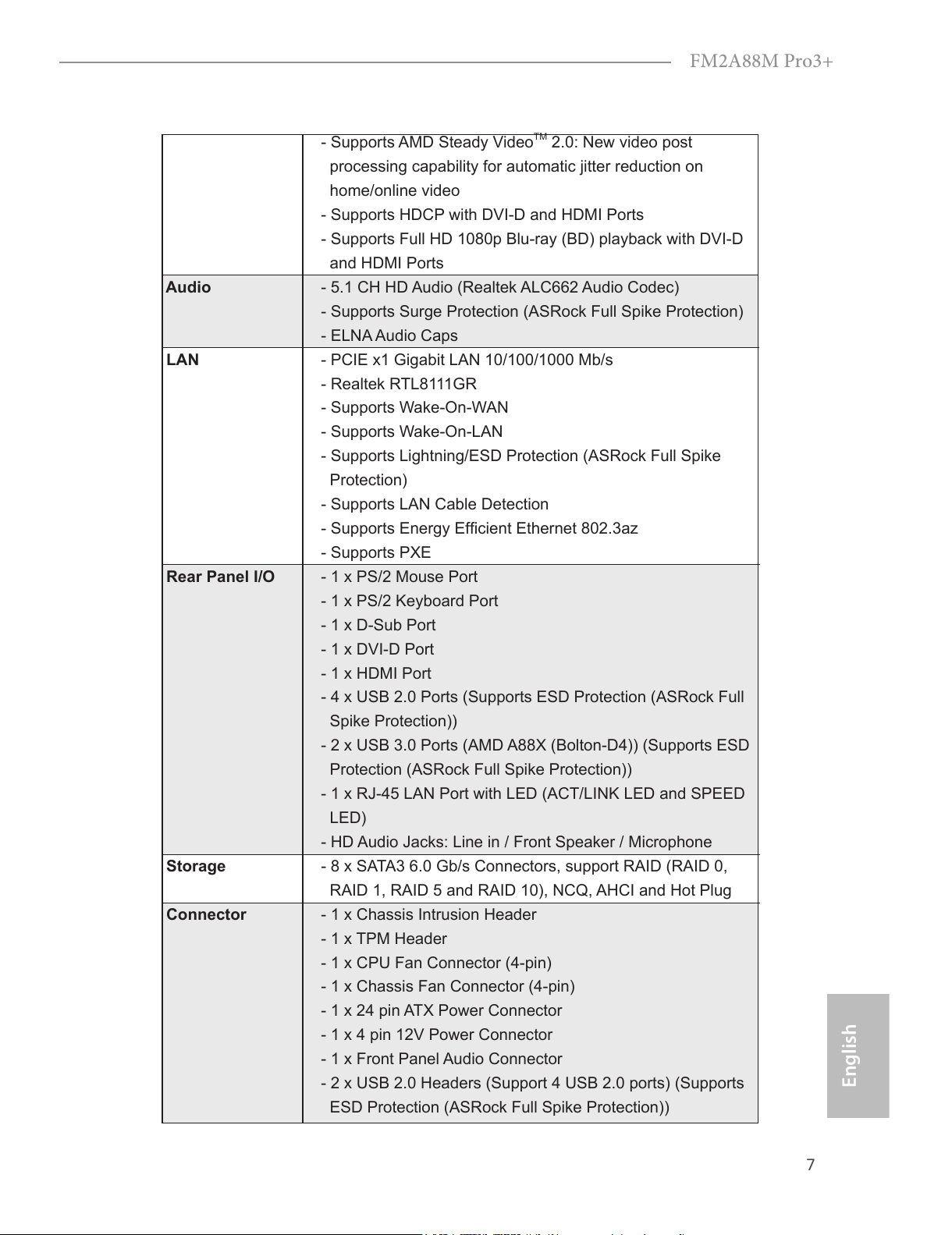

- Supports AMD Steady VideoTM 2.0: New video post

processing capability for automatic jitter reduction on

home/online video

- Supports HDCP with DVI-D and HDMI Ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

- Supports Surge Protection (ASRock Full Spike Protection)

- ELNA Audio Caps

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111GR

- Supports Wake-On-WAN

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

- Supports LAN Cable Detection

 

- Supports PXE

Rear Panel I/O - 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

- 2 x USB 3.0 Ports (AMD A88X (Bolton-D4)) (Supports ESD

Protection (ASRock Full Spike Protection))

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

Storage - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5 and RAID 10), NCQ, AHCI and Hot Plug

Connector - 1 x Chassis Intrusion Header

- 1 x TPM Header

- 1 x CPU Fan Connector (4-pin)

- 1 x Chassis Fan Connector (4-pin)

- 1 x 24 pin ATX Power Connector

- 1 x 4 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

ESD Protection (ASRock Full Spike Protection))

All manuals and user guides at all-guides.com

English

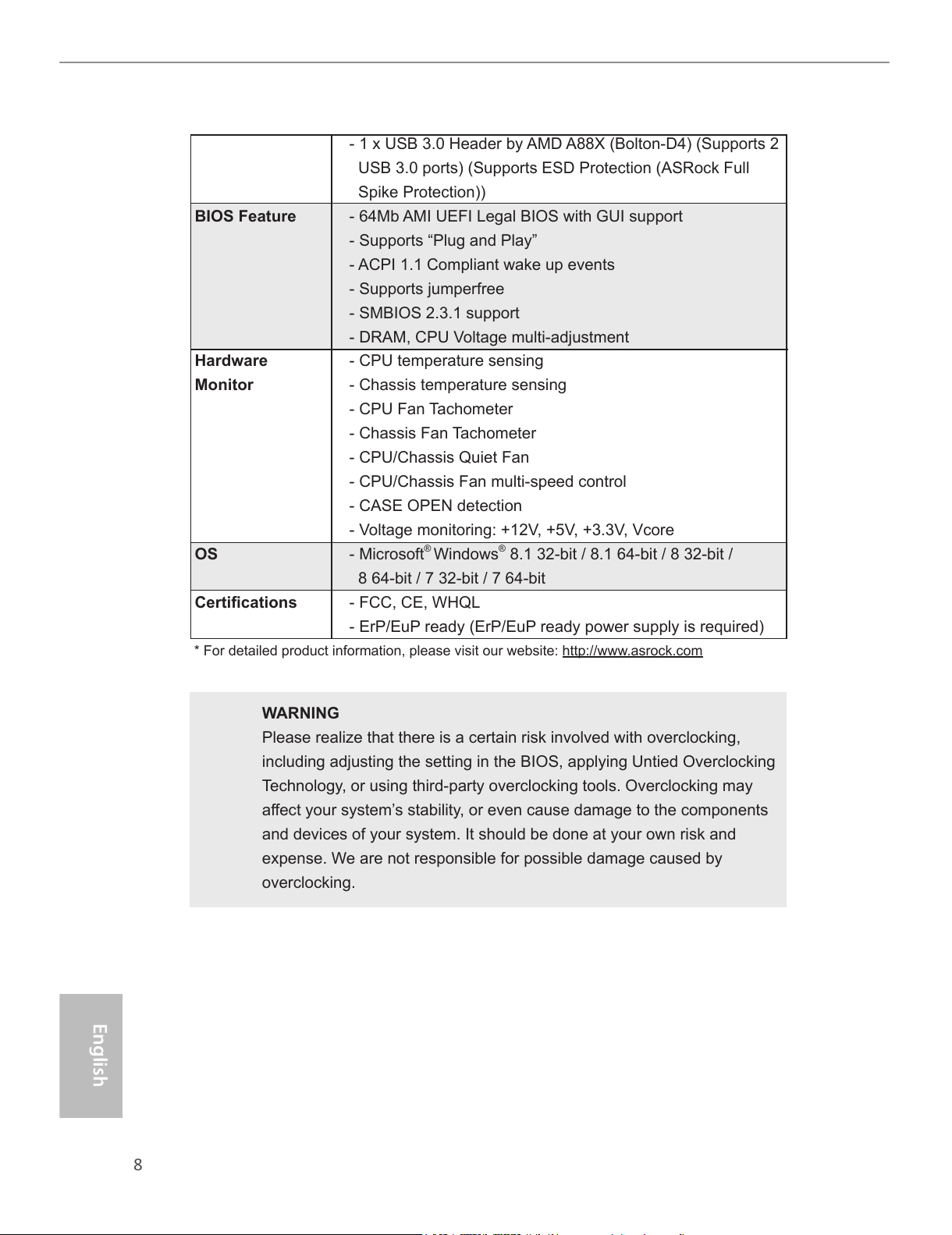

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

- 1 x USB 3.0 Header by AMD A88X (Bolton-D4) (Supports 2

USB 3.0 ports) (Supports ESD Protection (ASRock Full

Spike Protection))

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliant wake up events

- Supports jumperfree

- SMBIOS 2.3.1 support

- DRAM, CPU Voltage multi-adjustment

Hardware - CPU temperature sensing

Monitor - Chassis temperature sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan multi-speed control

- CASE OPEN detection

- Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows®8.1 32-bit / 8.1 64-bit / 8 32-bit /

8 64-bit / 7 32-bit / 7 64-bit

 - FCC, CE, WHQL

- ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

All manuals and user guides at all-guides.com

English

FM2A88M Pro3+

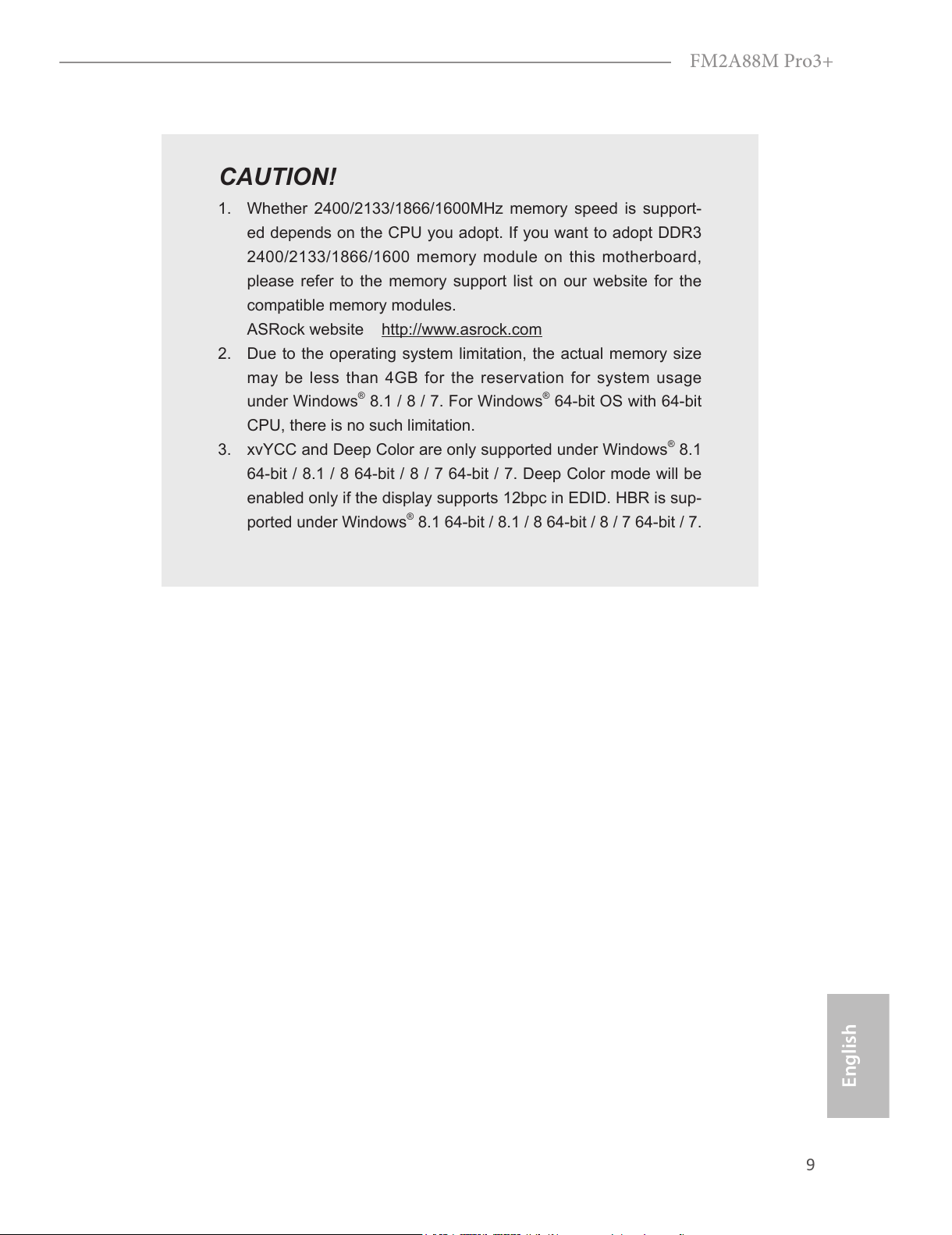

CAUTION!

1. Whether 2400/2133/1866/1600MHz memory speed is support-

ed depends on the CPU you adopt. If you want to adopt DDR3

2400/2133/1866/1600 memory module on this motherboard,

please refer to the memory support list on our website for the

compatible memory modules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage

under Windows®8.1 / 8 / 7. For Windows®64-bit OS with 64-bit

CPU, there is no such limitation.

3. xvYCC and Deep Color are only supported under Windows®8.1

64-bit / 8.1 / 8 64-bit / 8 / 7 64-bit / 7. Deep Color mode will be

enabled only if the display supports 12bpc in EDID. HBR is sup-

ported under Windows®8.1 64-bit / 8.1 / 8 64-bit / 8 / 7 64-bit / 7.

All manuals and user guides at all-guides.com

English

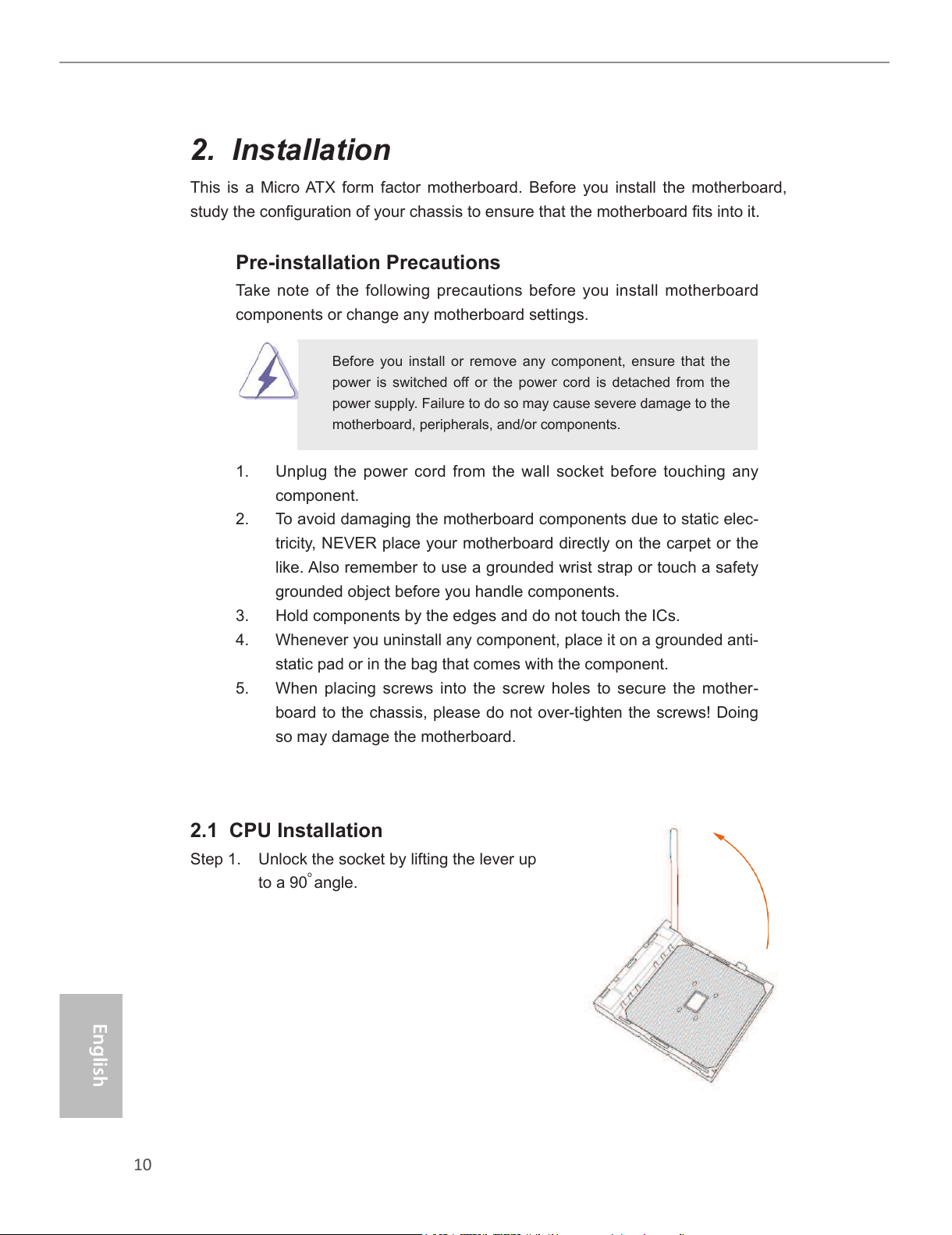

2. Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard,



Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static elec-

tricity, NEVER place your motherboard directly on the carpet or the

like. Also remember to use a grounded wrist strap or touch a safety

grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the mother-

board to the chassis, please do not over-tighten the screws! Doing

so may damage the motherboard.

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up

to a 90oangle.

All manuals and user guides at all-guides.com

Autres manuels ASROCK Carte mère

ASROCK

ASROCK A78MTQVL - LIST Manuel utilisateur

ASROCK

ASROCK H55M-LE - - 01-2010 Manuel utilisateur

ASROCK

ASROCK B550 Phantom Gaming-ITX/ax Manuel utilisateur

ASROCK

ASROCK X570 Phantom Gaming-ITX/TB3 Manuel utilisateur

ASROCK

ASROCK S330 - V1.0 Manuel utilisateur

ASROCK

ASROCK A520M-HDVP/DASH Manuel utilisateur

ASROCK

ASROCK H110M-G/M.2 Manuel utilisateur

ASROCK

ASROCK C621A WS Manuel utilisateur

ASROCK

ASROCK IMB-385 Instructions d'utilisation

ASROCK

ASROCK 970DE3/U3S3 Manuel utilisateur

ASROCK

ASROCK 970 Pro3 Manuel utilisateur

ASROCK

ASROCK IMB-183 Manuel utilisateur

ASROCK

ASROCK Z170 PRO4/D3 Manuel utilisateur

ASROCK

ASROCK Z790 PG-ITX/TB4 Manuel utilisateur

ASROCK

ASROCK X99 Taich Manuel utilisateur

ASROCK

ASROCK H81M-ITX Manuel utilisateur

ASROCK

ASROCK A520M-HDVP 2.0 Manuel utilisateur

ASROCK

ASROCK P4VM890 - V1.1 Manuel utilisateur

ASROCK

ASROCK P5B-DE Manuel utilisateur

ASROCK

ASROCK B75 Pro3-M Manuel utilisateur

ASROCK

ASROCK B365M Phantom Gaming 4 Manuel utilisateur

ASROCK

ASROCK B660M Phantom Gaming 4 Manuel utilisateur

ASROCK

ASROCK A320M-ITX Manuel utilisateur

ASROCK

ASROCK H61M-PS Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
