P81 Pro3

English

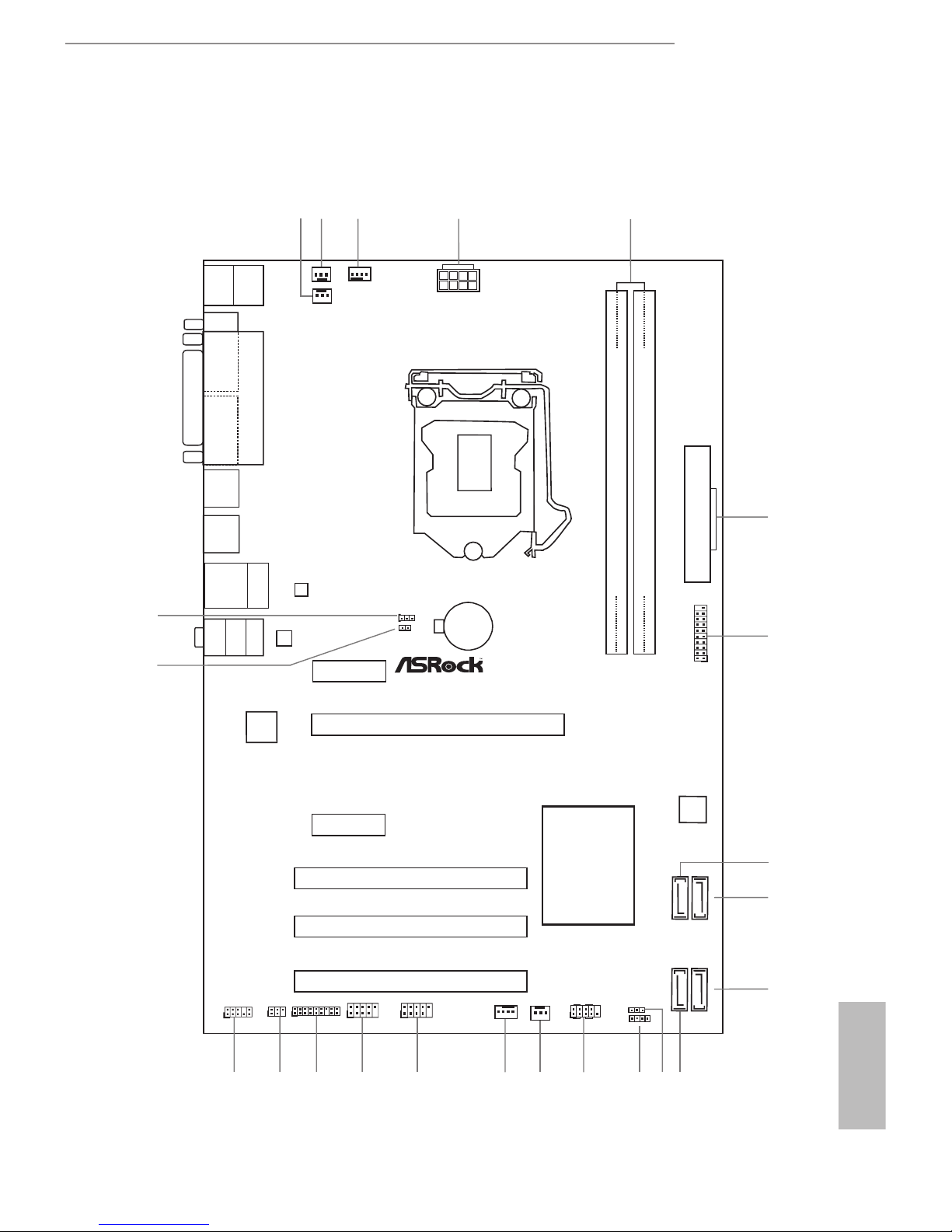

Motherboard Layout

Intel

H81

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

ATX12V1

CMOS

Battery

Super

I/O

ATXPWR1

LAN

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

CLRCMOS1

PLED1

SPEAKER1

IR1

HDLED RESET

PLED PWRBTN

PANEL1

USB4_5

USB6_7

HD_AUDIO1

P81 Pro3

CHA_FAN1

PCI1

RoHS

16 11

1317

CPU_FAN1

32Mb

BIOS

PWR_FAN1

SATA2_4

SATA2_5

SATA3_0

SATA3_1

PCI2

PCIE3

USB 2.0

T: USB0

B: USB1

Audio

CODEC

SPDIF1_OUT1

PCIE2

XFast U S B

XFast R A M

XFast L A N

PCIE1

CPU_FAN2

PCI3

TPMS1

CHA_FAN2

PS2

Keyboard

PS2

Mouse

PARALLEL PORT

COM1

SPDIF_O1

USB 3.0

T: USB0

B: USB1

Top:

LINE I N

Center:

FRONT

Bottom:

MIC IN

USB3_2_3

Front USB 3.0

English

No. Description

1 CPU Fan Connector (CPU_FAN2)

2 Power Fan Connector (PWR_FAN1)

3 CPU Fan Connector (CPU_FAN1)

4 ATX 12V Power Connector (ATX12V1)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

6 ATX Power Connector (ATXPWR1)

7 USB 3.0 Header (USB3_2_3)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_1)

10 SATA2 Connector (SATA2_5)

11 SATA2 Connector (SATA2_4)

12 Power LED Header (PLED1)

13 Chassis Speaker Header (SPEAKER1)

14 System Panel Header (PANEL1)

15 Chassis Fan Connector (CHA_FAN2)

16 Chassis Fan Connector (CHA_FAN1)

17 USB 2.0 Header (USB6_7)

18 USB 2.0 Header (USB4_5)

19 TPM Header (TPMS1)

20 Infrared Module Header (IR1)

21 Front Panel Audio Header (HD_AUDIO1)

22 SPDIF Out Connector (SPDIF_OUT)

23 Clear CMOS Jumper (CLRCMOS1)

P81 Pro3

English

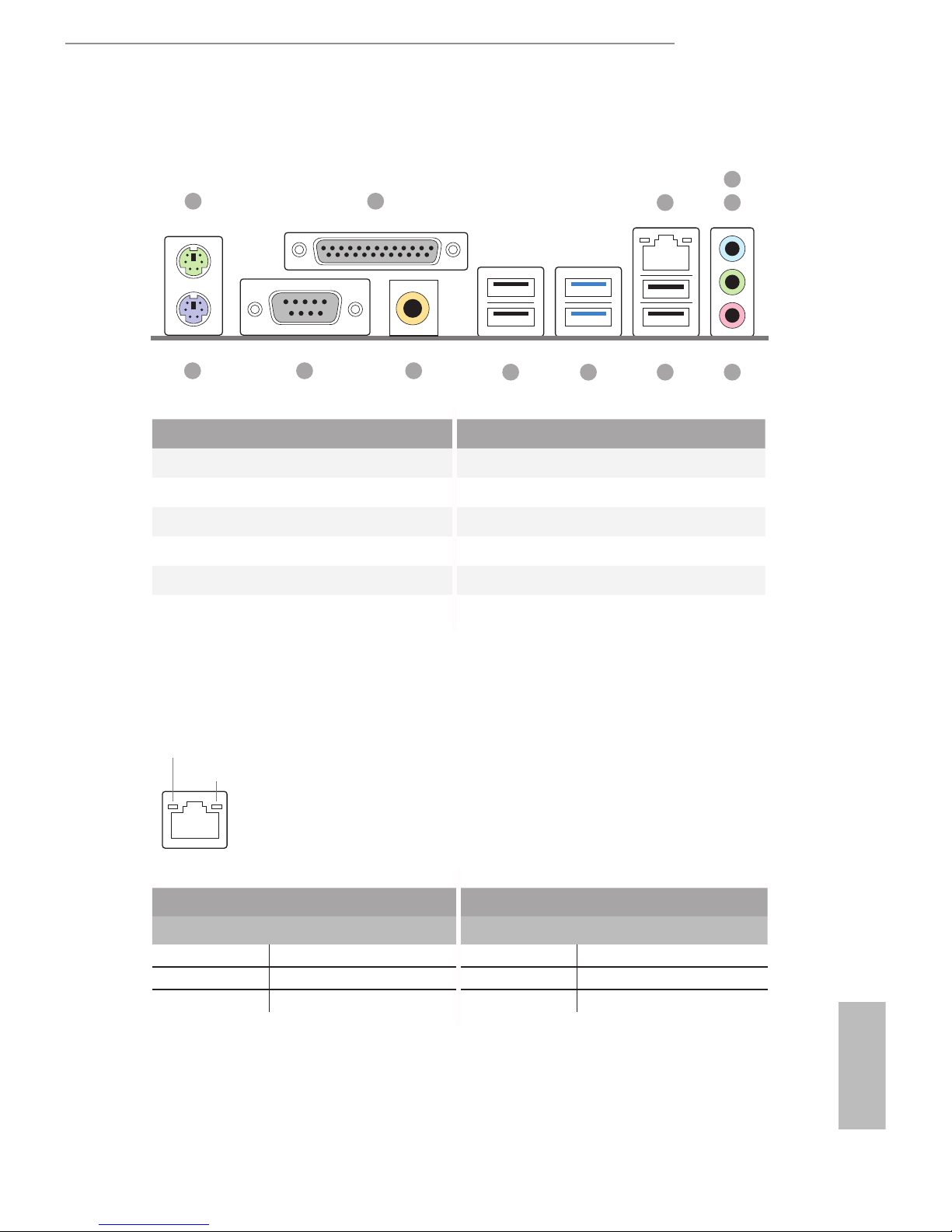

I/O Panel

No. Description No. Description

1 PS/2 Mouse Port 7 USB 2.0 Ports (USB_23)

2 Parallel Port 8 USB 3.0 Ports (USB3_01)

3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB_01)

4 Line In (Light Blue) 10 Coaxial SPDIF Out Port

5 Front Speaker (Lime) 11 COM Port

6 Microphone (Pink) 12 PS/2 Keyboard Port

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

3 5

6789

1 2

1112 10

English

Chapter 1 Introduction

ank you for purchasing ASRock P81 Pro3 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock P81 Pro3 Motherboard (ATX Form Factor)

• ASRock P81 Pro3 Quick Installation Guide

• ASRock P81 Pro3 Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

P81 Pro3

English

1.2 Specications

Platform • ATX Form Factor

• All Solid Capacitor design

CPU • Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 Package

• Digi Power Design

• 4 Power Phase Design

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® H81

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB

(see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP)1.3/1.2

Expansion

Slot

• 1 x PCI Express 2.0 x16 slot

• 2 x PCI Express 2.0 x1 slots

• 3 x PCI slots

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• TI® NE5532 Premium Headset Amplier (supports up to 600

Ohms headsets)

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111G

• Supports Wake-On-LAN

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

English

Rear Panel

I/O

• 1 x PS/2 Mouse Port

• 1 x PS/2 Keyboard Port

• 1 x Serial Port: COM1

• 1 x Parallel Port (ECP/EPP support)

• 1 x Coaxial SPDIF Out Port

• 4 x USB 2.0 Ports

• 2 x USB 3.0 Ports

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jack: Line in / Front Speaker / Microphone

Storage • 2 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot

Plug

• 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot

Plug

Connector • 1 x IR header

• 1 x Power LED header

• 1 x TPM header

• 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

• 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)

• 1 x Power Fan connector (3-pin)

• 1 x 24 pin ATX power connector

• 1 x 8 pin 12V power connector

• 1 x Front panel audio connector

• 1 x SPDIF Out connector

• 2 x USB 2.0 headers (support 4 USB 2.0 ports)

• 1 x USB 3.0 Header by Etron EJ168A (supports 2 USB 3.0

ports)

BIOS

Feature

• 32Mb AMI UEFI Legal BIOS with Multilingual GUI support

• ACPI 1.1 Compliance Wake Up Events

• SMBIOS 2.3.1 Support

• CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

P81 Pro3

English

Support

• Drivers, Utilities, AntiVirus Soware (Trial Version), Cyber-

Link MediaEspresso 6.5 Trial, Google Chrome Browser and

Toolbar, Start8

Hardware

Monitor

• CPU/Chassis Temperature Sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-

Adjust by CPU Temperature)

• CPU/Chassis Fan Multi-Speed Control

• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP Ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjust-

ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-

party overclocking tools. Overclocking may aect your system’s stability, or even cause

damage to the components and devices of your system. It should be done at your own

risk and expense. We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

English

1.3 Unique Features

ASRock A-Tuning

A-Tuning is ASRock’s multi purpose soware suite with a new interface, more new

features and improved utilities, including XFast RAM, Dehumidier, Good Night

LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.

ASRock Instant Flash

ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM. is conve-

nient BIOS update tool allows you to update the system BIOS in a few clicks without

preparing an additional oppy diskette or other complicated ash utility. Just save

the new BIOS le to your USB storage and launch this tool by pressing <F6> or

<F2> during POST to enter the BIOS setup menu to access ASRock Instant Flash.

Please be noted that the USB ash drive or hard drive must use FAT32/16/12 le

system.

ASRock APP Charger

Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch

charge up to 40% faster than before on your computer. ASRock APP Charger allows

you to quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Suspend to RAM

(S3), hibernation mode (S4) or power o (S5).

ASRock XFast USB

ASRock XFast USB can boost the performance of your USB storage devices. e

performance may depend on the properties of the device.

ASRock XFast LAN

ASRock XFast LAN provides faster internet access, which includes the benets

listed below. LAN Application Prioritization: You can congure your application’s

priority ideally and add new programs to the list. Lower Latency in Game: Aer

setting online game’s priority higher, it can lower the latency in games. Trac

Shaping: You can watch Youtube HD videos and download simultaneously. Real-

Time Analysis of Your Data: With the status window, you can easily recognize

which data streams you are currently transferring.

Autres manuels pour P81 Pro3

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK G41MH-LE3 Manuel utilisateur

ASROCK

ASROCK WOLFDALE1333-GLAN/M Manuel utilisateur

ASROCK

ASROCK ZH77 Pro3 Manuel utilisateur

ASROCK

ASROCK IMB-184-PY Manuel de service

ASROCK

ASROCK C3758D4I-4L Manuel utilisateur

ASROCK

ASROCK P55M PRO - Manuel utilisateur

ASROCK

ASROCK B85 Anniversary Manuel utilisateur

ASROCK

ASROCK N68-GS Manuel utilisateur

ASROCK

ASROCK Fatal1ty X99 Professional Series Manuel utilisateur

ASROCK

ASROCK H55 EXTREME3 Manuel utilisateur

ASROCK

ASROCK X58 EXTREME - Manuel utilisateur

ASROCK

ASROCK 939SLI32-ESATA2 Manuel utilisateur

ASROCK

ASROCK P45R2000 Manuel utilisateur

ASROCK

ASROCK H610M-ITX/eDP Manuel utilisateur

ASROCK

ASROCK B560M Pro4/ac+ Manuel utilisateur

ASROCK

ASROCK 890GMH/USB3 Manuel utilisateur

ASROCK

ASROCK 960GM/U3S3 FX Manuel utilisateur

ASROCK

ASROCK B660D4-P1 Manuel utilisateur

ASROCK

ASROCK M3A785GM-LE/128M Manuel utilisateur

ASROCK

ASROCK P45XE Manuel utilisateur

ASROCK

ASROCK N68C-GS UCC - Manuel utilisateur

ASROCK

ASROCK FM2A88X Extreme6 Manuel utilisateur

ASROCK

ASROCK N68-GS4 FX R2.0 Manuel utilisateur

ASROCK

ASROCK 785G Pro Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
