ASROCK J3160DC-ITX Manuel utilisateur

Version 1.0

Published January 2016

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage caused by our goods. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure. If you require assistance please call ASRock Tel

: +886-2-28965588 ext.123 (Standard International call charges apply)

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

English

J3160DC-ITX

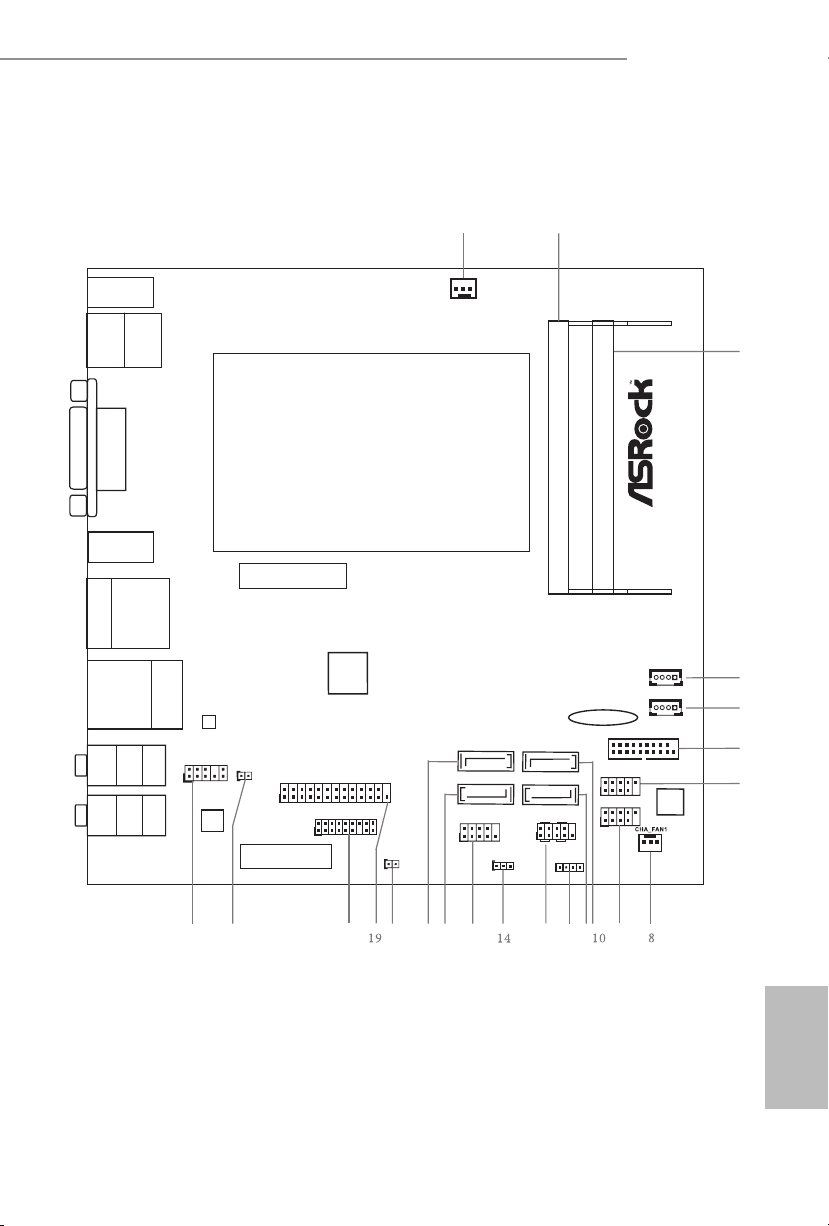

Motherboard Layout

PCIE1

13 12 11

AUDIO

CODE C

TPMS 1

CPU_FAN1

HDL ED RE SE T

PLE D PWR BT N

PANE L1

SPEAKER1

COM1

SATA3 _A1

RoHS

HD_A UDI O1

BIOS

ROM

Front USB 3.0

LAN

CLRM OS 1

USB3 _3_ 4

SATA3 _1

Top:

RJ-45

USB 3.0

T: USB1

B: USB2

USB_5_6

USB_3_4

SATA3 _A2

SATA3 _2

USB 2.0

T: USB0

B: USB1

PS2

Keyboard/

Mouse

DVI1

MINI_PCIE1

Super

I/O

USB 3.0

T: USB5

B: USB6

HDMI1

CI1

CMOS

Batt er y

LPT1

DC_JACK1

Top:

SIDE SPK

Center :

REAR SPK

Bottom:

CTR BASS

Top:

LINE IN

Center :

FRONT

Bottom:

MIC IN

SATA_ PW R1

SATA_ PW R2

DDR3_A1

DDR3_B1

J3160DC-ITX

DP1

SPD IF _O UT 1

21 20

English

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 204-pin DDR3 SO-DIMM Slot (DDR3_B1)

3 204-pin DDR3 SO-DIMM Slot (DDR3_A1)

4 SATA Power Connector (SATA_PWR1)

5 SATA Power Connector (SATA_PWR2)

6 USB 3.0 Header (USB3_3_4)

7 USB 2.0 Header (USB_5_6)

8 Chassis Fan Connector (CHA_FAN1)

9 USB 2.0 Header (USB_3_4)

10 SATA3 Connector (SATA3_1)

11 SATA3 Connector (SATA3_2)

12 Chassis Speaker Header (SPEAKER1)

13 System Panel Header (PANEL1)

14 Clear CMOS Jumper (CLRMOS1)

15 COM Port Header (COM1)

16 SATA3 Connector (SATA3_A2)

17 SATA3 Connector (SATA3_A1)

18 Chassis Intrusion Header (CI1)

19 Print Port Header (LPT1)

20 TPM Header (TPMS1)

21 SPDIF Out Connector (SPDIF_OUT1)

22 Front Panel Audio Header (HD_AUDIO1)

English

J3160DC-ITX

1 2 3

101114 13 89

15 12

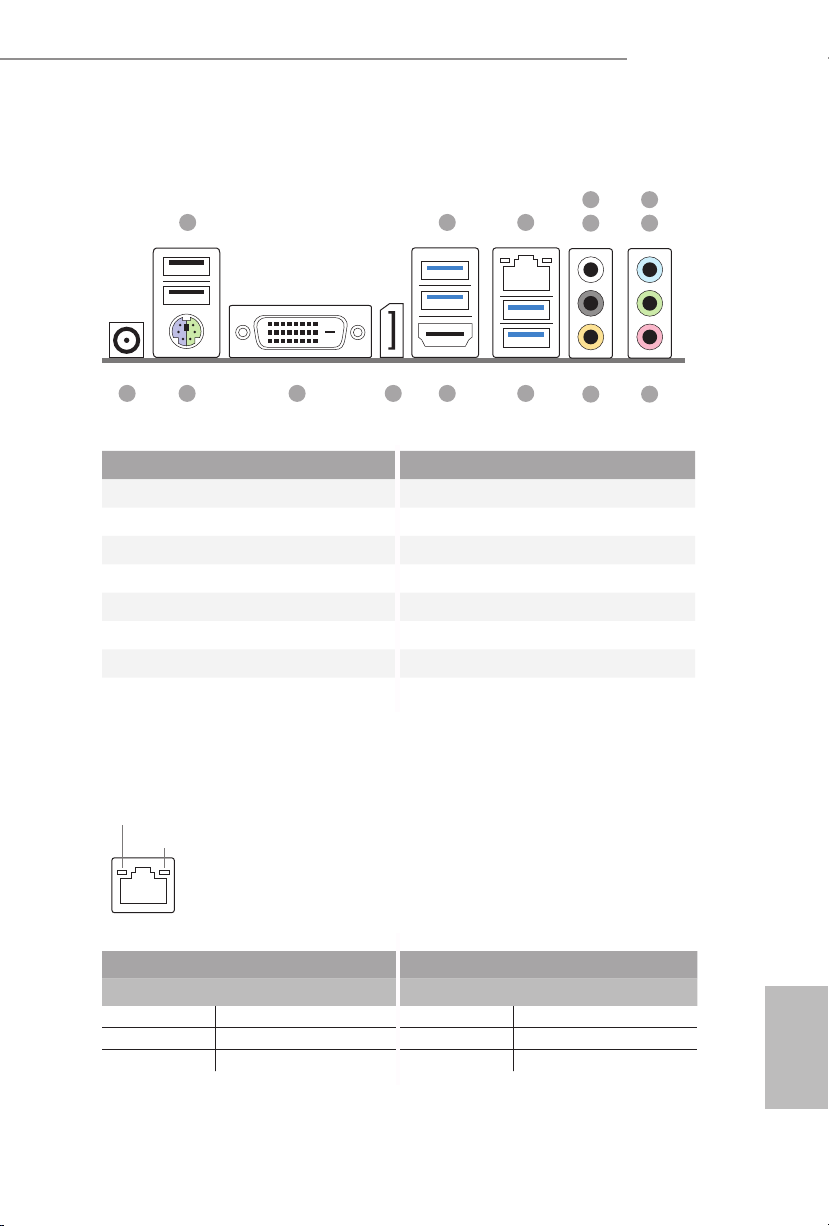

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 9 Central / Bass (Orange)

2 USB 3.0 Ports (USB3_5_6) 10 USB 3.0 Ports (USB3_1_2)

3 LAN RJ-45 Port* 11 HDMI Port

4 Side Speaker (Gray) 12 DisplayPort 1.1a

5 Rear Speaker (Black) 13 DVI-D Port

6 Line In (Light Blue) 14 PS/2 Mouse/Keyboard Port

7 Front Speaker (Lime)** 15 DC Jack***

8 Microphone (Pink)

* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

English

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 9)

Side Speaker

(No. 4)

2V -- -- --

4V V -- --

6V V V --

8V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the

front panel audio header. Aer restarting your computer, you will nd the “Mixer”

tool on your system. Please select “Mixer ToolBox” , click “Enable playback

multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then

you are allowed to select “Realtek HDA Primary output” to use the Rear Speaker,

Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use

the front panel audio.

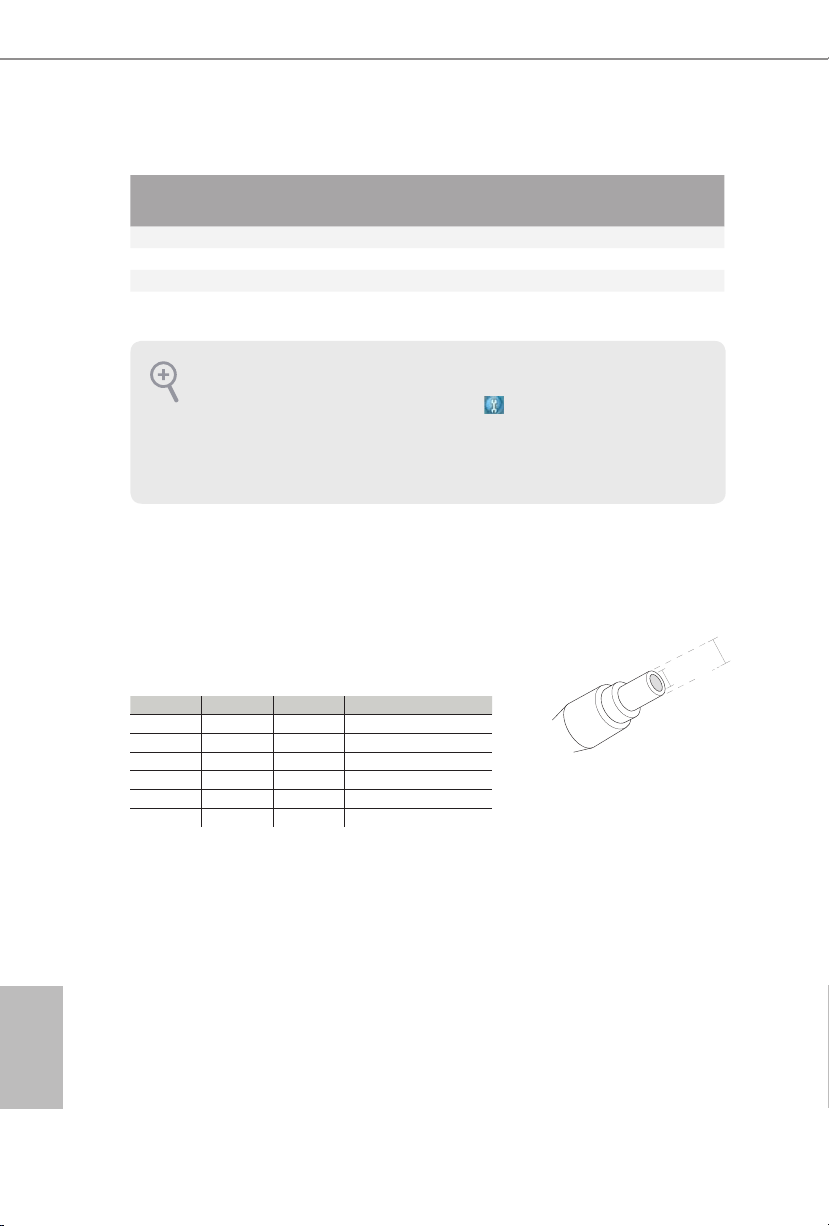

*** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of

2.5 mm and an outer diameter of 5.5 mm, where the inner contact is +19V (±10%) DC and the shell is GND.

Please refer to below hardware conguration for the estimated adapter power.

DRAM HDD PCIe Card Estimated Adapter Power

1 1 0 35W

1 2 0 50W

2 4 0 84W

1 1 <20W 60W

1 2 <20W 75W

1 1 <40W 85W

If you install 4 HDDs, please use the 90W DC-in 19V power adapter.

Due to the power limitation and PCIe bandwidth (x1) VGA cards are not supported.

When you use the DC-in power adapter, please use the onboard SATA power connector to get the power for

HDDs.

2.5 mm

5.5mm

English

J3160DC-ITX

Chapter 1 Introduction

ank you for purchasing ASRock J3160DC-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock J3160DC-ITX Motherboard (Mini-ITX Form Factor)

• ASRock J3160DC-ITX Quick Installation Guide

• ASRock J3160DC-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Serial ATA (SATA) Power Cables (Optional)

• 1 x 65W DC-in 19V 3.42A Power Adapter (Optional)

• 1 x I/O Panel Shield

• 1 x WiFi Module Screw

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Mini-ITX Form Factor

• Solid Capacitor design

CPU • Intel® Quad-Core Processor J3160 (up to 2.24 GHz)

Memory • Dual Channel DDR3/DDR3L Memory Technology

• 2 x DDR3/DDR3L SO-DIMM Slots

• Supports DDR3/DDR3L 1600/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB

(see CAUTION)

* If only one SO-DIMM module is installed, please install it into

DDR3_A1.

Expansion

Slot

• 1 x PCI Express 2.0 x1 Slot

• 1 x Half-size Mini-PCI Express Slot

* Due to the power limitation and PCIe bandwidth (x1) VGA

cards are not supported.

Graphics

•Integrated Intel® HD Graphics 400: 12 EUs inside (Up to

700MHz)

•DirectX 11.1, Pixel Shader 5.0

•ree graphics output options: DVI-D, HDMI and

DisplayPort 1.1a

•Supports Triple Monitor

•Supports HDMI with max. resolution up to 4K x 2K

(3840x2160) @ 30Hz or 2560x1600 @ 60Hz

•Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

•Supports DisplayPort 1.1a with max. resolution up to 4K x 2K

(3840x2160) @ 30Hz or 2560x1600 @ 60Hz

•Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate

Audio) with HDMI Port (Compliant HDMI monitor is

required)

•Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/

HEVC @ level 5 (GPU accelerated), JPEG, VP8

•Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a

Ports

•Supports Full HD 1080p Blu-ray (BD) playback with DVI-D,

HDMI and DisplayPort 1.1a Ports

English

J3160DC-ITX

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection (ASRock Full Spike Protection)

• ELNA Audio Caps

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x DC Jack (Compatible with the 19V power adapter)

* If you install 4 HDDs, please use the 90W DC-in 19V power

adapter.

• 1 x PS/2 Mouse/Keyboard Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 1 x DisplayPort 1.1a

• 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass

/ Line in / Front Speaker / Microphone

Storage • 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

port NCQ, AHCI and Hot Plug

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x TPM Header

• 1 x Chassis Intrusion Header

• 1 x CPU Fan Connector (3-pin)

English

• 1 x Chassis Fan Connector (3-pin)

• 2 x SATA Power Connectors

• 1 x Front Panel Audio Connector

• 1 x SPDIF Out Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

* USB3_3_4 is shared with USB_5_6.

BIOS

Feature

• AMI UEFI Legal BIOS with GUI support

• Supports Plug and Play

• ACPI 5.0 compliant wake up events

• Supports jumperfree

• SMBIOS 2.7 support

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-

bit / 7 32-bit / 7 64-bit

* To install Windows® 7 64-bit OS, a modied installation disk

with xHCI drivers packed into the ISO le is required. Please

refer to page 121 for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock's

website for details: http://www.asrock.com

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

Table des matières

Langues :

Autres manuels ASROCK Carte mère

ASROCK

ASROCK A55DEL Manuel utilisateur

ASROCK

ASROCK A75M-ITX Manuel utilisateur

ASROCK

ASROCK Z590 PRO4 Manuel utilisateur

ASROCK

ASROCK Z87 OC Formula/ac Manuel utilisateur

ASROCK

ASROCK Z690 Phantom Gaming 4/D5 Manuel utilisateur

ASROCK

ASROCK X570 PHANTOM GAMING 4 Manuel utilisateur

ASROCK

ASROCK H61M-GS Manuel utilisateur

ASROCK

ASROCK Z77 Extreme6 Manuel utilisateur

ASROCK

ASROCK FM2A88X Pro3+ Manuel utilisateur

ASROCK

ASROCK Z77 Extreme9 Manuel utilisateur

ASROCK

ASROCK X99 Extreme11 Manuel utilisateur

ASROCK

ASROCK 770 Extreme3 Manuel utilisateur

ASROCK

ASROCK 939A785GMH Manuel utilisateur

ASROCK

ASROCK Z87 Extreme4 TB4 Manuel utilisateur

ASROCK

ASROCK Z77 Pro3 Manuel utilisateur

ASROCK

ASROCK K10N78FullHD-hSLI R3.0 Manuel utilisateur

ASROCK

ASROCK 890GM Pro3 R2.0 Manuel utilisateur

ASROCK

ASROCK Z77 Pro3 Manuel utilisateur

ASROCK

ASROCK H97M-ITX/ac Manuel utilisateur

ASROCK

ASROCK Z170M OC Formula Manuel utilisateur

ASROCK

ASROCK B650 PRO RS Manuel utilisateur

ASROCK

ASROCK Taichi Razer Edition B550 Manuel utilisateur

ASROCK

ASROCK P43R1600TWINS Manuel utilisateur

ASROCK

ASROCK P4AL-8X Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
