ARGON18 E-117 TRI 285A Manuel utilisateur

E-117 TRI 285A: ASSEMBLY GUIDE

Valid for MY2019 E-117 Tri 285A / 285B

Revision 1.1 - 07-04-2018

E-117 TRI 285B: ASSEMBLY GUIDE

Valid for MY2019 E-117 Tri 285A / 285B

Revision 1.1 - 07-04-2018

1. Tools Needed & First Ait Kit ..............................2

2. Frameset Parts ...........................................3

3. Parts’ SKUs and Descriptions .............................4

4. Seat Post Clamp Installation ..............................5

5. Seat Post Installation.....................................6

6. Frame Inspection ........................................8

7. Derailleur Hanger Adjustment ............................9

8. Headset Installation.....................................11

9. Cable Housing Installation ..............................14

10. Electronic Drive-train Specication .....................17

11. Front Brake Installation ................................20

12. Rear Brake Installation .................................23

13. Saddle Adjustment ....................................25

14. Troubleshooting/Tips ..................................26

15. Appendix..............................................27

For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High end components,

particularly carbon parts, need extra care when assembled. These components must be installed using a calibered torque

wrench to make sure every bolt is at the right torque setting to prevent damage.

E-117 TRI 285A / 285B: Table of Contents

My E-117 Tri

Date of purchase:

Retailler:

Size:

Serial Number:

Tools needed for assembly

1: Bearing Cup Press (Park Tool HHP-2)

2: Allen Key Set

3: Grease

4: Utility Pick Set (Park Tool Item # UP-SET)

5: Clean Rags

6: Derailleur Hanger Alignment Gauge (Park Tool Item # DAG-2)

7: Cables and Housing Cutter

8: Carbon Paste

9: Loctite #242 or #243

10: Torque Wrench

First Aid Kit: Essential parts to always have on hand

IN CASE OF EMERGENCY…THIS MIGHT SAVE YOUR RIDE!

1: Spare rear dropout (SKU: 38883)

2: Spare brake pads corresponding to your wheel model (carbon or alloy)

3: Seat clamp (SKU: 80423, 80422)

IMPORTANT: the E-117 Tri’s seat clamp (1.4) is not the same as the Nitrogen

E-117 TRI 285A / 285B: 1. Tools Needed & First Aid Kit

SKU: 38883

1.6

RUNNING CHANGE

1.4.2 1.4.2

1.4.1 1.4.1

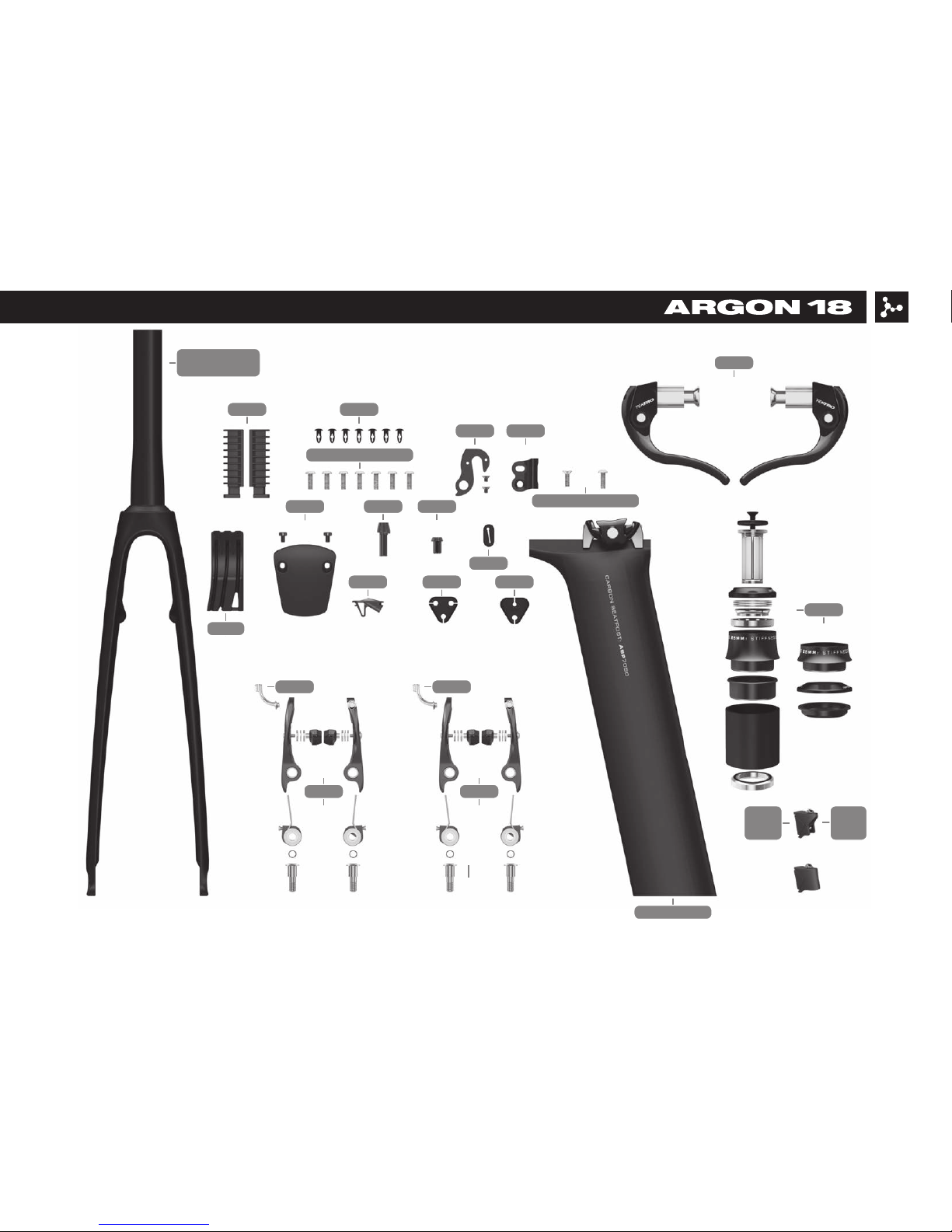

E-117 TRI 285A / 285B: 2. Frameset Parts

Included with 38882

FK.E117T.285A

FK.E117T.285B

SP.E117T.285A

80158

80774 80654

80096

80164

80372

80422

80373

80423

Included with 38882

running change

80264

38883

80167

38882

80160 8016580159

80424 80424

38879 36656 36670

36580

Images are for reference only. Proportions are not accurate.

Argon 18 reserves the right to modify/change parts of the frameset at any moment without prior notice.

*for more info please consult notice on Seatpost clamp dated 2016-06-09

E-117 TRI 285A / 285B: 3. Parts’ SKUs and Descriptions*

No. Name Assembled on A18 SKU # Qty

Parts already assembled

Parts

E-117 Tri Frame - - 1

E-117 Tri Fork - FK.E117T.285A 1

FK.E117T.285B

3 E-117 Tri ASP-7050 Seat Post - SP.E117T.285A 1

1.4.1 Seat Post Collar base (incl. screws) Frame 80423 1

1.4.2 Seat Post Collar wedge (incl. screws) Frame 80422 2

1.5 Top Tube Grommet (mechanical) Frame 36656 2

1.6 Top Tube Grommet (electronic) Frame 36670 2

1.8 Bottom Bracket Cover (incl. screws) Frame 80159 1

1.10 Rear Derailleur Cable Stopper (mechanical) Frame 80160 1

1.14 Plastic Plug Frame 80264 7

1.16 Front Derailleur Cable Grommet Frame 80164 1

1.17 Rear Derailleur Grommet (electronic) Frame 80165 1

3.2 Internal Di2 Battery Support Seat Post 80167 1 Set

4 Rear Brake Assembly (TKB138-3) Frame 80774 1

4.2 Brake Noodle (ts TKB137-2 & TKB138-3) - 80424 2

5 Front Brake Assembly (TKB137-2) Fork 80654 1

6 3D Headset Assembly Fork 80096 1

7 Jagwire Housing Kit Frame 39014 1

8 Brake Levers TL-720 - 36580 1 Set

1.2 Rear Derailleur Hanger (incl. screws) Frame 38883 1

1.3 Front Derailleur Hanger (incl. screws) Frame 38882 1

1.7 Bottom Bracket Cable Guide (incl. screws) Frame 80158 1

1.15 Cable Stopper Frame 38879 1

1.11 Bottle Cage & Front Derailleur Screws Frame incl. with 38882 7

*Except for the frame itself, which is not sold as a spare part, all parts can be ordered by referring to their respective SKU number.

E-117 TRI 285A / 285B: 4. Seat Post Clamp Installation

1. Place the seat post collar inside the

frame.

2. Insert the seatpost (3.1) on which

some carbon ber assembly paste has

been applied.

3. Position the seatpost to the desired

height.

4. Apply a drop of blue Threadlocker

(n. 242) on the bolt’s thread

5. Tighten the set screw at max. 5.5Nm

while leaving a space between the two

parts allowing them to slide.

IMPORTANT: The E-117 Tri+’s seat

clamp is not the same as the Nitrogen

GREASE

THREADLOCKER

BLUE (n. 242)

LOCTITE

GREASE

CARBON FIBER

ASSEMBLY

COMPOSITE

5.5 Nm

1Nm

1.4.1

RUNNING CHANGE

1.4.1

E-117 TRI 285A / 285B: 5. Seat Post Installation

1. Unscrew main bolt (A) as far as

possible without fully removing from

the lock nut.

2. Install the saddle rails into the

seatpost clamp (B).

3. Slide saddle clamp (B) onto rocker (C).

4. Tighten the bolt up at 12Nm.

See p.25 for saddle adjustment.

IMPORTANT:

The E-117 Tri+’s saddle rail clamp is

made for aluminum and round-shaped

saddle rails (For part numbers contact

Ritchey).

For other types of saddle rails, please

refer to the Tips and Troubleshooting

section of this Assembly Guide (p.26).

12Nm

GRIP PASTE

5Nm

3.2

E-117 TRI 285A / 285B: 5. Seat Post Installation

The Di2 battery is hidden in the

seatpost; use the Di2 battery holder

(3.2) to x the battery correctly. Apply a

slight amount of grease on both parts.

GREASE

E-117 TRI 285A / 285B: 6. Frame Inspection

Parts installed on the frame Description Screw Torque Detail

type Nm

Front derailleur hanger Screw (2) 5mm 4Nm Loctite

Rear derailleur hanger Screw (2) 3mm 4Nm Loctite

Bottle cage Screw (7) 4mm 3Nm Grease

Bottom bracket cover Screw (2) 4mm 2.5Nm Grease

IMPORTANT:

The following parts are assembled on the frame. When assembling the bike, you will need to adjust these parts according to their

torque specications.



1. Brakes and gears cables and housing set

2: Frameset parts checklist (see p.27)

3: Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.)

4: For reference, check serial number and write it on p.1

5: All the necessary bolts (refer to Frameset Parts, p.4)

6: For optimal shifting performance, use a dropout alignment gauge to make sure that the drive-side dropout is

straight.
