ARGON18 E-80 Manuel utilisateur

E-80 : ASSEMBLY GUIDE

Revision 3.0 - 06-02-2016

Assembly overview. . . . . . . . . . . . . . . . . . . . . . . ..................2

1. Frame inspection . . . . . . . . . . . . . . . . . . . . . ...................3

2. Cable housing installation . . . . . . . . . . . . . . . . . . . . ..........4-7

3. Brakes installation . . . . . . . . . . . . . . . . . . . . . ................8-9

4. Seatpost installation . . . . . . . . . . . . . . . . . . . . . . . . . ...........10

5. Saddle adjustment . . . . . . . . . . . . . . . . . . . . . . . . .......... 11-12

6. Parts listing . . . . . . . . . . . . . . . . . . . . . .................... 13-15

For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components,

particularly carbon parts, need extra care when assembled. Those components must be installed using a calibrated torque

wrench to make sure every bolt is at the right torque setting to prevent damage.

E-80 : Table of contents

2. Cable housing installation

IMPORTANT NOTICE: It is easier to install the

cables and cable housings before the bearings.

1. Frame inspection 3. Brake installation

E-80 : Assembly overview

5. Saddle adjustment4. Seatpost installation

Images are for reference only. Proportions are not accurate.

6. Parts listing

E-80 : 1. Frame inspection

Parts installed on the frame Description Screw Torque Detail

type Nm

1 Front derailleur hanger Screw (2) 3mm 4Nm Loctite

2 Rear derailleur hanger Screw (4) 3mm 4Nm Loctite

3 Bottle cage Screw (2) 4mm 3Nm Grease

4 Bottom bracket cable guide Screw (2) 5mm 2Nm Grease

When assembling a new frame, be sure to check if the following parts are assembled correctly.

1. Install the front derailleur and the

rear brake housing starting at the top of

the downtube (left side).

2. Install the rear derailleur housing

starting at the top of the downtube

(right side).

For the derailleur and brake housing,

measure a sucient length of housing

to be able to turn the handlebar both

ways correctly.

See the table below for the cable housing

suggested length.

Suggested lengths of the cable housing

housing/size

Front brake

Rear brake

Front derailleur

Rear derailleur

58cm

136cm

140cm

198cm

60cm

138cm

142cm

200cm

62cm

140cm

144cm

202cm

64cm

142cm

146cm

204cm

XS S M L

E-80 : 2. Cable housing installation

A : barrel adjuster

B : metal cap

C : plastic cap

speed adjustment : C+A+C

Rear derailleurFront derailleur

Rear brake

12h

Remove the cable guide (3f) and add

a plastic cap on the front derailleur

housing. Insert the plastic cap and the

rear derailleur housing into the cable

guide, then x the guide to the frame

with the M5 screw.

IMPORTANT NOTICE: It is easier to

install the cable housings before the

crank.

E-80 : 2. Cable housing installation

GREASE

Fix the front derailleur cable to

the front derailleur. Insert the rear

derailleur housing into the hole near

the bottom bracket until it comes out

next to the right side drop out.

E-80 : 2. Cable housing installation

For each cable housing, measure a sucient length to be

able to turn the handlebar both ways correctly. This will also

ensure the grommets stay in place correctly.

E-80 : 2. Cable housing installation

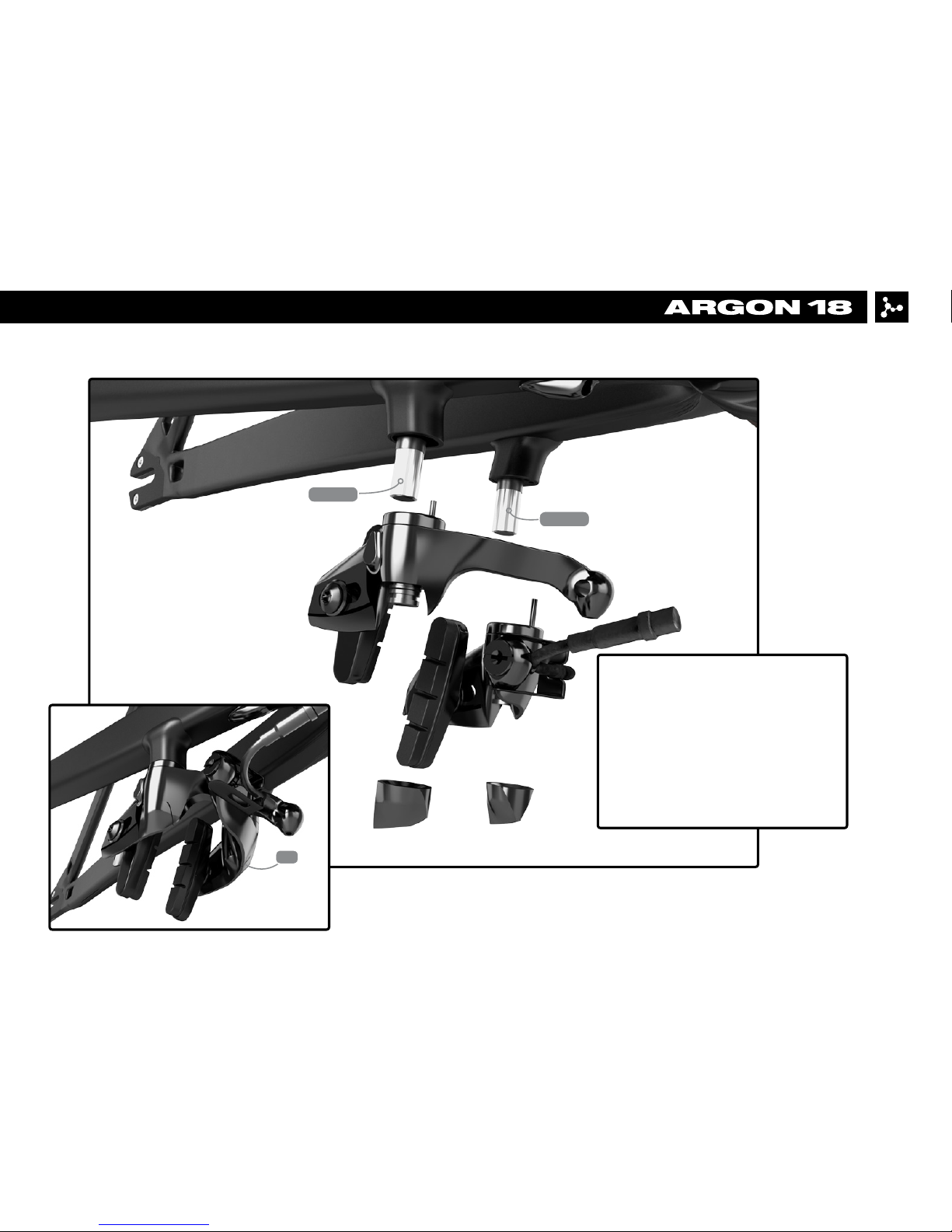

Install the rear brake (8) as shown; the

drive side arm must be placed rst.

Insert the retention spring in the center

tension hole. Screw in the brake bolt

at 8Nm. Finally, place the plastic bolt

covers on their respective sides, follow

the natural curves of the brake design.

IMPORTANT NOTICE: It’s easier to install

the rear brake before the crank.

E-80 : 3. Brakes installation

GREASE

The front brake is installed behind the

fork. Use the provided sunken nut to

x the brake caliper to the fork; tighten

it to 8 Nm.

E-80 : 3. Cable housing installation
