ARGON18 ELECTRON PRO Manuel utilisateur

ELECTRON PRO : ASSEMBLY GUIDE

Revision 3.0 - 06-02-2016

Assembly overview. . . . . . . . . . . . . . . . . . . . . . . ..................2

1. Frame inspection . . . . . . . . . . . . . . . . . . . . . ...................3

2. Headset installation . . . . . . . . . . . . . . . . . . . . ..................4

3. Seatpost installation . . . . . . . . . . . . . . . . . . . . . . . . . ............5

4. Saddle adjustment . . . . . . . . . . . . . . . . . . . . . . . . .............6-7

5. Parts listing . . . . . . . . . . . . . . . . . . . . . .......................8-9

For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components,

particularly carbon parts, need extra care when assembled. Those components must be installed using a calibrated torque

wrench to make sure every bolt is at the right torque setting to prevent damage.

ELECTRON PRO : Table of contents

1. Frame inspection

ELECTRON PRO : Assembly overview

4. Saddle adjustment

3. Seatpost installation

Images are for reference only. Proportions are not accurate.

4c 4b

5. Parts listing

2. Headset installation

ELECTRON PRO : 1. Frame inspection

Parts installed on the frame Description Screw Torque Detail

type Nm

1 Drop out insert with screws Screw (6) 3mm 4Nm Loctite

2 Seat clamp Screw (1) 4mm 3Nm Grease

When assembling a new frame, be sure to check if the following parts are assembled correctly.

Install the 3D headset (5) according to

the presst assembly guide. You can

choose from 3 dierent heights: 25mm,

15mm or 0mm.

ELECTRON PRO : 2. Headset installation

ELECTRON PRO : 3. Seatpost installation

1. Make sure the clamp (4c) sits

correctly on the seat tube.

2. Insert the seatpost (3) on which

some carbon ber assembly gel has

been applied.

3. Position the seatpost at the desired

height and tighten evenly the two

screws to 6Nm.

6Nm

GREASE

CARBON FIBER

ASSEMBLY

COMPOSITE

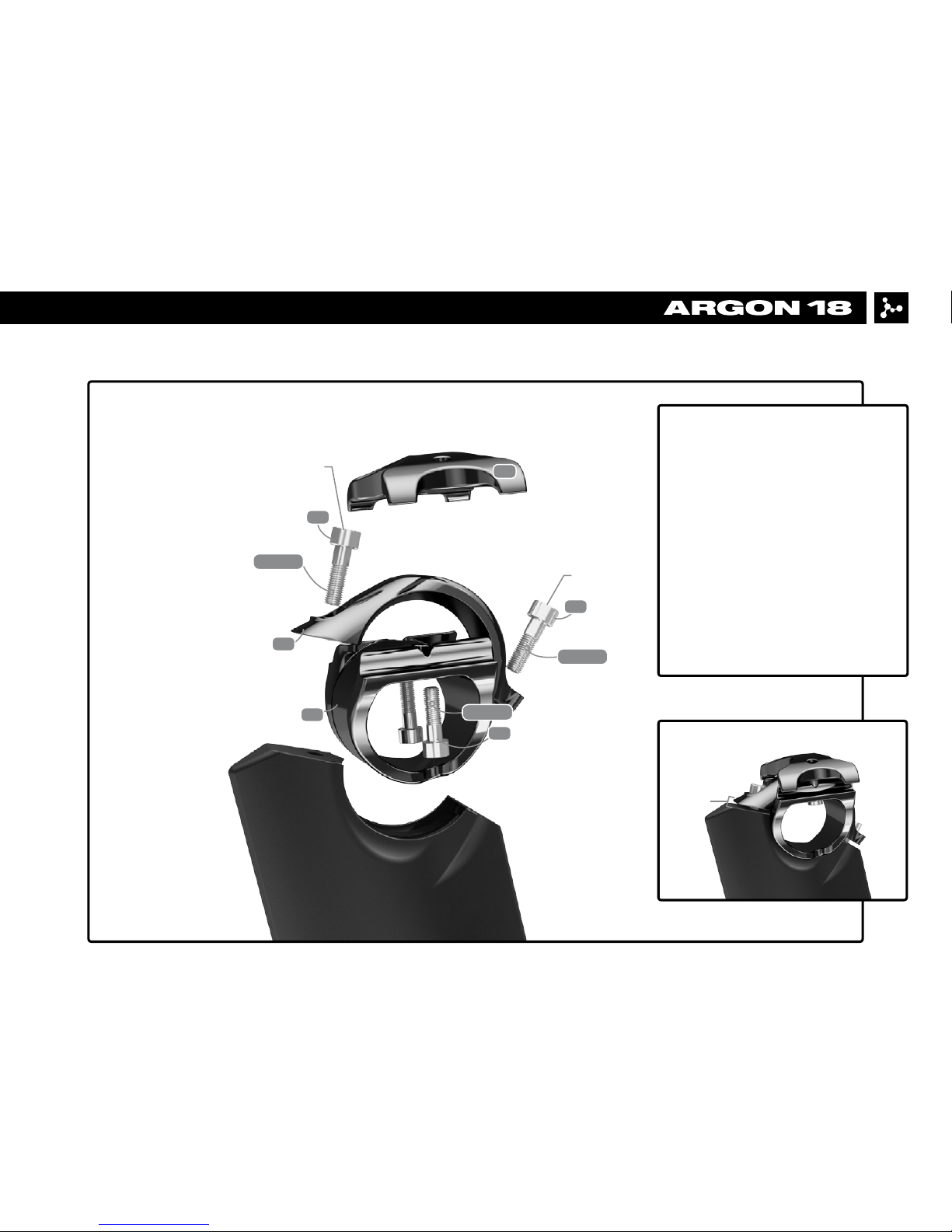

ELECTRON PRO : 4. Saddle adjustment

1. Install the saddle on the rocker (3f)

and slightly tighten the rail clamp (3d)

using a ball end hex key.

2. Tighten the upper screw of the rocker

clamp (3a) by keeping a space of 2

to 3mm between the aluminum and

carbon parts.

3. Adjust the angle of the saddle and

tighten the lower bolt of the rocker

clamp (3b).

4. Adjust the saddle oset and nalize

the tightening of the rail clamp (3c).

GREASE

8Nm

2-3mm

8Nm

GREASE

ELECTRON PRO : 4. Saddle adjustment

The 2waypost ASP-4000 can be ipped

to achieve a triathlon or a road position

(75°/78°).

The seat clamp oset can be set by

ipping the rail clamp (3d) and the

rocker (3f).

Road : -10mm to -15mm

Tri : +10mm to 15mm

ELECTRON PRO : 5. Parts listing

Images are for reference only. Proportions are not accurate.

4c 4b

ELECTRON PRO : 5. Parts listing

No. Name A18 SKU# Qty

# Frameset Parts

# Seat post with the following parts assembled

1 Electron Pro frame

2 Electron Pro fork FK.ELECC.244A 1

3 Electron Pro seat post (ASP-4500) SP.ELECC.244A 1

3a • Upper HexSocket screw (M6*20mm S) for rocker clamp 1

3b • Lower HexSocket screw M6*20mm S) for rocker clamp 1

3c •HexSocket screws (M5*20mm S) 2

3d • Top rail clamp 1

3e • Rocker clamp 1

3f • Rocker 1

3g Clamp rail holder kit seatpost setback 37116 1

# Parts installed on the frame

4a Inserts for rear drop out with screws M4x7mmF - Model H 35984 1 set

4b Chain adjustor for drop out 35987 1 set

4c Seat clamp alloy polish black with screws M5x20mmS 37834 1

# Also included with the frameset - shipped separately

5 Headset No. IS-2 6.5 + 3D with compressor TH-881-1 37859 1

6 3D headset tool 36165 1
