ANTAIRA LNP-0500G-bt-24 Series Manuel utilisateur

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

LNP-0500G-bt-24 Series

5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet

Switch, with 4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx;

12~55VDC Power Input

User Manual

Version 1.1

(June 2020)

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC may make improvements and/or changes to the product and/or specifications of the product described in this

manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Unmanaged Ethernet Switches

User Manual

Version 1.1 (June 2020)

This manual supports the following models:

•LNP-0500G-bt-24

•LNP-0500G-bt-24-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail (support@antaira.com).

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

Table of Contents

1. Overview ............................................................... 1

1.1 Key Features................................................... 1

1.2 Package Contents........................................... 2

1.3 Safety Precaution............................................ 2

2. Hardware Description.......................................... 3

2.1 Physical Dimensions....................................... 3

2.2 Front Panel...................................................... 4

2.3 Top View ......................................................... 4

2.4 LED Indicators................................................. 5

2.5 Dip Switch ....................................................... 6

2.6 Relay Contact Alarm Warning......................... 6

2.7 PoE Port LED Indicators ................................. 7

2.8 Ethernet Ports ................................................. 9

2.9 Cabling .......................................................... 10

2.10 Wiring the Power Inputs................................ 10

2.11 Wiring the Fault Alarm Contact..................... 11

3. Mounting Installation......................................... 12

3.1 DIN-Rail Mounting......................................... 12

3.2 Wall Mounting................................................ 14

4. Hardware Installation......................................... 15

4.1 Installation Steps........................................... 15

5. Trouble Shooting................................................ 16

6. Technical Specifications ................................... 17

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

1. Overview

Antaira Technologies’ LNP-0500G-bt-24 series is an industrial gigabit PoE++ unmanaged

Ethernet switch featuring 4*10/100/1000Tx PoE RJ45 ports and 1*10/100/1000Tx RJ45 port. Each

PoE Ethernet port supports an IEEE 802.3bt with high power PoE++ output up to 90W per port,

making it ideal for applications that demand a high power PoE power source within any harsh or

outdoor environment.

The LNP-0500G-bt-24 series is IP30 rated and DIN-rail mountable with two wide operating

temperature models to support either a standard temperature range (STD: -10°C to 65°C), or an

extended temperature range (EOT: -40°C to 75°C); as well as high EFT and ESD protection to

prevent any unregulated voltage.

This product series provides a reliable hardened Ethernet connection with PoE functions for any

outdoor or harsh industrial application environments, such as, security surveillance, ITS-traffic

monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater

treatment plants, and lastly, automated production lines in factory automation.

1.1 Key Features

System Interface/Performance

•All RJ45 ports support the auto MDI/MDI-X function

•Embedded 4*10/100/1000Tx (PSE: 90W/Port) and 1*10/100/1000Tx

•Store-and-forward switching architecture

•8K MAC address table

•Jumbo Frame Support up to 10.0K

•Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

Power Input

•DC 12~55V redundant power, with a 6-pin removal terminal block

Operating Temperature

•Standard operating temperature model: -10°C ~ 65°C

•Extended operating temperature model (–T): -40°C ~ 75°C

Case/Installation

•IP30 protection

•DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

1.2 Package Contents

1 - LNP-0500G-bt-24(-T)

1 - Quick Installation Guide

2 - Wall mounting brackets and screws

1 - DC cable –18 AWG & DC jack 5.5x2.1mm

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s hardware

specs, ports, cabling information, and wiring installation will be described

within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

2. Hardware Description

2.1 Physical Dimensions

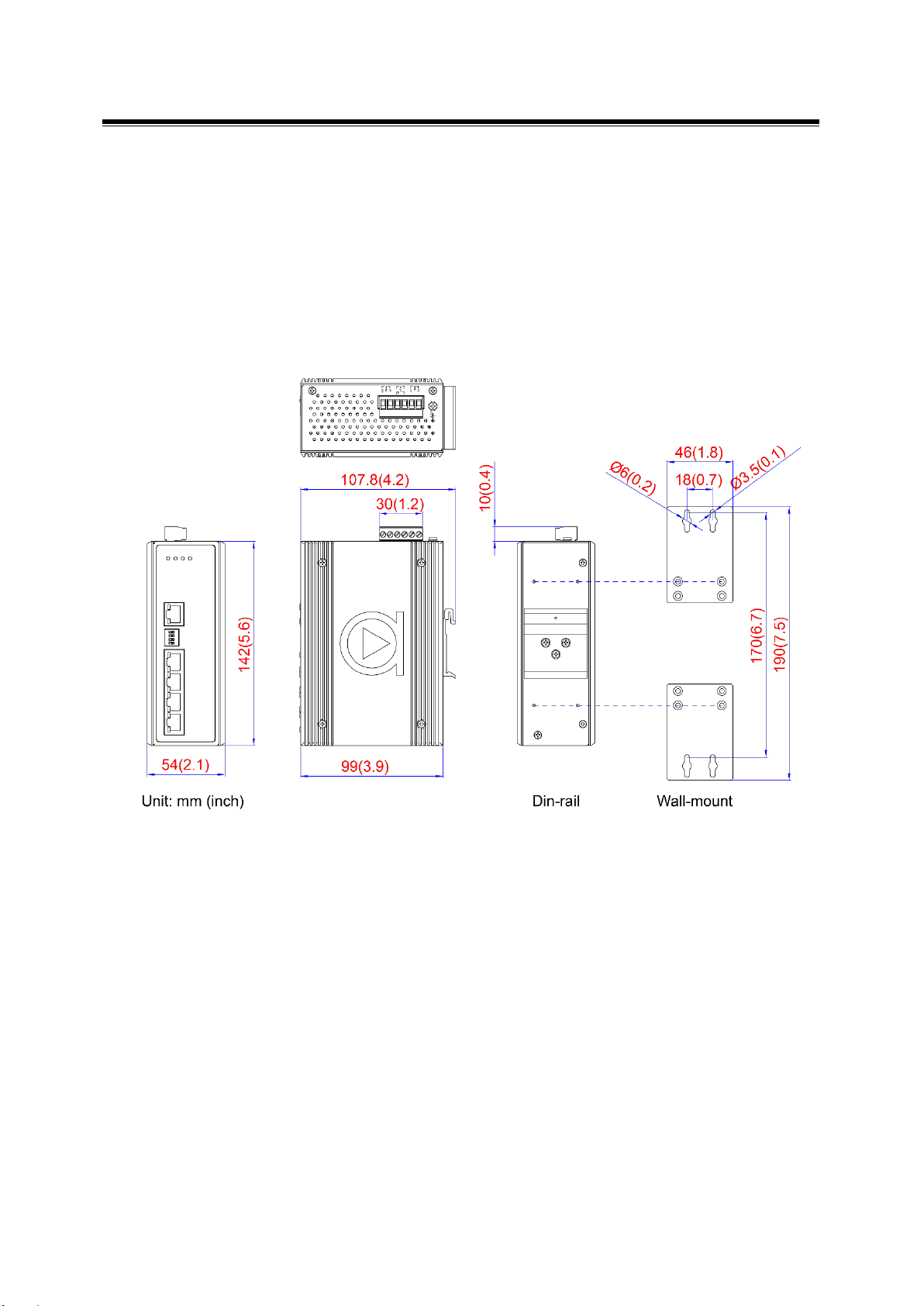

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-0500G-bt-24 series:

(W x D x H) is 54mm x 99mm x 142mm

Figure 2.1

LNP-0500G-bt-24 Series Physical Dimensions

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

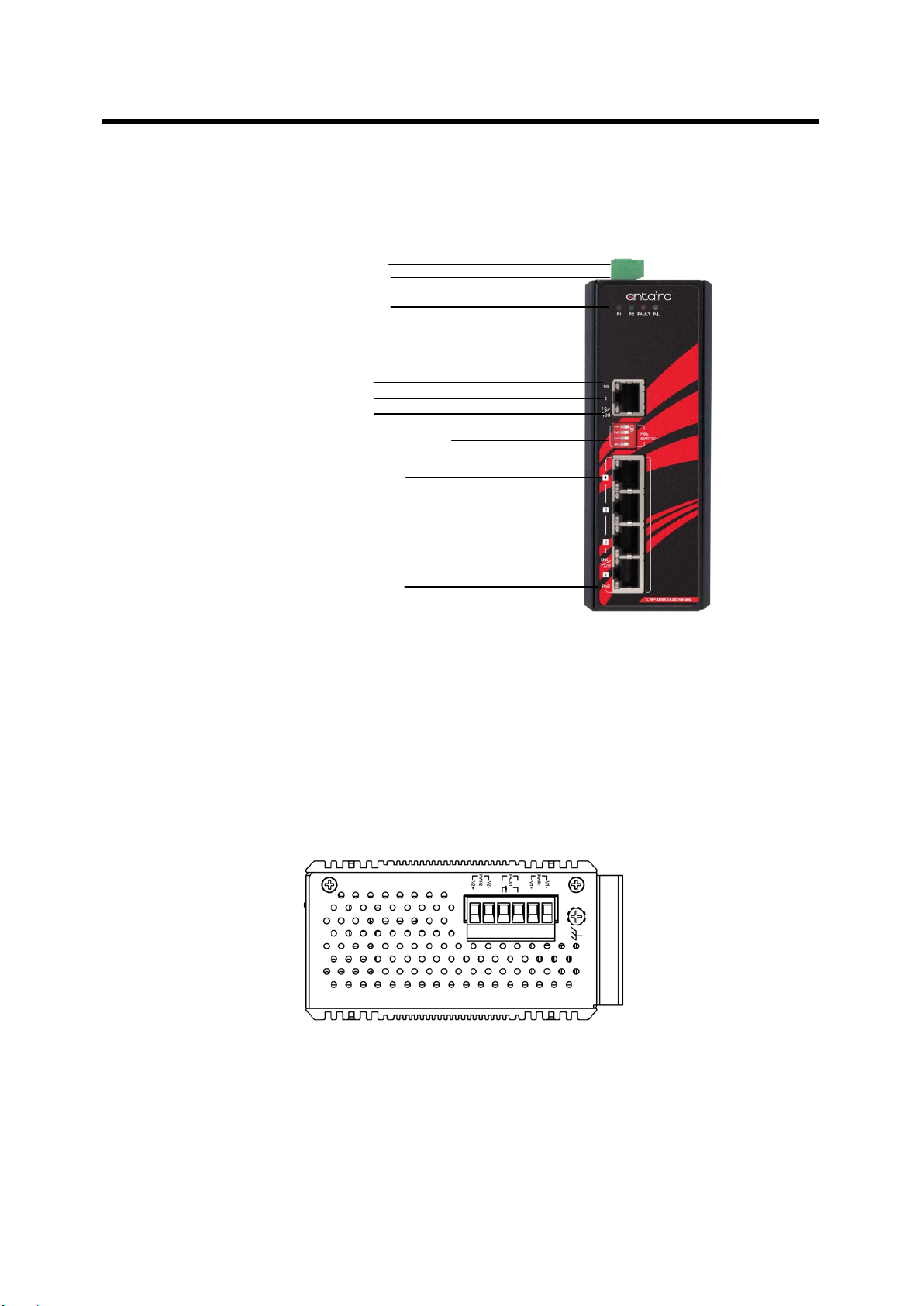

2.2 Front Panel

The front panel of the LNP-0500G-bt-24 series:

2.3 Top View

Figure 2.3, below, shows the top panel of the LNP-0500G-bt-24 series switch that is equipped

with one 6-pin removal terminal block connector for dual DC power inputs (12-55 VDC).

Figure 2.2 - Front Panel of the LNP-0500G-bt-24 Series

Figure 2.3

Top Panel View of LNP-0500G-bt-24 Series

LED for PoE Status

LED for Link/Activity Status

10/100/1000Mbps

LED for Link/Activity Status

1000Mbps

LED for Link/Activity Status

10/100Mbps

PoE Dip Switch

LAN #1~4 – 10/100/1000Tx

LAN #5 – 10/100/1000Tx

Grounding Screw

LED for P1, P2, Fault, and P/L

6-Pin Removal Terminal Block

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

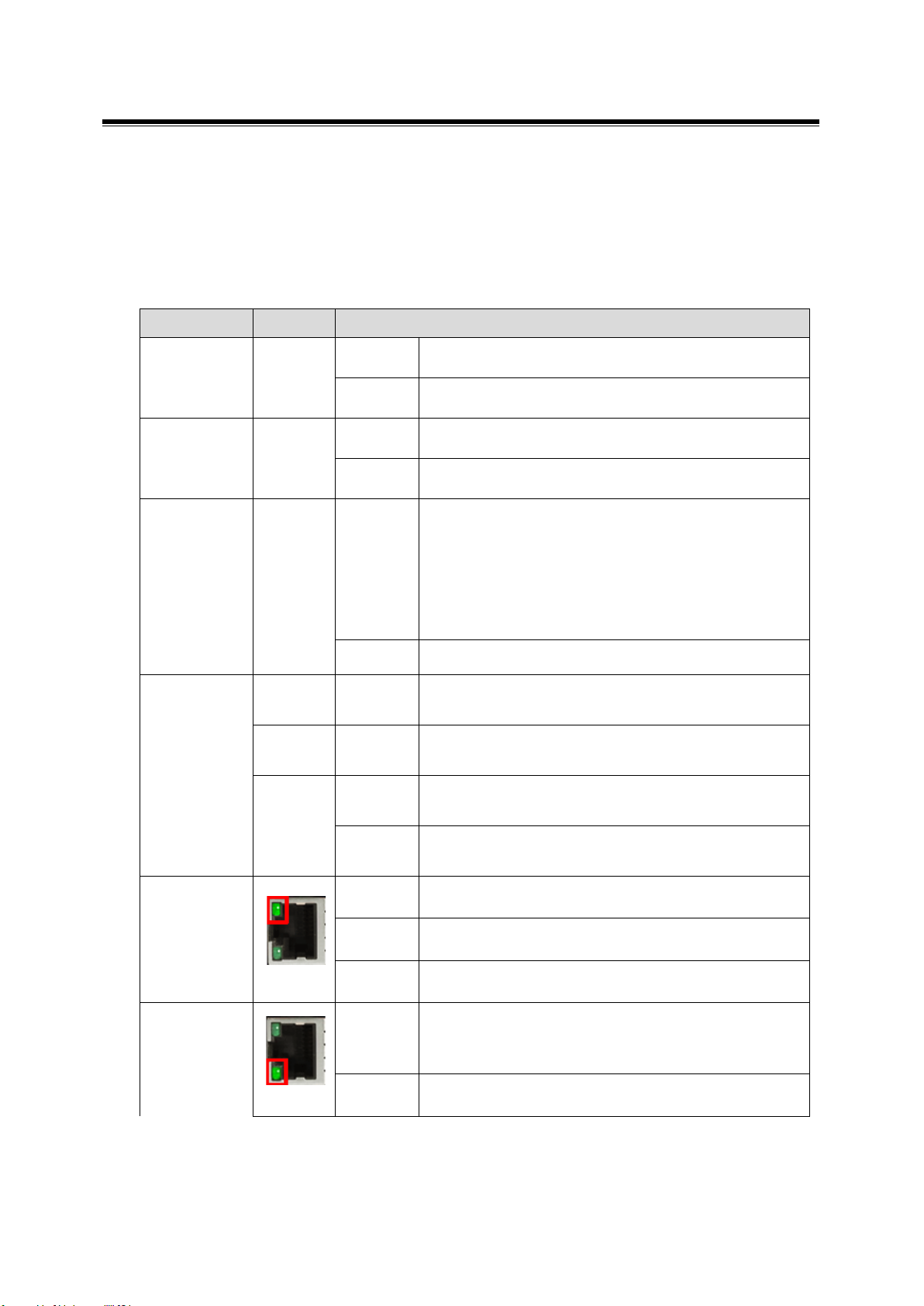

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has its

own specific meaning, see below in Table 2.1.

LED Color Description

Green

On Power input 1 is active

Off Power input 1 is inactive

Green

On Power input 2 is active

Off Power input 2 is inactive

Fault Red On

Any of the listed trigger events occur, (will trigger relay)

1. Power 1 or Power 2 is inactive

2. Total PoE loading is > 100% PoE Budget

3. PoE over current (per port)

4. Cable short (per port)

5. One of the channels in Dual PD fail

Off No trigger events occur

PoE Load

Off Off The actual PoE Consumption of all connected working

PDs budget was ≤ 50%

Blue On The actual PoE Consumption of all connected working

PDs budget was 51 ~ 70%

Red On The actual PoE Consumption of all connected working

PDs budget was 71 ~ 90%

Blinking

(1 time/s) The actual PoE Consumption of all connected working

PDs budget was 91 ~ 100%

LAN Port 1 ~ 4

(Upper LED)

Green

On Connected to network, 10/100/1000Mbps

Blinking Networking is active

Off Not connected to network

LAN Port 1 ~ 4

(Lower LED)

Green

On IEEE 802.3bt connection

(Single Signature PD Class 5~8 / Dual Signature PD

Channel Class 1~5)

Off No powered-device attached or power supplying fails

Antaira Technologies - Industrial Ethernet Switches

LNP-0500G-bt-24 Series User Manual V1.1

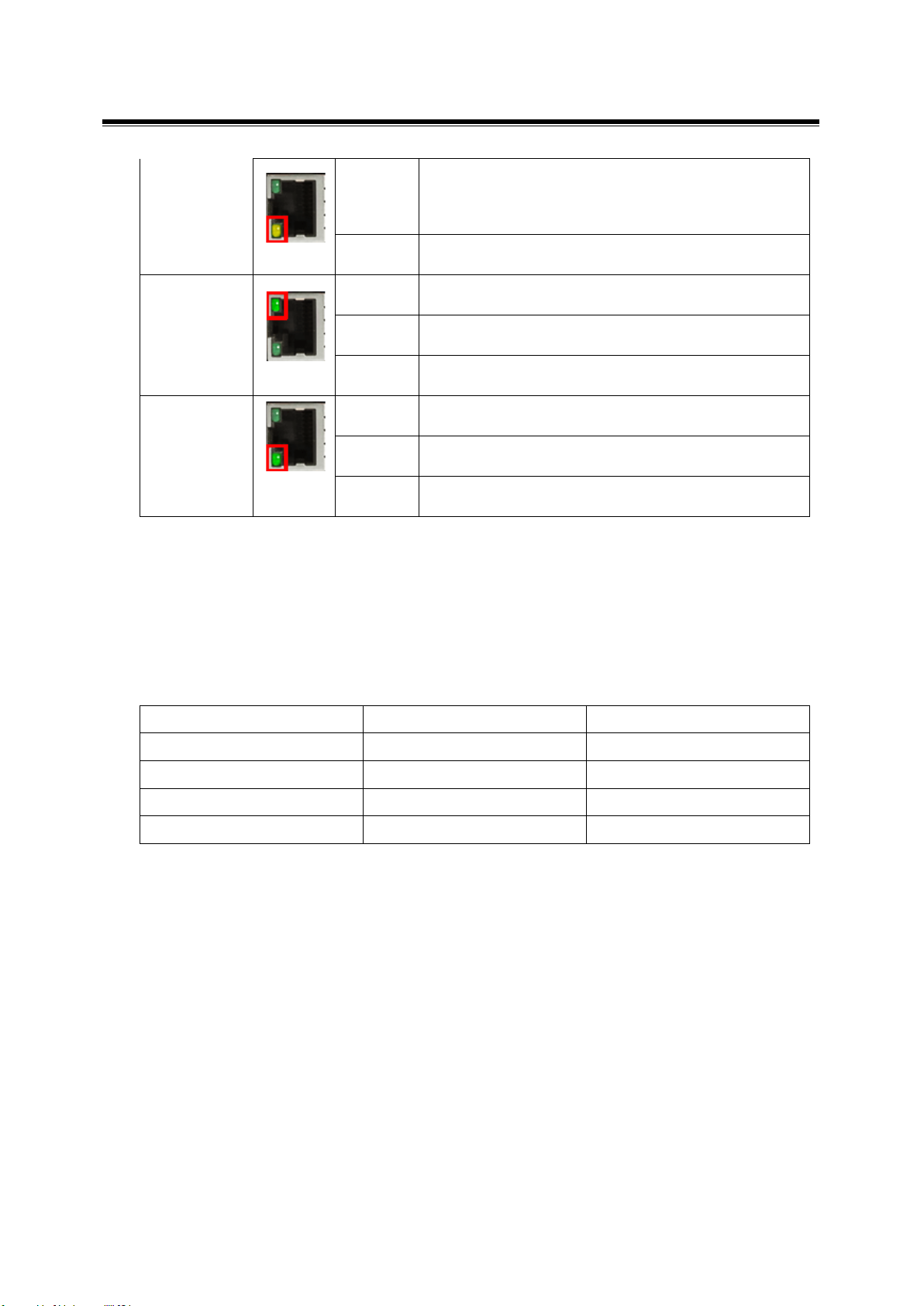

Amber

On IEEE 802.3af/at connection

(Single Signature PD Class 0~4)

Off No powered-device attached or power supplying fails

LAN Port 5

(Upper LED)

Green

On Connected to network, 1000Mbps

Blinking Networking is active

Off Not connected to network

LAN Port 5

(Lower LED)

Green

On Connected to network, 10/100Mbps

Blinking Networking is active

Off Not connected to network

2.5 Dip Switch

The 4-pin Dip Switch on the front panel of the Ethernet Switch works as the PoE controller for PoE

Port 1~4.

ON OFF

Dip Switch 1 Enable Port 1 PoE Function Disable Port 1 PoE Function

Dip Switch 2 Enable Port 2 PoE Function Disable Port 2 PoE Function

Dip Switch 3 Enable Port 3 PoE Function Disable Port 3 PoE Function

Dip Switch 4 Enable Port 4 PoE Function Disable Port 4 PoE Function

2.6 Relay Contact Alarm Warning

2-pin 1*24VDC@1A resistive normal open on 6-pin terminal block.

The relay contact alarm will be triggered when anyone of the listed events occurs.

Key trigger event 1: Power-1 or Power-2 is inactive

Key trigger event 2: PoE total loading >100% PoE output budget

Key trigger event 3: PoE over current per port

Key trigger event 4: Cable short per port

Key trigger event 5: One of the channels in Dual PD fail

Table 2.1

LED Indicators for LNP-0500G-bt-24 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LNX-C500-T-CC Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0800-T Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0802 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-2602G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1204G-SFP-T-CC Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0802-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1802G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1202M-SFP-24 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1600G-M12-67-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2012G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-800AGH Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C500 Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0501-24-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0702G-SFP-bt-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1204G-10G-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1002C-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0500 series Manuel utilisateur

ANTAIRA

ANTAIRA USB-HUB4K Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1204G-10G-SFP Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
