ANTAIRA LNX-802AG-S10-T Manuel utilisateur

6 10/100/1000TX + 2G Fiber

Industrial Ethernet Switch

User Manual

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

Introduction................................................................ 1

Feature..................................................................... 1

Package Contents.................................................... 3

Hardware Description ............................................... 4

Physical Dimension.................................................. 4

Front Panel .............................................................. 5

Top View.................................................................. 5

LED Indicators ......................................................... 6

Green Ethernet ........................................................ 7

Hardware Installation ................................................ 1

Installation Steps...................................................... 1

Cabling..................................................................... 1

Wiring the Power Inputs........................................... 2

Wiring the P-Fail Alarm Contact............................... 3

DIN-Rail Mounting.................................................... 3

Wall Mount Plate Mounting...................................... 5

Network Application.................................................. 7

Troubles shooting ..................................................... 8

Introduction

The 6 10/100/1000TX + 2G fiber industrial switch is a cost-effective solution and meets

the high reliability requirements demanded by industrial applications. By using fiber port

can extend the connection distance that increases the network elasticity and

performance. And also support wide operation temperature and green power features.

Feature

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000Base-T

IEEE 802.3z Gigabit fiber

IEEE 802.3x Flow Control and Back Pressure

LED Indicators

Per unit: Power 1 (Green), Power 2 (Green),

P-Fail(Red), Link/Activity for Fiber (Green)

Per port: Link/Activity (Green), Speed (Green)

Connector 10/100/1000T: RJ-45 x 6

1000 Fiber: Fiber sockets(SC) x 2

Switch architecture Store and forward switch architecture

Back-plane 16Gbps

MAC address

8K MAC address table with Auto learning function

Power Supply

DC 12~48V, Redundant power and removable terminal

block

24VAC (18~30V)

Power Consumption

9.3 Watt (Max)

Ventilation

Fanless

Operating

Temperature

-40℃~75℃

-40℃~60℃(non-air-flow environment)

Operating Humidity

5% to 95%

Storage environment -40℃~85℃

Storage Humidity

5% to 95%

MTBF

505863 hrs

Dimensions

59.6mm (W) x 105mm (D) x 152mm (H)

EMC

■FCC Class A

■ EN61000-6-4

■ EN61000-6-2

■EN61000-4-2 (ESD)

■EN61000-4-3 (Radiated RFI)

■ EN61000-4-4 (Burst)

■ EN61000-4-5 (Surge)

■ EN61000-4-6 (Induced RFI)

■ EN61000-4-8 (Magnetic Field)

■ EN61000-4-11 (Voltage Dip)

■ EN61000-4-12 (Oscillatory waves)

■ EN61000-3-2 (Harmonics Current)

■ EN61000-3-3 (Voltage Fluctuation & Flickers)

Safety

■ UL508

■ Class 1 Division 2

Stability Testing

■IEC60068-2-32 (Free fall)

■IEC60068-2-27 (Shock)

■IEC60068-2-6 (Vibration)

Package Contents

Please refer to the package content list below to verify them against the checklist.

6 10/100/1000TX + 2 Gigabit fiber industrial switch

User manual

Block connector

2 wall mount plates and 6 screws

One DIN-Rail (attached on the switch)

Compare the contents of the industrial switch with the standard checklist above. If any

item is damaged or missing, please contact the local dealer for service.

Hardware Description

In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling

information, and wiring installation.

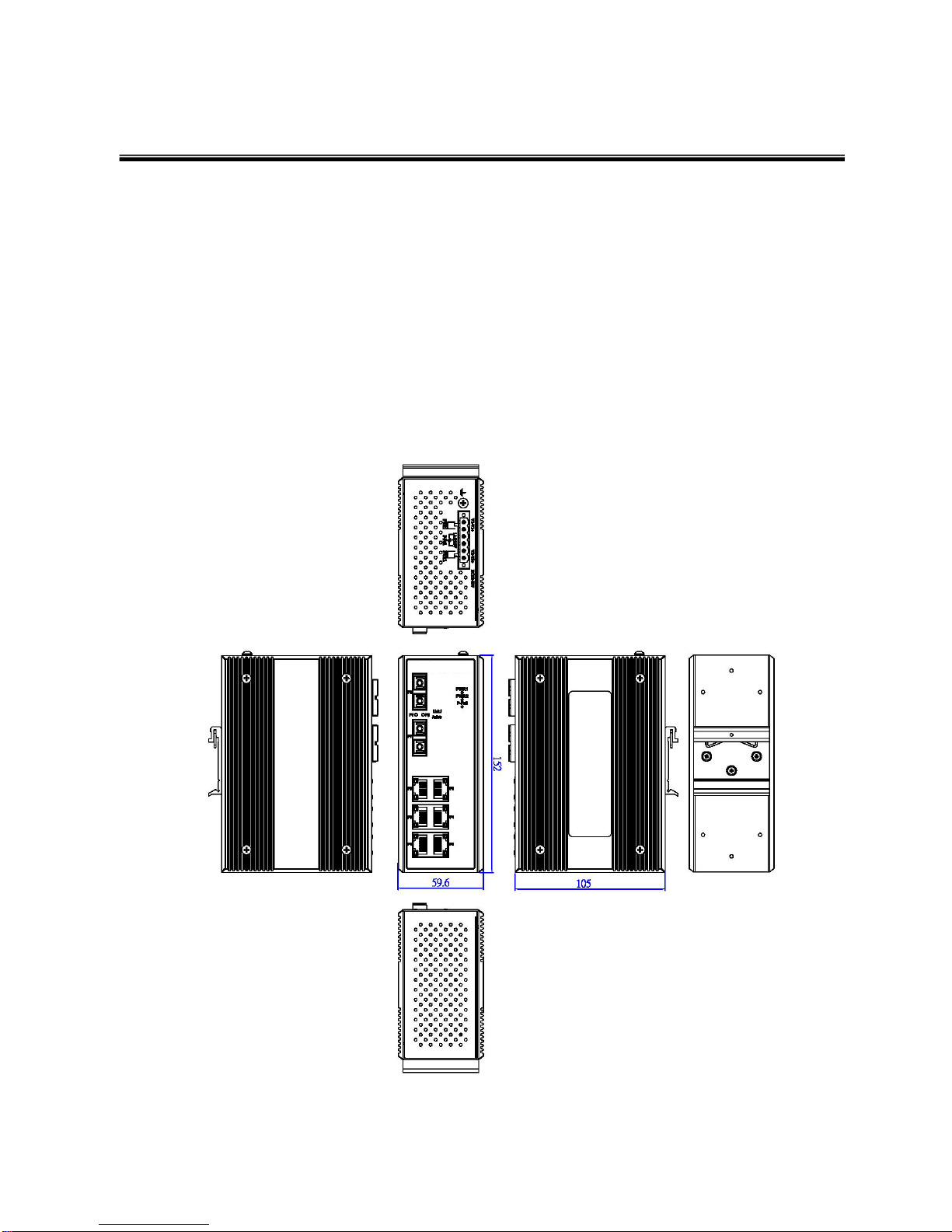

Physical Dimension

6 10/100/1000TX + 2G fiber industrial switch dimension (W x D x H) is 59.6mm x

105mm x 152mm

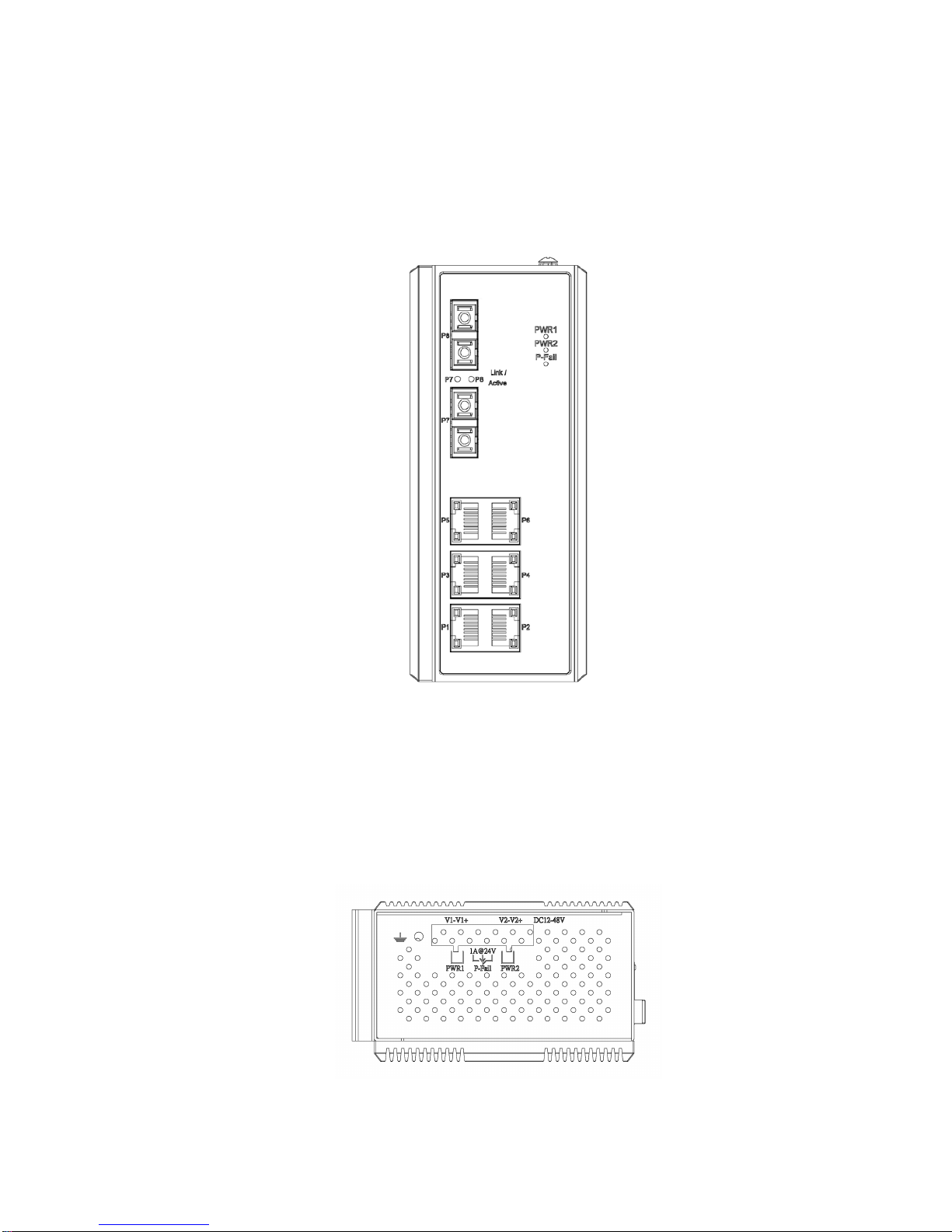

Front Panel

The Front Panel of the 6 10/100/1000TX +2G fiber industrial switch is shown as below:

Front Panel of the industrial switch

Top View

The top panel of the 6 10/100/1000TX + 2G fiber industrial switch has one terminal block

connector of two DC power inputs.

Top Panel of the industrial switch

LED Indicators

There are diagnostic LED indicators located on the front panel of the industrial switch.

They provide real-time information of system and optional status. The following table

provides description of the LED status and their meanings for the switch.

LED Status Description

Per Unit

PWR1(Green)

Power input 1 is active

Off

Power input 1 is inactive

BLK

PWR2(Green)

Power input 2 is active

Off Power input 2 is inactive

BLK

P-FAIL(Red)

Power1/Power2 is inactive

Off

Power1 and Power2 are both active, or no

power input

BLK

Link/Active for

Fiber(Green)

Link up

Off

Link down

BLK Transmitting

Per Port

Link/Active(Green)

Link up

Off

Link down

BLK

Transmitting

Speed(Green)

1000Mbps

Off

100Mbps

BLK

Green Ethernet

The 6 10/100/1000TX + 2G fiber industrial switch has a special function. The switch will

automatically detect Ethernet ports status and Cable Length and adjust power efficiency.

Below table shows 6 10/100/1000TX + 2G fiber industrial switch power consumption.

Link Up: Cable Length 20m

Green power (off/on) Consumption (Watts)

OFF 6.9

ON 5.85

Gap 0.34

Saving % 5.49%
