Product User Manual

and enterprise branch and head ofﬁces

LNX-500A

$17$,5$

www.enochsystems.com 1-877-722-1116 [email protected]

5-port / 8-port 10/100BaseTX

Industrial Ethernet Switch

User Manual

Content

Overview............................................................1

Introduction .............................................................. 1

Features................................................................... 3

Packing List.............................................................. 4

Safety Precaution..................................................... 4

Hardware Description.........................................5

Front Panel............................................................... 5

Top View.................................................................. 6

Wiring the Power Inputs...........................................6

Wiring the Fault Alarm Contact................................7

LED Indicators.......................................................... 8

Ports......................................................................... 8

Cabling................................................................... 10

Mounting Installation........................................11

DIN-Rail Mounting.................................................. 11

Wall Mount Plate Mounting....................................13

Hardware Installation .......................................14

Installation Steps.................................................... 14

Troubles shooting.............................................16

Technical Specification ....................................17

Overview

Introduction

This user manual is suitable for the products as follows:

•5-port 10/100TX Unmanaged Industrial Switch

•8-port 10/100TX Unmanaged Industrial Switch

The unmanaged industrial switch is a cost-effective solution and meets

the high reliability requirements demanded by industrial applications.

High-Speed Transmissions

The Industrial switch includes a switch controller that can automatically

sense transmission speeds (10/100 Mbps). The RJ-45 interface can

also be auto-detected, so MDI or MDI-X is automatically selected and a

crossover cable is not required. All Ethernet ports have memory buffers

that support the store-and-forward mechanism. This assures that data

is properly transmitted.

Dual Power Input

To reduce the risk of power failure, the Industrial switch provides +12 ~

48 VDC dual power inputs. If there is power failure, Industrial switch will

automatically switch to the secondary power input.

Flexible Mounting

The industrial switch is extremely compact and can be mounted on a

DIN-rail or a panel, so it is suitable for any space-constrained

environment.

Advanced Protection

The power line of Industrial switch supports up to 3,000 VDC EFT

protection, which secure equipment against unregulated voltage and

make systems safer and more reliable. Meanwhile, 4,000 VDC ESD

protections for Ethernet ports make Industrial switch more suitable for

harsh environments.

Wide Operating Temperature

The operating temperature of the Industrial switch is between -40 ~ 80

℃(wide operating temperature model) or -10 ~ 70 ℃(standard model).

With such a wide range, you can use the Industrial switch in some of the

harshest industrial environments that exist.

Easy Troubleshooting

LED indicators make troubleshooting quick and easy. Each 10/100

Base-TX port has 2 LEDs that display the link status, transmission

speed and collision status. Also the three power indicators P1, P2 and

Fault help you diagnose immediately.

Features

Provides 5 x 10/100 Mbps (5-port 10/100TX model) or 8 x 10/100 Mbps

(8-port 10/100TX model) Ethernet ports.

Supports full/half duplex flow control

Supports MDI/MDI-X auto-crossover

Supports surge (EFT) protection 3,000 VDC for power line

Supports 4,000 VDC Ethernet ESD protection

Provides broadcast storm protection

Embedded with a switch controller, supports auto-negotiation

Embedded with memory buffer, supports store & forward transmission

Supports redundant +12 ~ 48 VDC power input

Provides flexible mounting: DIN-rail, Panel Mounting

Supports operating temperatures from -40 ~ 80 ℃(wide operating

temperature model) or -10 ~ 70 ℃(standard model)

Packing List

1 x 5-port 10/100TX Industrial Ethernet Switch, or 1x 8-port 10/100TX

Industrial Ethernet Switch

1 x User Manual

2 x Wall Mounting Bracket and Screws

Safety Precaution

Attention

IF DC voltage is supplied by an external circuit, please use a

protection device on the power supply input.

Hardware Description

In this paragraph, we will introduce the Industrial switch’s hardware

spec, port, cabling information, and wiring installation.

Front Panel

The Front Panel of the 5-port and 8-port 10/100BaseTX Industrial

Switch is shown as below.

Front Panel of the 5-port & 8-port 10/100BaseTX Industrial Switch

Top View

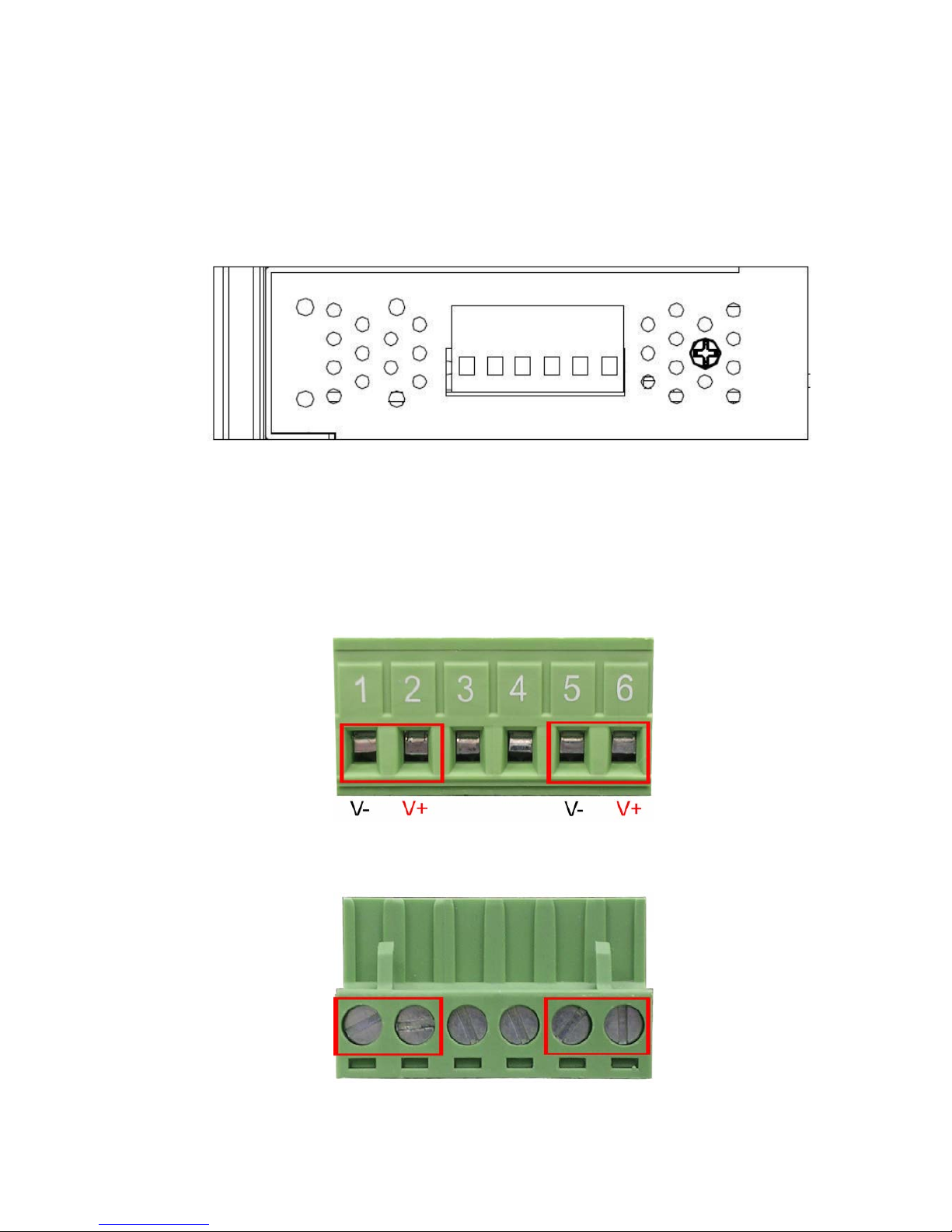

The top panel of the 5-port & 8-port 10/100BaseTX Industrial Switch is

equipped one terminal block connector of two DC power inputs.

Top Panel of the 5-port & 8-port 10/100BaseTX Industrial Switch

Wiring the Power Inputs

Please follow the steps below to insert the power wire.

1. Insert the positive and negative wires into the V+ and V- contacts on the

terminal block connector.

2. To tighten the wire-clamp screws for preventing the DC wires to loose.
