ANTAIRA ARX-7235-AC-PD-T Manuel utilisateur
ARX-7235-AC-PD-T
Industrial Outdoor IP67 Metal Housing IEEE 802.11a/b/g/n/ac Wireless
Access Point/Client/Bridge/Repeater/Router with PoE PD;
EOT: -40°C to 70°C
Hardware Manual
Version 1.0
(November 2020)
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0
© Copyright 2020 Antaira Technologies, LLC
All rights reserved
This document contains information, which is protected by copyright. Reproduction, adaptation, or
translation without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo
are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA
are the registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or
registered trademarks of their respective owners.
Notice: Copyrights © 2020 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under
the copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied,
including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications
of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable
for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made
to the information contained herein and will be incorporated into later versions of the manual. The
information contained is subject to change without prior notice.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy. It may cause harmful interference to radio communications if the equipment is not installed and
used in accordance with the instructions. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void
the user’s authority to operate the equipment.
Avertissement FCC
Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A,
conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection
raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère,
utilise et peut émettre de l'énergie radiofréquence. Cela peut provoquer des interférences nuisibles aux
communications radio si l'équipement n'est pas installé et utilisé conformément aux instructions.
Cependant, il n'y a aucune garantie qu'aucune interférence ne se produira dans une installation
particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou télévision, ce
qui peut être déterminé en éteignant puis en rallumant l'équipement, l'utilisateur est encouragé à essayer
de corriger les interférences par une ou plusieurs des mesures suivantes:
●Réorientez ou déplacez l'antenne de réception.
●Augmentez la distance entre l'équipement et le récepteur.
●Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est
connecté.
●Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.
CE Mark Warning
This is a Class-A product. In a domestic environment, this product may cause radio interference in which
case the user may be required to take adequate measures.
Avertissement de marque CE
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des
interférences radio, auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0
Industrial Wireless Access Points
Industrial Grade Wireless Access Points
Hardware Manual
Version 1.0 (November 2020)
The manual supports the following model:
●ARX-7235-AC-PD-T
This document is the current official release hardware manual. Please check our website
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0
Table of Contents
1 Overview 1
1.1 Product Hardware Features 1
1.2 Product Software Features 1
1.3 Package Contents 2
1.4 Safety Precaution 2
2 Hardware Description 4
2.1 Physical Dimensions 4
2.2 Front View Panel 5
2.3 Top View Panel 5
2.4 LED Indicators 6
2.5 Reset Button 7
2.6 Ethernet Ports 7
2.7 Cabling 8
2.8 Wiring the Power Inputs 8
2.9 Wiring the Fault Alarm Contact 9
2.10 Grounding Note 10
3 Mounting Installation 12
3.1 DIN-Rail Mounting 12
3.2 Wall Mounting 13
4 Hardware Installation 15
4.1 Installation Steps 15
4.2 Maintenance and Service 15
4.3 Troubleshooting 16
5 Technical Specifications 17
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0
1 Overview
Antaira Technologies’ ARX-7235-AC-PD-T is designed for industrial and enterprise outdoor wireless
access applications. Embedded with the Qualcomm IPQ4029 SoC chipset, it boasts network robustness,
stability, and wider network coverage. Based on IEEE 802.11a/b/g/n/ac, the access point supports
high-speed data transmission of up to 867Mbps.
The ARX-7235-AC-PD-T is capable of operating in different modes, which makes it suitable for a wide
variety of wireless applications including long-distance deployments. With the extended operating
temperature range of -40°C to 70°C and the metal housing IP67 rated, this wireless access point is built
for outdoor applications to withstand extreme weather conditions and temperatures.
1.1 Product Hardware Features
System Interface and Performance
- All RJ45 ports support the auto MDI/MDI-X function
- WAN 1*10/100/1000Tx
- LAN 1*10/100/1000Tx (with PoE PD)
- Qualcomm IPQ4029 Quad-Core SoC
- WLAN supports concurrent 2.4G/5GHz Wi-Fi
Product Input
- PoE PD: 48~56VDC
Operating Temperature
- Extended operating temperature model: -40°C to 70°C
Case / Installation
- IP67 protection metal housing
- Pole and wall-mount design
1.2 Package Contents
- ARX-7235-AC-PD-T
- Quick Installation Guide
- Pole/Wall mounting bracket set with screws
- Set of antennas
1
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power
supply input. The industrial wireless access point’s hardware specs, ports, cabling information, and wiring
installation will be described within this hardware manual.
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur
l'entrée d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et
l'installation du câblage du point d'accès sans fil industriel seront décrits dans ce manuel du matériel.
Warning Labels
The caution label means that you should check certain information on the user manual when working
with the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation
lorsque vous travaillez avec l'appareil. (Illustré à la figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude
2
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0
2 Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of this product:
(W x D x H) is 269mm x 239mm x 81mm
Figure 2.1 - Physical Dimensions
3
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0

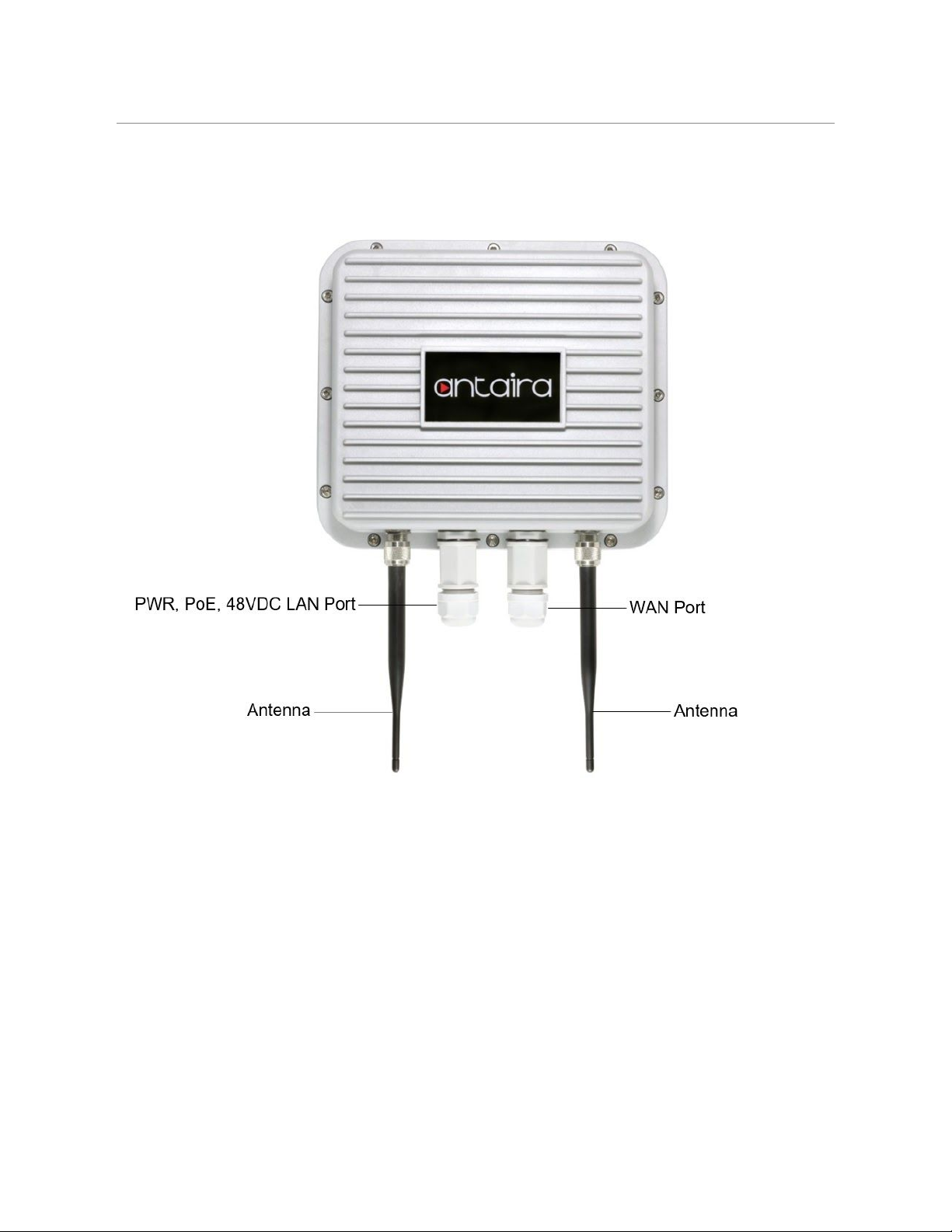

2.2 Front View Panel
Figure 2.2, below, shows the front panel of the product series:
Figure 2.2 - Front View Panel
2.3 Ethernet Ports
●RJ45 Ports
RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation
without changing the straight-through or crossover cabling. See the figures below for straight-through and
crossover cabling schematics.
4
Antaira Technologies - Industrial Wireless Access Points
ARX-7235-AC-PD-T - Hardware Manual - v1.0
●RJ45 Pin Assignments
Table 2.2 - 10/100Base-T(X) RJ45 Pin Assignments
Table 2.3 - 1000Base-T RJ45 Pin Assignments
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
2.4 Cabling
Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded Twisted Pair
(STP) cable. The cable between the switch and the link partner (wireless AP, switch, hub, workstation,
etc.) must be less than 100 meters (328 ft.) in length.
5
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
