ANTAIRA ARS-7235-5E-AC Series Manuel utilisateur

ARS-7235-5E-AC Series

Industrial 5-Port Gigabit Ethernet with Dual Radio IEEE 802.11a/b/g/n/ac

Wireless Access Point/Client/Bridge/Repeater/Router

Hardware Manual

Version 1.0

(December 2021)

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

This document contains information, which is protected by copyright. Reproduction, adaptation, or

translation without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo

are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA

are the registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or

registered trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under

the copyright laws.

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied,

including but not limited to the implied warranties of merchantability and ﬁtness for a particular purpose.

Antaira Technologies, LLC may make improvements and/or changes to the product and/or speciﬁcations

of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable

for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made

to the information contained herein and will be incorporated into later versions of the manual. The

information contained is subject to change without prior notice.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant

to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy. It may cause harmful interference to radio communications if the equipment is not installed and

used in accordance with the instructions. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

●Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modiﬁcations not expressly approved by the grantee of this device could void

the user’s authority to operate the equipment.

Avertissement FCC

Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A,

conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection

raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère,

utilise et peut émettre de l'énergie radiofréquence. Cela peut provoquer des interférences nuisibles aux

communications radio si l'équipement n'est pas installé et utilisé conformément aux instructions.

Cependant, il n'y a aucune garantie qu'aucune interférence ne se produira dans une installation

particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou télévision, ce

qui peut être déterminé en éteignant puis en rallumant l'équipement, l'utilisateur est encouragé à essayer

de corriger les interférences par une ou plusieurs des mesures suivantes:

●Réorientez ou déplacez l'antenne de réception.

●Augmentez la distance entre l'équipement et le récepteur.

●Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est

connecté.

●Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.

CE Mark Warning

This is a Class-A product. In a domestic environment, this product may cause radio interference in which

case the user may be required to take adequate measures.

Avertissement de marque CE

Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des

interférences radio, auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

Industrial Wireless Access Points

Industrial-Grade Wireless Access Points

Hardware Manual

Version 1.0 (December 2021)

The manual supports the following models:

●ARS-7235-5E-AC

●ARS-7235-5E-AC-T

This document is the current oﬃcial release hardware manual. Please check our website

(www.antaira.com) for any updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

Table of Contents

1 Overview 1

1.1 Product Hardware Features 1

1.2 Package Contents 1

1.3 Safety Precaution 2

2 Hardware Description 3

2.1 Physical Dimensions 3

2.2 Front View Panel 4

2.3 Top View Panel 5

2.4 LED Indicators 5

2.5 Reset Button 6

2.6 Ethernet Ports 6

2.7 Cabling 7

2.8 Wireless Antenna 8

2.9 Wiring the Power Inputs 8

2.10 Wiring the Fault Alarm Contact 9

2.11 Grounding Note 10

3 Mounting Installation 11

3.1 DIN-Rail Mounting 11

3.2 Wall Mounting 12

4 Hardware Installation 14

4.1 Installation Steps 14

4.2 Maintenance and Service 15

4.3 Troubleshooting 15

5 Technical Speciﬁcations 17

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

1 Overview

Antaira Technologies’ ARS-7235-5E-AC series is an industrial dual radio IEEE 802.11a/b/g/n/ac wireless

LAN access point with added router capabilities and 5*10/100/1000Tx Gigabit Ethernet ports. Embedded

with the Qualcomm IPQ4029 SoC chipset, it boasts network robustness, stability, and a wide network

coverage with a very low voltage input of 9V. Based on IEEE 802.11 a/b/g/n/ac, the access point supports

high-speed data transmission of up to 867Mbps.

The ARS-7235-5E-AC series is capable of operating in different modes, which makes it suitable for a wide

variety of wireless applications including long-distance deployments. The unit also allows the user to

position the wireless antennas in a better signal-broadcasting location for improved wireless coverage

and signal strength or simply in a more convenient location.

1.1 Product Hardware Features

System Interface and Performance

- All RJ45 ports support the auto MDI/MDI-X function

- Embedded 5*10/100/1000Tx RJ45 ports

- Qualcomm IPQ4029 SoC

- WLAN supports 2.4G/5GHz Wi-Fi

Product Input

- DC 9~48V redundant, with a 6-pin removal terminal block

- The power input speciﬁcation complies with the requirements of SELV (Safety Extra Low Voltage)

and the power supply should comply with UL 61010-1 & UL 61010-2-201

Operating Temperature

- Standard operating temperature model: -10°C to 60°C

- Extended operating temperature model: -35°C to 70°C

Case / Installation

- IP30 protection metal housing

- DIN-Rail and wall-mount design

1.2 Package Contents

- ARS-7235-5E-AC(-T)

- Quick Installation Guide

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

- Wall mounting bracket set with screws

- Set of antennas

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power

supply input. The industrial wireless access point’s hardware specs, ports, cabling information, and wiring

installation will be described within this hardware manual.

Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur

l'entrée d'alimentation. Les spéciﬁcations matérielles, les ports, les informations de câblage et

l'installation du câblage du point d'accès sans ﬁl industriel seront décrits dans ce manuel du matériel.

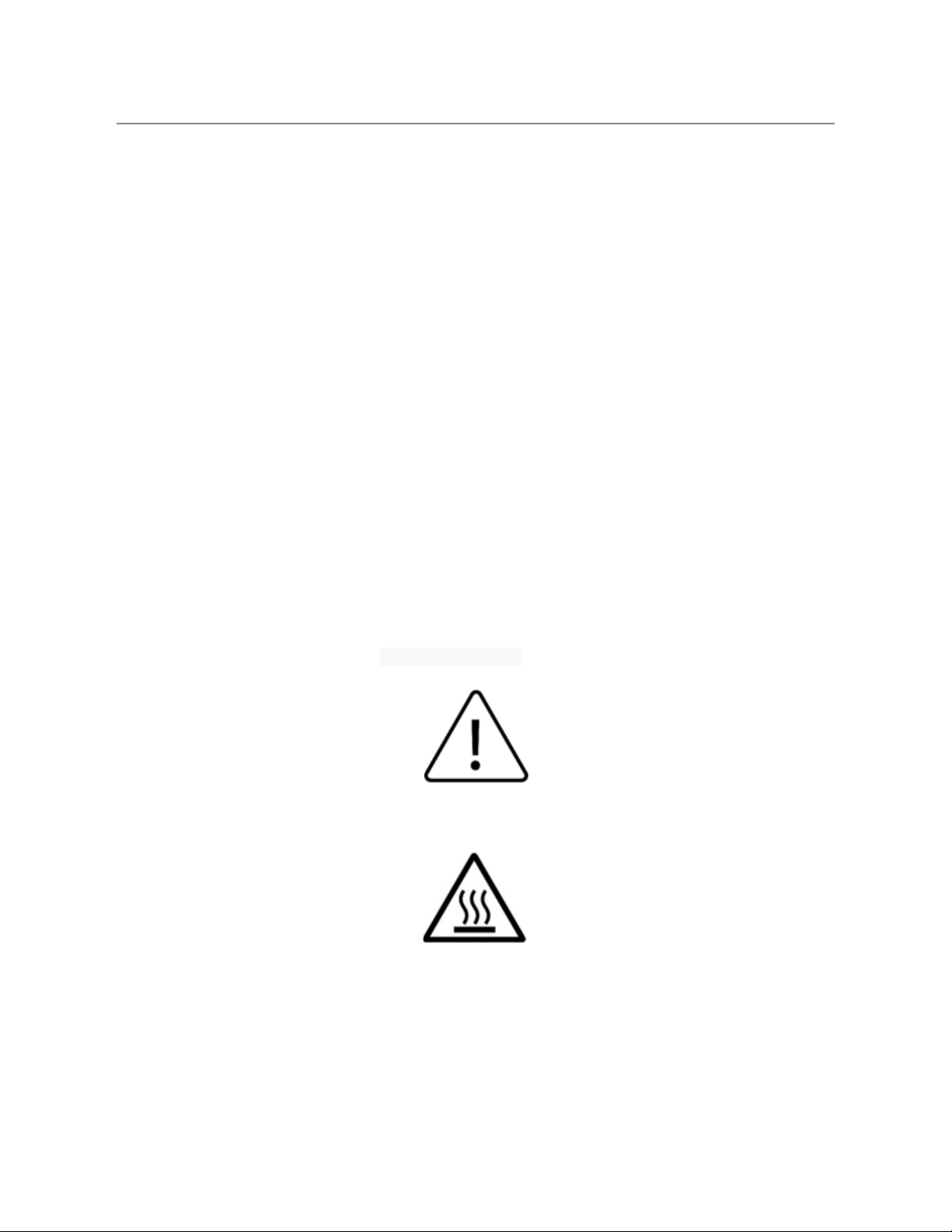

Warning Labels

The caution label means that you should check certain information on the user manual when working

with the device. (Shown in Figure 1.1)

Étiquettes d'avertissement

L'étiquette d'avertissement signiﬁe que vous devez vériﬁer certaines informations du manuel d'utilisation

lorsque vous travaillez avec l'appareil. (Illustré à la ﬁgure 1.1)

Figure 1.1 - Caution Label

Figure 1.1 - Étiquette de mise en garde

Figure 1.2 - Hot Surface Warning Label

Figure 1.2 - Étiquette d'avertissement de surface chaude

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

2 Hardware Description

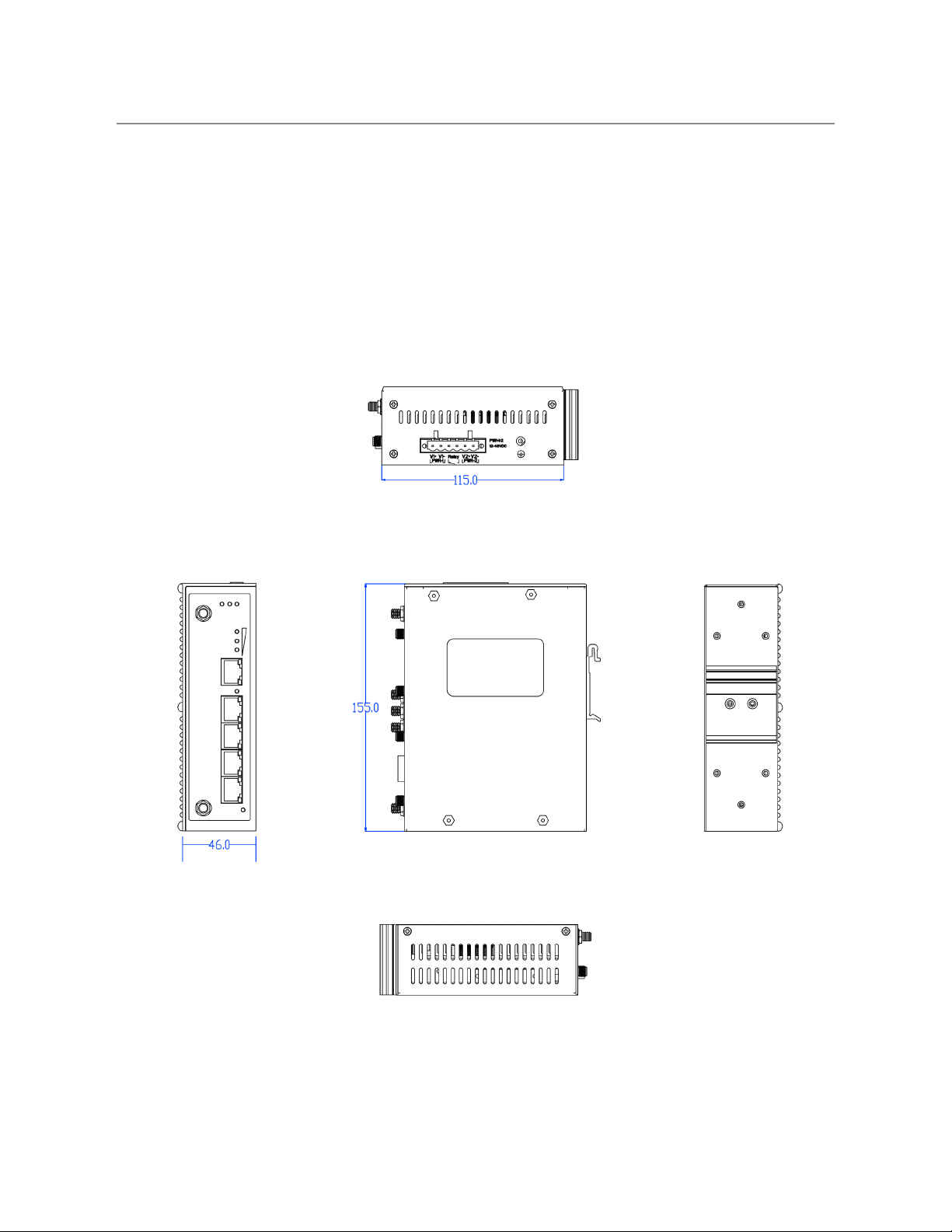

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of this product series:

(W x D x H) is 54mm x 99mm x 142mm

Figure 2.1 - Physical Dimensions

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

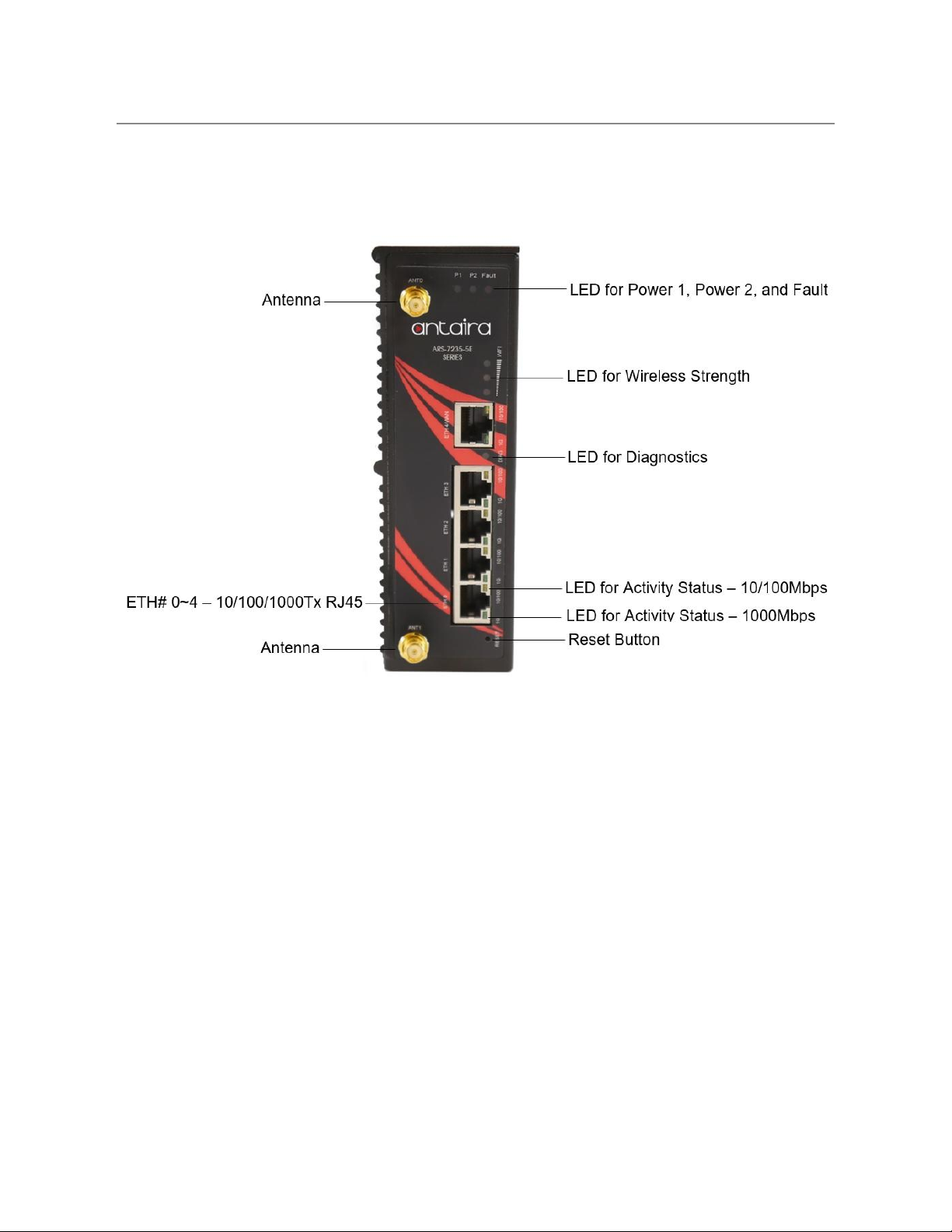

2.2 Front View Panel

Figure 2.2, below, shows the front panel of the product series:

Figure 2.2 - Front View Panel

Antaira Technologies - Industrial Wireless Access Points

ARS-7235-5E-AC Series - Hardware Manual - v1.0

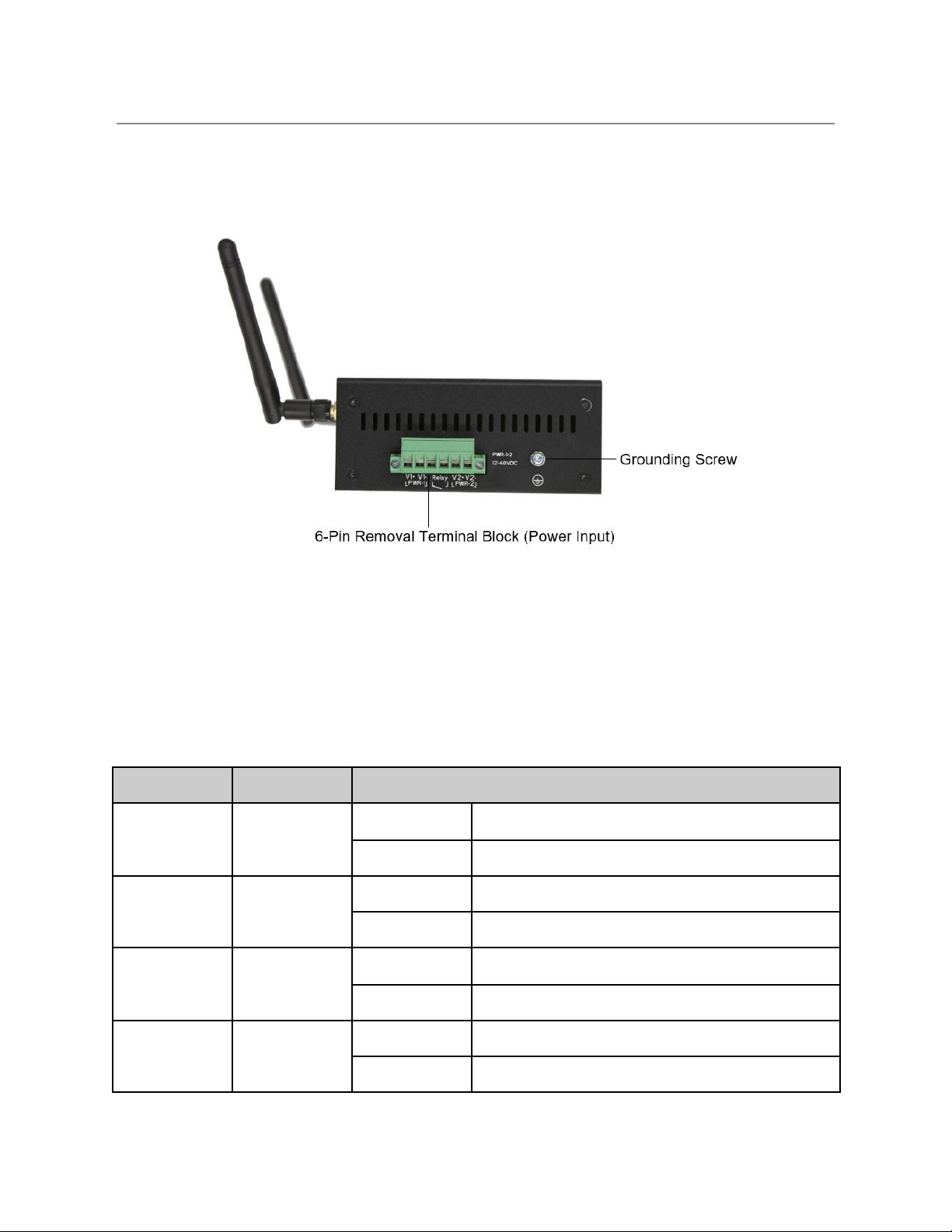

2.3 Top View Panel

Figure 2.3, below, shows the top panel of the product series:

Figure 2.3 - Top View Panel

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial wireless access point that

display the power status and network status. Each LED indicator has a different color and has its own

speciﬁc meaning, see below in Table 2.1.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Power input 1 or 2 is inactive

Off

Preconﬁgured alarms are detecting failure

Wi-Fi Signal

Strength

Green/Red

Red

Less than 25% signal strength

Green

LED 2 less than 50% signal strength
