ANTAIRA LNX-800N Manuel utilisateur

8-Port 10/100TX SNMP Managed

Industrial Ethernet Switch

with Redundant Ring

User Manual

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

Content

Introduction................................................................1

Features ...................................................................1

Package Contents....................................................2

Hardware Description................................................3

Physical Dimension..................................................3

Front Panel...............................................................3

Reset Button..................................................................... 4

Bottom View .............................................................4

DIP-switch ................................................................4

LED Indicators..........................................................6

Ports.........................................................................7

Cabling .....................................................................9

Wiring the Power Inputs .........................................10

Wiring the Fault Alarm Contact ..............................10

Wiring the Fault Alarm Contact ..............................11

Mounting Installation...............................................12

DIN-Rail Mounting..................................................12

Wall Mount Plate Mounting ....................................14

Hardware Installation...............................................15

Network Application ................................................16

Redundant Ring Application...................................16

Coupling Ring Application ......................................17

Dual Homing Application........................................18

Web-Based Management ........................................19

About Web-Based Management ............................19

Preparing for Web Management ............................19

System Login..........................................................20

Port status ..............................................................21

Port Statistics..........................................................22

Port Control ............................................................23

Switch Settings.......................................................23

Port Mirroring..........................................................24

VLAN configuration ................................................25

Alert........................................................................32

Email Alert Configuration ................................................ 32

Event Configuration ........................................................ 33

Power Alarm Configuration............................................. 35

IP Configuration......................................................35

SNTP Configuration ...............................................36

IP Security..............................................................39

RSTP Configuration ...............................................40

Redundant ring.......................................................44

QoS Configuration..................................................46

IGMP ......................................................................48

SNMP Configuration...............................................49

Security Manager ...................................................51

Configuration Backup.............................................52

TFTP Update Firmware..........................................53

Factory Default.......................................................54

System Reboot.......................................................55

Save Configuration.................................................54

Rate Control ...........................................................55

System Log.............................................................56

Troubles shooting....................................................59

Technical Specification...........................................60

Introduction

The 8-port 10/100TX SNMP Managed Industrial Ethernet Switch with

Redundant Ring is a cost- effective solution and meets the high reliability

requirements demanded by industrial applications. The 8-port 10/100TX SNMP

Managed Industrial Ethernet Switch with Redundant Ring can be easily

managed through the Web GUI. It also provides the redundant ring function that

can prevent the network connection failure.

Features

Conform to IEEE 802.3 10Base-T, 802.3u 100Base-TX

8-port 10/100TX industrial switch

RJ-45 port support auto MDI/MDI-X function

Wide-range redundant power design

DIN rail and wall mount design

Easy configuration design

Store-and-Forward switching architecture

Support IEEE 802.1p class of service and provide port base, Tag base and

Type of service priority method

Per port supports 4 priority queues

Support Port based VLAN / 802.1 Q Tag VLAN

Support IGMP with Query mode for multi media application

Support DHCP client

Supports ingress packet filter and egress rate limit

Support Relay alarm output for system events

Support Power polarity reverse protect

Support Port mirror for TX only, TX and RX packet

IEEE 802.3x flow control support

Flow control on full-duplex

Back pressure on half-duplex

Support Redundant Ring function

Simple Network Time protocol supported

Management IP security

TFTP firmware update and system configuration restore and backup

1Mbits Embedded memory

2K MAC address table

SNMP, Web management, RMON supported

Package Contents

Please refer to the package content list below to verify them against the

checklist.

8-port 10/100TX SNMP Managed Industrial Ethernet Switch with

Redundant Ring

One DIN-Rail (attached on the switch)

One wall mount plate and six screws

User manual

8-Port 10/100TX SNMP Managed Industrial Ethernet Switch User Manual

With Redundant Ring

Wall Mount Plate Screws DIN-Rail

Compare the contents of your industrial switch with the standard checklist

above. If any item is damaged or missing, please contact the local dealer for

exchanging.

Hardware Description

In this paragraph, we will introduce the Industrial switch’s hardware spec, port,

cabling information, and wiring installation.

Physical Dimension

8-port 10/100TX SNMP Managed Industrial Ethernet Switch with Redundant

Ring dimension (W x H x D) is 54mm x 135mm x 105mm

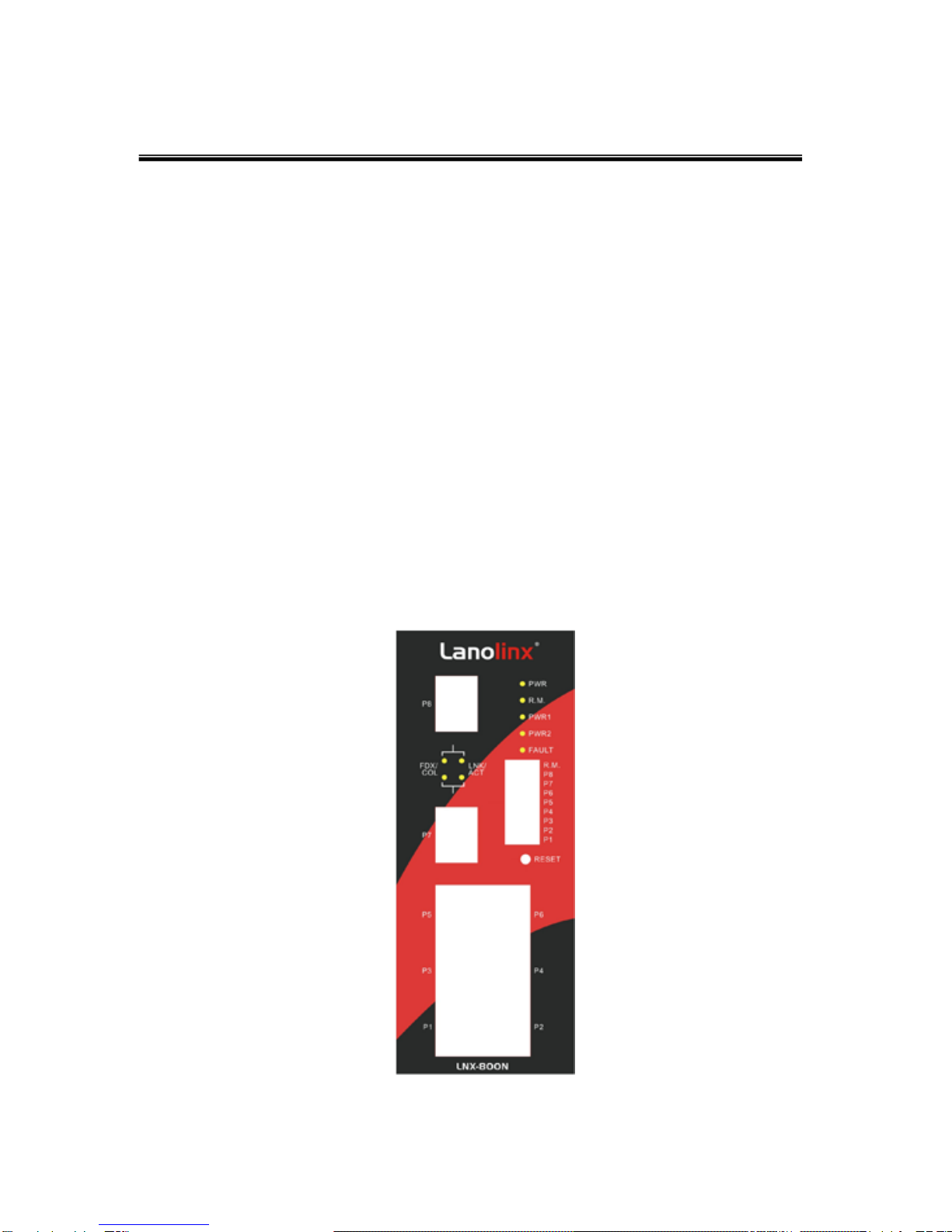

Front Panel

The Front Panel of the 8-port 10/100TX SNMP Managed Industrial Ethernet

Switch with Redundant Ring is showed as following figure.

Front Panel of the industrial switch

Reset Button

The reset button provides user a quick and easy way to restart and set the

configuration back to default value.

Restart: press the button for 2 seconds and release.

Set to factory default value: press the button for 5 seconds and release.

The switch will set all configurations back to default setting.

Bottom View

The bottom panel of the 8-port 10/100TX SNMP Managed Industrial Ethernet

Switch with Redundant Ring consists of one terminal block connector within two

DC power inputs and one DC IN power jack.

Bottom Panel of the industrial switch

DIP-switch

The switch provides the 9 DIP-switch for configuring the relay alarm operation

mode and the ring master operation mode. The default value of Dipswitch is

OFF.

DIP Switch No

Status

Description

OFF

Disable port 1 Alarm

Enable port 1 Alarm. If the port’s link
