1. ME7838D4 Main Components

QSG-2 PN: 10410-00770 Rev. B VectorStar ME7838D4 QSG

High Performance Modular Broadband/Banded Millimeter-Wave

Vector Network Analyzer (VNA) Measurement System, 70 kHz to 150 GHz

This guide provides quick setup instructions for the ME7838D4 Multiport Broadband/Banded mm-Wave VNA

System assembly. For additional safety and compliance information, and for more details about the assembly,

configuration, setup, and initial testing of the equipment, refer to the VectorStar™ ME7838x4 Series Multiport

Broadband Vector Network Analyzers Installation Guide – 10410-00734.

This and all other documentation that supports the ME7838D4 is available on the VectorStar product web

page:

http://www.anritsu.com/en-us/products-solutions/products/ms4640b-series.aspx

On this web page, you can select various tabs for more information about your instrument. Included is a

“Library” tab which contains links to all the latest technical documentation related to this instrument.

1. ME7838D4 Main Components

ME7838D4 Broadband Systems

The ME7838D4 Multiport Broadband system consists of the following components:

•MS4647A or MS4647B VNA with Option 007 (Receiver Offset) and Option 08x (Modular Broadband

Connection Capability)

•MN4697C Multiport Test Set

•3736B Broadband Test Set

•3739C Broadband Test Set

•Four MA25300A Millimeter-Wave Modules

•Front and rear panel cables

ME7838D4 Banded Systems

The ME7838D4 Multiport Banded system consists of the following components:

•MS464xA/B VNA with Option 08x

•MN4694C Multiport Test Set

•3736B Broadband Test Set

•3739C Broadband Test Set

•Four 3744A-EE, 3744A-EW, or four OML/VDI Millimeter-Wave Modules

•Front and rear panel cables

Caution

A MS464xA/B VNA unit is heavy. To avoid personal injury, it must be lifted and

maneuvered by at least two people during installation.

If mounting on a workbench surface, first position the 3739C Broadband Test Set

with access to its front and rear panels. Stack the remaining test sets on top of one

another, then finally the VNA.

If mounting into rack or console, make sure the Test Sets have been installed, and

that the rack/console is carefully positioned on a flat and level surface. If equipped,

make sure any casters are locked. Use two people to lift the VNA unit and two to

guide it into its shelf rails.

The test loops on the front and rear panels of the VNA are delicate. Be careful not to

bump or bend the test loops.

2. Rear Panel Connections Between System Components (MS464xA VNA)

VectorStar ME7838D4 QSG PN: 10410-00770 Rev. B QSG-3

2. Rear Panel Connections Between System Components

(MS464xA VNA)

In this section, connect the cables between the VNA and the Test Sets as shown in Figure 1 and Table 1.

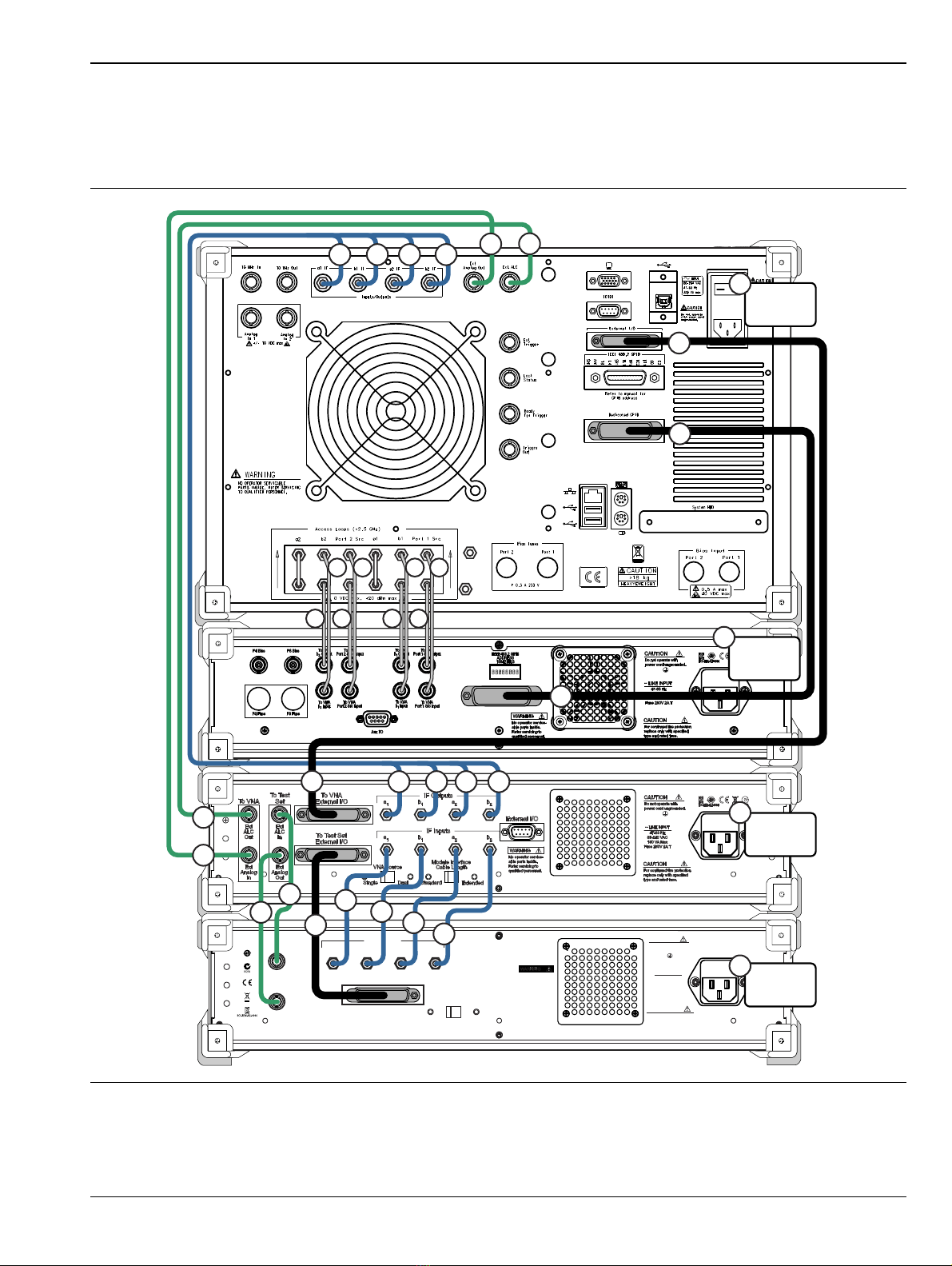

Figure 1 ME7838D4 – Rear Panel Cable Connections (MS464xA VNA)

WARNING

No operator service-

able parts inside.

Refer servicing to

qualified personnel.

Ext

Alc

Out

Ext

Analog

a1ba2b2

IF Outputs

External I/O

~ LINE INPUT

47-63 Hz

85-240 VAC

150 VA Max

Fuse 250V 2A T

CAUTION

Do not operate with

power cord ungrounded.

CAUTION

For continued fire protection

replace only with specified

type and rated fuse.

Cable Length

Standard Extended

Module Interface

MN469xC

Test Set

3736B

Test Set

3739C

Test Set

MS464xA

VNA

11 15

1812

6666

7 7 7 7

2. Rear Panel Connections Between System Components (MS464xA VNA)

QSG-4 PN: 10410-00770 Rev. B VectorStar ME7838D4 QSG

Table 1. ME7838D4 Multiport Rear Panel Cable Connections (1 of 2)

Index Part Number Cable Description Connection From Connection To

1 3-806-225 BNC (male-male), 24 in MS464xA port labeled:

Ext Analog Out

3736B port labeled:

EXT ANALOG IN

2 3-806-225 BNC (male-male), 24 in MS464xA port labeled:

Ext ALC

3736B port labeled:

EXT ALC OUT

3 3-806-225 BNC (male-male), 24 in

3736B port labeled:

(To Test Set) EXT ANALOG

OUT

3739C port labeled:

EXT ANALOG IN

4 3-806-225 BNC (male-male), 24 in 3736B port labeled:

(To Test Set) EXT ALC IN

3739C port labeled:

EXT ALC OUT

73598-1a

(5 cable

bundle)

DB-25 3736B port labeled:

TO TEST SET EXTERNAL I/O

3739C port labeled:

EXTERNAL I/O

SMA male-male flexible:

3-72243-1

3-72243-2

3-72243-3

3-72243-4

3736B ports labeled:

(IF INPUTS)

3739C ports labeled:

(IF OUTPUTS)

73-80734a

(5 cable

bundle)

SMA male-male flexible:

3-72243-21

3-72243-22

3-72243-23

3-72243-24

MS464xA ports labeled:

(Inputs/Outputs)

a1 IF

b1 IF

a2 IF

b2 IF

3736B ports labeled:

(IF OUTPUTS)

a1 IF

b1 IF

a2 IF

b2 IF

8DB-25

MS464xA port labeled:

External I/O

3736B port labeled:

TO VNA EXTERNAL I/O

9 2100-1 GPIB, 1 m MS464xA port labeled:

Dedicated GPIB

MN469xC port labeled:

IEEE 488.2 GPIB

11 62112-81aSMA male-male

semi-rigid

MS464xA port labeled:

b2 loop out

MN469xC port labeled:

TO VNA b2 OUTPUT

12 62112-80aSMA male-male

semi-rigid

MS464xA port labeled:

b2 loop in

MN469xC port labeled:

TO VNA b2 INPUT

13 62112-81aSMA male-male

semi-rigid

MS464xA port labeled:

P2 source loop out

MN469xC port labeled:

TO VNA Port 2 Src OUTPUT

14 62112-80aSMA male-male

semi-rigid

MS464xA port labeled:

P2 source loop in

MN469xC port labeled:

TO VNA Port 2 Src INPUT

15 62112-81aSMA male-male

semi-rigid

MS464xA port labeled:

b1 loop out

MN469xC port labeled:

TO VNA b1 OUTPUT

16 62112-80aSMA male-male

semi-rigid

MS464xA port labeled:

b1 loop in

MN469xC port labeled:

TO VNA b1 INPUT

17 62112-81aSMA male-male

semi-rigid

MS464xA port labeled:

P1 source loop out

MN469xC port labeled:

TO VNA Port 1 Src OUTPUT

2. Rear Panel Connections Between System Components (MS464xA VNA)

VectorStar ME7838D4 QSG PN: 10410-00770 Rev. B QSG-5

18 62112-80aSMA male-male

semi-rigid

MS464xA port labeled:

P1 source loop in

MN469xC port labeled:

TO VNA Port 1 Src INPUT

19 MS464xA VNA

20 MN469xC Test Set

21 3736B Test Set

22 3739C Test Set

a. Tighten each cable in this group using an 8 mm (5/16 in) torque end wrench set to 0.9 N·m (8 lbf·in).

Table 1. ME7838D4 Multiport Rear Panel Cable Connections (2 of 2)

Index Part Number Cable Description Connection From Connection To

3. Rear Panel Connections Between Components (MS464xB VNA)

QSG-6 PN: 10410-00770 Rev. B VectorStar ME7838D4 QSG

3. Rear Panel Connections Between Components (MS464xB VNA)

In this section, connect the cables between the VNA and the Test Sets as shown in Figure 2 or Figure 3, and

Table 2.

Cable Connections (Systems with Option 031 Dual Source Architecture)

Figure 2 ME7838D4 Multiport BB/mmW VNA System – Rear Panel Cables (With Option 031)

WARNING

No operator service-

able parts inside.

Refer servicing to

qualified personnel.

Ext

Alc

Out

Ext

Analog

a1ba2b2

IF Outputs

External I/O

~ LINE INPUT

47-63 Hz

85-240 VAC

150 VA Max

Fuse 250V 2A T

CAUTION

Do not operate with

power cord ungrounded.

CAUTION

For continued fire protection

replace only with specified

type and rated fuse.

Cable Length

Standard Extended

Module Interface

MN469xC

Test Set

3736B

Test Set

3739C

Test Set

MS464xB

VNA

11 15

6666

7 7 7 7

Ext In ALC 1

and

Ext In ALC 2

(With Option 031)

Ext ALC 1

(With

Option 031)

Ext ALC 2

(With

Option 031)

3. Rear Panel Connections Between Components (MS464xB VNA)

VectorStar ME7838D4 QSG PN: 10410-00770 Rev. B QSG-7

Cable Connections (Systems without Option 031)

Figure 3 ME7838D4 Multiport BB/mmW VNA System – Rear Panel Cables (No Option 031)

WARNING

No operator service-

able parts inside.

Refer servicing to

qualified personnel.

Ext

Alc

Out

Ext

Analog

a1ba2b2

IF Outputs

External I/O

~ LINE INPUT

47-63 Hz

85-240 VAC

150 VA Max

Fuse 250V 2A T

CAUTION

Do not operate with

power cord ungrounded.

CAUTION

For continued fire protection

replace only with specified

type and rated fuse.

Cable Length

Standard Extended

Module Interface

MN469xC

Test Set

3736B

Test Set

3739C

Test Set

MS464xB

VNA

11 15

6666

7 7 7 7

3. Rear Panel Connections Between Components (MS464xB VNA)

QSG-8 PN: 10410-00770 Rev. B VectorStar ME7838D4 QSG

Table 2. ME7838D4 Multiport Rear Panel Cable Connections (MS464xB) (1 of 2)

Index Part Number Cable Description Connection From Connection To

13-806-225 BNC (male-male), 24 in MS464xB port labeled:

Ext Analog Out

3736B port labeled:

EXT ANALOG IN

3-806-225 BNC (male-male), 24 in

VNA port labeled:

Ext In ALC 1

(No Option 031) (Figure 3)

3736B port labeled:

EXT ALC OUT

3-806-225 BNC (male-male), 24 in

VNA port labeled:

Ext In ALC 1

(With Option 031) (Figure 2)

3739C port labeled:

EXT ALC OUT

3-806-225 BNC (male-male), 24 in

VNA port labeled:

Ext In ALC 2

(With Option 031) (Figure 2)

3736B port labeled:

EXT ALC OUT

33-806-225 BNC (male-male), 24 in

3736B port labeled:

(To Test Set) EXT ANALOG

OUT

3739C port labeled:

EXT ANALOG IN

43-806-225 BNC (male-male), 24 in

3736B port labeled:

(To Test Set) EXT ALC IN

(Figure 3)

(Not used with Option 031)

3739C port labeled:

EXT ALC OUT

73598-1a

(5 cable

bundle)

DB-25 3736B port labeled:

TO TEST SET EXTERNAL I/O

3739C port labeled:

EXTERNAL I/O

SMA male-male flexible:

3-72243-1

3-72243-2

3-72243-3

3-72243-4

3736B ports labeled:

(IF INPUTS)

3739C ports labeled:

(IF OUTPUTS)

73-80734a

(5 cable

bundle)

SMA male-male flexible:

3-72243-21

3-72243-22

3-72243-23

3-72243-24

MS464xB ports labeled:

(Inputs/Outputs)

a1 IF

b1 IF

a2 IF

b2 IF

3736B ports labeled:

(IF OUTPUTS)

a1 IF

b1 IF

a2 IF

b2 IF

8DB-25 MS464xB port labeled:

External I/O

3736B port labeled:

TO VNA EXTERNAL I/O

92100-1 GPIB, 1 m MS464xB port labeled:

Dedicated GPIB

MN469xC port labeled:

IEEE 488.2 GPIB

11 62112-81aSMA male-male

semi-rigid

MS464xB port labeled:

b2 loop out

MN469xC port labeled:

TO VNA b2 OUTPUT

12 62112-80aSMA male-male

semi-rigid

MS464xB port labeled:

b2 loop in

MN469xC port labeled:

TO VNA b2 INPUT

13 62112-81aSMA male-male

semi-rigid

MS464xB port labeled:

P2 source loop out

MN469xC port labeled:

TO VNA Port 2 Src OUTPUT

3. Rear Panel Connections Between Components (MS464xB VNA)

VectorStar ME7838D4 QSG PN: 10410-00770 Rev. B QSG-9

14 62112-80aSMA male-male

semi-rigid

MS464xB port labeled:

P2 source loop in

MN469xC port labeled:

TO VNA Port 2 Src INPUT

15 62112-81aSMA male-male

semi-rigid

MS464xB port labeled:

b1 loop out

MN469xC port labeled:

TO VNA b1 OUTPUT

16 62112-80aSMA male-male

semi-rigid

MS464xB port labeled:

b1 loop in

MN469xC port labeled:

TO VNA b1 INPUT

17 62112-81aSMA male-male

semi-rigid

MS464xB port labeled:

P1 source loop out

MN469xC port labeled:

TO VNA Port 1 Src OUTPUT

18 62112-80aSMA male-male

semi-rigid

MS464xB port labeled:

P1 source loop in

MN469xC port labeled:

TO VNA Port 1 Src INPUT

19 MS464xB VNA

20 MN469xC Test Set

21 3736B Test Set

22 3739C Test Set

a. Tighten each cable in this group using an 8 mm (5/16 in) torque end wrench set to 0.9 N·m (8 lbf·in).

Table 2. ME7838D4 Multiport Rear Panel Cable Connections (MS464xB) (2 of 2)

Index Part Number Cable Description Connection From Connection To

4. Semi-rigid Cable Connections Between System Components

QSG-10 PN: 10410-00770 Rev. B VectorStar ME7838D4 QSG

4. Semi-rigid Cable Connections Between System Components

Make the semi-rigid cable connections as shown in Figure 4 or Figure 5, and in Table 3.

If your system has Option 031 Dual Source Architecture (MS464xB only), use Figure 4. If your system does not

have Option 031, use Figure 5.

Figure 4 ME7838D4 Multiport Semi-rigid Cable Connections (with Option 031 Dual Source Architecture)

+27 dBm MAX AVOID STATIC DISCHARGE

ALL PORTS: CAUTION

Standby Operate

Frequency

Power

Sweep

Avg

Response

Display

Scale

Marker

Channel

Trace

Measurement

Calibration

Application

File

System

Help

Preset

RF LO 2

Out Out

In In

1 1 1 1 1 1 1

5 5

Install Termination

Removed from

VNA RF1 or RF2

Autres manuels Anritsu Instrument de mesure

Anritsu

Anritsu MS2690A Manuel utilisateur

Anritsu

Anritsu Microwave Site Master S820E Manuel utilisateur

Anritsu

Anritsu LMR Master Manuel utilisateur

Anritsu

Anritsu VectorStar ME7838 4X Series Manuel utilisateur

Anritsu

Anritsu MU196020A PAM4 PPG Manuel utilisateur

Anritsu

Anritsu VectorStar ME7838E4X Manuel utilisateur

Anritsu

Anritsu VectorStar ME7848A-0272 Manuel utilisateur

Anritsu

Anritsu PIM Master MW82119A Manuel utilisateur

Anritsu

Anritsu Site Master S332D Manuel utilisateur

Anritsu

Anritsu Site Master S331D Manuel du propriétaire

Anritsu

Anritsu Site Master S113B Manuel utilisateur

Anritsu

Anritsu VectorStar ME7848E Series Manuel utilisateur

Anritsu

Anritsu MS2690A Manuel d'installation

Anritsu

Anritsu FieldMaster MS2080A Manuel utilisateur

Anritsu

Anritsu MP1220A Manuel utilisateur

Anritsu

Anritsu MP1632C Manuel utilisateur

Anritsu

Anritsu Spectrum Master Manuel utilisateur

Anritsu

Anritsu MU182020A Manuel utilisateur

Anritsu

Anritsu Spectrum Master MS2720T Manuel utilisateur

Anritsu

Anritsu MW9076 Series Manuel utilisateur

Anritsu

Anritsu Series MS278XB Manuel utilisateur

Anritsu

Anritsu MT1810A Manuel utilisateur

Anritsu

Anritsu Site Master S331L Manuel utilisateur

Anritsu

Anritsu MS2690A Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
