Maintenance Manual

PIM Master™

MW8208A, MW8209A, MW8219A

Passive InterModulation Analyzer

MW8208A: 869 MHz to 894 MHz

MW8209A: 925 MHz to 960 MHz

MW8219A: 1930 MHz to 1930 MHz and 2110 MHz to 2155 MHz

Anritsu Company

490 Jarvis Drive

Morgan Hill, CA 95037-2809

USA

Part Number: 10580-00283

Revision: D

Published: December 2011

MW8208A, MW8209A, MW8219A MM PN: 10580-00283 Rev. D Safety-1

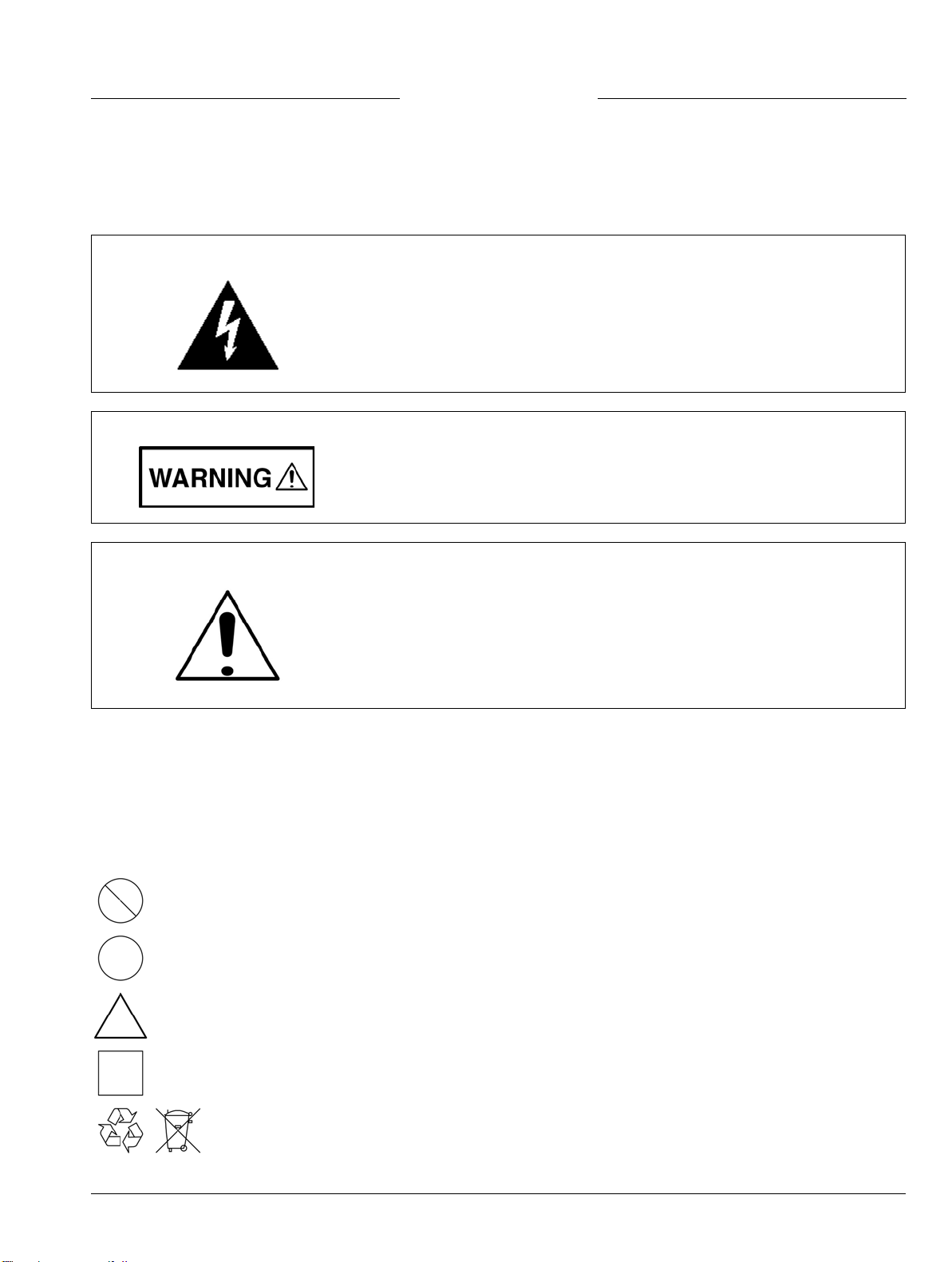

Safety Symbols

To prevent the risk of personal injury or loss related to equipment malfunction, Anritsu Company uses the

following symbols to indicate safety-related information. For your own safety, please read the information

carefully before operating the equipment.

Symbols Used in Manuals

Safety Symbols Used on Equipment and in Manuals

The following safety symbols are used inside or on the equipment near operation locations to provide

information about safety items and operation precautions. Ensure that you clearly understand the meanings of

the symbols and take the necessary precautions before operating the equipment. Some or all of the following

five symbols may or may not be used on all Anritsu equipment. In addition, there may be other labels attached

to products that are not shown in the diagrams in this manual.

This indicates a prohibited operation. The prohibited operation is indicated symbolically in or near

the barred circle.

This indicates a compulsory safety precaution. The required operation is indicated symbolically in or

near the circle.

This indicates a warning or caution. The contents are indicated symbolically in or near the triangle.

This indicates a note. The contents are described in the box.

These indicate that the marked part should be recycled.

Danger

This indicates a very dangerous procedure that could result in serious

injury or death, and possible loss related to equipment malfunction, if not

performed properly.

Warning

This indicates a hazardous procedure that could result in light-to-severe

injury or loss related to equipment malfunction, if proper precautions are

not taken.

Caution

This indicates a hazardous procedure that could result in loss related to

equipment malfunction if proper precautions are not taken.

Safety-2 PN: 10580-00283 Rev. D MW8208A, MW8209A, MW8219A MM

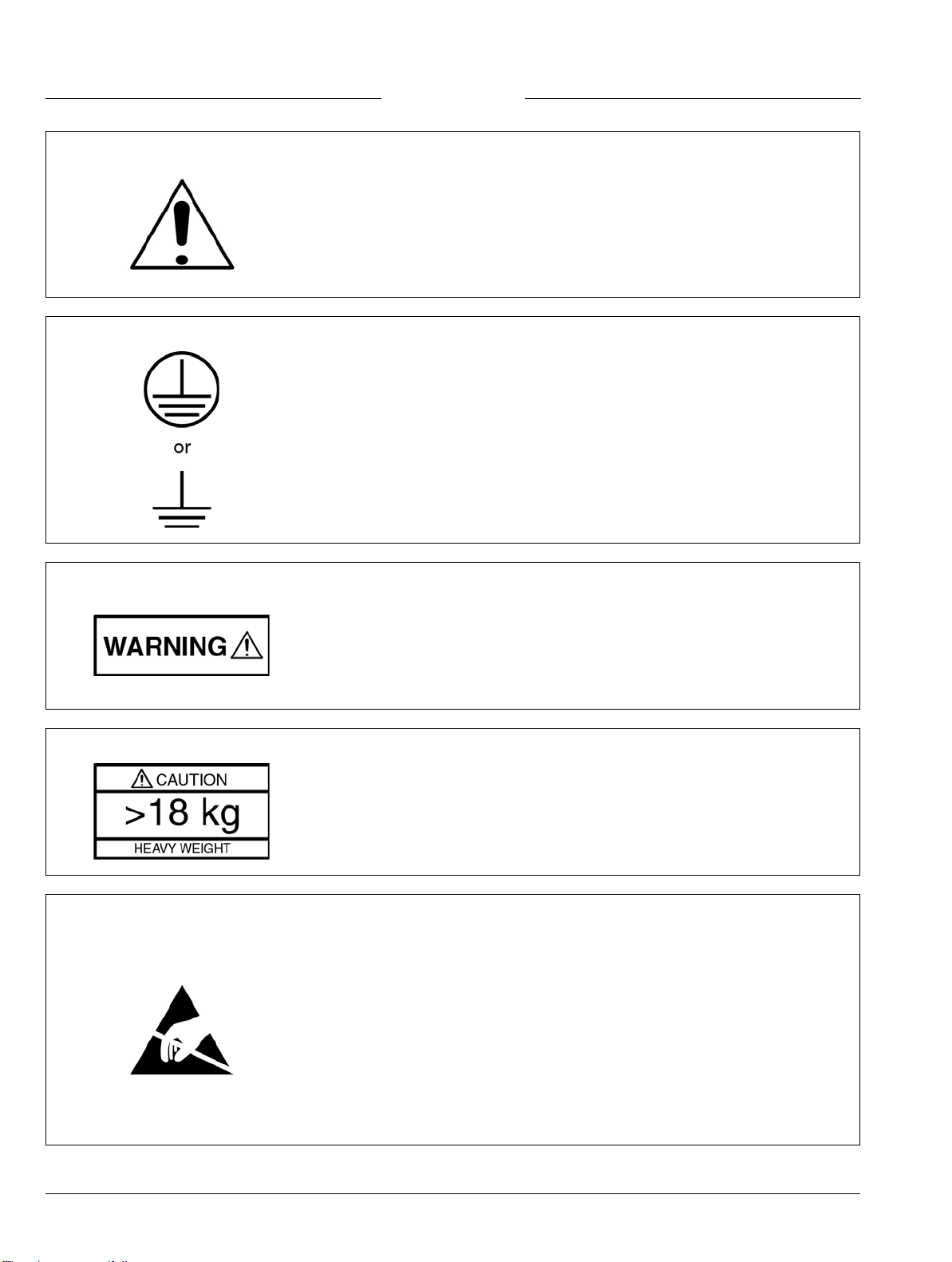

For Safety

Warning Always refer to the operation manual when working near locations at which

the alert mark, shown on the left, is attached. If the operation, etc., is

performed without heeding the advice in the operation manual, there is a

risk of personal injury. In addition, the equipment performance may be

reduced.

Moreover, this alert mark is sometimes used with other marks and

descriptions indicating other dangers.

Warning

When supplying power to this equipment, connect the accessory 3-pin

power cord to a 3-pin grounded power outlet. If a grounded 3-pin outlet is

not available, use a conversion adapter and ground the green wire, or

connect the frame ground on the rear panel of the equipment to ground. If

power is supplied without grounding the equipment, there is a risk of

receiving a severe or fatal electric shock.

Warning This equipment can not be repaired by the operator. Do not attempt to

remove the equipment covers or to disassemble internal components.

Only qualified service technicians with a knowledge of electrical fire and

shock hazards should service this equipment. There are high-voltage parts

in this equipment presenting a risk of severe injury or fatal electric shock to

untrained personnel. In addition, there is a risk of damage to precision

components.

Warning

Use two or more people to lift and move this equipment, or use an

equipment cart. There is a risk of back injury if this equipment is lifted by

one person.

Caution

Electrostatic Discharge (ESD) can damage the highly sensitive circuits in

the instrument. ESD is most likely to occur as test devices are being

connected to, or disconnected from, the instrument’s front and rear panel

ports and connectors. You can protect the instrument and test devices by

wearing a static-discharge wristband. Alternatively, you can ground

yourself to discharge any static charge by touching the outer chassis of the

grounded instrument before touching the instrument’s front and rear panel

ports and connectors. Avoid touching the test port center conductors

unless you are properly grounded and have eliminated the possibility of

static discharge.

Repair of damage that is found to be caused by electrostatic discharge is

not covered under warranty.

MW8208A, MW8209A, MW8219A MM PN: 10580-00283 Rev. D 1-1

Table of Contents

Chapter 1—General Information

1-1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1-2 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1-3 Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1-4 Anritsu Customer Service Centers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

1-5 Recommended Test Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

1-6 Replaceable Parts and Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Chapter 2—PIM Analyzer Verification

2-1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2-2 Reference PIM Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2-3 Frequency Accuracy and Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Component Characterization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Frequency Accuracy and Output Power Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2-4 Residual PIM Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Chapter 3—Troubleshooting

3-1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3-2 Turn-on Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3-3 Operating Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Appendix A—Test Records

A-1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

A-2 Reference PIM Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

A-3 Frequency Accuracy and Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Output Tone Frequency Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Output Tone Power Differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

A-4 Residual PIM Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

Index

1-2 PN: 10580-00283 Rev. D MW8208A, MW8209A, MW8219A MM

Table of Contents (Continued)

MW8208A, MW8209A, MW8219A MM PN: 10580-00283 Rev. D 1-1

Chapter 1 — General Information

1-1 Introduction

This manual provides maintenance instructions for Anritsu PIM Master models MW8208A, MW8209A and

MW8219A.

The information includes:

•Chapter 1, “General Information”

•Chapter 2, “PIM Analyzer Verification”

•Chapter 3, “Troubleshooting”

•Appendix A, “Test Records”

Throughout this manual, the following terms apply:

•PIM Master refers to models MW8208A, MW8209A and MW8219A.

•Controller refers to any of the Anritsu handheld RF and microwave instruments that are capable of

controlling the PIM Master. Refer to the PIM Master Product Brochure (part number: 11410-00546) for

specifications and a list of handheld instrument models that support the Passive Inter-Modulation (PIM)

Analyzer and the Distance-to-PIM™ Analyzer.

Familiarity with the basic operation of the front panel keys (for example, how to change measurement mode,

preset the instrument, or the meaning of submenu button or main menu button) is assumed. Refer to the

PIM Master User Guide (Anritsu part number: 10580-00280).

Warning

The Anritsu PIM Master is capable of producing up to 100 Watts of RF power in the cellular

communications bands. Users must take precautions to minimize exposure to these RF fields:

Always terminate the output port of the test equipment into a load, a loaded line, or a line that

will radiate or absorb the energy before beginning a PIM test.

Confirm that the PIM Master RF power is off after a PIM test.

Always confirm that the RF power is off before disconnecting a coaxial connection, otherwise

RF burns may result. Immediate burns to fingers or eyes can result from exposure to live

connectors.

RF power can be immediately turned off with the Emergency Stop button.

Ensure that all antennas under test are placed so that no personnel are exposed to RF levels

that exceed the maximum allowable exposure.

Note

Anritsu recommends that you make a copy of the blank test records to document the measurements

each time a Performance Verification is performed. Continuing to document this process each time it

is performed provides a detailed history of instrument performance, which allows you to observe

trends.

1-2 Product Description Chapter 1 — General Information

1-2 PN: 10580-00283 Rev. D MW8208A, MW8209A, MW8219A MM

1-2 Product Description

The MW8208A, MW8209A, and MW8219A PIM Master models are portable passive inter-modulation

analyzers featuring precise performance for the GSM(850 MHz), E-GSM (900 MHz), PCS, and AWS cellular

frequency bands. They are designed to accurately determine if receiver interference at a cell site is due to an

inter-modulation product of two or more transmit frequencies, also known as passive inter-modulation (PIM).

The PIM Master generates two high-power tones in the transmit band of a base station, and the Anritsu family

of PIM Master compatible handheld RF instruments (refer to Section 1-1) measure the third-order, fifth-order,

or seventh-order inter-modulation products in the receive band coming back down the same cable. The current

standard for PIM testing offers a well-known system using two primary carriers and a calculated resulting

PIM frequency, which is measured with a spectrum analyzer. This provides a measurement of the overall

linearity of the antenna system and the surrounding environment. PIM Analyzer Option 0419 for select models

of the Anritsu family of RF handheld instruments is no longer required because the PIM Analyzer mode will be

already available (ss a standard feature) to the end user with the handheld instrument.

In addition to PIM testing, the PIM Master also has Distance-to-PIM™ (DTP) Analyzer capability. DTP

analysis offers distance information to PIM sources for cellular sites with internal PIM problems and antenna

PIM problems. This DTP analysis includes the surrounding outside environment with external PIM problems.

The Distance-to-PIM™ Analyzer features are displayed in the relative menus. The choice between PIM

analysis and Distance-to-PIM™ analysis is made in the Measurements menu of the Anritsu handheld

instrument.

Standard Features

Options

Option 425 is the Large Wheel Option and is available for all PIM Master instruments.

Table 1-1. PIM Master Standard Features

Feature MW8219A MW8209A MW8208A

RFPower 2x20W,2x30W,2x40W 2x20W,2x30W,2x40W 2x20W,2x30W,2x40W

Tx Freq Band 1930 MHz to 1990 MHz

2110 MHz to 2155 MHz

925 MHz to 960 MHz 869 MHz to 894 MHz

IMD Band 1710 MHz to 1755 MHz

1850 MHz to 1910 MHz

880 MHz to 915 MHz 794 MHz to 969 MHz

IMD Orders 3rd, 5th, or 7th orders 3rd, 5th, or 7th orders 3rd, 5th, or 7th orders

Chapter 1 — General Information 1-3 Related Documents

MW8208A, MW8209A, MW8219A MM PN: 10580-00283 Rev. D 1-3

Optional Accessories

1-3 Related Documents

Other documents are available for the PIM Master at the Anritsu Web site at:

www.anritsu.com:

•PIM Master User Guide, part number: 10580-00280

•PIM Master Product Brochure, part number: 11410-00546

•Interference Troubleshooting Guide, part number: 11410-00472

•Spectrum Analyzer Measurement Guide, part number: 10580-00244

1-4 Anritsu Customer Service Centers

For the latest service and sales information in your area, please visit the following URL:

http://www.anritsu.com/contact.asp

Choose a country for regional contact information.

Table 1-2. PIM Master Optional Accessories

Part Number Description

2000-1637-R PIM Master Accessory Kit With Torque Wrench (consists of MA82103A, 1091-390-R,

1091-385-R, 1091-386-R, 1091-387-R, 1091-388-R, 1091-389-R, 2000-1626-R, 67135,

01-510, 01-512, 01-513)

2000-1638-R PIM Master Accessory Kit Without Torque Wrench (consists of MA82103A, 1091-390-R,

1091-385-R, 1091-386-R, 1091-387-R, 1091-388-R, 1091-389-R, 2000-1626-R, 67135,

01-510)

MA82103A Low PIM Load/Termination 700 MHz to 2200 MHz, 80 W CW, 7/16 DIN(f), 50 Ω

1091-390-R PIM Standard, –80 dBm ± 3 dB, at 1775 MHz, 20 W, 7/16 DIN(m) to 7/16 DIN(f), 50 Ω

1091-403-R PIM Standard, –80 dBm ± 3 dB, at 910 MHz, 20 W, 7/16 DIN(m) to 7/16 DIN(f), 50 Ω

1091-385-R Adapter, 7/16 DIN(m) to 7/16 DIN(m), 50 Ω

1091-386-R Adapter, 7/16 DIN(f) to N(m), 50 Ω

1091-387-R Adapter, 7/16 DIN(f) to 7/16 DIN(m), 50 Ω

1091-388-R Adapter, 7/16 DIN(f) to 7/16 DIN(f), 50 Ω

1091-389-R Adapter, 7/16 DIN(f) to N(f), 50 Ω

01-510 Crescent Wrench (Adjustable Spanner)

01-512 1 inch, 25 N·m, Torque wrench

01-513 1.25 inch, 25 N·m, Torque wrench

1-5 Recommended Test Equipment Chapter 1 — General Information

1-4 PN: 10580-00283 Rev. D MW8208A, MW8209A, MW8219A MM

1-5 Recommended Test Equipment

Table 1-3 lists the test equipment that is required for verifying and testing the PIM Master.

a. MG3692A models require Option 15 to achieve power of +16 dBm at 3.5 GHz. MG3692B models do not require Option 15 to

achieve power of +16 dBm at 3.5 GHz.

1-6 Replaceable Parts and Assemblies

The current service policy for these models states that the MW8208A, MW8209A and MW8219A PIM Master

models are factory only repair items. No replacement parts or assemblies are currently available for these

instruments.

Table 1-3. Recommended Test Equipment for PIM Master Verification

Equipment Critical Specification Recommended

Manufacturer/Model

Synthesized Signal

Generator

Frequency: 0.1 Hz to 20 GHz,

Power Output: +16 dBm, Step attenuator installed

Anritsu Model MG3692A or

MG3692B with Options 2A, 4, 22,

15xa

Power Meter Power Range: –70 to +20 dBm Anritsu Model ML2438A

Power Sensor Frequency: 100 kHz to 18 GHz

Power Range: –67 dB to +20 dB

Anritsu Model MA2421D or SC7400

(Quantity 1)

Spectrum Analyzer Frequency: 3 GHz

Power Range: to +20 dBm

Anritsu Model MT8212E or

MS2721B or MT8222A

Low PIM Load 150 W, 160 dBc PIM, 700 MHz to 2200 MHz, 50 ΩAnritsu Model MA82103A

PIM Standard –80 dBm at 2 x 20 W, 1775 MHz Anritsu Model 1091-390-R

PIM Standard –80 dBm at 2 x 20 W, 910 MHz Anritsu Model 1091-403-R

Fixed Attenuator 30 dB, 50 W, 50 ΩAnritsu Model 3-1010-123

Adapter K(m) to N(f), 50 ΩAnritsu Model 34RKNF50

Adapter N(f) to N(f), 50 ΩAnritsu Model 34NFNF50

Adapter 7/16 DIN(f) to N(m), 50 ΩAnritsu Model 1091-386-R

Adapter 7/16 DIN(m) to 7/16 DIN(m) Anritsu Model 1091-385-R

PIM Test Cable 3.0 m, DC to 4 GHz, 7/16 DIN(m), 50 ΩAnritsu Model 2000-1626-R

Torque Wrench Open End for N Connector at 12 inch pounds Anritsu Model 01-200

Torque Wrench 1 inch, 25 N·m (16.226 lb·ft) Anritsu Model 01-512

Torque Wrench 1.25 inch, 25 N·m (16.226 lb·ft) Anritsu Model 01-513

Crescent Wrench

(Adjustable Spanner)

Length: 10 in (254 mm)

Max Width Opening: 1.375 in (34.925 mm)

Anritsu Model 01-510

Coaxial Cable BNC(m) to BNC(m), 50 ΩAny or Anritsu Model 2000-1627-R

Adapter BNC Tee Jack-Plug-Jack Any or Amphenol 31-208

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Anritsu Instrument de mesure

Anritsu

Anritsu Site Master S331L Manuel utilisateur

Anritsu

Anritsu Field Master Pro MS2090A Manuel utilisateur

Anritsu

Anritsu Spectrum Master MS2720T Manuel du propriétaire

Anritsu

Anritsu MP1632C Manuel utilisateur

Anritsu

Anritsu VectorStar ME7838D4 Manuel utilisateur

Anritsu

Anritsu VectorStar ME7838AX Manuel utilisateur

Anritsu

Anritsu Field Master Manuel utilisateur

Anritsu

Anritsu Site Master S113B Manuel utilisateur

Anritsu

Anritsu Site Master S251C Manuel utilisateur

Anritsu

Anritsu MP1632C Manuel utilisateur

Anritsu

Anritsu VectorStar ME7848A Series Manuel utilisateur

Anritsu

Anritsu VNA Master MS2024B Manuel utilisateur

Anritsu

Anritsu VectorStar ME7838 4X Series Manuel utilisateur

Anritsu

Anritsu MS2690A Manuel utilisateur

Anritsu

Anritsu MT8801C Manuel utilisateur

Anritsu

Anritsu Field Master Pro MS2090A Manuel utilisateur

Anritsu

Anritsu MP1800A Manuel utilisateur

Anritsu

Anritsu Spectrum Master MS2721A Manuel utilisateur

Anritsu

Anritsu ML2480B Series Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Anritsu

Anritsu MS2024A Manuel d'utilisation et d'entretien

Anritsu

Anritsu Lightning 37 E Series Manuel utilisateur

Anritsu

Anritsu CMA 5000 - UTA Manuel utilisateur

Anritsu

Anritsu Network Master MT9090A Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
