40G Quick Start Guide（Jitter）

MP1595A 40G SDH/SONET Analyzer

Quick Start Guide

(Jitter Version)

Anritsu Corporation

IP Network Measurement Division

July 25th, 2007 (Version 3.2)

MBP

MBP-

-1SG060368

1SG060368-

-03

IP Network Measurement Division 2

40G Quick Start Guide（Jitter）

Contents

1) Configuration Flow

Slide 3

i. MP1595A/MP1797A 40/43G Modules Slides 4-8

Connector Locations and Names

2) Setup Flow

Slides 9-11

Pre-usage Notes Slides 12-14

ii. Power-on Slides 15-16

iii. MX179701B Setup Slide 17

iv. GPIB Setup Slide 18

3) Setting Signal and Interface

Slides 19-22

4) Connecting DUT

Slides 23-29

5) Common Settings with MX179701B

Slides 30

6) Jitter Measurements

Slides 31-38

7) Save/Load Method

Slide 39

Appendix

Slides 40-46

IP Network Measurement Division 3

40G Quick Start Guide（Jitter）

MP1595A/MP1797A

MP1595A/MP1797A Configuration Flow

Configuration Flow-

-Chart

Chart

Start

1. Confirm Test

configuration

40G Electrical Test 43G Electrical Test

MP1595A Slot 40/43G Electrical Config

3 MU150142A-OPT

MP1797A OPT TX MU179701A

MU150142A

MU150140A

OPT RX MU179705A 43G O/E Converter

MP1595A Slot 40/43G Electrical Config

3 MU150142A-OPT

MP1797A OPT TX MU179701A

MU150142A

MU150140A

OPT RX MU179704A 40G O/E Converter

2. Connect Cables (V-SUHNER®) /Bias-T / DC Block / Terminator

Go to

– Slide 9

IP Network Measurement Division 4

40G Quick Start Guide（Jitter）

MP1595A Slot 40/43G Electrical Config

3 MU150142A-OPT

MP1797A OPT TX MU179701A

OPT RX MU179705A 43G O/E Converter

MU150142A

MU150140A

MP1595A/MP1797A

MP1595A/MP1797A 43G

43G Electrical Setup

Electrical Setup

1.0 MP1595A/MP1797A

1.0 MP1595A/MP1797A 40/43G Modules

40/43G Modules

or MU179704A 40G O/E Converter

IP Network Measurement Division 5

40G Quick Start Guide（Jitter）

1.1 Connector Locations and Names (MP1595A)

⑥AUX Input/Output

①40G Clock Input ②40G Clock Output

③40G Data Output (Positive)

⑤40G Clock Phase Adjuster

⑩40G Data Input (Positive) ⑧1/64 Refclk Input/Output

⑦10G Clock Output

④40G Data Output (Negative)

⑨40G Data Input (Negative)

MU150142A : Electrical Unit

IP Network Measurement Division 6

40G Quick Start Guide（Jitter）

1.2 Connector Locations and Names (MP1797A)

⑲Clock Input

TX Ref Clock Output

Demod. Output

EXT Mod. Input

⑬Input Electrical Data

⑭Output Data

⑰Output O/E Data

⑪Input Data ⑫Input Clock

２４

⑮Output Clock (Wide)

Output Clock (Narrow)

⑯Optical Input

⑱Optical Output

２３

２２

⑳Clock Output

２１

IP Network Measurement Division 7

40G Quick Start Guide（Jitter）

1.3 Loopback for System Verification

⑩40G Data Input (Positive)

①40G Clock Input

②40G Clock Output

③40G Data Output (Positive)

⑪Input Data

⑫Input Clock

⑳Clock Output

⑮Output Clock (Wide)

⑲Clock Input

⑰Output O/E Data

⑱Optical Output

⑯Optical Input

Bias T

Optical

Fiber

Loop

Optical

6 dB ATT

IP Network Measurement Division 8

40G Quick Start Guide（Jitter）

V-SUHNER®

DC Block

50 ohm

Terminator

V Cable

(50cm)

50 ohm

Terminator

Bias Tee

V Cable (30cm)

1.4 MP1595A/MP1797A

1.4 MP1595A/MP1797A 40/43G

40/43G Electrical Connections

Electrical Connections

6dB ATT

IP Network Measurement Division 9

40G Quick Start Guide（Jitter）

MP1595A/MP1797A

MP1595A/MP1797A Setup Flow

Setup Flow-

-Chart

Chart

Refer to Section 3. Setting Signal and

Interface of this document (Slide 19)

3.1 Set MP1595A

Mapping

Test Pattern

Set ON, when using the FEC

function at the Rx side.

This is only enabled for 43G.

MU150142A has CDR in itself, normally select

“Internal VCO”.

Go to

Note: an example of

testing 40G.

IP Network Measurement Division 10

40G Quick Start Guide（Jitter）

Go to C

MP1595A/MP1797A

MP1595A/MP1797A Setup Flow

Setup Flow-

-Chart

Chart

4. Set MP1797A

a - Bit-Rate

b - RX Filter

c - Measurement Time: Repeat / 1s

d - TX Jitter : “OFF”

5. Confirm the following point of MP1797A

a - Jitter Unlock Alarm should be “OFF”

b - OPT Power Meter Value: Input Sensitivity 0 to –10dbm

c - Frequency Monitor (Setting Bit-Rate)

6. Adjust MP1797A ”Intrinsic Jitter” to smallest point

using Phase Adjustment on MU150142A of MP1595A (range of

adjustment is +/- 70 ps and period of signal is ~ 25 ps)

7. Adjust MP1595A condition to “No-Alarm/ No-Error” condition by

Threshold to center of working margin. (Should have +/- .1 V with

threshold set to 0.0 V)

8. Confirm Step-5, 6 and 7

This Step is important: REPEAT ADJ

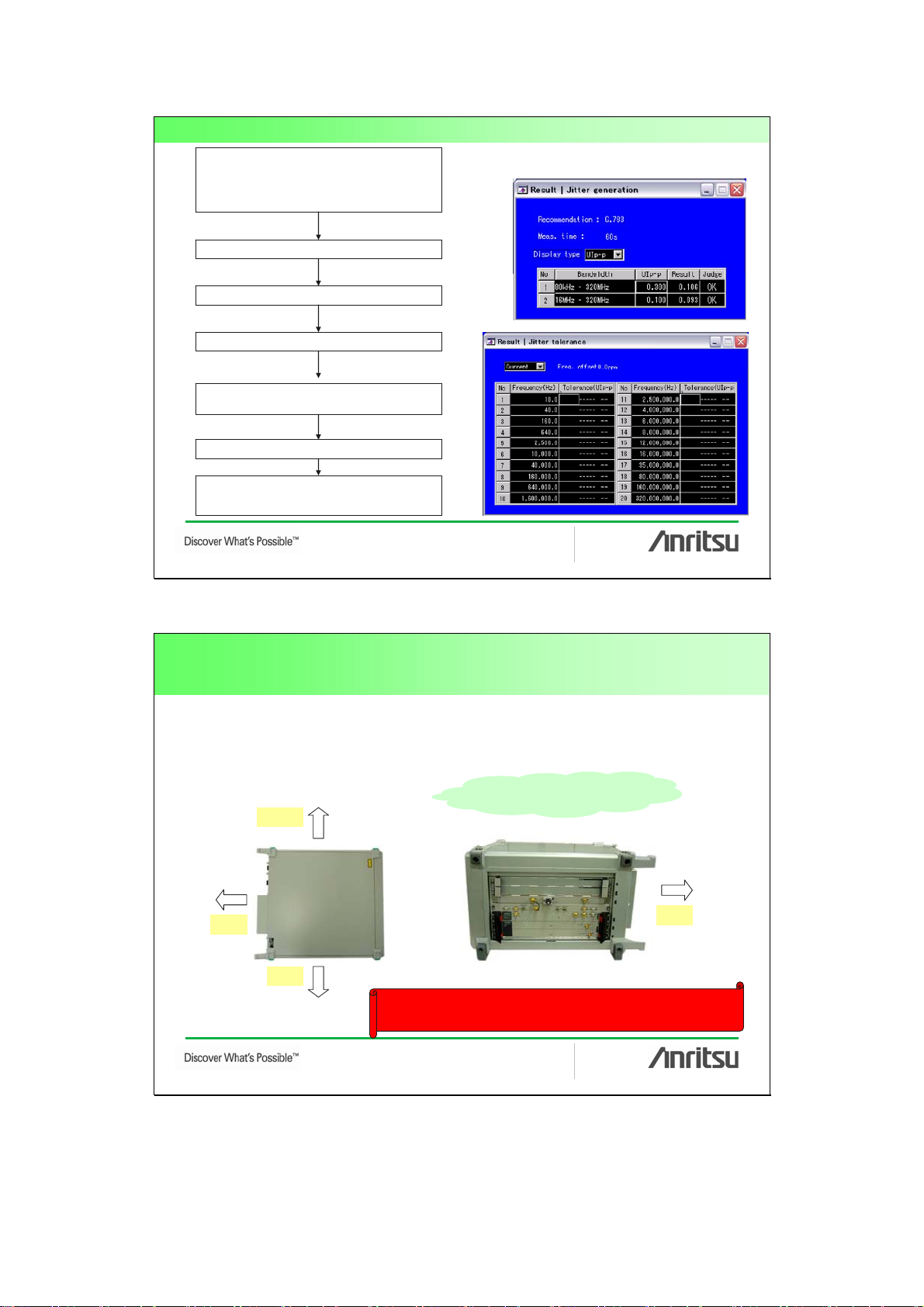

IP Network Measurement Division 11

40G Quick Start Guide（Jitter）

MP1595A/MP1797A

MP1595A/MP1797A Setup Flow

Setup Flow-

-Chart

Chart

Refer to Section 5. Common Settings with

MX179701B of this document (Slide 30)

Set MX179701B Jitter Application with GPIB

Jitter Generation

Jitter Tolerance

Please return to "Step B" when the result fails.

*Confirm and re-adjust the System condition” again

Start Jitter Measurement

Other important information for

software settings – Slides

IP Network Measurement Division 12

40G Quick Start Guide（Jitter）

2.0 Pre

2.0 Pre-

-usage Notes

usage Notes

Setting-up Main Frame

¾The MP1595A and MP1797A use internal cooling fans. Leave at

least 10 cm around the back and sides to allow sufficient

cooling air flows.

10 cm min.

Left

Right

Back

10 cm min.

Back

MP1797A

MP1595A

ALWAYS wear a wristband.

Operating Temperature

20 to 30 degree C

IP Network Measurement Division 13

40G Quick Start Guide（Jitter）

2.1 Pre

2.1 Pre-

-usage Notes

usage Notes

Setting-up Main Frame

¾The MP1595A and MP1797A must be connected using cables to

make measurements. Keep the cables as short as possible to

prevent cable strain and make sure that the connectors on both

units are oriented in the same direction as shown below.

Connectors

IP Network Measurement Division 14

40G Quick Start Guide（Jitter）

2.2 Pre

2.2 Pre-

-usage Notes

usage Notes

Checking Optical Output Key

¾Insert the key into the optical key switch and Remote Interlock

in the MP1797A E/O Module (MU179703A). Set the key switch to

the ON position. If it is at the OFF position, the MU179703A will

not output the optical signal.

Optical Key Switch Remote Interlock

IP Network Measurement Division 15

40G Quick Start Guide（Jitter）

2.3 Power

2.3 Power-

-on

MP1595A Power Switches

¾The MP1595A has two power switches—the main power switch and a

switch for the standby status.

Setting power to ON

(1) After checking that the main power switch is OFF, connect the power cord to the power

connector.

(2) Set the main power switch to ON.

(2’) To set the power to ON from the standby status, press the standby switch.

Setting power to OFF

(1) Press the standby switch.

(2) Check that the standby status has been entered and then switch off the main power switch.

Supply power at 100–120/200–240 Vac and 50–60 Hz to the

MP1595A and MP1797A. Both units have voltage auto-switching.

Standby Switch Main Power Switch

IP Network Measurement Division 16

40G Quick Start Guide（Jitter）

2.4 Power

2.4 Power-

-on

MP1797A Power Switch

¾The MP1595A has one main power switch.

Setting power to ON

(1) After checking that the main power switch is OFF, connect the power cord to the power

connector.

(2) Set the main power switch to ON.

Setting power to OFF

(2) Set the main power switch to OFF.

There is no special power-on/off sequence for the MP1595A and MP1797A.

Switch either unit on or off in any order.

Main power Switch
