Quick Start Guide

VectorStar™ ME7838E4/E4X

Multiport Broadband/Banded

mmWave System

High Performance Modular Broadband/Banded mmWave Vector Network

Analyzer (VNA) Multiport Measurement System

ME7838E4/E4X, 70 kHz to 110 GHz

Part Number: 10410-00771

Revision: C

Published: September 2021

Anritsu Company

490 Jarvis Drive

Morgan Hill, CA 95037-2809

USA

http://www.anritsu.com

1. ME7838E4/E4X Main Components

QSG-2 PN: 10410-00771 Rev. C VectorStar ME7838E4/E4X QSG

High Performance Modular Broadband/Banded mmWave Vector Network

Analyzer (VNA) Measurement System, 70 kHz to 110 GHz

This guide provides quick setup instructions for the ME7838E4/E4X Multiport Broadband/Banded mmWave

VNA System assembly. For additional safety and compliance information, and for more details about the

assembly, configuration, setup, and initial testing of the equipment, refer to the VectorStar™ ME7838x4/x4X

Series Multiport Broadband Vector Network Analyzers Installation Guide – 10410-00734.

This and all other documentation that supports the ME7838E4/E4X is available on the ME7838A product web

page:

http://www.anritsu.com/test-measurement/products/me7838a4

On this web page, you can select various tabs for more information about your instrument. Included is a

“Library” tab which contains links to all the latest technical documentation related to this instrument.

1. ME7838E4/E4X Main Components

ME7838E4/E4X Broadband Systems

The ME783A4 Multiport Broadband system consists of the following components:

•MS4647B VNA with Option 007 (Receiver Offset) and Option 08x (Modular Broadband Connection

Capability)

•MN4697C Multiport Test Set

•3736B Broadband Test Set

•3739C Broadband Test Set

•Four 3743E/EX mmWave Modules

•Front and rear panel cables

ME7838E4/E4X Banded Systems

The ME7838E4/E4X Multiport Banded system consists of the following components:

•MS464xB VNA with Option 08x

•MN469xC Multiport Test Set

•3736B Broadband Test Set

•3739C Broadband Test Set

•Four 3744E-EE, 3744E-EW, or four OML/VDI mmWave Modules

•Front and rear panel cables

Caution

A MS464xB VNA unit is heavy. To avoid personal injury, it must be lifted and maneu-

vered by at least two people during installation.

If mounting on a workbench surface, first position the 3739C Broadband Test Set

with access to its front and rear panels. Stack the remaining test sets on top of one

another, then finally the VNA.

If mounting into rack or console, make sure the Test Sets have been installed, and

that the rack/console is carefully positioned on a flat and level surface. If equipped,

make sure any casters are locked. Use two people to lift the VNA unit and two to

guide it into its shelf rails.

The test loops on the front and rear panels of the VNA are delicate. Be careful not to

bump or bend the test loops.

2. Rear Panel Connections Between Components (MS464xB VNA)

VectorStar ME7838E4/E4X QSG PN: 10410-00771 Rev. C QSG-3

2. Rear Panel Connections Between Components (MS464xB VNA)

In this section, connect the cables between the VNA and the Test Sets as shown in Figure 1 or Figure 2, and

Table 1.

Cable Connections (Systems with Option 031 Dual Source Architecture)

Figure 1 ME7838E4/E4X Multiport BB/mmW VNA System – Rear Panel Cables (With Option 031)

WARNING

No operator service-

able parts inside.

Refer servicing to

qualified personnel.

Ext

Alc

Out

Ext

Analog

a1ba2b2

IF Outputs

External I/O

~ LINE INPUT

47-63 Hz

85-240 VAC

150 VA Max

Fuse 250V 2A T

CAUTION

Do not operate with

power cord ungrounded.

CAUTION

For continued fire protection

replace only with specified

type and rated fuse.

Cable Length

Standard Extended

Module Interface

MN469xC

Test Set

3736B

Test Set

3739C

Test Set

MS464xB

VNA

11 15

6666

7 7 7 7

Ext In ALC 1

and

Ext In ALC 2

(With Option 031)

Ext ALC 1

(With

Option 031)

Ext ALC 2

(With

Option 031)

2. Rear Panel Connections Between Components (MS464xB VNA)

QSG-4 PN: 10410-00771 Rev. C VectorStar ME7838E4/E4X QSG

Cable Connections (Systems without Option 031)

Figure 2 ME7838E4/E4X Multiport BB/mmW VNA System – Rear Panel Cables (No Option 031)

WARNING

No operator service-

able parts inside.

Refer servicing to

qualified personnel.

Ext

Alc

Out

Ext

Analog

a1ba2b2

IF Outputs

External I/O

~ LINE INPUT

47-63 Hz

85-240 VAC

150 VA Max

Fuse 250V 2A T

CAUTION

Do not operate with

power cord ungrounded.

CAUTION

For continued fire protection

replace only with specified

type and rated fuse.

Cable Length

Standard Extended

Module Interface

MN469xC

Test Set

3736B

Test Set

3739C

Test Set

MS464xB

VNA

11 15

6666

7 7 7 7

2. Rear Panel Connections Between Components (MS464xB VNA)

VectorStar ME7838E4/E4X QSG PN: 10410-00771 Rev. C QSG-5

Table 1. ME7838E4/E4X Multiport Rear Panel Cable Connections (MS464xB) (1 of 2)

Index Part Number Cable Description Connection From Connection To

13-806-225 BNC (male-male), 24 in MS464xB port labeled:

Ext Analog Out

3736B port labeled:

EXT ANALOG IN

3-806-225 BNC (male-male), 24 in

VNA port labeled:

Ext In ALC 1

(No Option 031) (Figure 2)

3736B port labeled:

EXT ALC OUT

3-806-225 BNC (male-male), 24 in

VNA port labeled:

Ext In ALC 1

(With Option 031) (Figure 1)

3739C port labeled:

EXT ALC OUT

3-806-225 BNC (male-male), 24 in

VNA port labeled:

Ext In ALC 2

(With Option 031) (Figure 1)

3736B port labeled:

EXT ALC OUT

33-806-225 BNC (male-male), 24 in

3736B port labeled:

(To Test Set) EXT ANALOG

OUT

3739C port labeled:

EXT ANALOG IN

43-806-225 BNC (male-male), 24 in

3736B port labeled:

(To Test Set) EXT ALC IN

(Figure 2)

(Not used with Option 031)

3739C port labeled:

EXT ALC OUT

3-73598-1a

(5 cable

bundle)

DB-25 3736B port labeled:

TO TEST SET EXTERNAL I/O

3739C port labeled:

EXTERNAL I/O

SMA male-male flexible:

3-72243-1

3-72243-2

3-72243-3

3-72243-4

3736B ports labeled:

(IF INPUTS)

3739C ports labeled:

(IF OUTPUTS)

73-80734a

(5 cable

bundle)

SMA male-male flexible:

3-72243-21

3-72243-22

3-72243-23

3-72243-24

MS464xB ports labeled:

(Inputs/Outputs)

a1 IF

b1 IF

a2 IF

b2 IF

3736B ports labeled:

(IF OUTPUTS)

a1 IF

b1 IF

a2 IF

b2 IF

8DB-25 MS464xB port labeled:

External I/O

3736B port labeled:

TO VNA EXTERNAL I/O

92100-1-R GPIB, 1 m MS464xB port labeled:

Dedicated GPIB

MN469xC port labeled:

IEEE 488.2 GPIB

11 3-62112-81aSMA male-male

semi-rigid

MS464xB port labeled:

b2 loop out

MN469xC port labeled:

TO VNA b2 OUTPUT

12 3-62112-80aSMA male-male

semi-rigid

MS464xB port labeled:

b2 loop in

MN469xC port labeled:

TO VNA b2 INPUT

13 3-62112-81aSMA male-male

semi-rigid

MS464xB port labeled:

P2 source loop out

MN469xC port labeled:

TO VNA Port 2 Src OUTPUT

2. Rear Panel Connections Between Components (MS464xB VNA)

QSG-6 PN: 10410-00771 Rev. C VectorStar ME7838E4/E4X QSG

14 3-62112-80aSMA male-male

semi-rigid

MS464xB port labeled:

P2 source loop in

MN469xC port labeled:

TO VNA Port 2 Src INPUT

15 3-62112-81aSMA male-male

semi-rigid

MS464xB port labeled:

b1 loop out

MN469xC port labeled:

TO VNA b1 OUTPUT

16 3-62112-80aSMA male-male

semi-rigid

MS464xB port labeled:

b1 loop in

MN469xC port labeled:

TO VNA b1 INPUT

17 3-62112-81aSMA male-male

semi-rigid

MS464xB port labeled:

P1 source loop out

MN469xC port labeled:

TO VNA Port 1 Src OUTPUT

18 3-62112-80aSMA male-male

semi-rigid

MS464xB port labeled:

P1 source loop in

MN469xC port labeled:

TO VNA Port 1 Src INPUT

19 MS464xB VNA

20 MN469xC Test Set

21 3736B Test Set

22 3739C Test Set

a. Tighten each cable in this group using an 8 mm (5/16 in) torque end wrench set to 0.9 Nꞏm (8 lbfꞏin).

Table 1. ME7838E4/E4X Multiport Rear Panel Cable Connections (MS464xB) (2 of 2)

Index Part Number Cable Description Connection From Connection To

3. Semi-rigid Cable Connections Between System Components

VectorStar ME7838E4/E4X QSG PN: 10410-00771 Rev. C QSG-7

3. Semi-rigid Cable Connections Between System Components

Make the semi-rigid cable connections as shown in Figure 3 or Figure 4, and in Table 2.

If your system has Option 031 Dual Source Architecture (MS464xB only), use Figure 3. If your system does not

have Option 031, use Figure 4.

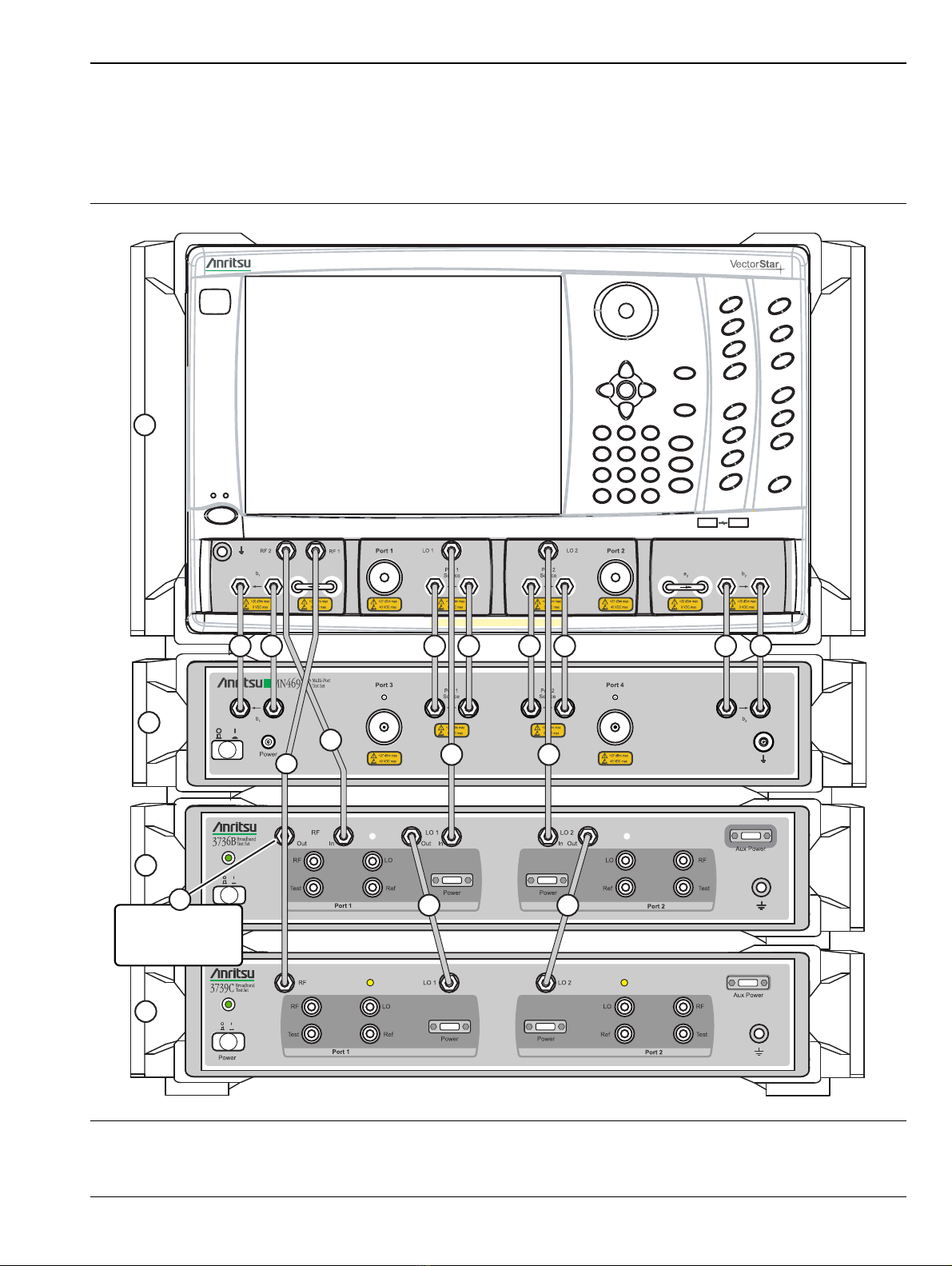

Figure 3 ME7838E4/E4X Multiport Semi-rigid Cable Connections (with Option 031 Dual Source Architecture)

+27 dBm MAX AVOID STATIC DISCHARGE

ALL PORTS: CAUTION

Standby Operate

Frequency

Power

Sweep

Avg

Response

Display

Scale

Marker

Channel

Trace

Measurement

Calibration

Application

File

System

Help

Preset

RF LO 2

Out Out

In In

1 1 1 1 1 1 1

5 5

Install Termination

Removed from

VNA RF1 or RF2

3. Semi-rigid Cable Connections Between System Components

QSG-8 PN: 10410-00771 Rev. C VectorStar ME7838E4/E4X QSG

Figure 4 ME78383E4/E4X Multiport semi-rigid Cable Connections (No Option 031)

+27 dBm MAX AVOID STATIC DISCHARGE

ALL PORTS: CAUTION

Standby Operate

Frequency

Power

Sweep

Avg

Response

Display

Scale

Marker

Channel

Trace

Measurement

Calibration

Application

File

System

Help

Preset

RF LO 2

Out Out

In In

1 1 1 1 1 1 1

5 5

3. Semi-rigid Cable Connections Between System Components

VectorStar ME7838E4/E4X QSG PN: 10410-00771 Rev. C QSG-9

Table 2. ME7838E4/E4X Multiport Semi-rigid Cable Interconnect Part Numbers and Locations (1 of 2)

Index Part Numbers Description/Torque Connection From Connection To

3-62109-42

V (m-m)

(MN4697C)

3-67357-38

K (m-m)

(MN4694C)

Front Panel RF Cable (4 each)

V or K male-male semi-rigid

Tighten using an 8 mm (5/16 in)

torque end wrench set to 0.9 Nꞏm

(8 lbfꞏin).

VNA port labeled:

b1 (In)

MN469xC port labeled:

b1 (In)

VNA port labeled:

b1 (Out)

MN469xC port labeled:

b1 (Out)

VNA port labeled:

Port 1 Source (In)

MN469xC port labeled:

Port 1 Source (In)

VNA port labeled:

Port 1 Source (Out)

MN469xC port labeled:

Port 1 Source (Out)

VNA port labeled:

Port 2 Source (In)

MN469xC port labeled:

Port 2 Source (In)

VNA port labeled:

Port 2 Source (Out)

MN469xC port labeled:

Port 2 Source (Out)

VNA port labeled:

b2 (In)

MN469xC port labeled:

b2 (In)

VNA port labeled:

b2 (Out)

MN469xC port labeled:

b2 (Out)

23-67357-230

Front Panel RF Cable

K male-male semi-rigid

Tighten using an 8 mm (5/16 in)

torque end wrench set to 0.9 Nꞏm

(8 lbfꞏin).

VNA port labeled:

RF 2 (Figure 3)

(With Option 031)

3736B Test Set port

labeled:

RF In

VNA port labeled:

RF (Figure 4)

(No Option 031)

3736B Test Set port

labeled:

RF In

33-67357-231

Front Panel LO Cable (2 each)

K male-male semi-rigid

Tighten using an 8 mm (5/16 in)

torque end wrench set to 0.9 Nꞏm

(8 lbfꞏin).

VNA port labeled:

LO 1

3736B Test Set port

labeled:

LO 1 In

VNA port labeled:

LO 2

3736B Test Set port

labeled:

LO 2 In

3-67357-232

(With Option

031)

Front Panel RF Cable

K male-male semi-rigid

Tighten using an 8 mm (5/16 in)

torque end wrench set to 0.9 Nꞏm

(8 lbfꞏin).

VNA port labeled:

RF 1 (Figure 3)

(With Option 031)

3739C Test Set port

labeled:

3-67357-18

(No Option

031)

3736B Test Set port

labeled:

RF Out (Figure 4)

(No Option 031)

3739C Test Set port

labeled:

5 3-67357-19

Front Panel LO Cable (2 each)

K male-male semi-rigid

Tighten using an 8 mm (5/16 in)

torque end wrench set to 0.9 Nꞏm

(8 lbfꞏin).

3736B Test Set port

labeled:

LO 1 Out

3739C Test Set port

labeled:

LO 1

3736B Test Set port

labeled:

LO 2 Out

3739C Test Set port

labeled:

LO 2

6V210

Termination (With Option 031)

Tighten using an 8 mm (5/16 in)

torque end wrench set to 0.9 Nꞏm

(8 lbfꞏin).

Remove from VNA port

labeled:

RF 1 or RF 2

(With Option 031)

Add to 3736B Test Set

port labeled:

RF Out

3. Semi-rigid Cable Connections Between System Components

QSG-10 PN: 10410-00771 Rev. C VectorStar ME7838E4/E4X QSG

7MS464xB VNA Option 051, 061, or 062, and 08x (Banded)

MS4647B VNA Option 051, 061, or 062, and 08x (Broadband)

MN469xC

Test Set (Banded)

MN4697C

Tes t S e t (Broadband)

9 3736B Test Set

10 3739C Test Set

Table 2. ME7838E4/E4X Multiport Semi-rigid Cable Interconnect Part Numbers and Locations (2 of 2)

Index Part Numbers Description/Torque Connection From Connection To

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Anritsu Instrument de mesure

Anritsu

Anritsu MS2690A Manuel utilisateur

Anritsu

Anritsu MS2681A Manuel utilisateur

Anritsu

Anritsu FieldMaster MS2080A Manuel utilisateur

Anritsu

Anritsu Field Master Pro MS2090A Manuel utilisateur

Anritsu

Anritsu MS27101A-IBCM Manuel utilisateur

Anritsu

Anritsu VNA Master MS2024B Manuel utilisateur

Anritsu

Anritsu MP1763C Manuel utilisateur

Anritsu

Anritsu MW9076 Series Manuel utilisateur

Anritsu

Anritsu VNA Master MS202 B Series Manuel utilisateur

Anritsu

Anritsu ShockLine MS46322A Series Manuel utilisateur

Anritsu

Anritsu Field Master Pro MS2090A Manuel utilisateur

Anritsu

Anritsu MP1632C Manuel utilisateur

Anritsu

Anritsu Field Master Pro MS2090A Manuel du propriétaire

Anritsu

Anritsu Spectrum Master MS2721A Manuel utilisateur

Anritsu

Anritsu MS27100A Manuel utilisateur

Anritsu

Anritsu VNA Master MS2024B Manuel utilisateur

Anritsu

Anritsu MS2690A Manuel utilisateur

Anritsu

Anritsu Spectrum Master MS2721A Manuel utilisateur

Anritsu

Anritsu VectorStar ME7838E4 Manuel utilisateur

Anritsu

Anritsu MS2024A/MS2026A Manuel utilisateur

Anritsu

Anritsu Spectrum Master MS2711D Manuel du propriétaire

Anritsu

Anritsu IQ Fiber Master Manuel utilisateur

Anritsu

Anritsu MW9076 Series Manuel utilisateur

Anritsu

Anritsu Site Master S331L Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
