MP1900A 32 Gbaud PAM4 Solution

Signal Quality Analyzer-R

MP1900A Series

Quick Start Guide

Outline

The Signal Quality Analyzer-R MP1900A series features a high-

expandability design with real-time BER measurement using a PAM4

Convert/Decode function, plus sequential PAM4 BER measurements

using an error detector for more efficient inspection of 400GbE

transceivers and devices.

This Quick Start Guide explains use of the MP1900A series to generate

PAM4 signals up to 32 Gbaud, real-time BER measurement using the

32 Gbaud PAM4 Decoder with CTLE G0376A, and sequential PAM4 BER

measurement using the 21G/32Gbit/s SI ED MU195040A.

G0375A/G0376A Real-time BER Measurement

Outline of G0375A/G0376A 32 Gbaud PAM4 BER Solution

32 Gbaud Power PAM4 Converter

G0375A

32 Gbaud PAM4 Decoder with CTLE

G0376A

DUT

•3.9 Vp-p (differential) PAM4

output

•10Tap Emphasis

•Clean Eye/Low Jitter

•Tr/Tf 14 ps (typ.)

(PAM4 output)

•CTLE 14 GHz, 12 dB

•Clock recovery

(by MU195040A ED)

•High input sensitivity of

40 mV(EH)

•True PAM4 BER

measurement

Supports PAM4 BER Measurements of PRBS31Q Pattern

Loss CH

MP1900A

•Small remote head for

close-in approach to

DUT

•Multi-channel

•Excellent expandability

and PAM4/NRZ support

Setup with G0375A and G0376A for PRBS31Q Error Free

32Gbaud Power PAM4 Converter

G0375A

32Gbaud PAM4 Decoder with CTLE

G0376A

32G 2ch SI PPG

MU195020A

(Opt-020, 021, 031)

32G 2ch SI ED

MU195040A

(Opt-020, 022)

CTLE Input

Decoder Input

Signal Quality Analyzer-R

MP1900A

J1741A cable x4

(80 cm, skew <1 ps)

J1728A cable x2 (40 cm, skew <1 ps)

(*1) Cable x2 (skew <1 ps)

(*1) J1728A or lower loss cable

Synthesizer

MU181000B

Jitter Modulation

MU181500B

DUT

J1439A

80 cm, K cable

41KC-6 x4

32 Gbaud PAM4 BER Measurement Item List

Model Name Option Qty Remark

G0375A

32Gbaud

Power PAM4 Converter

G0376A

32Gbaud

PAM4 Decoder with CTLE

MP1900A

Signal

Quality Analyzer-R

MU181000B

12.5GHz 4port Synthesizer

MU181500B

Jitter

Modulation Source

For

Jitter injection

MU195020A

21G/32G bit/s SI PPG

001,

020, 021,

031

MU195040A

21G/32G bit/s SI ED

001,

020, 022

41KC

-6

Fixed

Attenuator 6 dB

J1439A

Coaxial

Cable (0.8m, K connector)

J1728A

Electrical

Length Specified Coaxial

Cable

(0.4m, K connector)

(2)

Cable for waveform

monitoring

MX183000A

PAM

Control

PAM

4 Control

Standard

software

MX183000A

PL001

Jitter

Tolerance Test

For

Jitter Tolerance

Test

Specifications Tx

G0375A 32Gbaud Power PAM4 Converter + MU195020A 21G/32G bit/s SI PPG

Item Specification Remarks

Number

of Outputs

(Data, xData)

AC coupling

Baud Rate

to 32.1 Gbaud

Output

Amplitude

0.3 to 1.95

Vp-p (Single-end, typ.)

Data1 input 0.2 to 1.3 Vp

-p and

Data2 input 0.1 to 0.65 Vp

-p

Random Jitter (rms)

200 fs (typ.)

Tr/Tf (20% to 80%)

14 ps (typ.)

Using MU195020A

SI-PPG

Eye Linearity

(RLM)

0.6 to 1 adjustable from level ratio

Number

of Inputs

4 (Data1, xData1, Data2, xData2)

Uses Data3

and J1735A (two for

differential)

at 3 Eye independent

level control

Maximum Input

Amplitude

1.5 Vp

-p (Data1, xData1)

0.75 Vp

-p (Data2, xData2)

In/Out

Connector

(female)

Specifications Rx

Item Specification Remarks

Decoder

Number of Inputs 2 (Data, xData)

1 (External clock)

K Connector (female)

Baud Rate 10 to 32.1 Gbaud (DFF ON mode)

10 to 28.1 Gbaud (DFF OFF mode)

Uses MU19040A with external clock

Uses CDR of MU195040A-022

Data Input Amplitude 0.4 Vp-p (typ.)

0.5 Vp-p (max.)

Single-ended

Data Input Sensitivity 40 mV (typ.) 28 Gbaud, Per Eye, Eye Height, Single-

ended at E-6

Clock Input Frequency 10 to 32.1 GHz (DFF ON mode) Full-rate clock

Clock Input Amplitude 0.3 to 1.0 Vp-p External Clock Input

Number of Outputs 3 (Data1, Data2, Monitor Data) K Connector (female)

Data Output level 0/–0.3 V (typ.)

Internal DFF Selectable ON/OFF Uses external Clock for D-FF ON mode

CTLE

Number of Inputs 2 (Data, xData) K Connector (female)

Input Amplitude 0.4 V (max.)

CTLE Gain –12 to 0 dB adjustable

CTLE Peak Frequency 14 GHz (typ.)

Number of Outputs 2 (Data, xData) K Connector (female)

G0376A 32Gbaud PAM4 Decoder with CTLE + MU195040A 21G/32G bit/s SI ED

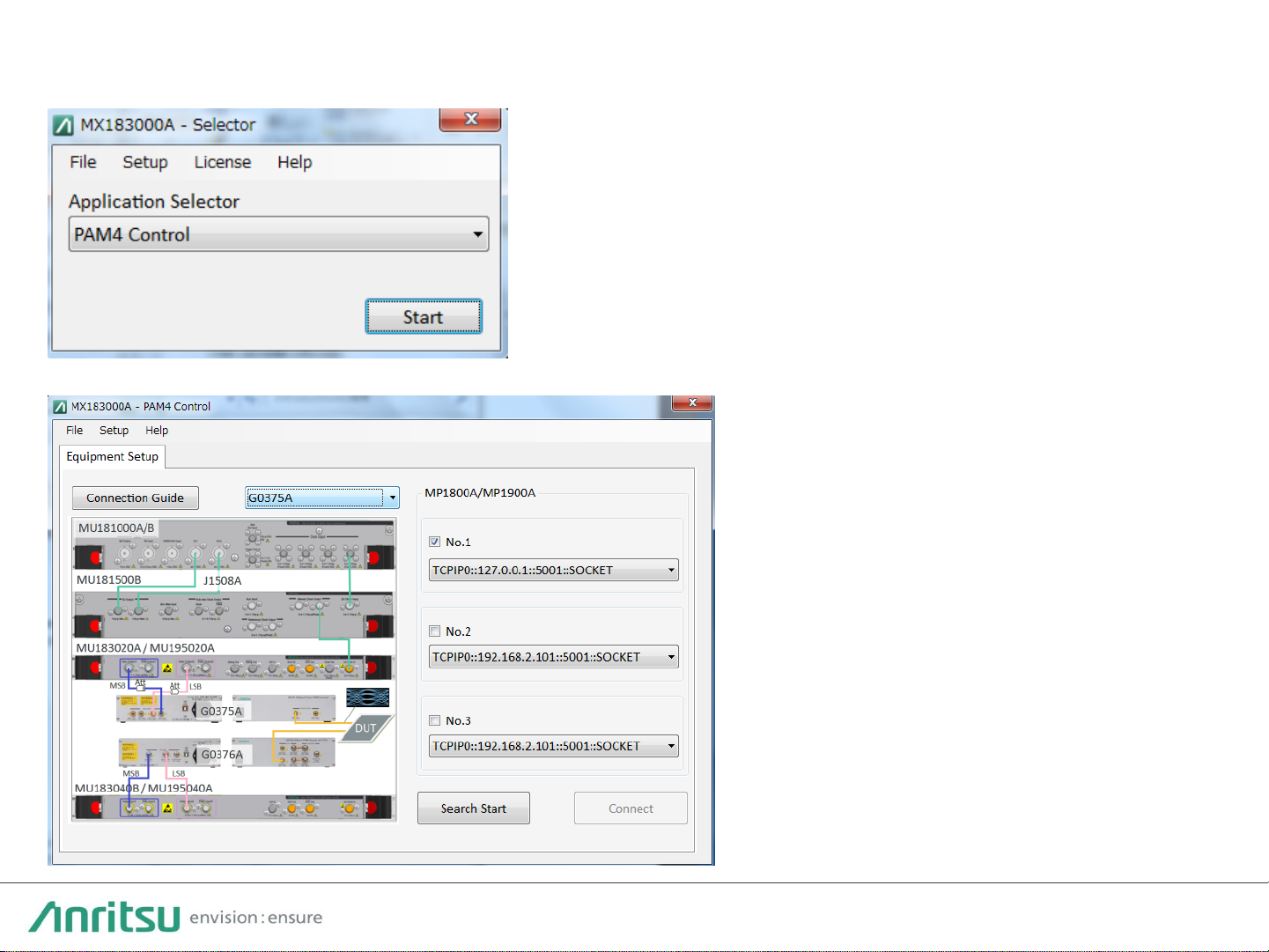

Equipment setup(1/2)

Select PAM4 Control from Application Selector of

MX183000A software, and click Start.

Click Search Start. The software

searches for equipment, and

displays the equipment currently

connected in the connected

equipment display area.

Equipment setup(2/2)

- Select Jitter, PPG, and ED with unit number from each selection list.

- Select G0375A and G0376A COM port with USB

*Select “None” when Jitter, PPG or ED isn’t used for testing.

- Set External Att value to 6 dB when 6 dB attenuator is used between PPG and

G0375A. (6 dB attenuator is recommended for evaluating SNDR or SNR_ISI.)
