MAN02-A

Hand Held Digital

Manometer

Users Manual

MAN02A_Rev001

www. .com information@itm.com1.800.561.8187

Limited Warranty and Limitation of Liability

Your Amprobe product will be free from defects in material and workmanship for 1 year from the

date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident,

neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

Resellers are not authorized to extend any other warranty on Amprobe’s behalf. To obtain service

during the warranty period, return the product with proof of purchase to an authorized Amprobe

Test Tools Service Center or to an Amprobe dealer or distributor. See Repair Section for details.

THIS WARRANTY IS YOUR ONLY REMEDY. ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED

OR STAUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE OR

MERCHANTABILITY, ARE HEREBY DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY

SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY

CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an

implied warranty or of incidental or consequential damages, this limitation of liability may not apply

to you.

Repair

All test tools returned for warranty or non-warranty repair or for calibration should be accompanied

by the following: your name, company’s name, address, telephone number, and proof of purchase.

Additionally, please include a brief description of the problem or the service requested and include

the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the

form of a check, a money order, credit card with expiration date, or a purchase order made payable

to Amprobe® Test Tools.

In-Warranty Repairs and Replacement – All Countries

Please read the warranty statement and check your battery before requesting repair. During the

warranty period any defective test tool can be returned to your Amprobe® Test Tools distributor

for an exchange for the same or like product. . Additionally, in the United States and Canada In-

Warranty repair and replacement units can also be sent to a Amprobe® Test Tools Service Center

(see address below).

Non-Warranty Repairs and Replacement – US and Canada

Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools

Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and

replacement rates.

European non-warranty units can be replaced by your Amprobe® Test Tools distributor for a nominal

charge.

www. .com information@itm.com1.800.561.8187

➊ON/OFF Pushbutton

➋Record pushbutton

➌Data Hold pushbutton

➍ Differential pushbutton

➎Unit Selector pushbutton

➏Backlight pushbutton

➊ Primary data screen displays pressure value

➋“-” Minus pressure display

➌MAX MIN pressure recorded

➍ REC starts recording mode and displays

max./min. pressure recorded

➎

DC power input jack

➏

USB output port (USB cable not included)

➐

H/M/S 88:88:88 displays time in Hour/

Minute/Second

➑ Pressure unit indication

➒ BAT Low battery indicator

➓DIF Differential pressure mode

“+” Positive pressure connection input

“-” Negative pressure connection input

Data Hold freezes pressure reading

Indicator

HOLD DIF

DAT A LOGGER

REC

MAX MIN BAT

inH O psi mbar bar mmH2O

MANOMETER

1 1

1 0

1 2

1 3

HOLD DIF

DAT A LOGGER

REC

MAX MIN BAT

inH O psi mbar bar mmH2O

MANOMETER

www. .com information@itm.com1.800.561.8187

MAN02-A

Digital Manometer

CONTENTS

Introduction.........................................................................................................................................5

Features ...............................................................................................................................................5

Standard Accessories...........................................................................................................................5

Optional Accessory..............................................................................................................................5

Quick Start...........................................................................................................................................5

Auto Power Off...................................................................................................................................6

Operation Mode..................................................................................................................................6

Calibration Mode ................................................................................................................................6

Calibration point reference...........................................................................................................7

Manual Zero Setting ...........................................................................................................................7

Troubleshooting..................................................................................................................................7

Replacing The Battery ...................................................................................................................8

USB PC interface capabilities..............................................................................................................8

Download Suite Software installation .........................................................................................9

Operation.......................................................................................................................................9

Maintenance........................................................................................................................................9

Cleaning .........................................................................................................................................9

Speciﬁcations.......................................................................................................................................9

Operating Conditions....................................................................................................................9

www. .com information@itm.com1.800.561.8187

Congratulations on your purchase of the Amprobe MAN02-A manometer. This instrument is

a portable, battery operated pressure measuring device. The MAN02-A is ideal for HVAC/R

technicians measuring pressure level, Medical equipment, Computer peripherals, Pneumatic

controls.

INTRODUCTION

The meter will display all LCD segments when it is ﬁrst turned on for approx. 3 seconds.•

The LCD is divided into two distinct sections : One large (primary) top screen and one smaller•

right bottom screen (relative Clock). The two display areas will constantly update with the

pressure measurements.

FEATURES

The meter measures:

Gauge pressure -• a measurement of pressure that is referred to ambient pressure.

Differential pressure• - a measurement of difference of two pressures .

MAN02-A has 5 selectable units of measure: InH• 2O, psi, mbar, bar, mmH2O.

Please check that the tubing is not leaking or damaged before use.•

STANDARD ACCESSORIES

The package contains:

MAN02-A•

1 9V battery•

Users manual•

2X connection hoses 4mm(ID) x 6mm(OD) x 500mm•

OPTIONAL ACCESSORY

TM-SWA-USB, Download Suite Software with USB cable•

QUICK START

Unscrew battery compartment on the rear of the instrument and insert the battery. Replace

cover and secure with screw.

Press1. �to switch the instrument on.

Press2. to select unit of pressure measurement required. For zeroing, press for

three seconds.

Press3. for differential pressure measurement.

Press4. to freeze the reading on the display. Press again to cancel feature.

Press5. to start a recording; press again to display MAX value of the recording session;

press again to display MIN value of the recording session; and press again to return to real

time recording mode.

www. .com information@itm.com1.800.561.8187

The Instrument records only the Max and the Min values for each session. To record all

values for a recording session, use the Download Suite Software.

Press and hold for 3 seconds to turn clock feature off.

Note: Clock feature available with gauge pressure only, not differential. The instrument will

automatically switch off after 20 minutes unless sleep mode is disabled.

Press6. �to turn ON the back-light. It automatically switches off after 30 seconds.

AUTO POWER OFF

(Sleep mode function)

This instrument will turn off automatically in approx. 20 minutes after power-on if there are

no key activations. For recording or operating over longer periods of time, you can disable the

sleep mode by pressing �and simultaneously before powering on.

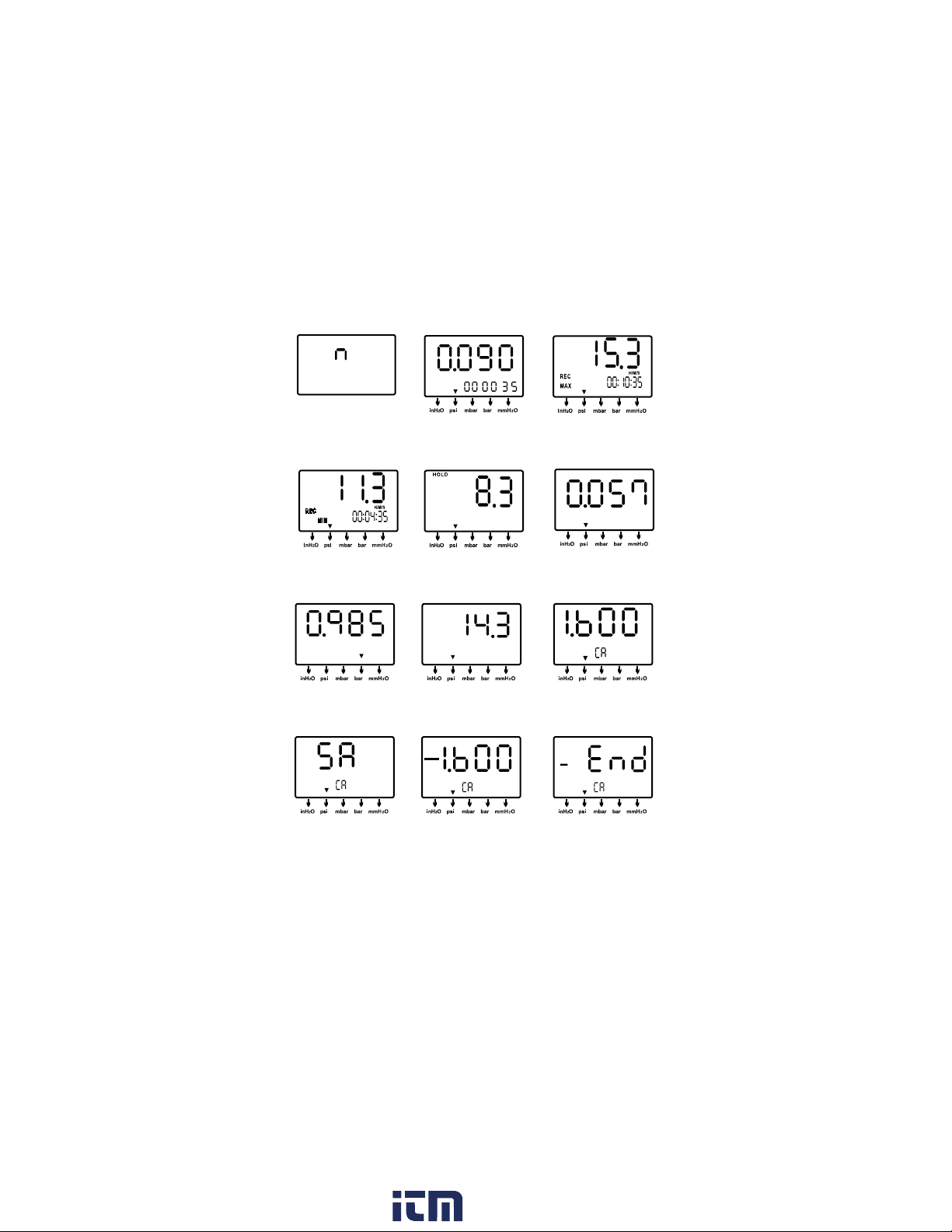

An “n” will appear in the middle of the screen at which time you can release the button. (See

Fig. 1) The disable sleep mode will be invalid after power off.

OPERATION MODE

(See Fig. 18.)

Turns instrument on and off.1.

Press momentarily and relative clock starts in the lower right screen.2.

REC is displayed in the middle left of screen (Fig.2).The other functions are locked out except

Power and Backlight.

Press momentarily again and the unit cycles through MAX (Fig. 3) and MIN (Fig.4) and back

to current pressure reading; the record mode is displayed on the LCD.

Press and hold for 3 seconds to turn off the record function and return to normal mode.

Press momentarily to freeze the pressure reading (Fig. 5).3.

Press momentarily,4. DIF appears on top of the LCD and the display indicates the relative zero

(relative zero causes the value of the display to show as “0.0”) - only the amount of pressure

change will be indicated. Press momentarily again and the unit returns to the normal mode

of pressure differential (see Fig.6).

Differential Pressure: a measurement of the difference between two pressures, i.e. use

differential pressure sensor to measure gauge pressure by leaving one process connection open

to atmosphere and connecting the second sensor port to your system.

Press momentarily and the units will cycle through5. “InH2O”,”psi”, “mbar”, “ bar”, “mmH2O”

which are indicated on the bottom of the display (See Fig.7 & 8).

Press momentarily and the backlight illuminates for approx. 30 seconds, then turns off6.

automatically.

Press momentarily to decrease the ﬁgure when calibration is being performed.

CALIBRATION MODE

Calibration mode is only applicable for a standard manometer calibrator or any qualiﬁed meter

calibration facility for annual calibration.

www. .com information@itm.com1.800.561.8187

First, manually set the display to zero (no pressure applied to the connector ), refer to the1.

manual zero procedure.

Turn the meter off.2.

Press3. �& simultaneously, “CA” appears on the display, (See Fig. 9 ) the meter enters

to the calibration mode, make sure the units setting on “PSI” to start positive (+) pressure

calibration.

The meter has defaulted as 1.6 psi calibration point, the adjustable pressure range is from4.

1.5 to 1.7.

If calibration pressure source is not 1.6 psi, increase by pressing key, or decrease by

pressing �key to set calibration point as required.

Save the calibration point by pressing5. key, “SA” and small “CA” appears on the

display in 2 seconds (See Fig. 10). The meter auto-skips to the negative pressure (-) point for

next calibration mode.

Follow the same procedure as step 4 for the negative pressure calibration point.6.

The LCD now displays” -1.600 “ and small”CA” (See Fig.11 ). Perform the necessary

calibration ﬁgure. Refer to your pressure standard if needed.

Again save the calibration point by pressing7. key, “SA” and “CA” appears in 2 seconds

and then press ;”End”and “CA” appear in another 2 seconds. The meter turns back to

the normal mode (See Fig. 12 ).

If you can’t save by pressing key, i.e. no “SA” appeared, please check the followings:

 •thecalibrationpressuresourceisbetween1.5and1.7.or

 •ifyouenteredtherightpositivepressure(+)ornegativepressure(-).

If you want to skip positive (+) calibration when in the calibration mode, press key to

skip to negative (-) calibration point.

Calibration point reference

Psi Range Calibration point (+/-) Recommended (+/-)

0~+/-2 1.6 1.5~1.7

MANUAL ZERO SETTING

When you set the display to zero( no pressure applied to the connector), press the key

for 2 seconds. The meter should display “- 0 .000” from right to left (See Fig.13). Then, the LCD

display shows normal mode.

TROUBLESHOOTING

Cannot Power on.

Check the battery connections. Replace the battery or attach Optional AC adaptor.

Low BAT indication.

Replace the battery when LCD displays BAT.

www. .com information@itm.com1.800.561.8187

No Display.

Make sure the battery is functional.•

check if sleep mode is active. Refer to disable sleep mode on page.6 to turn it off.•

check if the tubing is connected to the meter tightly.•

Err.1.

For the pressure value exceeding the maximum range, “ Err.1” appears on the display (See Fig.

14). Do not exceed rated over pressure range of manometer. Sensor may be damaged.

Err.2.

For the measurement pressure less than minimum range, “Err. 2” will appear (See Fig. 15).

Err.3.

For a differential pressure value larger than maximum display, “Err.3” appears on the display

(See Fig.16 ).

Err.4.

When you set zero, make sure you have disconnected the tubing. If you see an “Err.4” appear

on the display, it means the manometer is damaged (See Fig.17)

Note. Err.4 Will be also appear If the tubing is connected during zero set.

E1OL or E2UL.

When you see these errors while operating USB software, it means pressure source is less or

over than the range of the instrument.

Replace your 9-volt battery when:

The BAT icon appears on the right of the screen.•

The meter will not power on.•

Use of the back-light causes the BAT icon to appear.•

Replacing The Battery

Even if the battery was recently replaced, check its voltage level if you get no response from

your instrument.

To replace the battery:

Remove the tubing from the instrument.1.

Lay the instrument face-down on a clean, ﬂat surface.2.

Remove battery cover.3.

Remove battery from instruments that you do not plan to use for a month or more.

Do not leave battery in instrument.

USB PC INTERFACE CAPABILITIES

The USB cable and the Download Suite software are required to transfer data to a PC. The USB

port is located on the right side of the instrument. The USB Cable is not included. It can be

purchased separately as an optional accessory.

www. .com information@itm.com1.800.561.8187

Download Suite Software installation

Insert the Download Suite CD into the CD-ROM drive.

To install the software, follow the on-screen instructions.

Operation

To open the program, double-click the Download Suite icon.

To transfer data to a PC, follow the on-screen instructions.

MAINTENANCE

The meter is calibrated in house before shipping. When properly maintained, the meter will

maintain its accuracy as speciﬁed.

Cleaning

Use a damp cloth and mild soap to clean the case of the MAN02-A Manometer, do not use

harsh detergents or abrasives as these may mar the ﬁnish or damage the unit’s case with an

adverse chemical reaction.

SPECIFICATIONS

Operating Conditions

Compensated temperature range: 0~50 °C (32~122 °F)•

Operating temperature range: 0~50 °C (32~122 °F)•

Storage temperature range: -20~60 °C (-4~140 °F)•

Operating Humidity Max. 80% RH•

Power Supply : 1 x 9.0 volt battery

Exceeding Maximum pressure will cause permanent sensor damage.

Range: 0 ~ ±2 psi

Conversion & Resolution

1 mbar = Resolution

inch of H2O 0.401 0.01

psi 0.0145 0.001

mbar 1 0.1

bar 0.001 0.001

mm of H2O 10.2 1

Accuracy: ±0.3% of full scale at ±25°C (77°F)

Dimension: 72 x 182 x 30mm (meter)

Unit Weight: Approx. 220 gram (with battery)

Response Time: 0.5 seconds

www. .com information@itm.com1.800.561.8187

Fig. 1

REC ::

H/M/S

Fig. 2 Fig. 3

Fig. 4 Fig. 5 Fig. 6

DIF

Fig. 7 Fig. 8 Fig. 9

Fig. 10 Fig. 11 Fig. 12

www. .com information@itm.com1.800.561.8187

Autres manuels pour MAN02-A

Table des matières

Autres manuels Amprobe Instrument de mesure

Amprobe

Amprobe TMA-21HW Manuel utilisateur

Amprobe

Amprobe TMA10A Manuel utilisateur

Amprobe

Amprobe UAT-600 Series Manuel utilisateur

Amprobe

Amprobe WT-70 Manuel utilisateur

Amprobe

Amprobe SOLAR-600 Manuel utilisateur

Amprobe

Amprobe PRM-4 Manuel utilisateur

Amprobe

Amprobe SOLAR-500 Manuel utilisateur

Amprobe

Amprobe CM100 Manuel utilisateur

Amprobe

Amprobe TMA40-A Manuel utilisateur

Amprobe

Amprobe TIC 300 PRO Manuel utilisateur

Amprobe

Amprobe AC40C Manuel utilisateur

Amprobe

Amprobe ACD-400 Manuel utilisateur

Amprobe

Amprobe MAN02-A Manuel utilisateur

Amprobe

Amprobe SM-10 Manuel utilisateur

Amprobe

Amprobe ACD-30P Manuel utilisateur

Amprobe

Amprobe AMCM100 Manuel utilisateur

Amprobe

Amprobe LM631A Manuel utilisateur

Amprobe

Amprobe THWD-10 Manuel utilisateur

Amprobe

Amprobe AT-6000 Manuel utilisateur

Amprobe

Amprobe SOLAR-100 Manuel utilisateur

Amprobe

Amprobe VPC-20 Manuel utilisateur

Amprobe

Amprobe ACD-51HP Manuel utilisateur

Amprobe

Amprobe AT-3500 Manuel utilisateur

Amprobe

Amprobe AT-2005-A Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
