Ameriwood HOME Vaughn 5555155COM Manuel utilisateur

B345995

96COM0Date of Purchase ___ / ___ / ___

Lot Number:

ameriwoodhome.com

Vaughn 6 Drawer Dresser

5995196COM

- Unit can over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

Do Not Return This Product!

Contact our customer service team for help

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Tube

You

Assembly Meter

Easy Tough

UPC for Wal-Mart

models.

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

ameriwoodhome.com

- Open your item in the area you plan to keep it to avoid excessive heavy liing.

- Idenfy, sort and count the parts before aempng assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (le) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

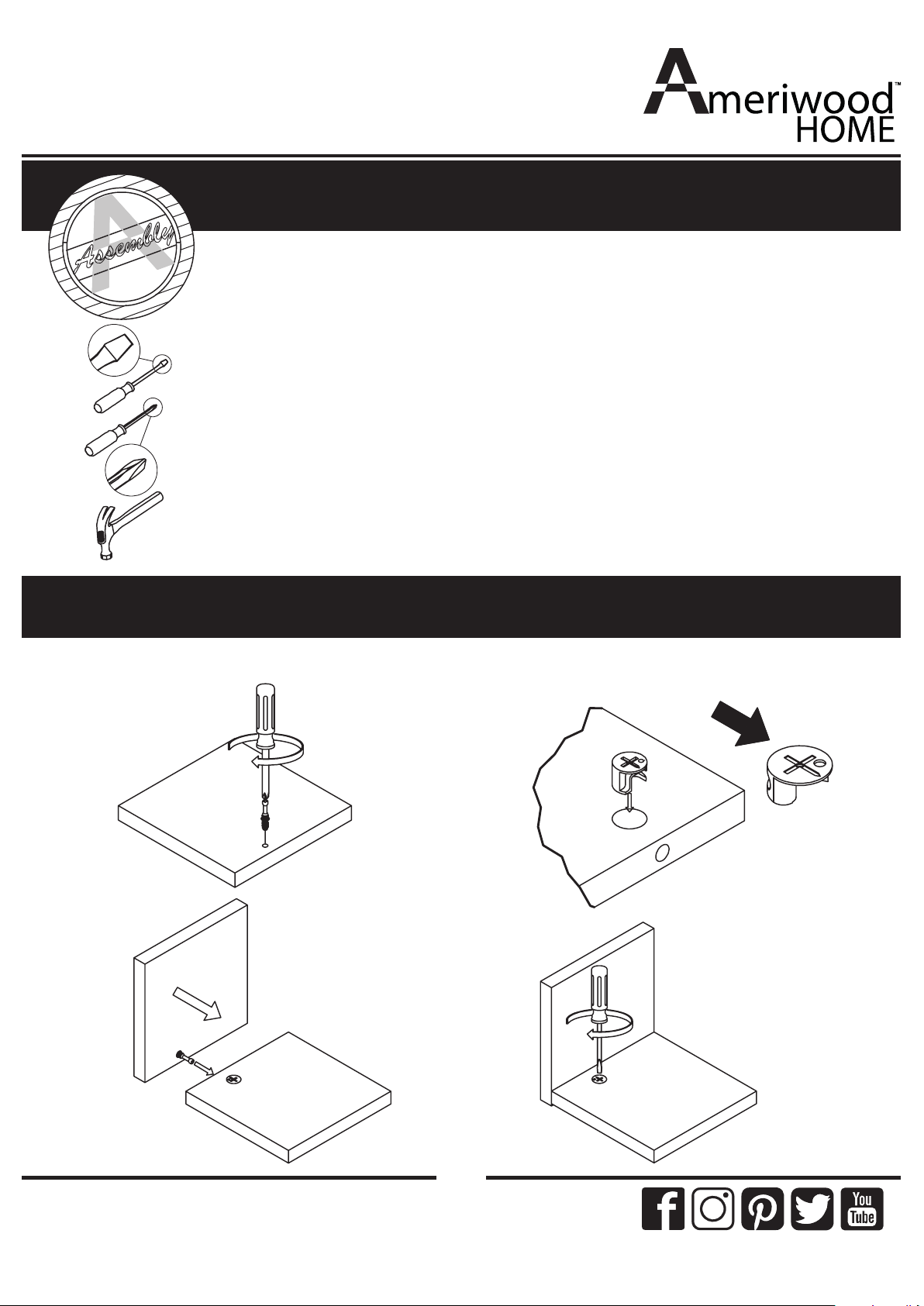

Before You Start

Cam Lock Fastening System

5995096COM

Vaughn 6 Drawer Dresser

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

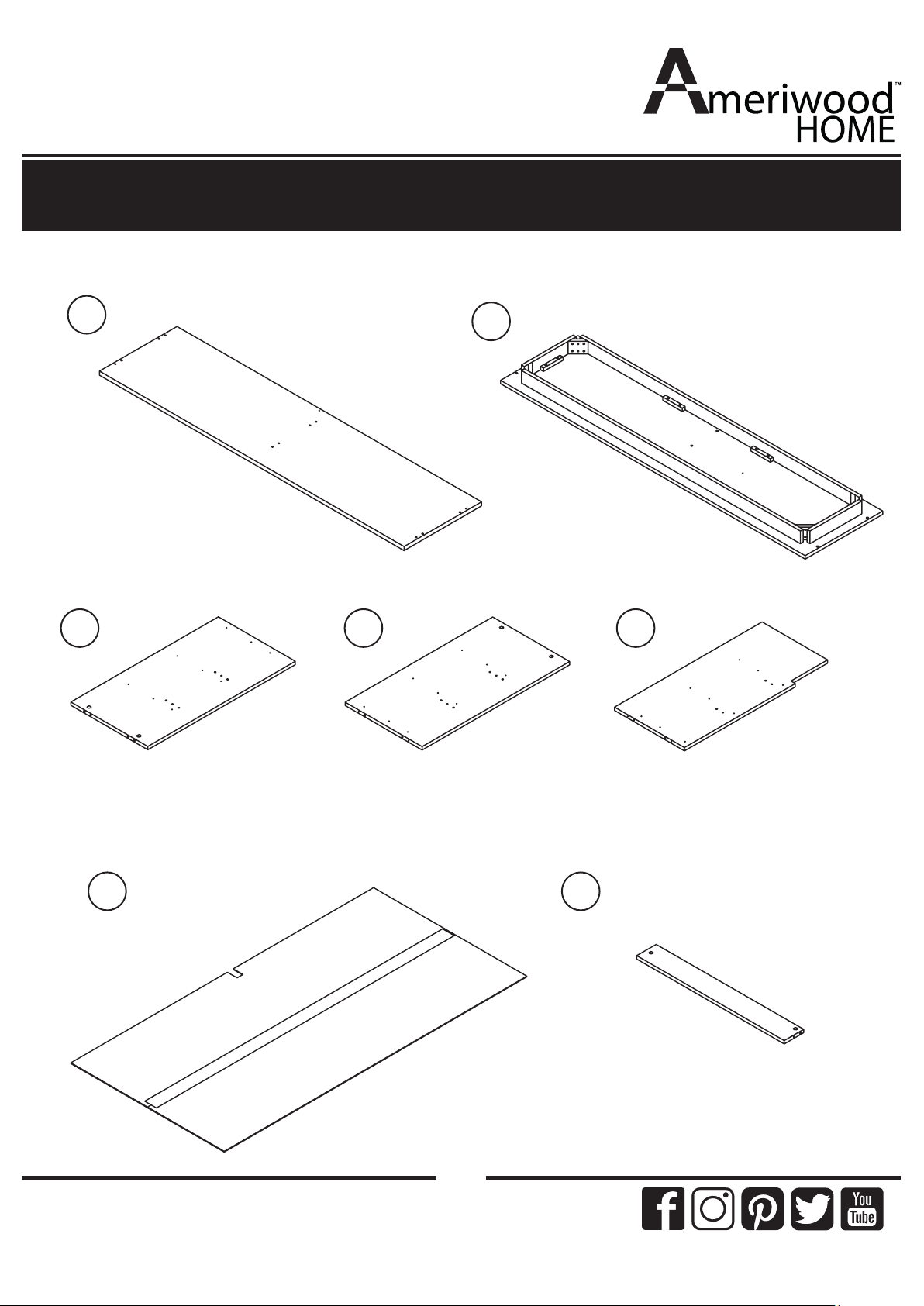

Assembly

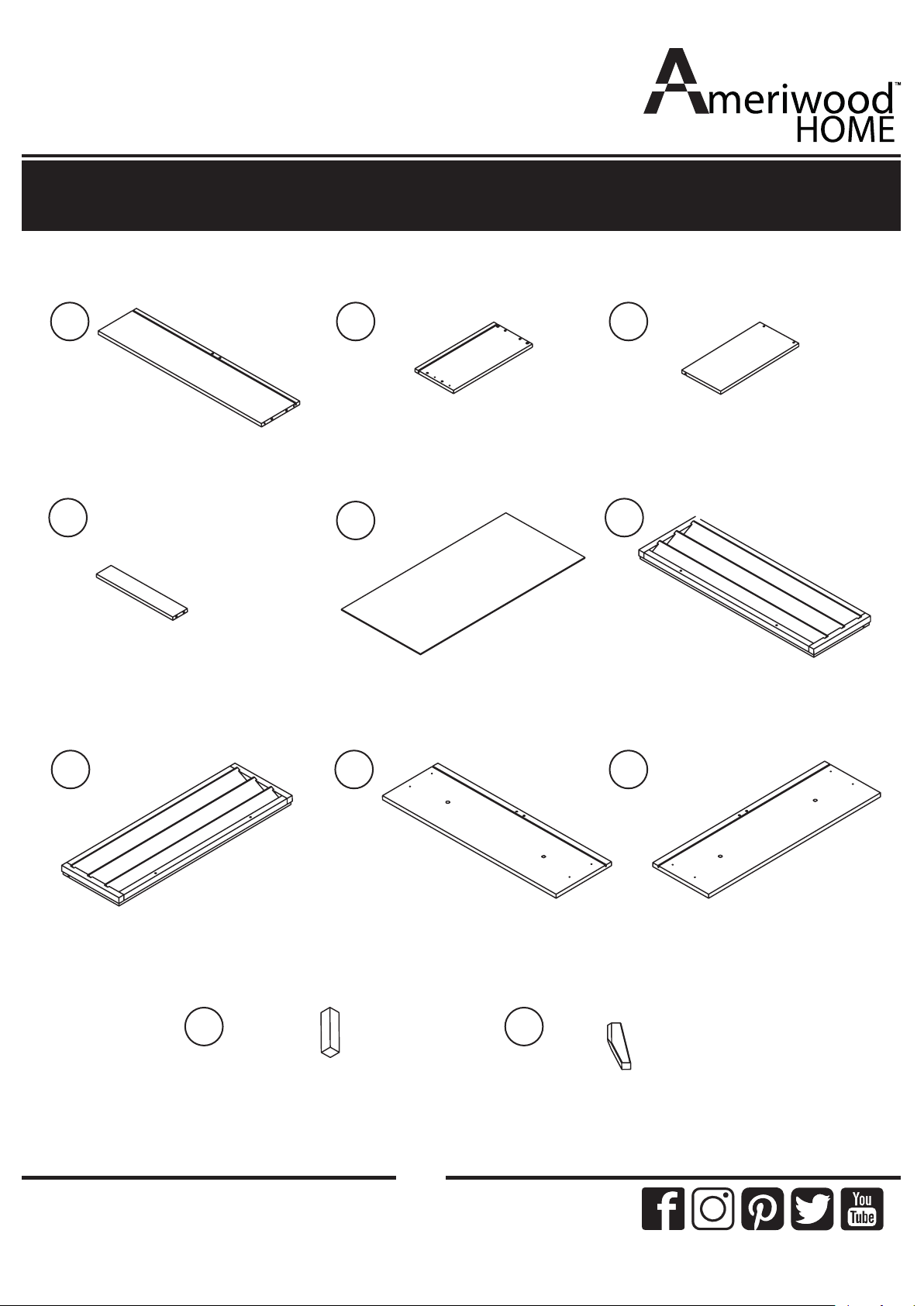

Board Idencaon

Not actual size

5995096COM

Vaughn 6 Drawer Dresser

ameriwoodhome.com

T5995196010

TOP PANEL

T5995196020

BOTTOM PANEL

T5995196030

SIDE LEFT PANEL

T5995196040

SIDE RIGHT PANEL

T5995196050

PARTITION PANEL

T5995196060

BACK PANEL

C D

T5995196070

STRETCHER PANEL

Board Idencaon

Not actual size

5995096COM

Vaughn 6 Drawer Dresser

ameriwoodhome.com

T5995196170

CENTER LEG

T5995196180

WOOD LEG

T5995196150

LOWER DRAWER FRONT

LEFT

T5995196160

LOWER DRAWER FRONT

RIGHT

T5995196130

UPPER DRAWER FRONT LEFT

T5995196140

UPPER DRAWER FRONT

RIGHT

N P

T5995196080

DRAWER BOX BACK

T5995196090

DRAWER BOX RIGHT

T5995196100

DRAWER BOX LEFT

T5995196110

DRAWER SUPPORT

T5995196120

DRAWER BOTTOM

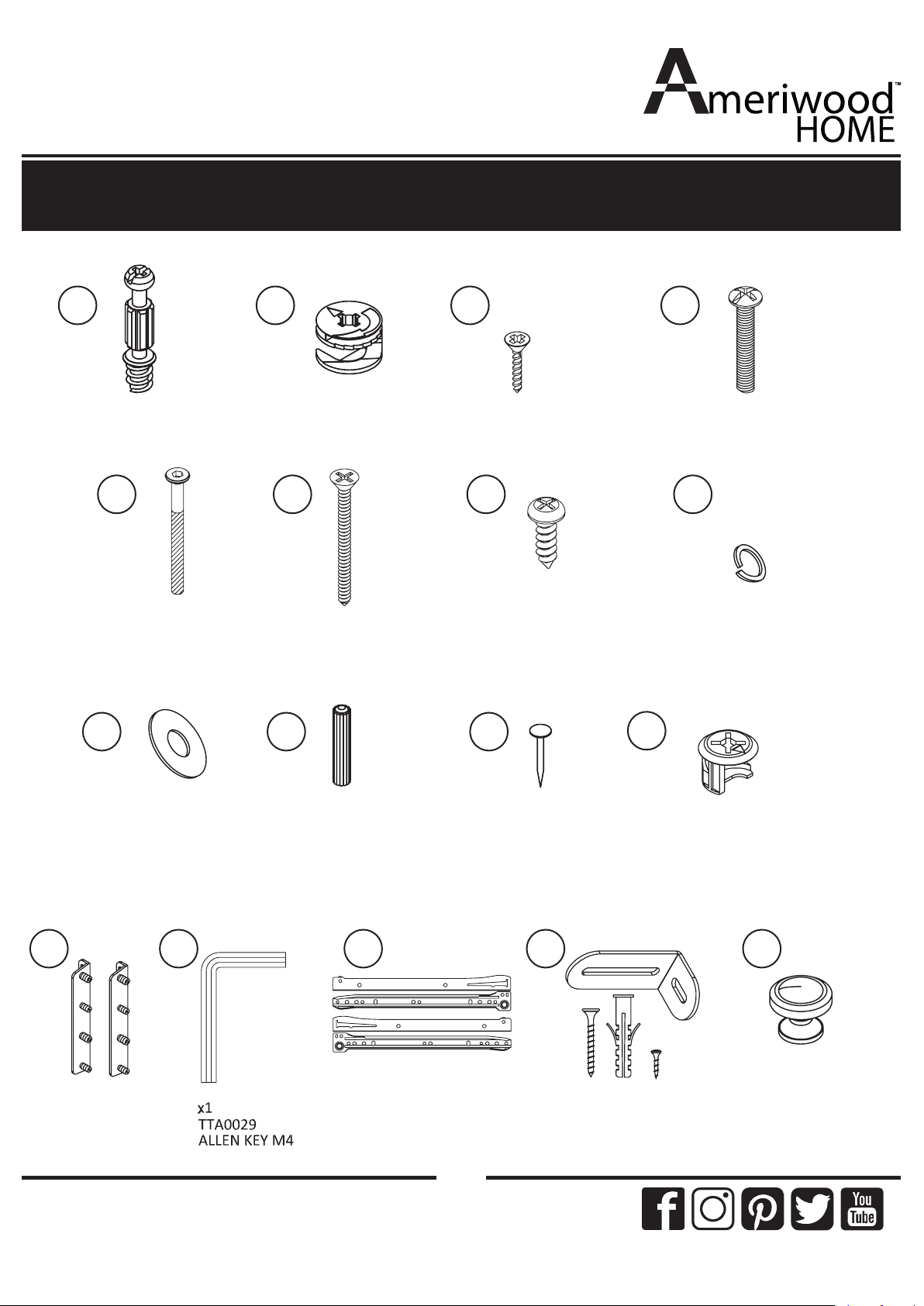

Part List

Actual Size

5995096COM

Vaughn 6 Drawer Dresser

ameriwoodhome.com

Not Actual Size

x1 SETS

TTA0026

AMERIWOOD ANTI TIPPING

KIT BLACK 19 X 30 X 2 mm

x26

TTA0001

Cam Bolt

x14

TTA0003

Cam Lock

15-11.5

x84

TTA0005

CBS 3.5 x 12 (RB)

TTA0046

SCREW JCBC

M6 X 50 (BLK)

x12

TTA0014

PHM 4 X 20 (RB)

x60

TTA0016

DOWEL 6 X 30

x28

TTA0018

NAILS 6/8”

POWER PIN

Not Actual Size

x6 SETS

TTA0048

DRAWER SLIDE Q-FIT

350 MML (BLK)

x6 SETS

TTA0030

DRW BRACKET AMERI-

WOOD A54223-116MM

x30

TTA0011

CBS (BLK) M4 X 38

x24

TTA0013

SCREW PHCB

4 X 12 MM (RB)

TTA0047

SPRING WASHER M6

(BLK)

TTA0053

FLAT WASHER (BLK)

6 X 20 X 1

x12

TTA0050

METAL KNOB

VAUGHN 8G (BLK)

1 2 3 4

5 6 7 8

9 10

13 14 15 16

x12

TTA0004

Cam Lock

12-9.5

5995096COM

Vaughn 6 Drawer Dresser

ameriwoodhome.com

*raw edges are shaded

TTA0003

Cam Lock

TTA0016

DOWEL 6 X 30

x12

TTA0005

CBS 3.5 x 12

TTA0001

Cam Bolt

TTA0048

Drawer Slide

350 BLK

x3 SETS

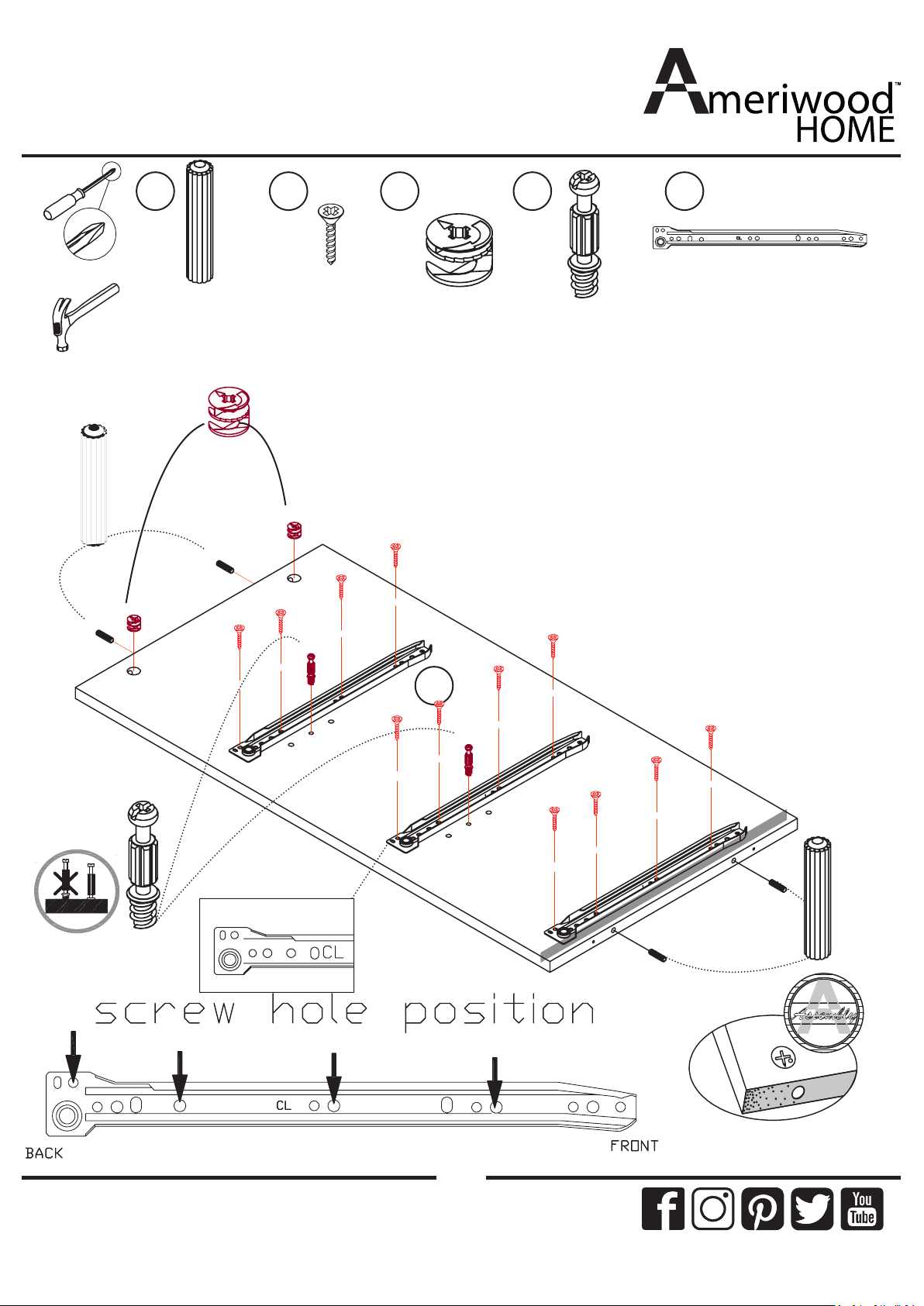

Step 1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Insert two cam lock, two screw cam bolt,

and four dowel into the panel as shown.

Aach drawer slide with twelve screw to

the side panel as shown.

10 3 2 1 15

5995096COM

Vaughn 6 Drawer Dresser

ameriwoodhome.com

*raw edges are shaded

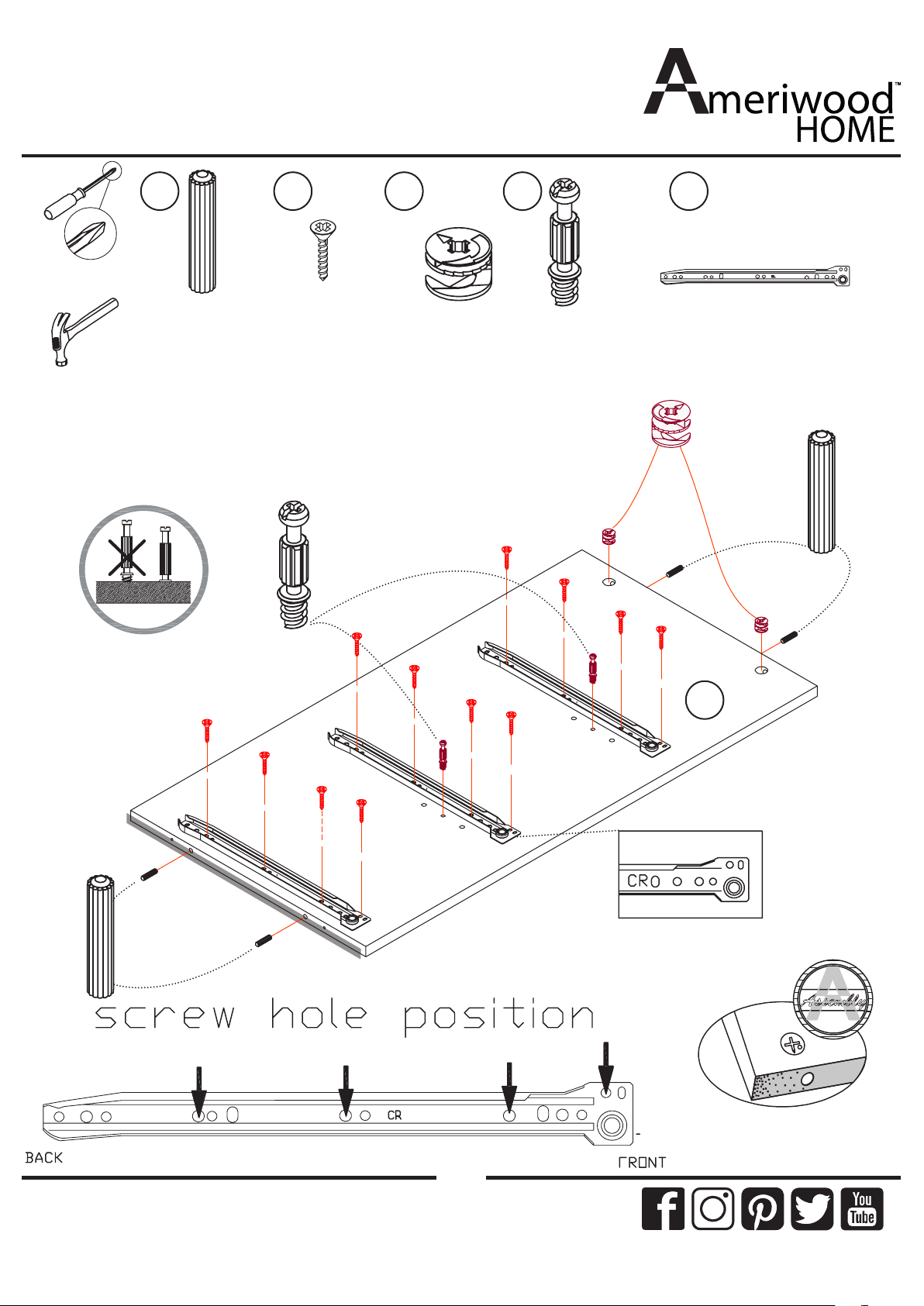

Step 2

TTA0003

Cam Lock

TTA0016

DOWEL 6 X 30

x12

TTA0005

CBS 3.5 x 12

TTA0001

Cam Bolt

TTA0048

Drawer Slide

350 BLK

Proper orientation of CAM LOCK

Tip

Assembly

Quick

x3 SETS

Insert two cam lock, two screw cam bolt,

and four dowel into the panel as shown.

Aach drawer slide with twelve screw to

the side panel as shown.

10 3 2 1 15

5995096COM

Vaughn 6 Drawer Dresser

ameriwoodhome.com

*raw edges are shaded

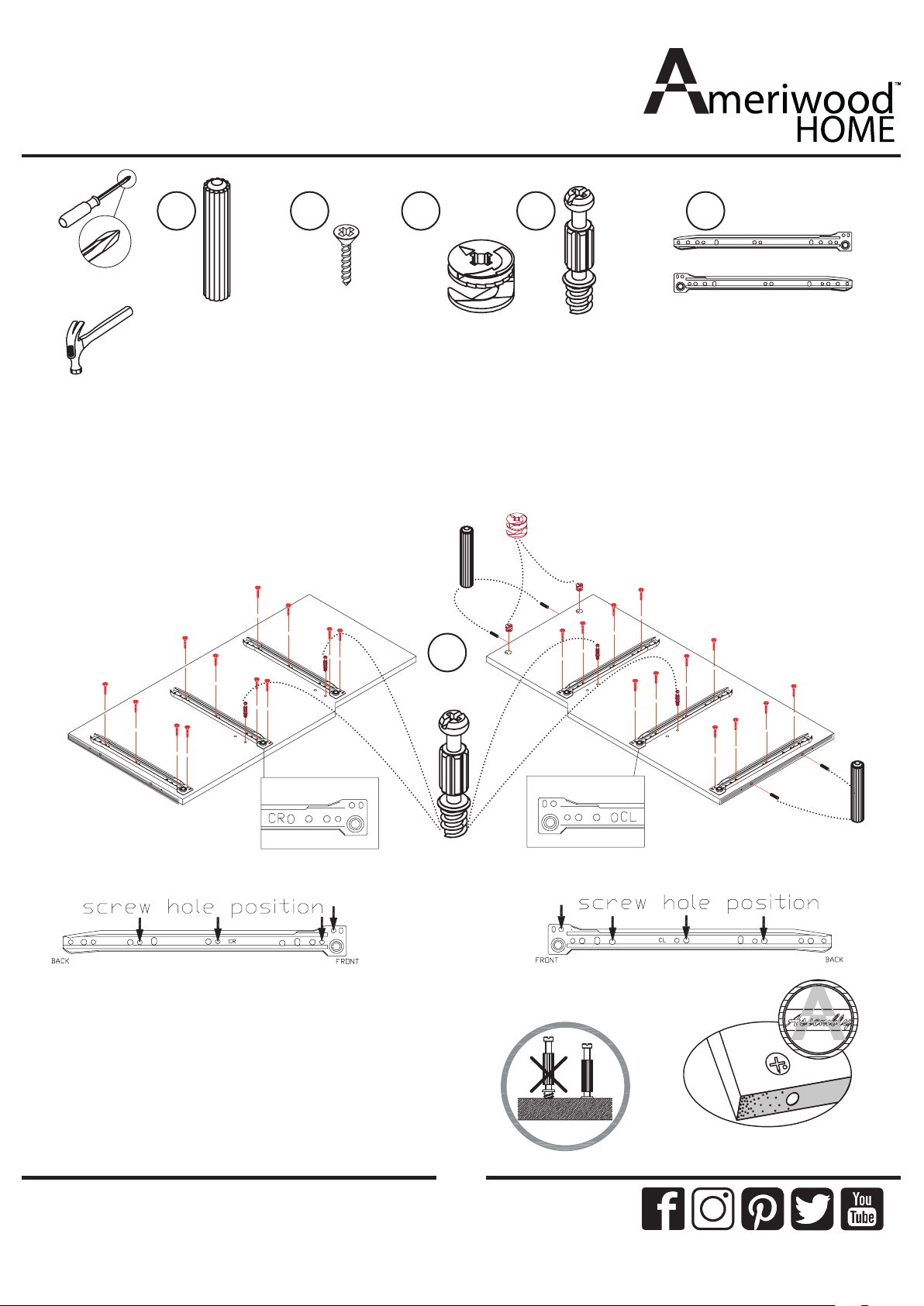

Step 3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

TTA0003

Cam Lock

TTA0016

DOWEL 6 X 30

x24

TTA0005

CBS 3.5 x 12

TTA0001

Cam Bolt

x6 pcs

TTA0048

Drawer Slide

350 BLK

x3 SETS

ii) Insert two cam lock, two screw cam

bolt, and four dowel into the panel as

shown. Aach drawer slide Le with

twelve screw to the right surface of

paron panel as shown.

i) Insert two screw cam bolt,

Aach drawer slide Right with

twelve screw to the le surface

of paron panel as shown.

10 3 2 1 15

5995096COM

Vaughn 6 Drawer Dresser

ameriwoodhome.com

*raw edges are shaded

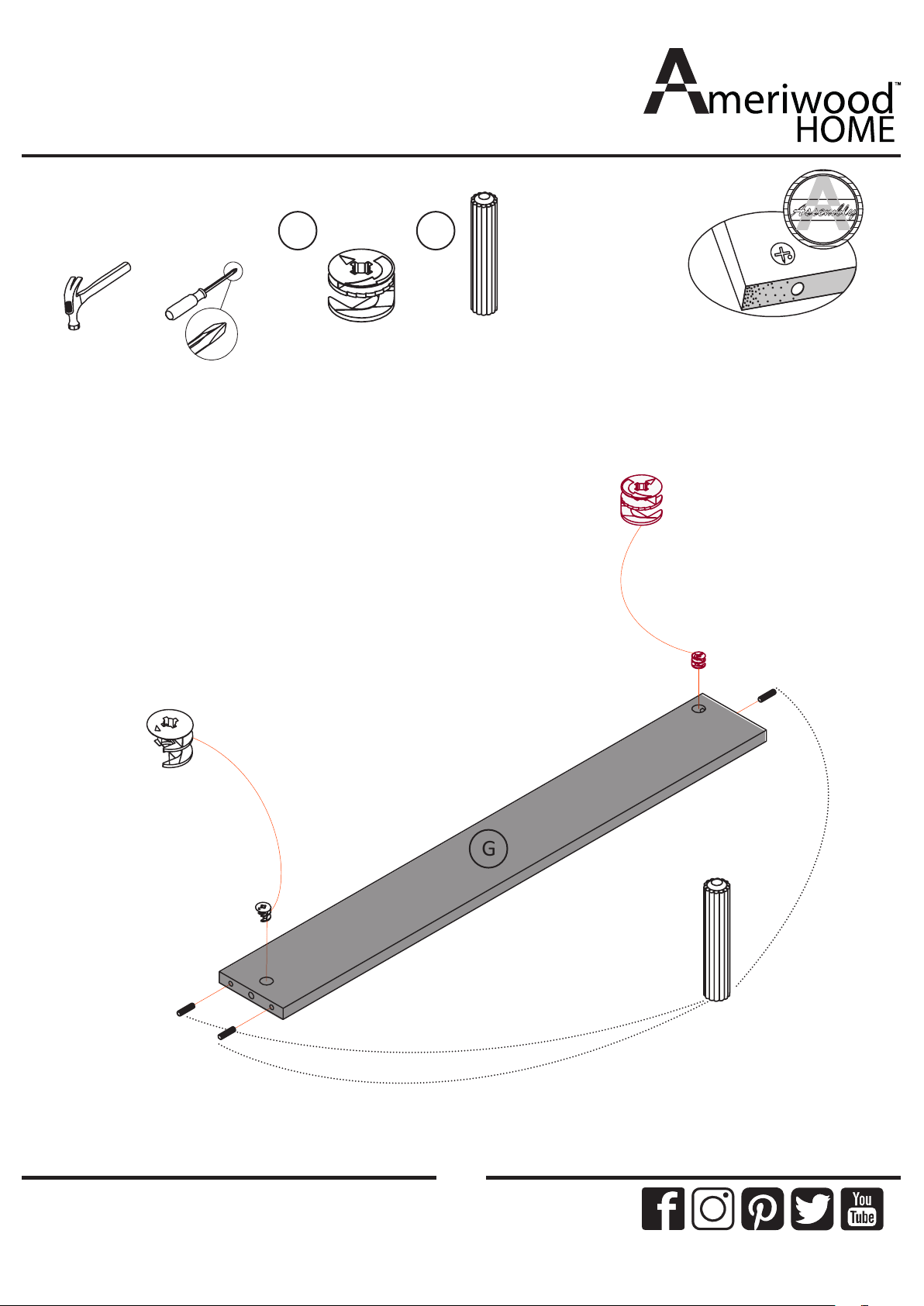

Step 4

TTA0003

Cam Lock

x12

TTA0016

DOWEL 6 X 30

Proper orientation of CAM LOCK

Tip

Assembly

Quick

Insert two cam lock, and three dowel into

the panel as shown.

X4 set

102
