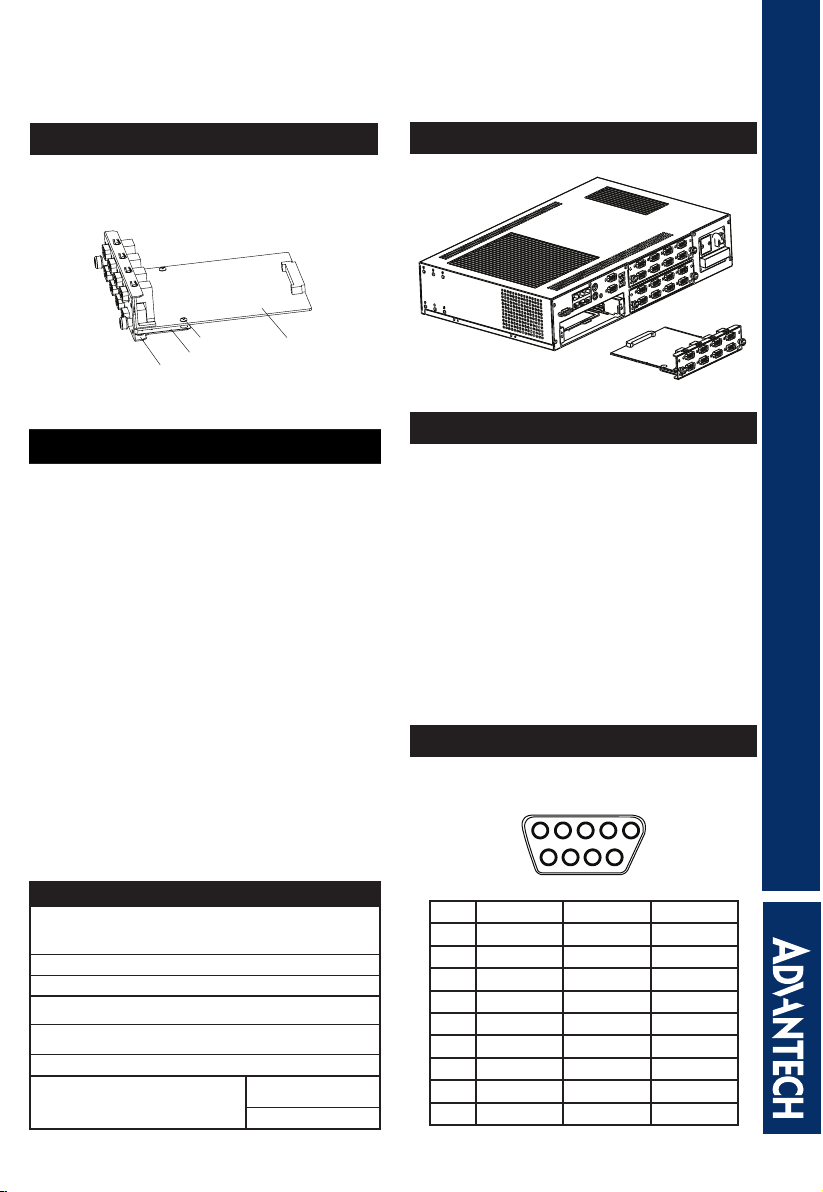

STARTUP MANUAL

1 Startup Manual

ECU-P1618D/1628D

8-port RS-232/422/485 with and without port-to-port Isolation for UNO-4673A/4683 and ECU-4784

Packing List

Before installation, make sure that you have the ECU-

P1618D/1628D suit which includes the card and panel

as below.

Diagram

iOverviewation

ECU-P1618D/1628D are 8 serial ports cards, with the

following speciﬁcations::

8-port RS-232/422/485

Automatic RS-485 data ﬂow control

2,000 VDC Isolation Protection (ECU-P1628D)

IRQ: All use the same IRQ assigned by PCI Bus

Data bits: 5, 6, 7, 8

Stop bits: 1, 1.5, 2

Parity: None, Even, Odd

Baud-rate (bps):

–RS-232: 50~115.2 k

–RS-422/485: 50~921.6 k

Transmission Distance: 1000 m (RS-422/485)

Data Signals:

–RS-232: DCD,RxD,TxD,DTR,GND,DSR,RTS

,CTS,RI

–RS-485: Data+, Data-, GND

–RS-422: Tx+, Tx-, Rx+, Rx-, GND

Installation

The ECU-P1618D/1628D are expansion cards for

the UNO-4673A/4683 and ECU-4784 which has 3

expansion slots, the ECU-P1618D/1628D can be

plugged into any of the 3 slots in the UNO-4673A/4683

and ECU-4784. Follow these steps to integrate into the

UNO-4673A/4683 and ECU-4784:

Select one of the slots: unscrew the two screws on

the blank panel of the slot then remove the blanking

plate.

Plug the ECU-P1618D/1628D into the selected slot

of the UNO-4673A/4683 and ECU-4784 carefully

and ﬁx it by the two screws on the panel.

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com.tw/eservice

This manual is for ECU-P1618D/1628D

Part No: 2003SP0500 1st Edition

April 2016

Bracket panel

Insulation mylar

ScrewPlug in card

If anything is missing or damaged, contact your

distributor or sales representative immediately.

12345

6789

Pin RS-232 RS-422 RS-485

1 DCD TX- Data-

2 RxD TX+ Data+

3 TxD RX+

4 DTR RX-

5 GND GND GND

6 DSR

7RTS

8 CTS

9 RI

ECU-P1618D/1628D serial ports COM1~COM8

Pin Assignment

STARTUP MANUAL

Startup Manual 2

8-port RS-232/422/485 with and without port-to-port Isolation for UNO-4673A/4683 and ECU-4784

COM Port Conguration

Please follow the below description to set the COM ports,

please also refer to the UNO-4673A/4683’s user manual

for detailed function description:

1. Selection of RS-232 or RS-422/485

COM Port Jumper COM Port Jumper

COM1 CN3 COM5 CN7

COM2 CN4 COM6 CN8

COM3 CN5 COM7 CN9

COM4 CN6 COM8 CN10

RS-232 Jumper Setting (Default)

LED Indicators

There are LED indicators on the front panel of UNO-

4673A/4683 and ECU-4784 for indicating the system

running status. You can know the COM status of ECU-

P1618D/1628D by the consistent slot LED indicators.

2. Switch the RS-485 auto-ﬂow control or RS-422

Master/Slave mode (SW1)

COM Port DIP of SW1

COM1 DIP1

COM2 DIP2

COM3 DIP3

COM4 DIP4

COM5 DIP5

COM6 DIP6

COM7 DIP7

COM8 DIP8

SW1 Status Description

0 RS-422: Master mode

RS-485: N/A

1 (Default) RS-422: Slave mode

RS-485: Auto flow control

3. Setting the Terminal Resistor

COM Port Jumper COM Port Jumper

COM1 JP1 COM5 JP5

COM2 JP2 COM6 JP6

COM3 JP3 COM7 JP7

COM4 JP4 COM8 JP8

Short Description

1-3 Add 120 Ohm terminal resistor on Tx+/Tx- of RS-422

or Data+/Data- of RS-485

3-5 Add 300 Ohm terminal resistor on Tx+/Tx- of RS-422

or Data+/Data- of RS-485

2-4 Add 120 Ohm terminal resistor on Rx+/Rx- of RS-422

4-6 Add 300 Ohm terminal resistor on Rx+/Rx- of RS-422

LED No. COM Status

1 COM1 Tx

2 COM1 Rx

3 COM2 Tx

4 COM2 Rx

5 COM3 Tx

6 COM3Rx

7 COM4 Tx

8 COM4 Rx

9 COM5 Tx

10 COM5 Rx

11 COM6 Tx

12 COM6 Rx

13 COM7 Tx

14 COM7 Rx

15 COM8 Tx

16 COM8 Rx

RS-422/485 Jumper Setting
