ADLINK Technology COM Express cExpress-BT2 Manuel utilisateur

cExpress-BT2

User’s Manual

COM Express Compact Size Type 2Module with

Intel Atom® E3800 and Celeron® Processor SoC

Manual Rev.: 1.2

Revision Date: April 7, 2020

Part Number: 50-1J052-1020

ii Preface

Preface

means in any form without prior written permission of the manufacturer.

Disclaimer

The information in this document is subject to change without prior notice in order to improve reliability, design, and

function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer

be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use

the product or documentation, even if advised of the possibility of such damages.

Environmental Responsibility

ADLINK is committed to fulfill its social responsibility to global environmental preservation

through compliance with the European Union's Restriction of Hazardous Substances (RoHS)

directive and Waste Electrical and Electronic Equipment (WEEE) directive. Environmental

protection is a top priority for ADLINK. We have enforced measures to ensure that our

products, manufacturing processes, components, and raw materials have as little impact on

the environment as possible. When products are at their end of life, our customers are

encouraged to dispose of them in accordance with the product disposal and/or recovery

programs prescribed by their nation or company.

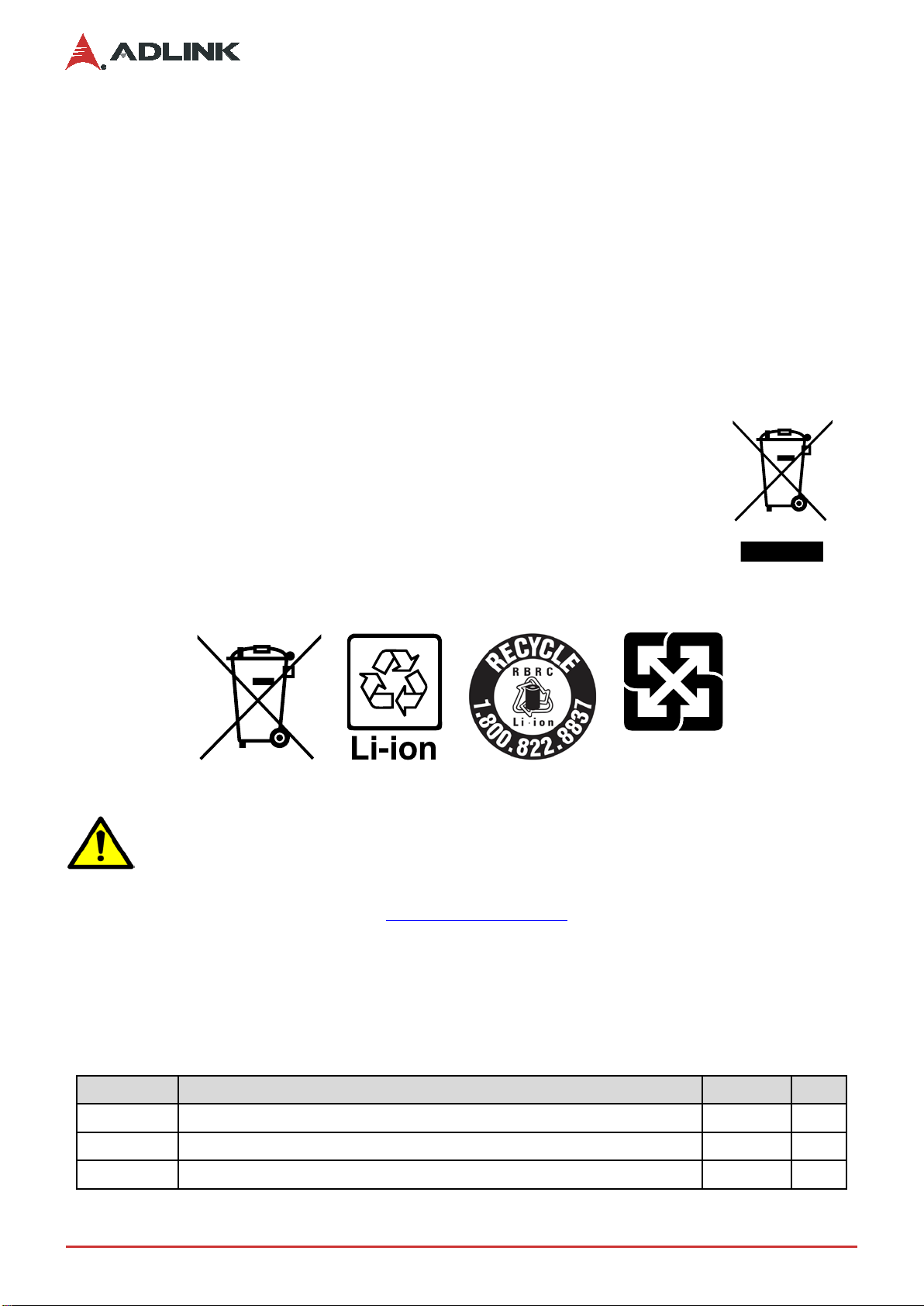

Battery Labels (for products with battery)

廢電池請回收

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene,

cadmium, Tris(1,3-dichloro-2-propyl)phosphate (TDCPP), 1,4-Dioxane, formaldehyde, lead, DEHP,

styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause

cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP,

DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause birth defects or other

reproductive harm. For more information go to www.P65Warnings.ca.gov.

Trademarks

Product names mentioned herein are used for identification purposes only and may be trademarks and/or

registered trademarks of their respective companies.

Revision History

Revision

Description

Date

1.00 Initial release 2014-09-24 JC

1.01 Correct specifications (memory, GPIO, LAN, serial port, GPIO, eMMC, OS) 2015-09-14 JC

1.2 Update BIOS 2020-04-07 JC

cExpress-BT2

Preface iii

Table of Contents

Preface................................................................................................................................ii

List of Figures ....................................................................................................................v

List of Tables.....................................................................................................................vi

1. Introduction................................................................................................................1

2. Specifications ............................................................................................................3

2.1. Core System...............................................................................................................3

2.2. Expansion Busses......................................................................................................3

2.3. Video...........................................................................................................................4

2.4. Audio...........................................................................................................................4

2.5. LAN.............................................................................................................................4

2.6. Multi I/O and Storage..................................................................................................4

2.7. SEMA Board Controller ..............................................................................................5

2.8. Debug.........................................................................................................................5

2.9. Trusted Platform Module (TPM) .................................................................................5

2.10. Power Specifications...............................................................................................5

2.11. Operating Temperatures .........................................................................................5

2.12. Environmental .........................................................................................................6

2.13. Specification Compliance........................................................................................6

2.14. Operating Systems..................................................................................................6

2.15. Functional Diagram .................................................................................................7

2.16. Mechanical Dimensions...........................................................................................8

3. Pinouts and Signal Descriptions..............................................................................9

3.1. AB/CD Pin Definitions.................................................................................................9

3.2. Signal Description Terminology................................................................................12

3.3. AB Signal Descriptions.............................................................................................13

3.4. CD Signal Descriptions.............................................................................................23

4. Module Interfaces....................................................................................................27

4.1. Connector, Switch and LED Locations.....................................................................27

4.2. 40-pin Debug Connector...........................................................................................28

4.3. Status LEDs..............................................................................................................29

4.4. XDP Debug Header..................................................................................................30

4.5. Fan Connector..........................................................................................................31

4.6. BIOS Setup Defaults Reset Button...........................................................................32

iv Preface

5. Smart Embedded Management Agent (SEMA) .....................................................33

5.1. Board Specific SEMA Functions...............................................................................34

6. System Resources ..................................................................................................37

6.1. System Memory Map................................................................................................37

6.2. I/O Map.....................................................................................................................37

6.3. Interrupt Request (IRQ) Lines...................................................................................38

6.4. PCI Configuration Space Map..................................................................................40

6.5. PCI Interrupt Routing Map........................................................................................41

6.6. PCI Interrupt Routing Map........................................................................................41

7. BIOS Setup...............................................................................................................43

7.1. Menu Structure.........................................................................................................43

7.2. Main..........................................................................................................................44

7.3. Advanced..................................................................................................................49

7.4. Boot ..........................................................................................................................61

7.5. Security.....................................................................................................................63

7.6. Save & Exit...............................................................................................................64

8. BIOS Checkpoints, Beep Codes.............................................................................65

8.1. Status Code Ranges.................................................................................................66

8.2. Standard Status Codes.............................................................................................66

8.3. OEM-Reserved Checkpoint Ranges.........................................................................73

9. Mechanical Information...........................................................................................75

9.1. Board-to-Board Connectors......................................................................................75

9.2. Thermal Solution.......................................................................................................76

9.3. Mounting Methods....................................................................................................79

9.4. Standoff Types..........................................................................................................80

Safety Instructions...........................................................................................................81

Getting Service.................................................................................................................82

cExpress-BT2

Preface v

List of Figures

Figure 1: cExpress-BT2 Functional Block Diagram .................................................................................7

Figure 2: cExpress-BT2 Mechanical Drawing..........................................................................................8

Figure 3: cExpress-BT2 Connector, Switch and LED Locations............................................................27

Figure 4: cExpress-BT2 and the DB40 Debug Module..........................................................................27

Figure 6: COM Express Mounting Methods...........................................................................................79

Figure 7: COM Express Standoff Types.................................................................................................80

vi Preface

List of Tables

Table 1: cExpress-BT2 AB/CD Pin Definitions.........................................................................................9

Table 2: 40-pin Debug Connector Pin Definition....................................................................................28

Table 3: cExpress-BT2 LED Descriptions..............................................................................................29

Table 4: MIPI60 Debug Header Pin Definition.......................................................................................30

Table 5: Fan Connector Pin Definition ...................................................................................................31

Table 7: SEMA Onboard Voltage Monitor..............................................................................................34

Table 8: SEMA BMC Status...................................................................................................................34

Table 9: SEMA Exception Codes...........................................................................................................35

Table 10: SEMA BMC Flags...................................................................................................................35

cExpress-BT2

Introduction 1

1. Introduction

The cExpress-BT2 is a COM Express® COM.0 R2.1 Type 2 module supporting the Intel Atom® E3800 processor

and Intel® Celeron® processor, memory controller, and graphics processor on a single-chip design. The cExpress-

BT2 is specifically designed for customers who need high-level processing and graphics performancewith low

power consumption in a long product life solution.

The cExpress-BT2 features the Intel Atom® E3800 processor and Intel® Celeron® processor supporting non-ECC

type DDR3L dual-channel memory at 1066/1333 MHz to provide excellent overall performance.

Integrated Intel® 7th Generation HD Graphics includes features such as OpenGL 3.1, DirectX 11, OpenCL 1.1

support for H.264, MPEG2, VC1, VP8 hardware decode. Graphics outputs include VGA and dual-channel 18/24-bit

LVDS. The cExpress-BT2 is specifically designed for customers with high-performance graphics processing

requirements who want to outsource the custom core logic of their systems for reduced development time.

The cExpress-BT2 has dual stacked SODIMM sockets for up to 8 GB non-ECC type DDR3L memory. In addition,

an onboard eMCC memory is supported (optional, 8GB/16GB/32GB).

The cExpress-BT2 features a single onboard Gigabit Ethernet port, USB 2.0 ports, PATA and SATA 3 Gb/s ports,

and PCI 2.3. Support is provided for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS with CMOS

backup, supporting embedded features such as remote console, CMOS backup, hardware monitor, and watchdog

timer.

2 Introduction

This page intentionally left blank.

cExpress-BT2

Specifications 3

2. Specifications

2.1. Core System

CPU Single, dual or quad-core Intel Atom® or Celeron® Processor

•Intel Atom® E3845 1.91 GHz 542/792 (Turbo) 10W (4C/1333)

•Intel Atom® E3827 1.75 GHz 542/792 (Turbo) 8W (2C/1333)

•Intel Atom® E3826 1.46 GHz 533/667 (Turbo) 7W (2C/1066)

•Intel Atom® E3825 1.33 GHz 533 (No Turbo) 6W (2C/1066)

•Intel Atom® E3815 1.46 GHz 400 (No Turbo) 5W (1C/1066)

•Intel Atom® E3805 1.33 GHz (No Graphics) 3W (2C/1066)

•Celeron® N2930 1.83/2.16 (Burst) GHz, 311/854 (Turbo) 7.5W (4C/1333)

•Celeron® J1900 2.0/2.42 (Burst) GHz, 688/854 (Turbo) 10W (4C/1333)

Single, dual or quad Out-of-Order Execution (OOE) processor cores. Intel® VT-x, Intel®

SSE4.1 and SSE4.2, Intel® 64 architecture, IA 32-bit, PCLMULQDQ Instruction. DRNG,

Intel® Thermal Monitor (TM1 & TM2)

Notes:

Availability of features may vary between processor SKUs.

Cache •2MB L2 Cache: E3845, N2930 and J1900

•1MB L2 Cache: E3827, E3826, E3825 and E3805

•512k L2 Cache: E3815

Memory Non-ECC 1066/1333 MHz DDR3L memory up to 8GB

•Dual stacked SODIMM sockets: E3845, E3827, E3826, N2930, J1900 (lower slot must

be populated)

•Single SODIMM socket: E3825, E3815, E3805

BIOS

AMI EFI with CMOS backup in 8MB SPI BIOS

2.2. Expansion Busses

PCI Express •2 PCI Express x1 (AB): Lanes 0/1

Other •1 PCI (CD): PCI 2.3, 32-bit, 33MHz

•LPC bus, SMBus (system), I2C (user)

4 Specifications

2.3. Video

Integrated on Processor 7th generation graphics Intel core architecture with four execution units supporting two

independent displays

GPU Feature Support •3D graphics hardware acceleration

•Support for DirectX 11, OpenCL 1.1, OpenGL ES Halti/2.0/1.1, OpenGL 3.2

•Video decode hardware acceleration including support for H.264, MPEG2, MVC, VC-1,

WMV9 and VP8 formats

•Video encode hardware acceleration including support for H.264, MPEG2 and MVC

formats

•Playback of Blu-ray disc 3D content using HDMI (1.4a spec compliant with 3D)

Note: Availability of features may vary between operating systems.

Display Types •Dual channel 18/24-bit LVDS through eDP-to-LVDS bridge (use DDI0 signal of SoC)

•

VGA

supporting resolutions of up to 2560x1600x24bpp @60Hz

2.4. Audio

Integrated Intel® HD Audio integrated on SoC

Codec Located on carrier Express-BASE2 (ALC886 standard support)

2.5. LAN

MAC/PHY Intel® Ethernet Controller I210

Interface 10/100/1000 Mbit/s connection

2.6. Multi I/O and Storage

USB 7x USB 1.1/2.0 (USB 0/1/2/3/4/5/6, ports 3~6 from USB hub)

SATA 1x SATA 3Gb/s (SATA0)

Build option two SATA 3GB/s (SATA0, SATA1) when PATA bridge is not used (lose PATA

function)

PATA 1x PATA port (through SATA to PATA bridge)

GPIO 4 GPO and 4 GPI

eMMC Soldered on module bootable eMMC flash storage 8GB or 16GB or 32GB (optional,

support dependent on OS)

Table des matières

Autres manuels ADLINK Technology Matériel informatique

ADLINK Technology

ADLINK Technology NuDAQ DAQ-2500 Series Manuel utilisateur

ADLINK Technology

ADLINK Technology cPCI-3620 Series Manuel utilisateur

ADLINK Technology

ADLINK Technology LEC-BASE MINI Manuel d'utilisation et d'entretien

ADLINK Technology

ADLINK Technology NuIPC cPCI-3500A Series Manuel utilisateur

ADLINK Technology

ADLINK Technology COM Express Express-ID7 Manuel utilisateur

ADLINK Technology

ADLINK Technology COM Express Express-BD7 Manuel utilisateur

ADLINK Technology

ADLINK Technology COM-HPC-sIDH Manuel utilisateur

ADLINK Technology

ADLINK Technology EOS-1200 Manuel utilisateur

ADLINK Technology

ADLINK Technology AmITX-CF-I Manuel utilisateur

ADLINK Technology

ADLINK Technology HPERC-IBR-MC Manuel utilisateur

ADLINK Technology

ADLINK Technology cPCI-3520 Series Manuel utilisateur

ADLINK Technology

ADLINK Technology cPCI-6636 Series Manuel utilisateur

ADLINK Technology

ADLINK Technology COM Express nanoX-TC Manuel utilisateur

ADLINK Technology

ADLINK Technology GEME-4000 Series Manuel utilisateur

ADLINK Technology

ADLINK Technology COM Express cExpress-BL Manuel utilisateur

ADLINK Technology

ADLINK Technology Q7-BT Manuel d'utilisation et d'entretien

ADLINK Technology

ADLINK Technology cPCI-6630 Series Manuel utilisateur

ADLINK Technology

ADLINK Technology DMI-1210 Manuel utilisateur

ADLINK Technology

ADLINK Technology intel COM Express Express-TL Manuel utilisateur

ADLINK Technology

ADLINK Technology aTCA-80606PA Manuel utilisateur

ADLINK Technology

ADLINK Technology PCIe-ACC100 Manuel utilisateur

ADLINK Technology

ADLINK Technology NuPRO-598 Series Manuel utilisateur

ADLINK Technology

ADLINK Technology VPX3020 Series Manuel utilisateur

ADLINK Technology

ADLINK Technology 10GbE BASE-T Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
