ActionTec SBWD100KIT Manuel utilisateur

ScreenBeam

Wireless Display Kit

Model #: SBWD100KIT

User Manual

Ver 1.0

Solutions for the Digital Life™

Table of Contents

Introduction 1

Package Contents 1

Features 2

System Requirements 2

Getting to Know the ScreenBeam Components 3

Connecting to ScreenBeam 5

Connecting the Display Adapter to

an HDTV Monitor 5

Setting Up a Windows 7/8 Computer 6

Setting Up a Miracast-enabled Device 11

Setting Up an Intel WiDi-enabled Device 12

Setting Wireless Display Preferences 13

Preferences Window 13

Windows 7/8 Viewing Configuration 15

Updating the ScreenBeam Firmware 16

Updating Firmware on Windows 7/8 Devices 16

Updating the Display Adapter Firmware Only 20

Frequently Asked Questions 21

Specifications 25

General 25

LED Indicators 25

Environmental 26

Introduction

Thank you for purchasing Actiontec’s ScreenBeam Wireless Adapter Kit.

ScreenBeam allows you to wirelessly display whatever is on your computer, tablet,

or smartphone screen, on an HDTV monitor. ScreenBeam is compatible with

computers running Windows 7 or 8, and connects seamlessly with smartphones,

tablets and other devices running Miracast™ or Intel’s WiDi™ technology.

Package Contents

The following items are in the ScreenBeam package:

ScreenBeam Display Adapter (SBWD100A)

ScreenBeam Transmitter (SBT100U)

ScreenBeam display software CD

HDMI cable

Power cable

Quick Start Guide

ScreenBeam Wireless Display Adapter Kit

Features

Compatible with virtually every HDTV monitor

HD quality wireless display, up to 1080p

The only wireless display solution to support Windows 7/8 laptops,

Miracast-compatible devices, and Intel WiDi systems

No existing wireless network or line of sight connection required

System Requirements

Display Adapter

HDTV monitor with at least one free HDMI port

Available power outlet

Display Software

PC laptop

Windows 7 or 8 (32/64 bit)

Minimum system requirements:

Processor: Intel Core2 Duo 2.5 GHz+ or equivalent AMD A4+ CPU

Memory: 2GB+ RAM

Recommended system requirements (for video streaming):

Processor: Intel Core2 i Series 2.2 GHz+ or equivalent AMD A6+ CPU

Memory: 3 GB+ RAM

Introduction

Miracast/WiDi Devices

· Miracast:

Miracast-certified smartphone, tablet, or laptop

Native or third party wireless display application

· Intel WiDi:

Intel WiDi system

Intel WiDi 3.5 or higher software and driver

(see http://www.intel.com/go/wirelessdisplayupdate)

Getting to Know the ScreenBeam Components

The ScreenBeam Kit contains two components: Display Adapter and Transmitter.

The Display Adapter is the main component of the ScreenBeam kit. It receives

video transmissions from devices running Windows 7/8, Miracast, or Intel’s WiDi.

The Transmitter is only used to connect non-Miracast or non-WiDi devices.

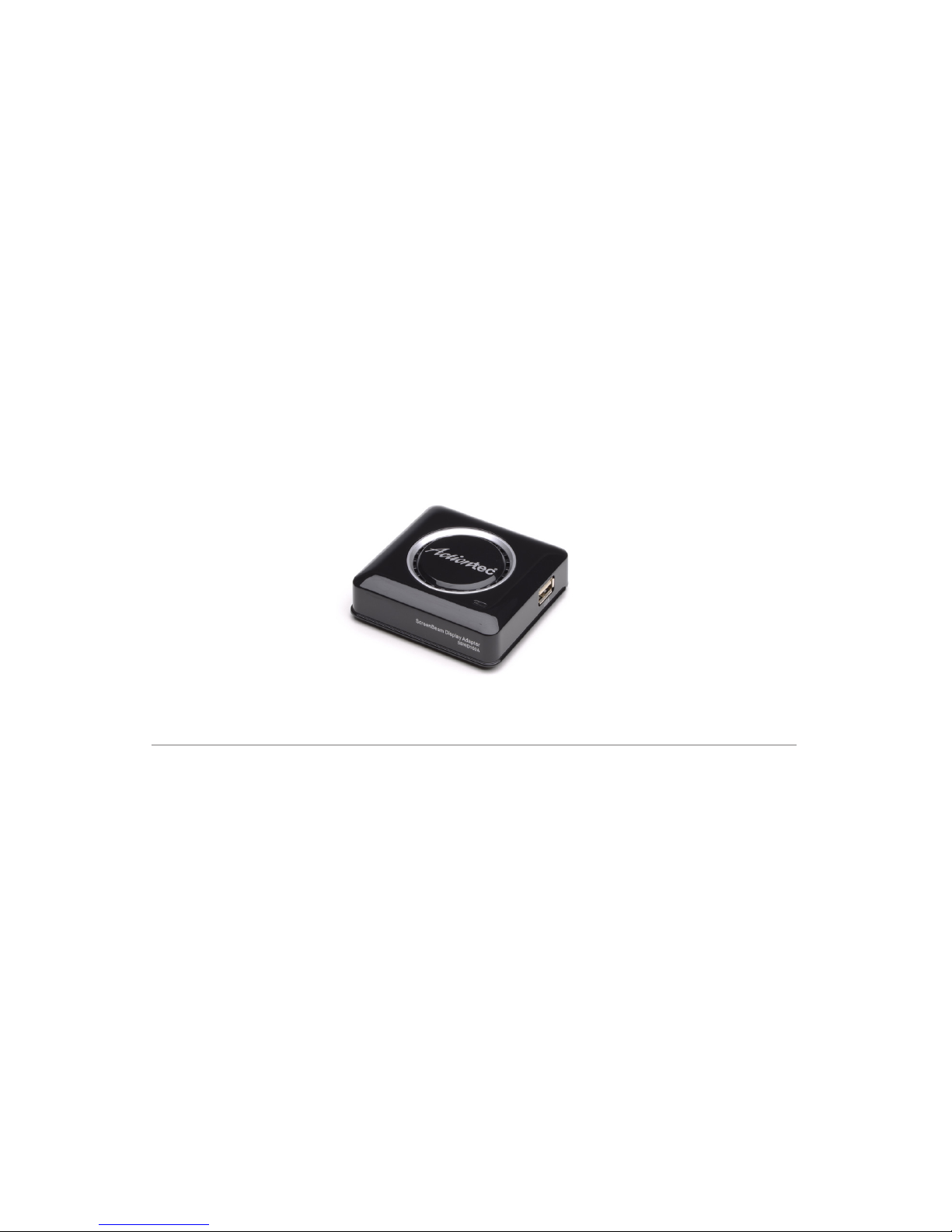

ScreenBeam Display Adapter

The Display Adapter features 1 LED and two ports:

Power Light

The Power light glows green when the Display Adapter is powered up.

ScreenBeam Wireless Display Adapter Kit

HDMI Port

The HDMI port is used to connect an HDMI cable from the HDTV monitor

to the Display Adapter.

Power Port

The Power port is used to connect the Display Adapter’s Power cord.

USB Port

The USB port is used for software upgrades via a USB flash drive.

ScreenBeam Transmitter

The Transmitter has a single USB connection, used to connect it to a USB

port on a Windows7/8 computer that is not running Miracast or WiDi. To use

ScreenBeam in this manner, you must install the ScreenBeam software on the

computer (see chapter 2 of this manual).

Connecting to

ScreenBeam

This chapter details how to connect the ScreenBeam Display Adapter to an HDTV

monitor, as well as connecting to a source device running either Miracast, WiDi, or

Windows 7/8.

Connecting the Display Adapter to an HDTV Monitor

To connect the ScreenBeam Display Adapter to an HDTV monitor, make sure you

have the following items handy:

ScreenBeam Display Adapter

HDMI cable

Display Adapter power cord

To connect the Display Adapter to an HDT V monitor :

1. Plug one end of the power cord into the power port on the back panel of

the Display Adapter.

2. Plug the other end of the power cord into a nearby electrical outlet. The

Display Adapter’s Power LED will illuminate green.

ScreenBeam Wireless Display Adapter Kit

3. Plug one end of the HDMI cable into the HDMI port on the back panel of

the Display Adapter.

4. Plug the other end into an HDMI port on the HDTV monitor.

5. Set your HDTV monitor to display content from the HDMI port (HDMI 1,

HDMI 2, etc.) used in step 4.

The Display Adapter is now connected to the HDTV monitor. To connect the

Display Adapter to a Miracast, WiDi, or Window 7/8 device, refer to one of the

following sections of this chapter..

Setting Up a Windows 7/8 Computer

If your Windows 7/8 computer does not have Miracast or WiDi installed, you

must load the ScreenBeam software onto the laptop, connect the Transmitter, and

then pair the Display Adapter to the Transmitter. Make sure you have the following

items handy:

ScreenBeam Transmitter

ScreenBeam CD

A desktop or laptop computer running Windows 7 or 8

Connecting to ScreenBeam

Loading the Sofware and Connecting the Transmitter

To load the S creenB eam software and connect the Transmitter to a computer :

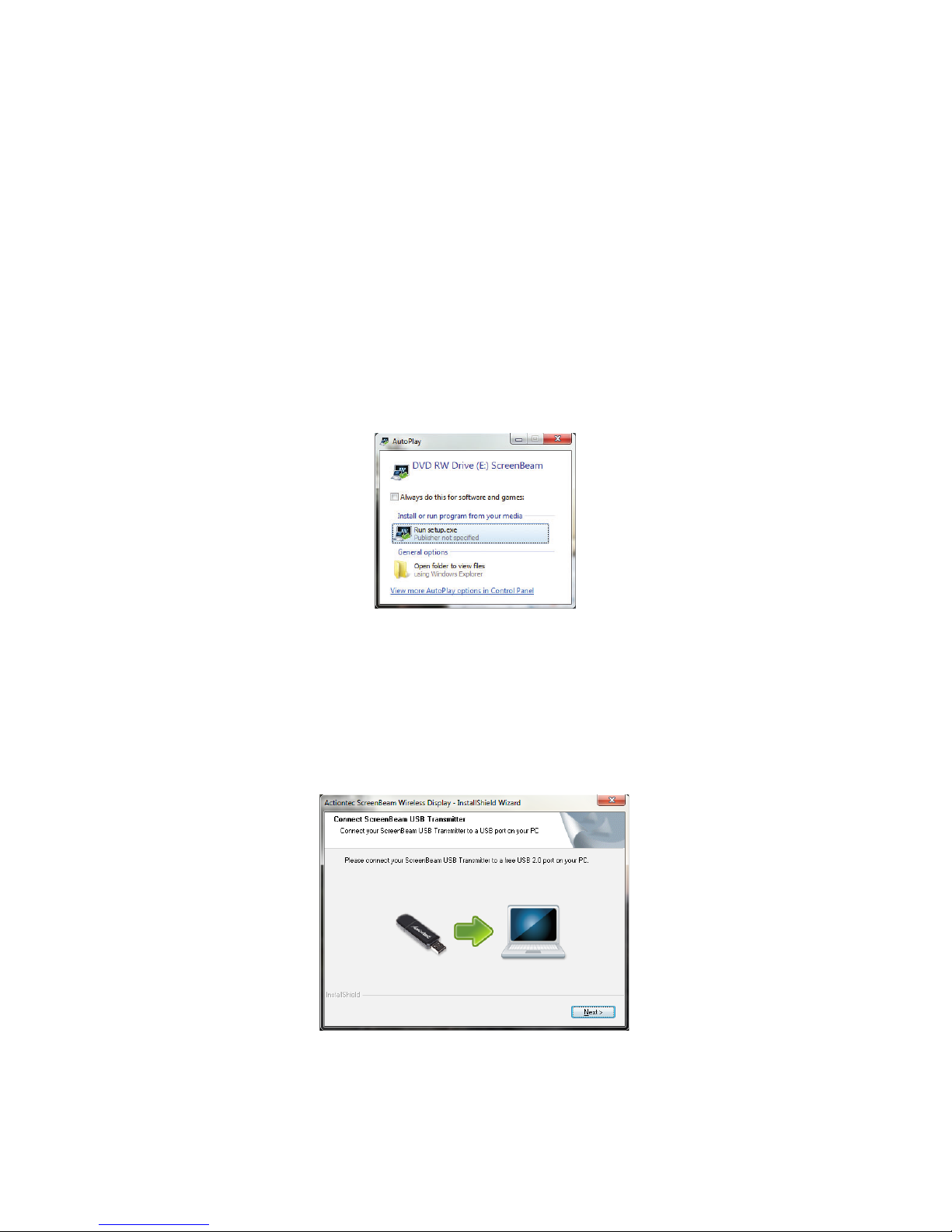

1. Insert the ScreenBeam CD (included in the ScreenBeam package) into the

CD drive of the computer.

2. An AutoPlay window appears. Click Run setup.exe, then follow the

onscreen instructions.

If you don’t see the AutoPlay screen, locate the CD-ROM folder from

Windows Explorer, then double-click on setup.exe. If your computer does

not have a CD/DVD drive, go to www.actiontec.com/screenbeam to

download the ScreenBeam software.

3. A series of screens will appear, detailing the steps to connect the Display

Adapter to the HDTV monitor (see the previous section of this chapter).

Click through them.

4. When the screen shown below appears, get the ScreenBeam Transmitter

and insert it into a USB drive on the computer. Click Next.

ScreenBeam Wireless Display Adapter Kit

5. Click in the button next to “Yes, I want to restart my computer now,” then

click Finish.

The computer reboots. After it finishes rebooting, go on to the next section,

“Pairing the Transmitter and Display Adapter.”

Pairing the Display Adapter and Transmitter

After you have connected the Display Adapter to an HDTV monitor, and the

Transmitter to a computer, you must pair the two ScreenBeam components. To do

this:

1. After the computer finishes rebooting, click the ScreenBeam icon on your

computer’s desktop.
