ActionTec 802EAG Manuel utilisateur

Solutions for the Digital Life™

User Manual

Ver 1.0

54 Mbps

Wireless

Game Adapter

Model #: 802EAG

Table of Contents

1 Introduction 1

Package Contents 1

Features 2

System Requirements 2

Getting to Know the Adapter 3

Technical Support 4

2 Understanding the Wireless Network 5

Ad Hoc Mode 5

Infrastructure Mode 6

3 Connecting the Adapter 7

Connecting the Adapter 7

4 Configuring the Adapter 11

Using the Configuration Utility 11

Using the Web Configurator 16

5 Troubleshooting 23

Troubleshooting 23

Frequently Asked Questions 24

6 Glossary 25

7 Specifications 27

General 27

Wireless Operating Range 27

LED Indicators 28

Environmental 28

Notices 29

Regulatory Compliance Notices 29

Modifications 29

Miscellaneous Legal Notices 30

Limited Warranty 31

Actiontec 54 Mbps Wireless Game Adapter User Manual

This page left intentionally blank.

Introduction

Congratulations on becoming the owner of the Actiontec 54 Mbps Wireless Game

Adapter. The Adapter provides bridging capabilities between a wireless LAN (local area

network) and one or more gaming consoles or other Ethernet-ready devices, such as

printers or storage devices.

This manual shows you how to set up the Actiontec 54 Mbps Wireless Game

Adapter and customize its configuration to get the most out of the wireless capabili-

ties of your gaming console. It’s especially useful for playing online and multi-player

games, all without the hassle of running cables. The Adapter is compliant with the

802.11g specification and requires a wireless router, access point, or compatible wire-

less device.

Package Contents

Make sure the following items came in this package:

s Actiontec 54 Mbps Wireless Game Adapter* with antenna

s Power Cord

s Yellow Ethernet Cable

s Utility CD (includes this manual)

s Quick Start Guide

* This product may also be referred to as “Ethernet Adapter.”

Actiontec 54 Mbps Wireless Game Adapter User Manual

Chapter 1 Introduction

Features

s Fully compliant with 54 Mbps 802.11g standard

s Backward compatible with 802.11b wireless networks

s Supports Infrastructure and Ad Hoc modes

s Supports 64- and 128-bit WEP security

s Detachable antenna

s Web-based Configuration Utility and Windows Configuration Utility

System Requirements

For Configuration Utility

s IBM compatible-system with 200 MHz Pentium processor, 64 MB of RAM, CD-

ROM drive, and available Ethernet network adapter

s Microsoft Windows 98SE, Me, 2000, XP

s TCP/IP network protocol installed

For Usage

s Sony PlayStation 2 with Ethernet port, Microsoft Xbox

s Online or network-capable game

s 802.11b/g compliant wireless router (for online gaming)

Actiontec 54 Mbps Wireless Game Adapter User Manual

Chapter 1 Introduction

Getting to Know the Adapter

This section contains a quick description of the Adapter’s external features.

Front Panel

The Adapter’s front panel contains two lights (LEDs): Power and Wireless.

Power Light

The Power light glows green when the Adapter is powered on, and remains off

(or dark) when no power is present.

Wireless Light

The Wireless light glows solid green when the Adapter is connected to a wireless

network, and remains off (or dark) when not connected to a network. When the

Wireless light flickers, data traffic is moving across the wireless network.

Rear Panel

The Adapter’s rear panel contains three ports (Power, Antenna [unlabeled], and

Ethernet), as well as the Reset button.

Actiontec 54 Mbps Wireless Game Adapter User Manual

Power Port

The Power port is used to connect the Adapter to an electrical wall outlet via the

Power cord.

Antenna Port

The Antenna port (an RP-SMA connector) allows the user to connect various

types of antenna to the Adapter. The antenna included in the Adapter package

connects to the Antenna port.

Ethernet Port

The Ethernet Port is used to connect the Adapter to a computer or gaming con-

sole via the yellow Ethernet cable.

Reset Button

The Reset button is used to restore the Adapter’s factory default settings. To do

this, press the Reset button for 15 seconds.

Technical Support

Actiontec Electronics prides itself on making durable, high-quality, high-performance

products. If you need assistance, the Actiontec Technical Support Department is

available all day every day to provide professional support.

Actiontec Electronics, Inc.

760 N. Mary Avenue

Sunnyvale, CA 94085

Technical Support

Phone: (USA) 1-888-436-0657

(UK) 0845-65-80411

E-mail: http://support.actiontec.com/email_support/support_form.php

Internet: www.actiontec.com/support

Understanding the

Wireless Network

Wireless local area networks (WLAN) perform the exact same functions as wired

local area networks (LAN). Each device in the WLAN uses a data radio device to

connect to the network, and all devices in the network share the same frequency

and method for identifying wireless devices. Wireless local area networks differ

from wired local area networks only in their operating mode. The two operation

modes are Ad Hoc and Infrastructure.

Ad Hoc Mode

Ad hoc mode is a networking framework by which wireless devices or stations

communicate directly with each other, without the need for an access point or

wireless router/gateway.

Ad hoc mode is also called peer-to-peer mode or independent basic service set

(IBSS). This mode is used when playing heat-to-head games, in which all the par-

ticipants are playing against each other in the same room, or at least within range

of the wireless network adapters.

Actiontec 54 Mbps Wireless Game Adapter User Manual

Infrastructure Mode

Infrastructure mode is a networking framework where devices communicate

with each other by first going through an access point or wireless router/gateway.

Infrastructure mode lets wireless devices communicate with each other or with a

wired network. With this type of network, and a router connected to the internet,

online games can be played, with participants in the same room and/or across the

internet.

Two types of service can exist while in infrastructure mode:

Basic Service Set (BSS) - An access point connected to a wired network and a

set of wireless stations.

Extended Service Set (ESS) - A set of two or more basic service sets forming a

single subnetwork.

Connecting the

Adapter

This chapter details the steps involved in connecting the Adapter to a game console

or computer, including installing the antenna and connecting the yellow Ethernet

cable and black Power cord.

☞ Note: The Adapter is designed with the utmost care for the

safety of those who install and use it. However, special attention

must be paid to the dangers of electric shock and static electric-

ity when working with electronic equipment. All guidelines of

this manual and of the computer manufacturer must be fol-

lowed at all times to ensure the safe use of the equipment.

Connecting the Adapter

To connect the Adapter to a network:

1. Get the Adapter from the package.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ActionTec Adaptateur

ActionTec

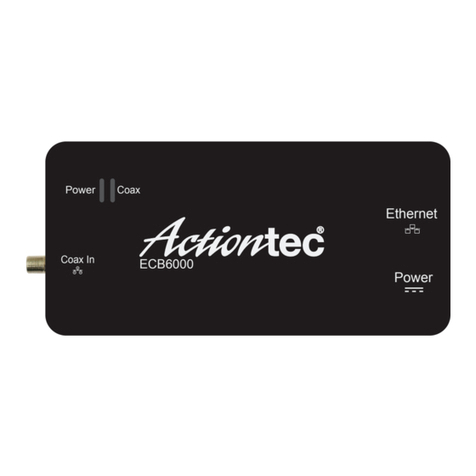

ActionTec ECB6000 Manuel utilisateur
