ActionTec ECB6250 KIT Manuel utilisateur

MoCA 2.5 Network Adapters

This Quick Start Guide will walk you through the easy

steps to connect your MoCA Network Adapters.

Quick Start Guide

(2) MoCA Network

Adapters

(2) Ethernet Cables

(2) Power Adapters

(2) Coaxial Cables

(2) Coaxial Splitters

Package Contents:

ECB6250 KIT

(External, 5V DC, 2A

made by APD,

Model #WB-10E05FU)

ECB7250

Ethernet

Power

Coax

Coax In

ECB6250

MPS

MoCA Network

Adapter2

Laptop or other

access point

Power

Outlet

Splitter

Coax LEDPower LED Power

Adapter

Ethernet Cable

Coax Outlet

ECB7250

Ethernet

Power

Coax

Coax In

ECB6250

MPS

TV Ethernet Port of

Modem / Router

Power

Outlet

MoCA Network

Adapter1

Power

Adapter

Coax LEDPower LED

Ethernet Cable

Splitter

Coax Outlet

Coaxial wiring behind the wall

Step 1 : Connect to your Modem/Rout-

Get one MoCA Network Adapter.

Connect one Ethernet Cable from the Network

Adapter to the Modem/Router.

Connect one Splitter to the Coax Cable coming from

the Coax Outlet on the wall.

Connect one Coax Cable from the Splitter to the

Coax In port on the Network Adapter.

Note: If you have a TV or set top box near your modem/router,

connect a coax cable from the splitter to the TV or set top box.

Connect the second Power Adapter to the Network

Adapter and to a Power Outlet.

Wait until the Power light on the front of the adapter

is GREEN.

When the Coax LED is GREEN on both adapters,

your adapters are working.

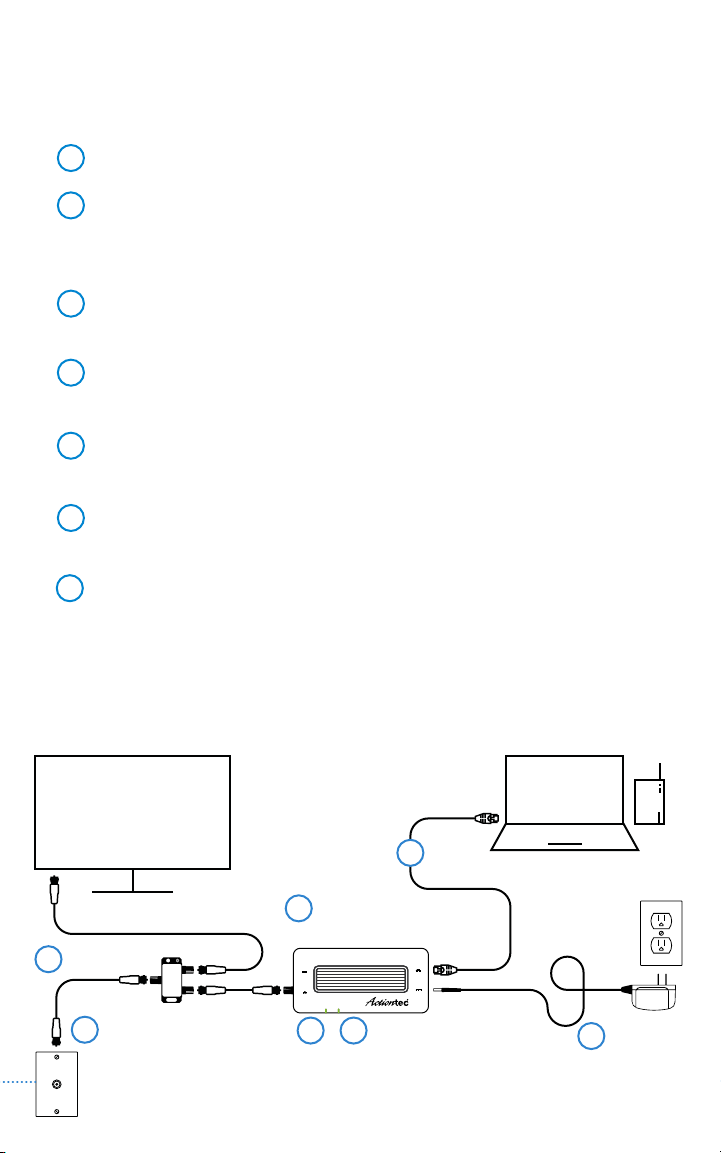

Step 2: Connect to your Device

Get one MoCA Network Adapter.

Locate the device or access point (laptop, etc.)

that needs to connect to the Internet. Connect one

Ethernet Cable from the Network Adapter to the

Device.

Connect one Splitter to the Coax Cable coming from

the Coax Outlet on the wall.

Connect one Coax Cable from the Splitter to the Coax

In port on the Network Adapter.

Connect one Power Adapter to the Network Adapter

and to a Power Outlet.

Wait until the Power light on the front of the adapter

is GREEN.

IMPORTANT! If the Coax LED on the Network Adapter

is already GREEN, you may have MoCA built in to your

modem/router. Check the device you just connected.

If it is connected to the Internet, you’re done*. If the

device does not connect to the Internet, continue to

Step 2.

ECB7250

Ethernet

Power

Coax

Coax In

ECB6250

MPS

MoCA Network

Adapter2

Laptop or other

access point

Power

Outlet

Splitter

Coax LEDPower LED Power

Adapter

Ethernet Cable

Coax Outlet

ECB7250

Ethernet

Power

Coax

Coax In

ECB6250

MPS

TV Ethernet Port of

Modem / Router

Power

Outlet

MoCA Network

Adapter1

Power

Adapter

Coax LEDPower LED

Ethernet Cable

Splitter

Coax Outlet

Coaxial wiring behind the wall

Actiontec, Creative Solutions for the Digital Life, and the Actiontec logo are registered

trademarks or trademarks of Actiontec Electronics, Inc., in the U.S. or other

countries. All other names are properties of their respective owners. Product photo

may differ from actual product. However, functionality remains as stated above.

Specifications are subject to change without notice.

Congratulations! You’ve successfully connected your

device to the Internet.

Additional MoCA Network Adapters may be purchased

and connected to other devices needing an Ethernet

connection and that are near a coaxial port.

Tech Support

For registration or access to user manuals, wall-

mount templates, software updates, etc. visit our

webpage:

www.actiontecsupport.com/ecb6250

PN 0530-0855-000
