ActionTec ECB7250 KIT Manuel utilisateur

MoCA Network Adapters

Actiontec, Creative Solutions for the Digital Life, and the Actiontec logo are

registered trademarks or trademarks of Actiontec Electronics, Inc., in the U.S.

or other countries. All other names are properties of their respective owners.

Product photo may differ from actual product. However, functionality remains

as stated above. Specifications are subject to change without notice.

This Quick Start Guide will walk you through the easy

steps to connect your MoCA Network Adapters.

Quick Start Guide

(2) MoCA Network

Adapters

(2) Ethernet Cables

(2) Power Adapters

(2) Coaxial Cables

(2) Coaxial Splitters

Package Contents:

ECB7250 KIT

Congratulations! You’ve successfully connected

your device to the Internet.

Additional MoCA Network Adapters may be purchased

and connected to other devices needing an Ethernet

connection and that are near a coaxial port.

Tech Support

For registration or access to user manuals, wall-mount

templates, software updates, etc. visit our webpage:

www.screenbeam.com/products/screenbeam-ecb7250 (External, 5V DC, 2A

made by APD,

Model #WB-10E05FU)

PN 0530-0857-000

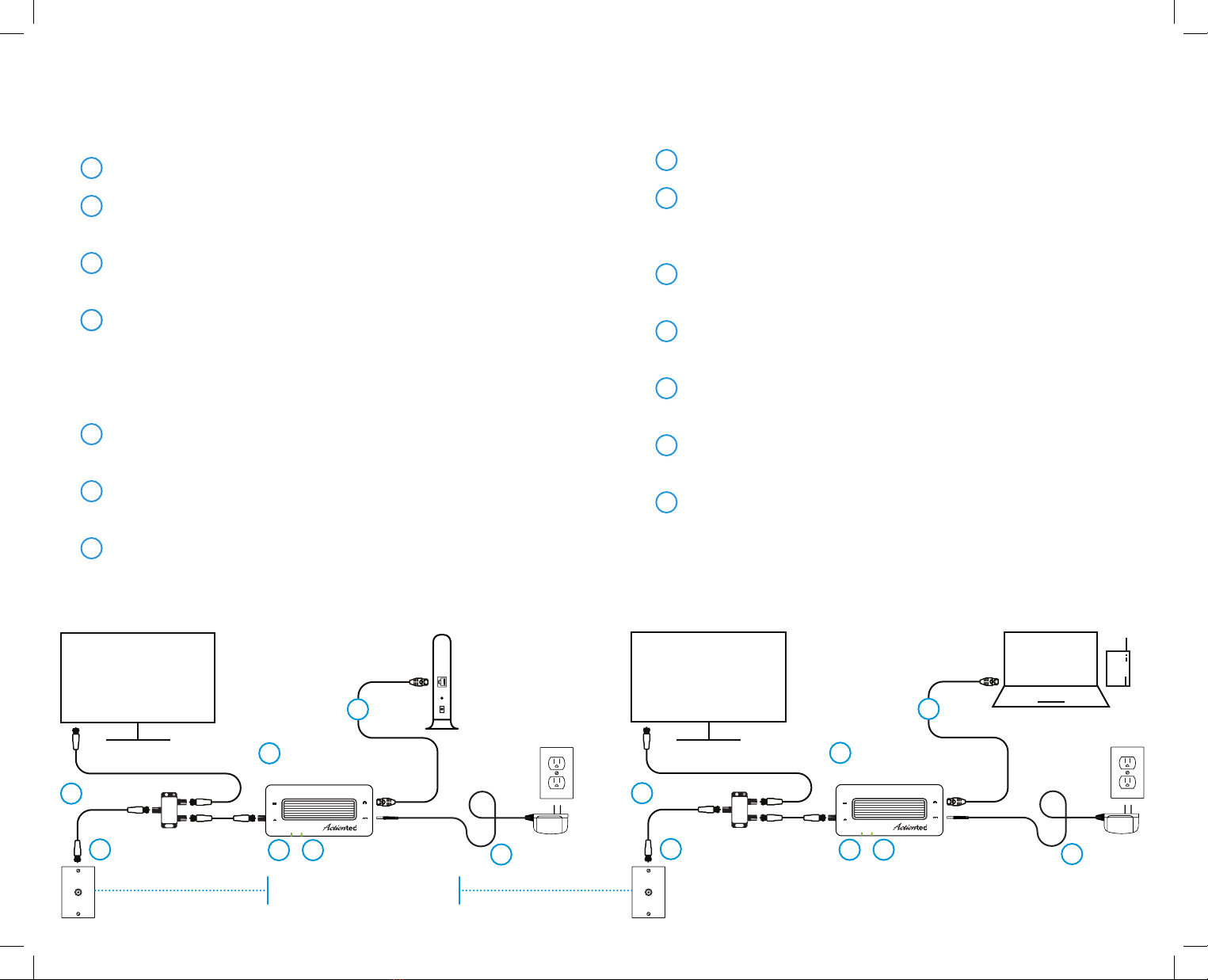

Step 1: Connect to your Modem/Router Step 2: Connect to your Device

Get one MoCA Network Adapter.

Locate the device or access point (laptop, etc.) that

needs to connect to the Internet. Connect one Ethernet

Cable from the Network Adapter to the Device.

Connect one Splitter to the Coax Cable coming from

the Coax Outlet on the wall.

Connect one Coax Cable from the Splitter to the Coax

In port on the Network Adapter.

Connect one Power Adapter to the Network Adapter

and to a Power Outlet.

Wait until the Power light on the front of the adapter

is GREEN.

IMPORTANT! If the Coax LED on the Network Adapter

is already GREEN, you may have MoCA built in to your

modem/router. Check the device you just connected. If

it is connected to the Internet, you’re done*. If the device

does not connect to the Internet, return to Step 1.

* You may use the 2nd adapter with another device or access point.

Get one MoCA Network Adapter.

Connect one Ethernet Cable from the Network

Adapter to the Modem/Router.

Connect one Splitter to the Coax Cable coming from

the Coax Outlet on the wall.

Connect one Coax Cable from the Splitter to the Coax

In port on the Network Adapter.

Note: If you have a TV or set top box near your modem/router,

connect a coax cable from the splitter to the TV or set top box.

Connect the second Power Adapter to the Network

Adapter and to a Power Outlet.

Wait until the Power light on the front of the adapter

is GREEN.

When the Coax LED is GREEN on both adapters, your

adapters are working.

Ethernet

Power

Coax

Coax In

MPS

MoCA Network

Adapter2

Laptop or other

access point

Power

Outlet

Splitter

Coax LEDPower LED Power

Adapter

Ethernet Cable

Coax Outlet

TV Ethernet Port of

Modem / Router

Power

Outlet

MoCA Network

Adapter1

Power

Adapter

Coax LEDPower LED

Ethernet Cable

Splitter

Coax Outlet

Coaxial wiring behind the wall

Ethernet

Power

Coax

Coax In

MPS

ECB7250 ECB7250
