ACTi Q115 Manuel utilisateur

L-Shape Pinhole Covert

Hardware Manual

Q113, Q115

2016/06/16

www.acti.com

Hardware Manual

Table of Contents

Precautions 4

Safety Instructions ...........................................................................6

Introduction 7

The List of Models ............................................................................7

Package Contents.............................................................................8

Physical Description ........................................................................9

Mounting Solutions ........................................................................ 11

Installing the Main Unit 12

Mounting on DIN Rail .....................................................................12

Using the Bundled Mounting Rail ................................................. 12

Installing the Camera with the Surface Mount 13

Step 1: Mount the Camera .............................................................13

Step 2: Route and Connect the Camera Cable.............................14

Step 3: Connect to the Network..................................................... 14

Step 4: Access the Camera Live View...........................................15

Installing the Camera Using the Flush Mount 16

Step 1: Install the Flush Mount......................................................16

Step 2: Mount the Camera .............................................................18

Step 3: Route and Connect the Camera Cable.............................19

Step 4: Connect to the Network..................................................... 19

Step 5: Access the Camera Live View...........................................20

Installing the Camera Using the Tilted Mount 21

Step 1: Install the Tilted Mount......................................................21

Step 2: Mount the Camera .............................................................22

www.acti.com

Hardware Manual

Step 3: Route and Connect the Camera Cable.............................22

Step 4: Connect to the Network..................................................... 23

Step 5: Access the Camera Live View...........................................24

Cable Connections 25

Connecting a Power Adapter (Optional).......................................25

Connecting DI/DO Devices (Optional)........................................... 27

Connecting Audio In / Out Devices (Optional) .............................30

Connecting Serial Devices (Optional)........................................... 31

Other Accessories 32

How to Install / Remove the Memory Card ................................... 32

How to Insert the Memory Card ...................................................32

How to Remove the Memory Card...............................................33

How to Shorten the Camera Cable................................................34

Accessing the Camera 37

Configure the IP Addresses........................................................... 37

Access the Camera......................................................................... 41

www.acti.com

Hardware Manual

Precautions

Read these instructions

Read all the safety and operating instructions before using this product.

Heed all warnings

Adhere to all the warnings on the product and in the instruction manual. Failure to follow the

safety instructions given may directly endanger people, cause damage to the system or to

other equipment.

Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you

to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

ACTi and ACTi logo are registered trademarks of ACTi Corporation. All other names and

products used in this manual are registered trademarks of their respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your

local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any

typographical or technical errors and reserves the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

www.acti.com

Hardware Manual

Safety Instructions

Cleaning

Disconnect this product from the power supply before cleaning.

Accessories and Repair Parts

Use only the accessories and repair parts recommended by the manufacturer. Using other

attachments not recommended by the manufacturer may cause hazards.

Installation

Do not use the device near water, for example, in a web basement or near a swimming pool

and the likes. Install the device (such as PoE injector, alarm, etc.) that will be used with the

camera in a dry place protected from weather.

Servicing

Do not attempt to service this product yourself. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the product.

3) If the inner parts of product have been directly exposed to rain or water.

4) If the product does not operate normally even by following the operating instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as improper

adjustment of other controls may result in damage, and will often require extensive work

by a qualified technician to restore the product to its normal operation.

Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform

safety checks to determine if the product is in proper operating condition.

www.acti.com

Hardware Manual

Introduction

The List of Models

This hardware manual contains the following models:

Q113

2MP Indoor L-Shape Pinhole Covert with Basic WDR, SLLS, Fixed

lens

Q115

5MP Indoor L-Shape Pinhole Covert with Basic WDR, Fixed lens

www.acti.com

Hardware Manual

Package Contents

Check if the camera package comes with the following items.

Camera

Main Unit

Mounting Rail

Terminal Block

(for Power)

Terminal Block

(for DI/DO)

Terminal Block

(for Audio In/Out)

Terminal Block

(for RS-232)

Quick Installation Guide

Warranty Card

Mounting Accessories

Surface Mount

Flush Mount

Tilted Mount

Drill Template (x2)

Surface Mount

Screws

Flush Mount &

Mounting Rail Screws

Tilted Mount

Screws & Plugs

Camera Set Screw

Drill Template

www.acti.com

Hardware Manual

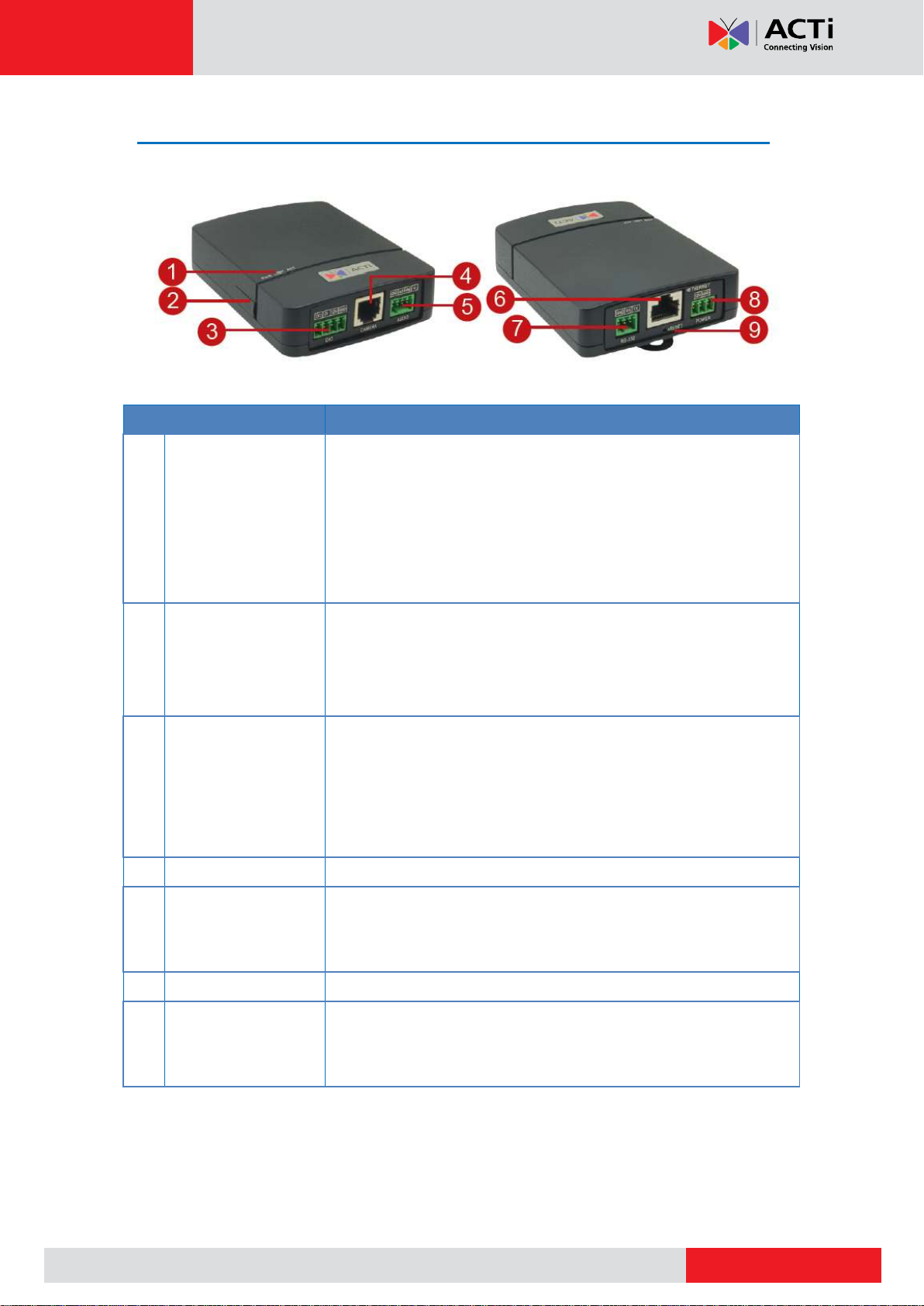

Physical Description

Item

Description

LED Indicators

Power LED (PWR): Lights BLUE to indicate power is

connected.

Link LED (LINK): Lights GREEN to indicate network is

connected.

Activity LED (ACT) : Flashes AMBER to indicate network

activity is in progress.

Memory Card Slot

Insert a memory card (not included) into the slot for local recording

purposes. See How to Install / Remove the Memory Card on

page 32.

NOTE: Supports only microSDHC and microSDXC cards.

Digital Input / Output

Connects to digital input or output devices, such as an alarm

trigger, panic button, etc. Digital Input (DI) and Digital Output (DO)

devices are used in applications like motion detection, event

triggering, alarm notifications, etc. See Connecting DI/DO

Devices (Optional) on page 27 for information.

Camera Port

Connects the camera.

Audio Input / Output

Connects to audio input and output devices, such as microphones

and speakers. See Connecting Audio In / Out Devices

(Optional) on page 30.

Ethernet Port

Connects to a network using an Ethernet cable.

Serial Port

Connects to serial device using the RS-232 protocol. See

Connecting Serial Devices (Optional) on page 31 for more

informatioin.

www.acti.com

Hardware Manual

DC 12V Power Input

In case the camera is connected to a non-PoE (Power over

Ethernet) switch, use this connector to connect the camera to an

external power adapter. See Connecting a Power Adapter

(Optional) on page 25 for information.

Reset Button

Restores the factory default settings of the camera. To reset the

camera, while the power is on, press and hold the Reset Button for

at least 5 seconds or until the Power LED goes off.
