ACTi CAM-6510 Manuel utilisateur
IP Indoor High Speed Dome
CAM-6510
Ver. 090318
Quick Installation Guide
1 Getting Started
1.1 PACKAGE CONTENTS
CAM-6510 Warranty Card
Software CD Power & A/V Cable
LAN/WANCable PowerAdaptor
5.4” Transparent Cover Decoration Ring / Fixing Plate
1
1.2 PHYSICAL DESCRIPTION
Indoor High Speed Dome Bottom
1. Reset Button
Step 1: Switch off IP device by disconnecting the power cable
Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while
continuing to hold the reset button.
Step 3: Keep holding the reset button depressed around 6 seconds, release the reset
button. The unit will start up with factory default settings.
2. Communication Switch Setting
The table below shows the function of each pin within the Communication Switch.
Communication Switch Pin 1
Pin 2 RS-232 Setting (Reserved)
Pin 3 Termination
Pin 4 Line Lock
Pin 5 System Initialization (for
upgrade)
Pin 6 Reserved
RS-232 is reserved for internal use only; The Pin 3 and Pin 4, they are used for
termination and Link Lock adjustment respectively. The Pin 5 is mainly used for
return to factory default of camera setting.
3. Dome ID Setting
Use the switch to change your speed dome ID by turning the arrow to the desired
number respectively. For instance, if the speed dome ID is 123, the ID switch
should be set as below:
centesimal decimal single digit
NOTE: If controlling through an ACTi decoder via analog
means such as a keyboard or DVR, no two speed domes
should be given the same ID or communication conflict may
occur. When controlled only through Ethernet and software
(without the use of an ACTi hardware decoder), the dome ID
setting may be neglected.
NOTE: The number “0” should locate upwards as shown in
above diagram for correct switch definition.
4. Dome Control Protocol
Protocol is a specific set of rules, procdures used for data communications. Basing
on the protocol of your management software that you are going to use. Use the
switch to set your dome control protocol and the baud rate. Refer to table below
and turn the arrow to choose a protocol for your speed dome.
Switch No. Protocol Baud Rate
01 Pelco D 2400
02 Pelco P 4800
07 DSCP 9600
11 Pelco D 4800
12 Pelco D 9600
13 Pelco P 2400
14 Pelco P 9600
Select protocol: Pelco D, with switch no. 01 and baud rate 2400, for instance, the
ID switch should be set as below:
decimal single digit
5. 16 Pin Connector for LAN/WAN
The LAN/WAN cable (shown as the figure below) is shipped with IP high speed
dome. Please find it in the accessory bag.
6. 22 Pin Connector
A 50cm data cable (shown as the figure below) is shipped with IP high speed
dome. Please find it in the accessory bag.
Power Input
PIN NAME DESCRIPTION
1 AC24V AC 24V of Power Input
2 E-GND E-Ground Pin of Power Input
3 AC24V AC 24V of Power Input
7. Cable Wiring
Users may meed to do cable wiring when connecting alarm input and output
devices. The table follows will illustrate the way to wire cords into the connector
housing(shown in the flgures below).
The alarm pins are serviceable for connecting alarm input and output devices, such
as alarm sensors, sirens or flashing light with the surveillance system. The table
shown as follows lists the definition of alarm pins on the 22-pin connector.

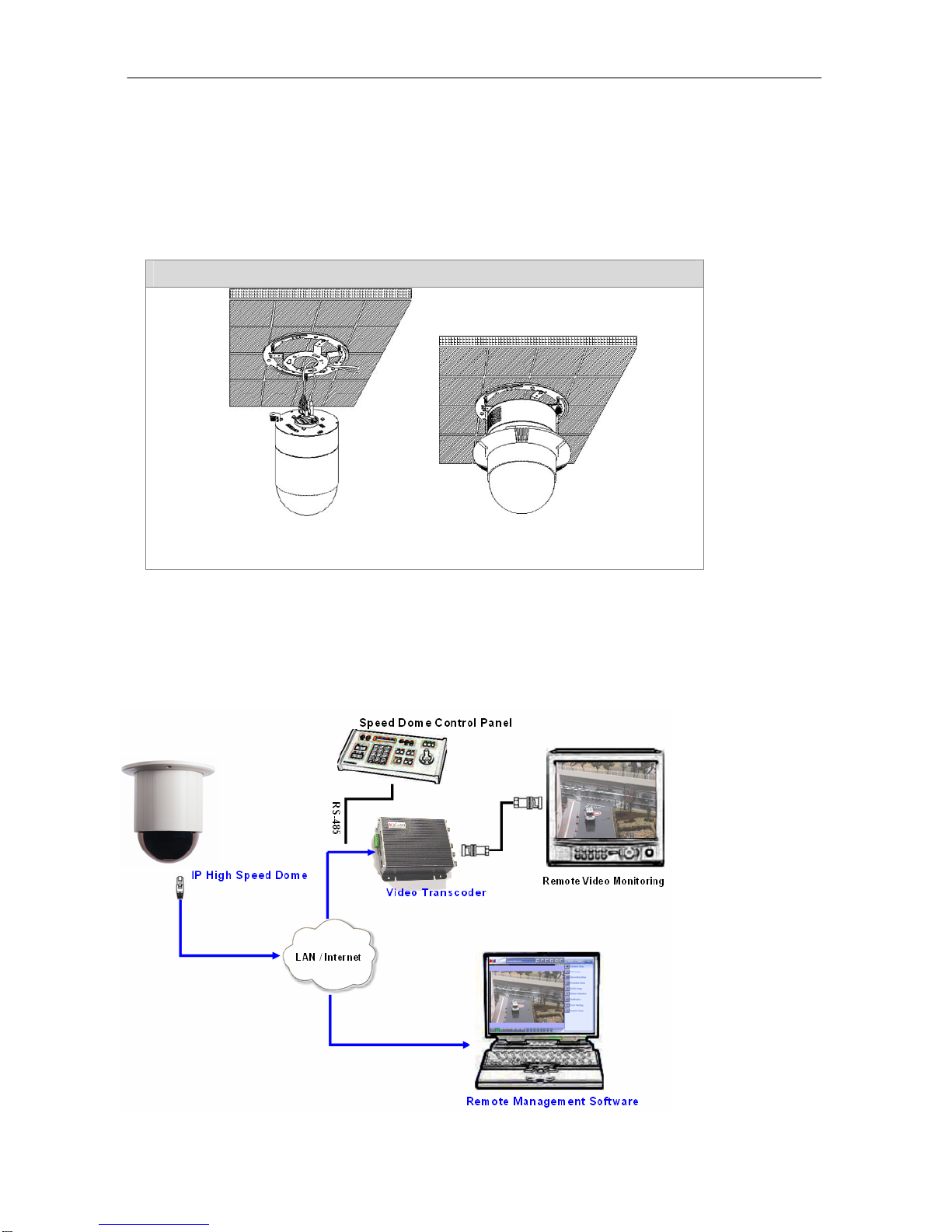

1.3 Mounting the IP High Speed Dome
Generally, there are three kinds of ceiling mounting methods: surface mount, in-ceiling mount, and
mounting with straight tube. The surface mounting kit is shipped with IP high speed dome. For more
detailed information, please refer to Appendix A.
Surface ceiling mount
(cables exposed)
1.4 Basic Connections
Follow the procedures below to connect the IP high speed dome to the respective apparatuses.
2 Quick Tour
This section guides you with a quick tour on IP high speed dome.
2.1 Configure the IP High Speed Dome
2.1.1 Make sure network environment
Default IP of IP high speed dome is 192.168.0.100. Please make sure IP high
speed dome and your PC are on the same network segment before running the
installation.
2
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a number
from 1 to 254, but 100 is
excepted.)
2.1.2 Open Internet Explorer with IP address
NOTE: If your web browser is earlier than IE6, then download IE6 is
recommended.
NOTE: The IP high speed dome default IP address is set to 192.168.0.100
2.1.3 Login with default administrator’s account & password
NOTE: Default administrator account is set to Admin, password is set to
123456, and click button.
