ACTi Z94 Manuel utilisateur

Outdoor Dome

Hardware Manual

Z94, Z95

Ver. 2020/03/31

www.acti.com

Hardware Manual

Table of Contents

Precautions 3

Safety Instructions ...........................................................................5

Introduction 6

List of Models....................................................................................6

Package Contents.............................................................................7

Physical Description ........................................................................8

Mounting Options.............................................................................9

Installation Procedures 10

Step 1: Prepare for Installation......................................................10

Step 2: Route the Cables ............................................................... 11

Step 3: Mount the Camera .............................................................12

Step 4: Connect and Manage the Cables......................................13

Using the Cable Gland.................................................................13

Using a Power Adapter (Optional)................................................15

Step 5: Connect to Network...........................................................16

Step 6: Access the Camera Live View........................................... 16

Step 7: Adjust the Viewing Angle and Orientation.......................16

Step 8: Close the Dome Cover....................................................... 17

Accessing the Camera 18

Configure the IP Addresses........................................................... 18

Using DHCP Server to Assign IPAddresses................................18

Using the Default Camera IPAddress..........................................19

Access the Camera.........................................................................21

www.acti.com

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow

the safety instruction given may directly endanger people, cause damage to the system or to

other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Caution: The user is cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own

expense.

LVD / EMC Directive

This product complies with the European Low Voltage Directive 2014/35/EU and

EMC Directive 2014/30/EU.

WEEE Directive–2012/19/EU

The product this manual refers to is covered by the Waste Electrical & Electronic

Equipment (WEEE) Directive and must be disposed of in a responsible manner.

Battery Directive-2013/56/EC

Battery in the product complies with the European Battery Directive

2013/56/EC.For proper recycling,return the battery to your supplier or to a

designated collection point.

www.acti.com

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause

hazards.

Water and Moisture

Install other devices (such as PoE injector, alarm, etc.) that will be used with the camera in a dry

place protected from water.

Servicing

Do not attempt to service this video product yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as an improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

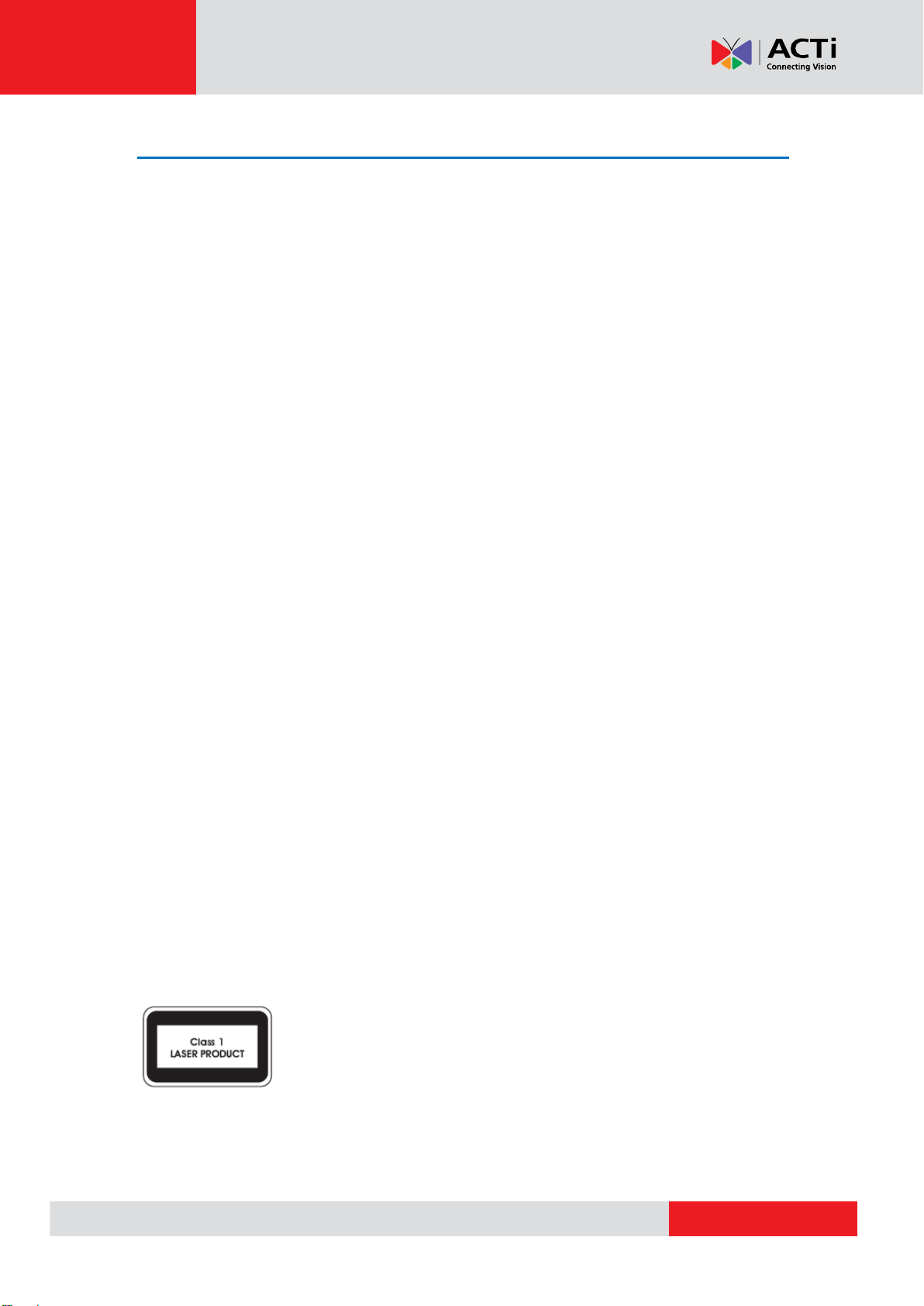

Never look at the transmit laser while the power is on. Never look

directly at the fiber ports and the fiber cable ends when they are

powered on.

Use of controls or adjustments to the performance or procedures

other than those specified herein may result in hazardous laser

emissions.

www.acti.com

Hardware Manual

Introduction

List of Models

This hardware manual contains the following models:

Z94

2MP Outdoor Mini Dome with D/N, Adaptive IR, Superior WDR,

SLLS, Fixed lens

Z95

4MP Outdoor Mini Dome with D/N, Adaptive IR, Superior WDR,

SLLS, Fixed lens

www.acti.com

Hardware Manual

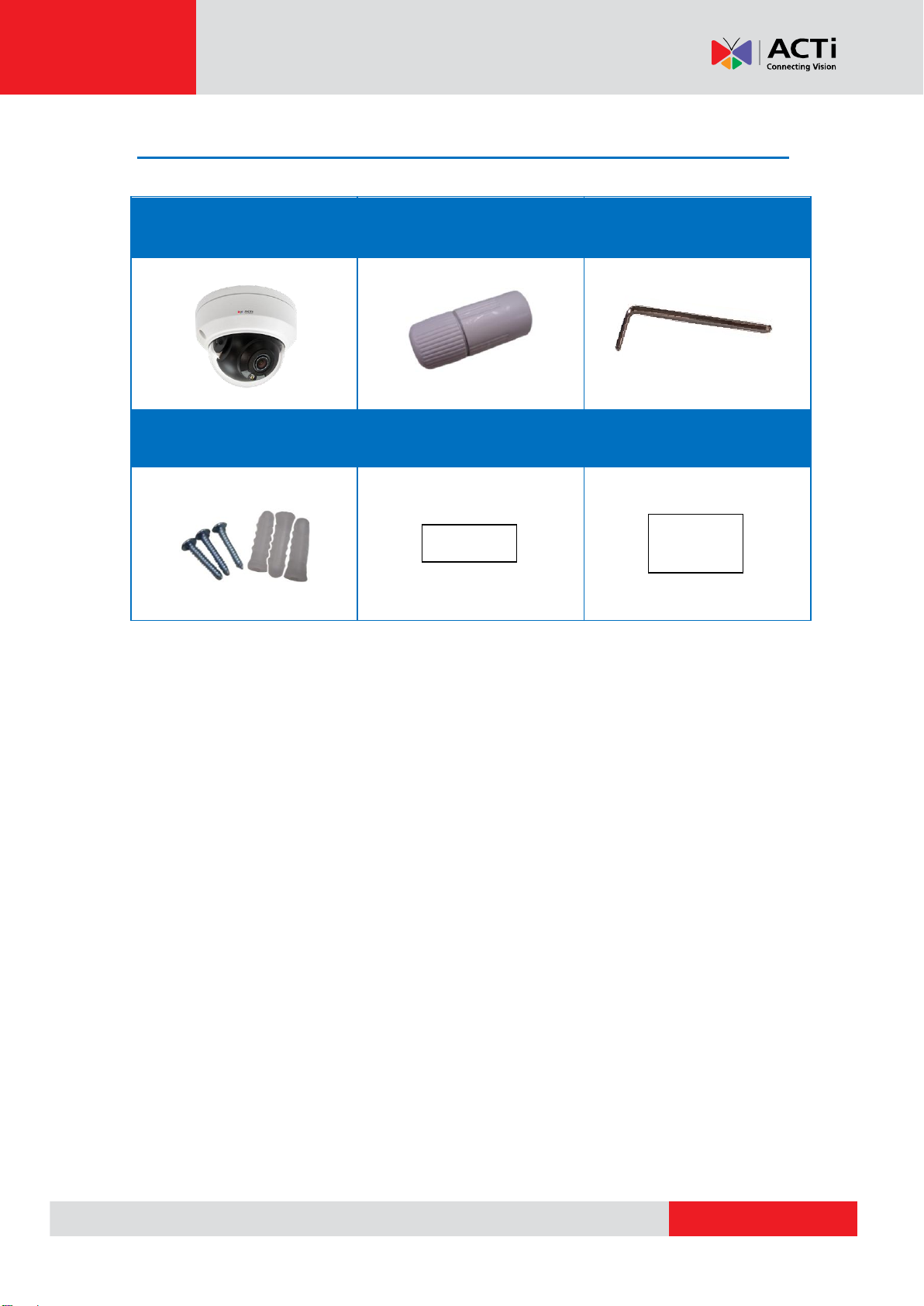

Package Contents

Check if the camera package comes with the following items:

Camera

Cable Gland

with Rubber and Washer

Wrench

Mounting Screw Kit

Drill Template

Quick Guide &

Warranty Card

IMPORTANT: When the camera is taken out from the box, the lens cover is covered by a thin film.

DO NOT remove this film. It is used to protect the lens cover from scratches or fingerprint marks

which may happen during installation. Remove this film only after the camera is securely installed

and all connections are complete.

Drill Template

Warranty Card

www.acti.com

Hardware Manual

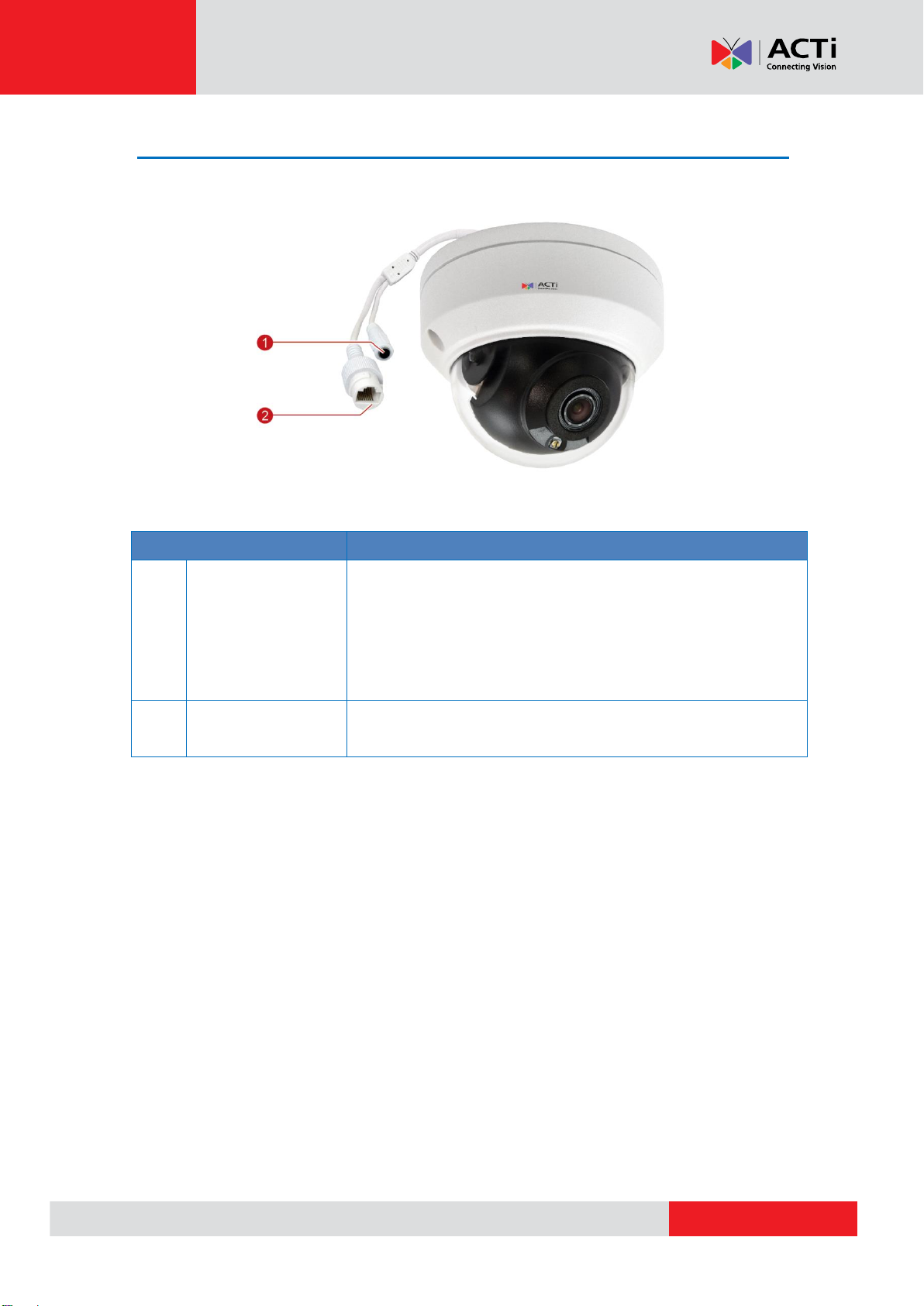

Physical Description

Item

Description

DC 12V

In case the camera is connected to a non-PoE (Power over

Ethernet) switch, use this connector to connect the camera to an

external power adapter (not included). See Error! Reference

ource not found. on page Error! Bookmark not defined. for

more information.

Ethernet Port

Connects to a network using an Ethernet cable with RJ-45

connector.

www.acti.com

Hardware Manual

Mounting Options

Select the most suitable solution for your installation environment. The camera can be mounted

by either of the following methods:

Mount Types

Accessories

Surface Mount

Suitable when mounting the camera directly on walls or ceilings without

additional mounting accessories. See Installation Procedures on page

10 for more information.

Gangbox

Suitable when mounting the camera on a 4” Round or 4” Octagon

Gangbox. The use of gangbox is lawfully required in some areas in the

United States. A Gangbox Converter (purchased separately) is required

for this type of installation.

Wall Mount

Suitable when mounting the camera on the wall with the camera facing

down as if installed on the ceiling. The Wall Mount (optional mounting

accessory) is required for this type of installation.

Pendant Mount

Suitable when installing the camera on high ceilings where a straight

tube is used to lower the camera. The Pendant Mount with Mount Kit

(optional accessory set) is required for this type of installation.

Pole mount

Suitable when installing the camera on a vertical pole. The Pole mount

(optional accessory set) is required for this type of installation.

NOTE:

For more information about the mounting solutions and accessories, please check the

Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).

The above mounting accessories are not included in the package. Contact your sales

agents to purchase.

www.acti.com

Hardware Manual

Installation Procedures

This section describes procedures in mounting the camera on a flat surface.

NOTE: The camera images on this documentation are for reference only and may be different

from the actual camera.

Step 1: Prepare for Installation

1. Before installing the camera, prepare the additional accessories required for installation.

2. Determine whether the cable will go through a hole on the surface or be routed along the

surface. Note also the direction to which the cable will be routed to attach the bundled drill

template on the surface according to the direction of the cable.

3. Drill the screw holes. Depending on the material of the surface where the camera will be

installed, it may be necessary to drill the two (2) screw holes and use the supplied screw tox.

4. Loosen the two (2) screws using the bundled wrench then lift the dome cover.

NOTE:

The dome cover is attached to the camera body by a string; do not abruptly lift the

dome cover!
