ACTi ACM-1511 Series Manuel utilisateur

Megapixel IP IR DN PoE Bullet Camera

(with DC 12V / PoE)

ACM-1511 series

Ver. 120312

Quick Installation Guide

0-1

0Getting Started

1.1 PACKAGE CONTENTS

ACM-1511 series

(DC12V / PoE)

The bracket is not included

Product CD Terminal Block for Power

Warranty Card

0-2

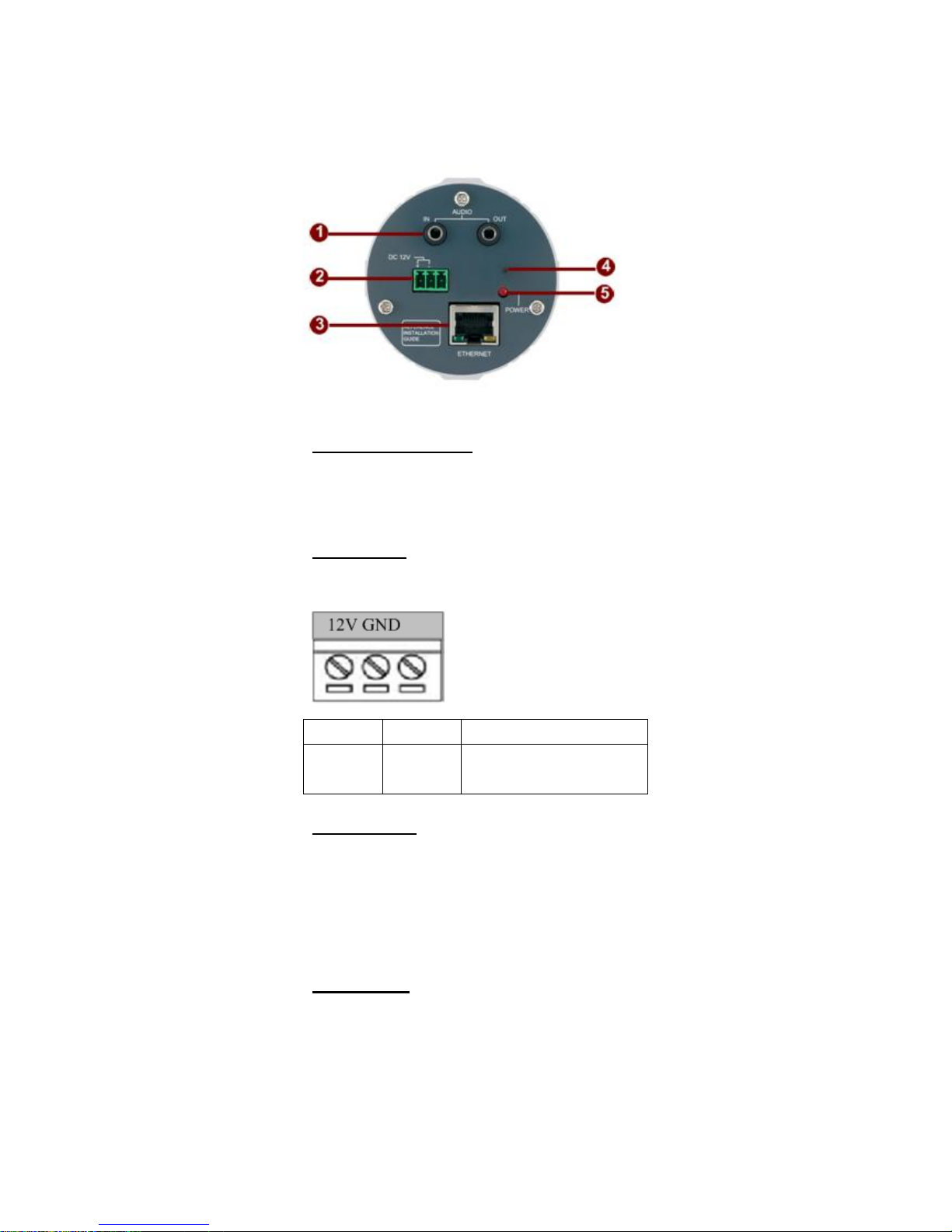

1.2 PHYSICAL DESCRIPTION

1. Audio Input / Output

The Megapixel IP IR DN PoE Bullet Camera supports audio input

and output with earphone jack

2. Power Input

If your power input is DC12V , please follow the description on

the connector to connect to power.

3. Ethernet Port

The Megapixel IP IR DN PoE Bullet Camera connects to the

Ethernet via a standard RJ45 connector. Supporting NWAY, this

Megapixel IP IR DN PoE Bullet Camera can auto detect the speed

of local network segment (10Base-T/100Base-TX Ethernet).

4. Reset Button

Step 1: Switch off Megapixel IP IR DN PoE Bullet Camera by

disconnecting the power cable

Step 2: Press and continue to hold the Reset Button. Reconnect

NAME

DESCRIPTION

12V

DC Power Input

GND

Ground Pin

0-3

the power cable while continuing to hold the reset button.

Step 3: Keep holding the reset button depressed for a while,

release the reset button. The unit will start up with factory default

settings.

5. Power LED Indicator

The LED indicator lights up one time upon power up. It will

lights up again when this Megapixel IP IR DN PoE Bullet Camera

is fully booted up.

0-4

1.3 BASIC CONNECTIONS

Follow the procedures below to connect the Megapixel IP IR DN PoE

Bullet Camera to the respective apparatuses.

1. Connect the power adaptor to Megapixel IP IR DN PoE Bullet Camera

2. Connect Megapixel IP IR DN PoE Bullet Camera’s ethernet port to an

Ethernet (RJ45 connectors). If your Megapixel IP IR DN PoE Bullet

Camera has PoE built-in, you can regard it as a PD and connect it directly

to a PSE device like PoE switch.

3. Connect a PC to the Ethernet hub (RJ45 connectors)

NOTE: You may find a support package for help you getting familiar

with PoE. Please visit our web site, and get the support document

TS-00040.

0-5

1.4 Installation Procedure

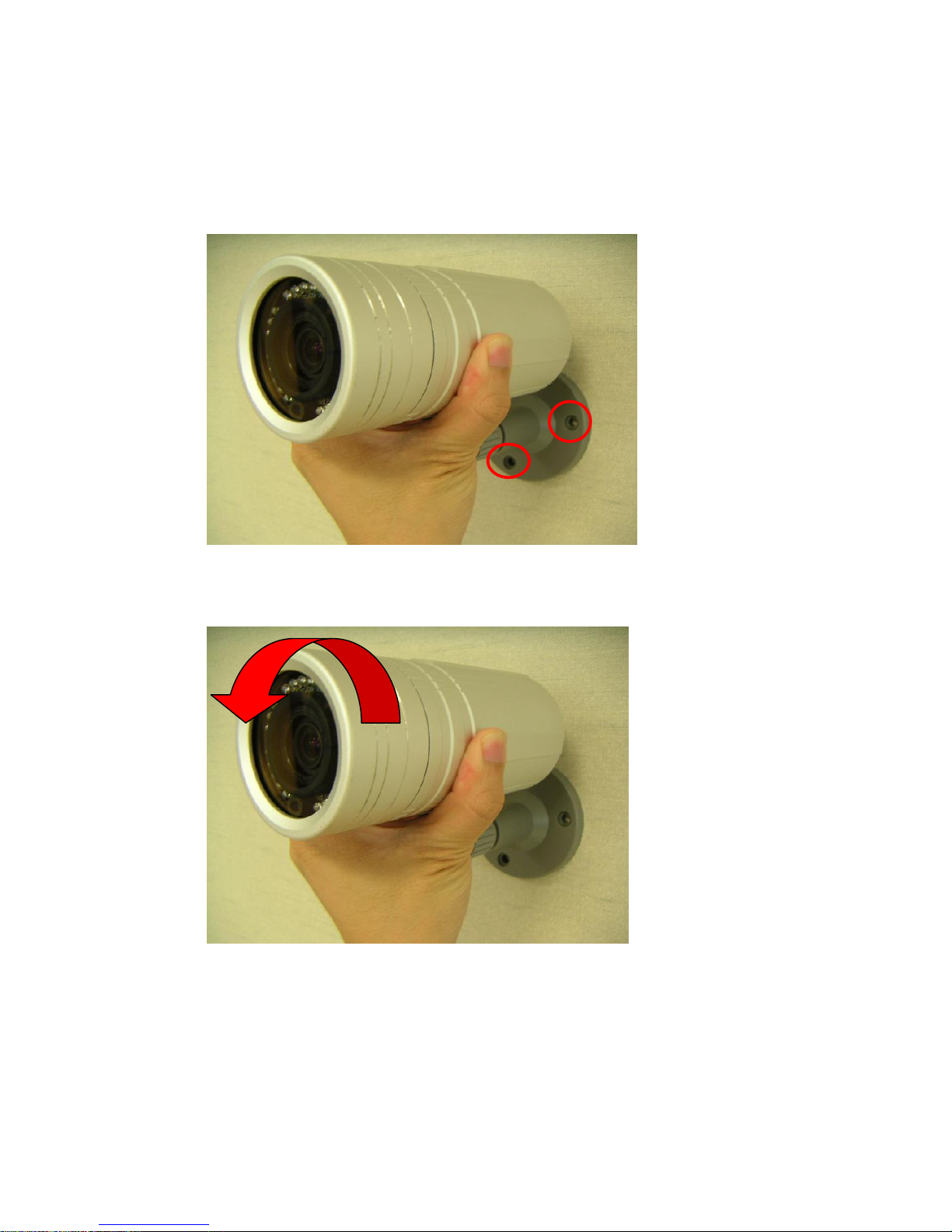

1.4.1 Install the camera onto bracket

1.4.2 Rotate camera box counter-clockwise to remove camera

cover

0-6

1.4.3 Adjust the focus / zoom

- Zoom adjust lever

- Focus adjust lever

1-7

1Quick Tour

This section guides you with a quick tour on this Megapixel IP IR DN PoE Bullet

Camera.

2.1 Configure this Megapixel IP IR DN PoE Bullet Camera

2.1.1 Make sure network environment

Default IP of this Megapixel IP IR DN PoE Bullet Camera is 192.168.0.100. Please

make sure this Megapixel IP IR DN PoE Bullet Camera and your PC are on the same

network segment before running the installation.

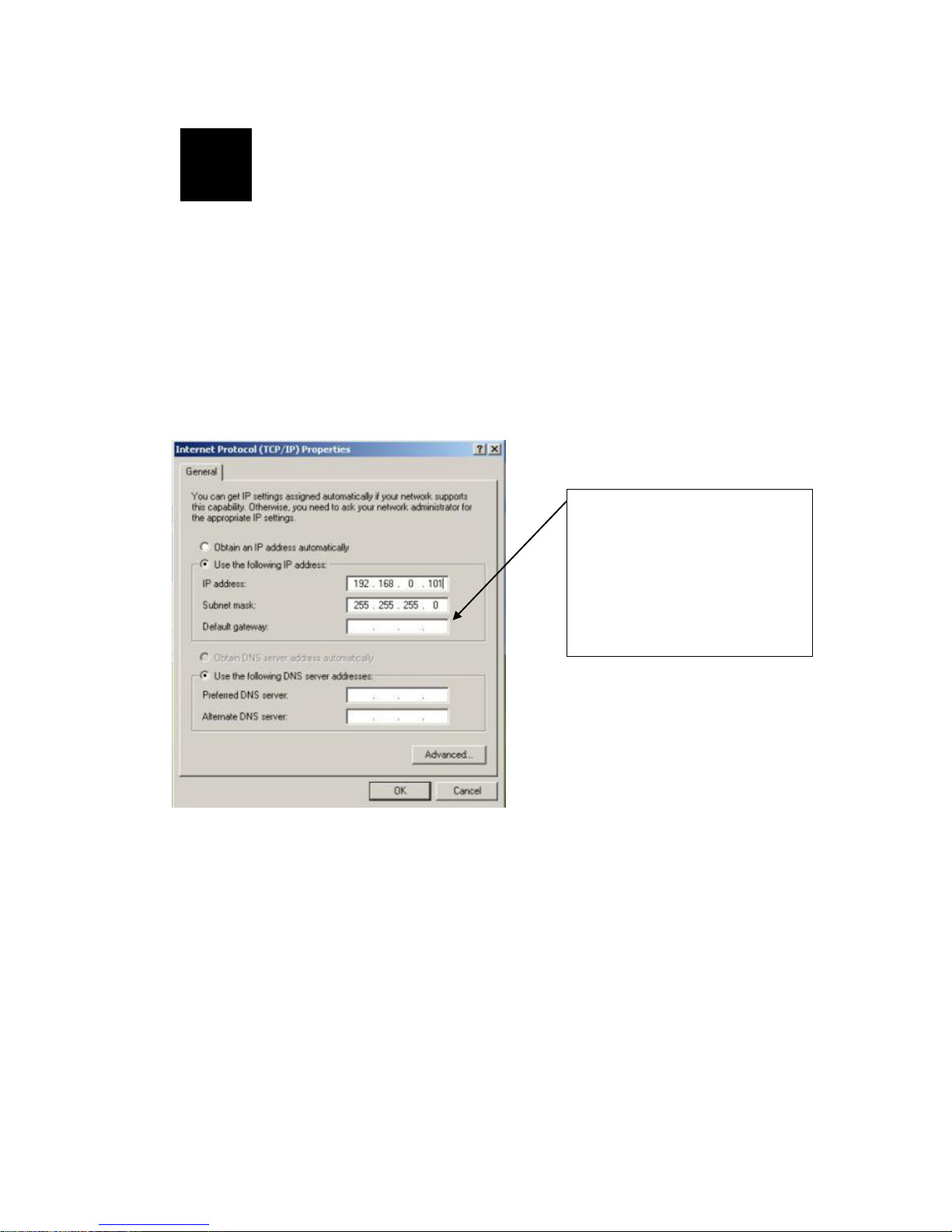

2.1.2 Open Internal Explorer with IP address

Please set the settings as below.

IP address: 192.168. 0.xxx

Subnet mask: 255.255.255. 0

(NOTE: xxx should be a number

from 1 to 254, but 100 is

excepted.)

1-8

NOTE: If your web browser is earlier than IE6, then download IE6 is

recommended.

NOTE: This Megapixel IP IR DN PoE Bullet Camera default IP address is

set to 192.168.0.100

2.1.3 Login with default administrator’s account & password

NOTE: Default administrator account is set to Admin, password is set to

123456, and click button.

2.1.4 Preview the video
