ACTi E45 Manuel utilisateur

Bullet Camera

Hardware Manual

E44, E45, E46

Ver. 2013/12/04

www.acti.com

Hardware Manual

Table of Contents

Precautions 3

Safety Instructions ...........................................................................5

Introduction 6

List of Models....................................................................................6

Package Contents.............................................................................7

Physical Description ........................................................................8

Installation Procedures 9

Mount the Camera ............................................................................9

Waterproof Cable Installation........................................................ 11

Waterproof without Conduit..........................................................12

Waterproof with Conduit...............................................................16

Basic Connections .........................................................................22

Connecting a Single Camera.......................................................22

Connecting Multiple Cameras......................................................23

Accessing the Camera 24

Configure the IP Addresses...........................................................24

Using DHCP Server to Assign IPAddresses................................24

Using the Default Camera IP Address..........................................26

Access the Camera.........................................................................28

Other Adjustments and Accessories 31

Adjust the Viewing Angle...............................................................31

Attach the Sunshield......................................................................32

www.acti.com

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to

follow the safety instruction given may directly endanger people, cause damage to the system

or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your

local office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

www.acti.com

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

www.acti.com

Hardware Manual

Introduction

List of Models

This hardware manual contains the following models:

E44

2MP Bullet with D/N, IR, Basic WDR, SLLS, Vari-focal lens

E45

1MP Bullet with D/N, IR, Superior WDR, Vari-focal lens

E46

3MP Bullet with D/N, IR, Superior WDR, Vari-focal lens

www.acti.com

Hardware Manual

Package Contents

Bullet Camera

Sunshield

Mounting Screw Kit

Sunshield Screw Kit

Waterproof Kit

Drill Template

Quick Installation Guide

Warranty Card

www.acti.com

Hardware Manual

Physical Description

Side View

Back View

1) Ethernet Connector

Connects to the network and power source. See Basic Connections on page 22 for more

instructions.

www.acti.com

Hardware Manual

Installation Procedures

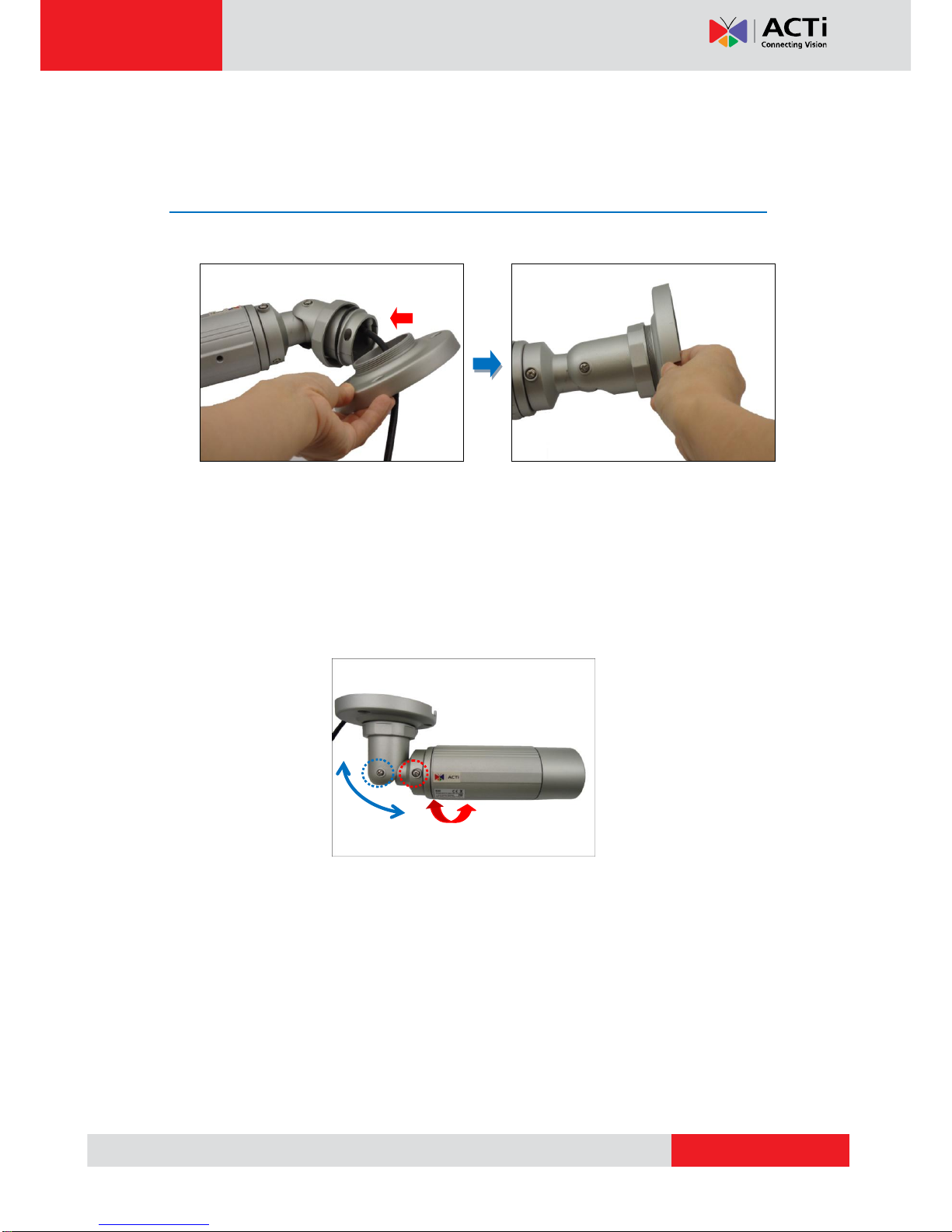

Mount the Camera

1. Attach the bracket to the camera.

2. Mark the location of the screw holes based on the drill template included in the package.

NOTE: Depending on the surface where you will install the camera, it may be necessary to

drill three (3) holes and use the supplied screw tox.

3. Attach the camera to the surface using the three (3) supplied screws.

4. Adjust the camera installation angle and orientation, and then tighten the two (2) screws to

fix its position.

www.acti.com

Hardware Manual

5. Connect the RJ-45 male-type connector of the camera to the 2-sided female type

connector (included in the waterproof cable kit). On the other side of the 2-sided female

type connector, connect the Ethernet cable from the network.

The above cable connection can be used if the camera will be installed indoors or when a

junction box will be used on an outdoor installation.

If the camera will be installed outdoors and without a junction box to protect the cable

connection from rain or dust, use exterior-grade Ethernet cables (CAT5/CAT5e/CAT6) and

be sure to apply the waterproof installation, see Waterproof Cable Installation on page

11.

Ethernet cable

of the camera

Ethernet cable

from the network

2-Sided Female Type

Connector
