ACTi E12A Manuel utilisateur

Cube Camera Series

Hardware Manual

E12A, E13A

E14, E15, E16

Ver. 2015/01/06

www.acti.com

Hardware Manual

Table of Contents

Precautions 3

Safety Instructions ...........................................................................5

Introduction 6

List of Models....................................................................................6

Package Contents.............................................................................7

Physical Description ........................................................................8

Installation Procedures 10

Step 1: Mount the Bracket..............................................................10

Step 2: Insert the Memory Card (optional)....................................10

Step 3: Install the Camera.............................................................. 11

Step 4: Connect to Network........................................................... 11

Step 5: Access the Camera Live View........................................... 11

Step 6: Adjust the Viewing Angle and Focus ...............................12

Step 7: Connect Audio Out Device (optional) ..............................13

Other Accessories 14

How to Replace the Lens

(Optional for E1xA / E14 only)

.................14

Accessing the Camera 16

How to Configure IP Addresses ....................................................16

Using DHCP Server to Assign IP Addresses................................16

Using the Default Camera IPAddress..........................................18

How to Access the Camera............................................................ 20

www.acti.com

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to

follow the safety instruction given may directly endanger people, cause damage to the system

or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your

local office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

www.acti.com

Hardware Manual

Safety Instructions

Don’t open the housing of the product

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

www.acti.com

Hardware Manual

Introduction

List of Models

This hardware manual contains the following models:

E12A

3MP Cube with Basic WDR, Fixed lens

E13A

5MP Cube with Basic WDR, Fixed lens

E14

10MP Cube with Basic WDR, Fixed lens

E15

5MP Fisheye Cube with Basic WDR, Fixed lens

E16

10MP Fisheye Cube with Basic WDR, Fixed lens

www.acti.com

Hardware Manual

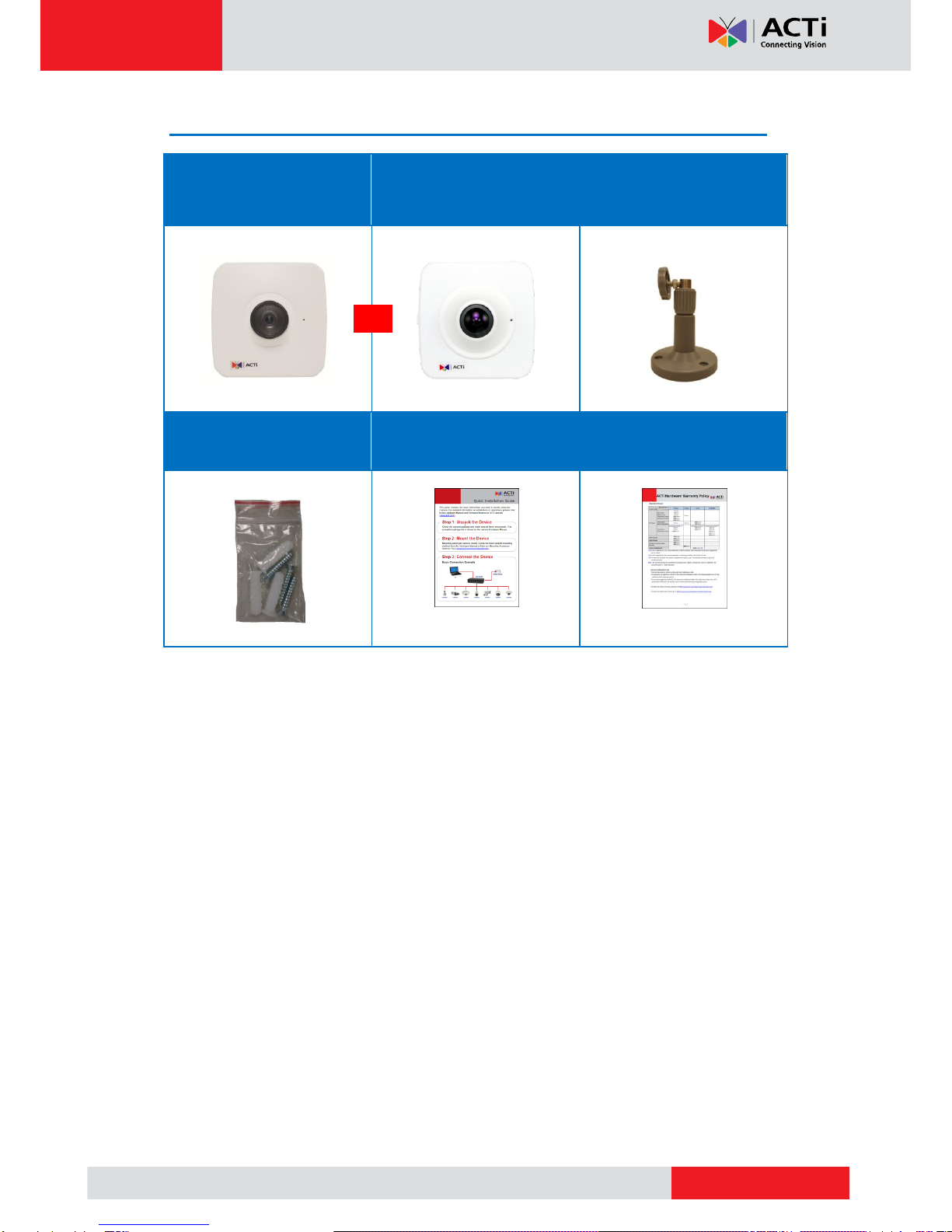

Package Contents

Camera

(E12A, E13A, E14)

Camera

(E15, E16)

Bracket

Mounting Screws

Quick Installation Guide

Warranty Card

www.acti.com

Hardware Manual

Physical Description

E12A, E13A, E14

E15, E16

Item

Description

Memory Card Slot

Insert a memory card into this slot for local recording purposes.

NOTE: Supports microSDHC and microSDXC cards.

Built-in Microphone

Receives audio input.

Reset Button

The purpose of reset button is to restore the factory default

settings of the camera, including administrator’s password.

The reset button can be used for following purposes:

1. The administrator’s password has been forgotten and

therefore the camera cannot be accessed.

2. In case of IP address, mask, or allow/deny filter related

issues, resulting with inability to modify these settings.

3. In case of connectivity issues or abnormal video quality.

How to do the reset?

Using a pointed object, such as a paper clip, press and hold the

reset button for at least 5 seconds.

www.acti.com

Hardware Manual

Item

Description

Audio Output

Connects to audio output devices, such as a speaker, etc.

Ethernet Port

Connects to a network using a standard Ethernet cable.

www.acti.com

Hardware Manual

Installation Procedures

NOTE: The camera images are used as a reference only. The lens may differ from the one you

purchased.

Step 1: Mount the Bracket

Attach the bracket to the wall using the three (3) supplied screws.

Step 2: Insert the Memory Card (optional)

1. Pull to open the memory card slot cover.

2. Insert the memory card with the metal contacts facing the back of the camera.

3. Push the card until it clicks into place.

4. Close the memory card slot cover.
