ACTi Micro Box Q22 Manuel utilisateur

Micro Box

Hardware Manual

Q22

2016/07/05

www.acti.com

Hardware Manual

Table of Contents

Precautions 4

Safety Instructions....................................................................................................6

Introduction 7

List of Models............................................................................................................7

Package Contents.....................................................................................................8

Physical Description...............................................................................................10

Mounting Options ...................................................................................................12

Installation Procedures 13

Step 1: Mount the Bracket .....................................................................................13

Step 2: Attach the Camera .....................................................................................14

Step 3: Install the Main Unit...................................................................................15

Step 4: Connect the Cables ...................................................................................16

Step 5: Connect to Network...................................................................................17

Step 6: Access the Camera Live View ..................................................................18

Cable Connections 19

Connecting a Power Adapter (Optional)...............................................................19

Connecting DI/DO Devices (Optional) ..................................................................21

Connecting Audio Out Devices (Optional)...........................................................24

Connecting a Serial Devices (Optional)................................................................25

Other Adjustments and Accessories 26

How to Install / Remove the Memory Card...........................................................26

How to Insert the Memory Card..........................................................................26

How to Remove the Memory Card......................................................................27

www.acti.com

Hardware Manual

Accessing the Camera 28

Configure the IP Addresses...................................................................................28

Using DHCP Server to Assign IP Addresses ......................................................28

Using the Default Camera IP Address ................................................................30

Access the Camera.................................................................................................32

www.acti.com

Hardware Manual

Precautions

Read these instructions

Read all the safety and operating instructions before using this product.

Heed all warnings

Adhere to all the warnings on the product and in the instruction manual. Failure to follow the

safety instructions given may directly endanger people, cause damage to the system or to other

equipment.

Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

ACTi andACTi logo are registered trademarks of ACTi Corporation. All other names and products

used in this manual are registered trademarks of their respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. ACTi will not be held responsible for any

typographical or technical errors and reserves the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

www.acti.com

Hardware Manual

Safety Instructions

Cleaning

Disconnect this product from the power supply before cleaning.

Accessories and Repair Parts

Use only the accessories and repair parts recommended by the manufacturer. Using other

attachments not recommended by the manufacturer may cause hazards.

Installation

Install the main unit and other devices (such as PoE injector, alarm, etc.) that will be used with the

camera in a dry place protected from weather,

Servicing

Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the product.

3) If the inner parts of product have been directly exposed to rain or water.

4) If the product does not operate normally even by following the operating instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the product to its normal operation.

Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform

safety checks to determine if the product is in proper operating condition.

www.acti.com

Hardware Manual

Introduction

List of Models

This hardware manual contains the following models:

Q22

2MP Outdoor Micro Box with Basic WDR, SLLS, Fixed

lens

From the installation perspective, the above models are very similar; therefore one manual is

used for all of them.

www.acti.com

Hardware Manual

Package Contents

Check if the camera package comes with the following items:

Camera

Main Unit

Mounting Rail

Bracket

Camera Set Screws

Terminal Block

(for Power)

Terminal Block

(for DI/DO)

Terminal Block

(for RS-232)

Quick Installation Guide

Warranty Card

IMPORTANT: When the camera is taken out from the box, the lens cover is covered by a thin film.

www.acti.com

Hardware Manual

DO NOT remove this film. It is used to protect the lens cover from scratches or fingerprint marks

which may happen during installation. Remove this film only after the camera is securely installed

and all connections are complete.

www.acti.com

Hardware Manual

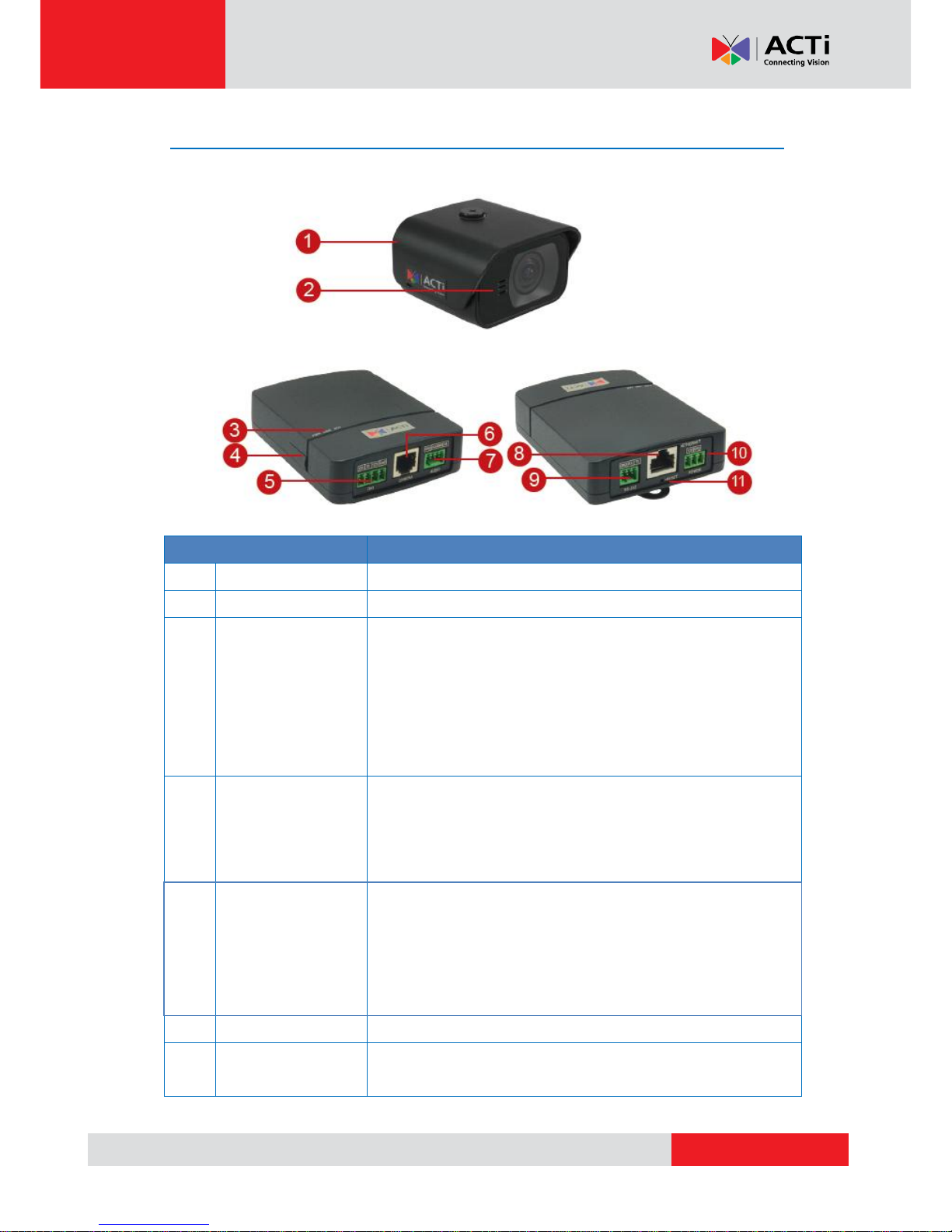

Physical Description

Item

Description

Camera Module

Built-in Microphone

LED Indicators

Power LED (PWR): Lights BLUE to indicate power is

connected.

Link LED (LINK): Lights GREEN to indicate network is

connected.

Activity LED (ACT) : Flashes AMBER to indicate network

activity is in progress.

Memory Card Slot

Insert a memory card (not included) into the slot for local

recording purposes. See How to Install / Remove the Memory

Card on page 26 for more information.

NOTE: Supports only microSDHC and microSDXC cards.

Digital Input / Output

Connects to digital input or output devices, such as an alarm

trigger, panic button, etc. Digital Input (DI) and Digital Output

(DO) devices are used in applications like motion detection,

event triggering, alarm notifications, etc. See Connecting DI/DO

Devices (Optional) on page 21 for information.

Camera Port

Connects the camera.

Audio Input / Output

Connects to audio input and output devices, such as

microphones and speakers. See Connecting an Audio Out
