ACME XP-5000WZ Manuel utilisateur

UserManual

Please read the instruc on carefully before use

XP-5000WZ

TABLE OF CONTENTS

1. Safety Instruction ................................................................................................... 2

2. Technical Specification ........................................................................................... 3

3. Control Panel.......................................................................................................... 5

4. Lamp ...................................................................................................................... 6

4.1 Lamp................................................................................................................. 6

4.2 Change The Lamp.......................................................................................... 7

5. How To Set The Unit ............................................................................................... 8

5.1 Main Function.................................................................................................. 8

5.2 Home Position Adjustment........................................................................... 16

5.3 Error Information........................................................................................... 19

6. Control By Universal DMX Controller.................................................................... 20

6.1 DMX Connections......................................................................................... 20

6.2 Channel Mode Setting.................................................................................. 21

6.3 Address Setting............................................................................................. 21

6.4 DMX Control.................................................................................................. 22

7. Troubleshooting ................................................................................................... 30

8. Check、Cleaning and Maintenance Schedule .................................................... 32

A 1C

1. Safety Instruction

WARNING

Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer

will not accept liability for any resulting defects or problems.

Unpack and check carefully that there is no transportation damage before using the unit.

The unit is for indoor use only. Use only in a dry location.

Do install and operate by qualified operator.

Do not allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots are blocked; otherwise the unit will be overheated.

Before operating, ensure that the voltage and frequency of power supply matches the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Maximum ambient temperature TA: 40℃. Don’t operate it when the temperature is higher.

Don’t connect the device to any dimmer pack.

During initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.

Make sure there are no flammable materials close to the unit while operating to avoid fire hazard.

Examine the power wires carefully; replace them immediately if there is any damage.

Unit’s surface temperature may reach up to 85℃. Don’t touch the housing bare-handed during its

operation, and allow about 15 minutes for cooling the unit down before replacing bulb or

maintenance as it could be very hot.

Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off

the mains power immediately.

Please read the instruction manual carefully which includes important

information about the installation, usage and maintenance.

A 2C

Do not operate in dirty or dusty environment; do clean the fixture regularly.

Do not touch any wire during operation as there might be a hazard of electric shock.

Avoid power wires twist other cables.

The minimum distance between light output and the illuminated surface must be more than 12

meters.

Disconnect mains power before fuse/lamp replacement or servicing.

Replace fuse/lamp only with the same type.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

Do not open the unit as there are no user serviceable parts inside.

Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage

or malfunction. Please contact the nearest authorized technical assistance center if needed.

Disconnect the mains power if the fixture is has not been used for a long time.

Do use the original packing materials before transporting it once again.

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.

Hot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.

Do replace the bulb once it is damaged, deformed or life-expired.

Do not look directly at the light while the bulb is on.

Never touch bulb with bare fingers, as it is very hot after using.

Do not start on the unit without bulb enclosure or when housing is damaged.

2. Technical Specification



Power supply:

AC 230V, 50Hz



Power Consumption:

1715W



Lamp:

Osram Lok-it1400W/PS Brilliant



CRI:

≥90

A 3C



Display:

LCD display

(Battery backup for user operation without connecting to the mains)



Optical system:

High efficient Optical system.

Delivering extremely powerful output.

High quality lens.



Movement:

Pan: 540°

Tilt: 270°

Pan/Tilt Resolution: 16 bit

Fixation: Pan/Tilt lock



Dimmer/Shutter:

0~100% smooth dimming，Various strobe speeds



Color wheel:

Color Wheel 1: 6 colors plus open with rainbow effect

Color Wheel 2: 6 colors plus open with rainbow effect

Linear CMY color mixing

Linear CTO color correction



Control Mode:

DMX, Art-Net, RDM, Wireless (optional)



Data In/Out:

3-pin and 5-pin XLR



Beam Angle:

10° ~ 55°



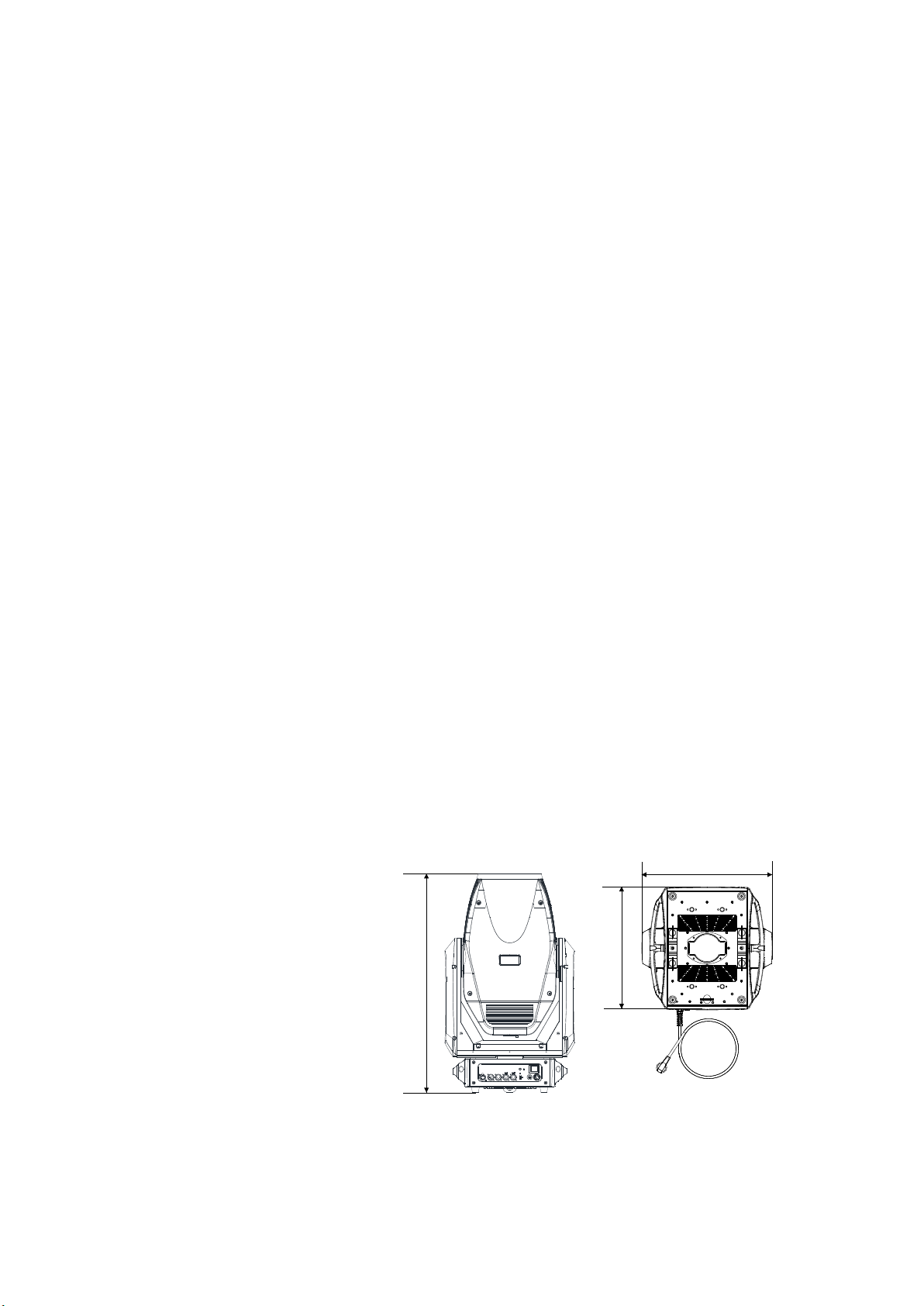

Dimension/Weight:

454x429x766mm，38kg

17.8"x16.8"x30.1"in，83.8lbs

766mm

454mm

427 mm

A 4C

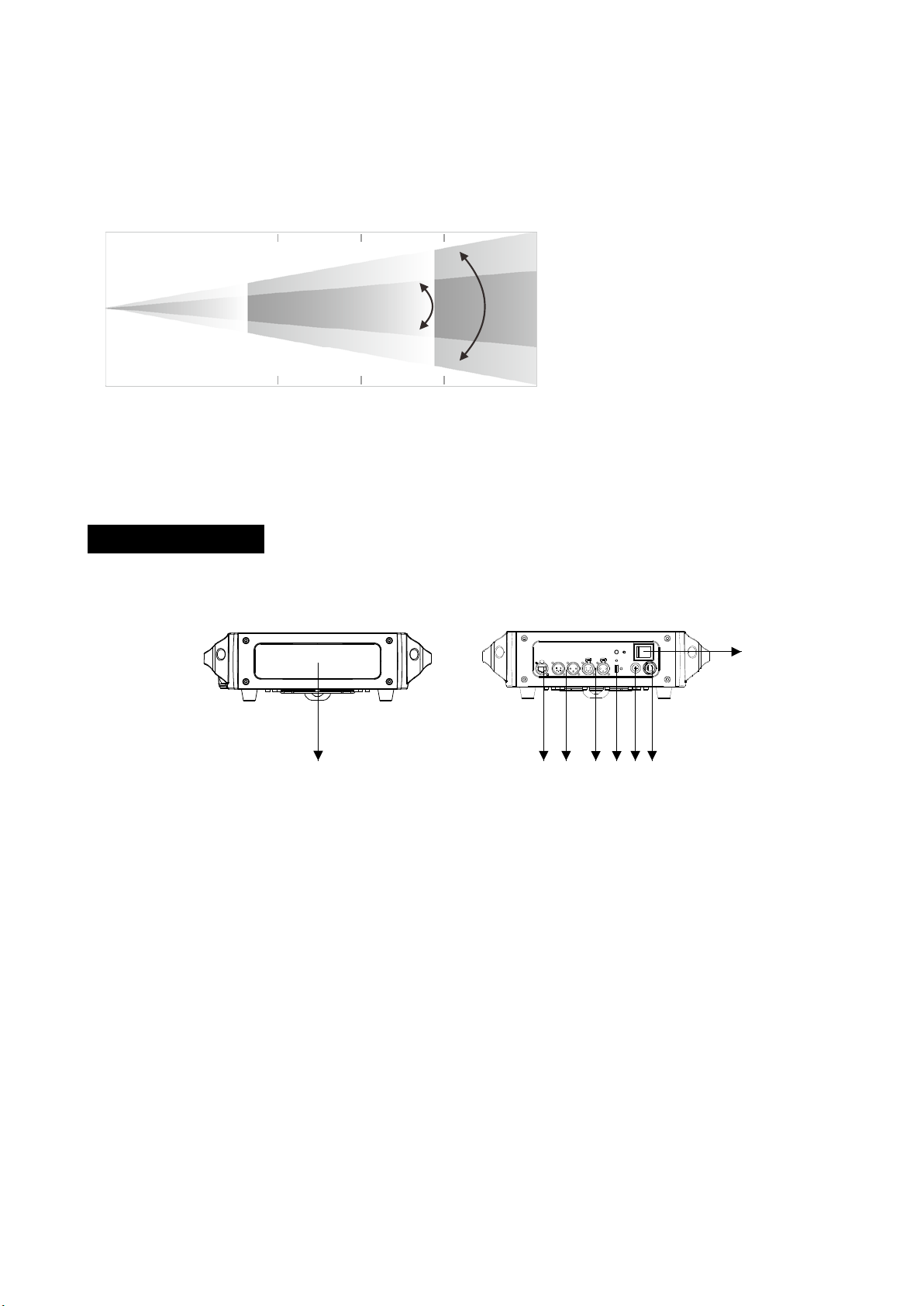

Photometrics Diagram

Distance(m)

5 10 15 20

。

10Lux 115000 28000 12500 6800

。

70Lux 2400 800

360 260

Diameter(m) 1.05 2.1 3.15 4.2

Diameter(m) 6.37 12.74 19.11 25.48

。

3. Control Panel

Front View Rear View

1234567

1. FUNCTION DISPLAY:

Shows the various menus and the selected functions;

2. ETHERNET:

Transfers fixture’s information to a main controller;

3. DMX IN:

DMX 512 operation, use3/ 5-pin XLR cable to link the unit and DMX controller;

4. DMX OUT:

DMX 512 operation, use 3/5-pin XLR cable to link the next units;

5. Firmware Upgrade(USB Slot)

：

USB Slot is used to upgrade the unit firmware.

6. FUSE (AC250V/T 15A):

Protect the unit from damage of over voltage or short circuit;

A 5C

7. POWER:

Connect to the mains supply;

8. POWER SWITCH:

Turns On/Off the power;

4. Lamp

4.1 Lamp

Osram Lok-it1400W/PS Brilliant

：

Because of its high internal pressure, there might be a risk that the Discharge lamp would explode

during operation. The lamp emits intense UV radiation which is harmful to the eyes and skin. The

high luminance of the arc can cause severe damage to the retina if you take a close look at the

lamp.

2. To protect the lamp, always turn off the lamp first (via control panel or DMX controller) and let

the unit run at least five minutes to cool down before switching off the mains supply. Never

handle the lamp or luminary when it is hot.

3. Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured alcohol

and wipe it with a lint free cloth before installation.

4. The lamp generates UV radiation. Never operate the lamp without appropriate shielding.

5. When ling up, the lamp operates at high pressure and there is a slight risk of arc tube rupture. The

risk increases with age, temperature and improper handling of the lamp. Do not use the lamp longer

than its lifespan.

6. Make sure the lamp is located in the center of the reflector for the best projection.

A 6C

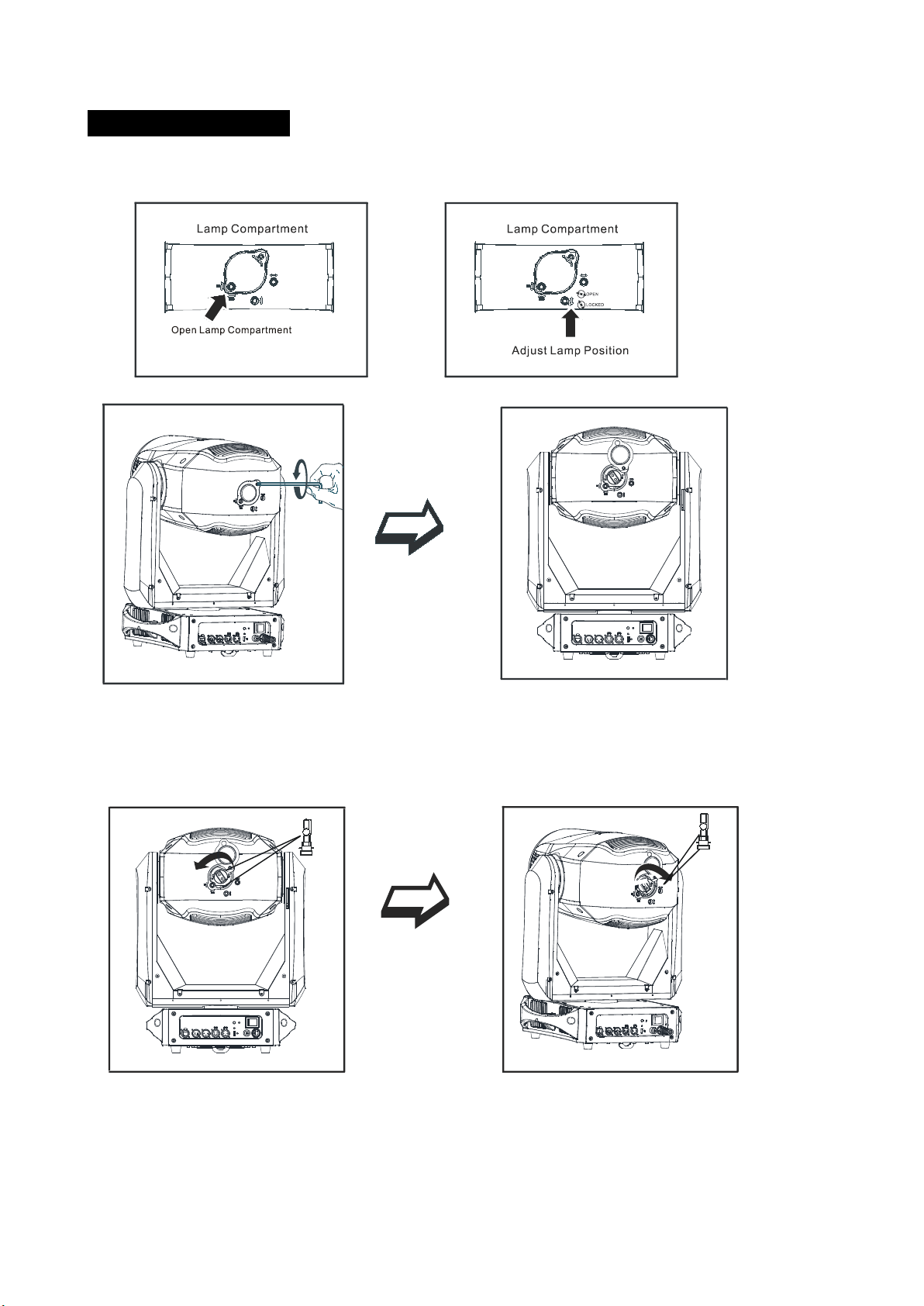

4.2 Change The Lamp

Loosen the screw at the rear side of the fixture and open the lamp compartment cover.

Remove the old lamp and turn the lamp left in order to take the lamp out, put a new lamp that

must be the same type as the old one. And then place the new lamp into the lamp holder and turn

A 7C

the lamp right in order to fix. Finally reinstall the lamp compartment cover, fastening it securely

before turning on power.

5. How To Set The Unit

5.1 Main Function

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the

required function is shown on the monitor. Select the function by the ENTER button. Use the

UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return

to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.

In the event of disconnecting with mains power, press the UP button for one minute to enter into

menu mode. Press MENU button or let the unit idle one minute to exit.

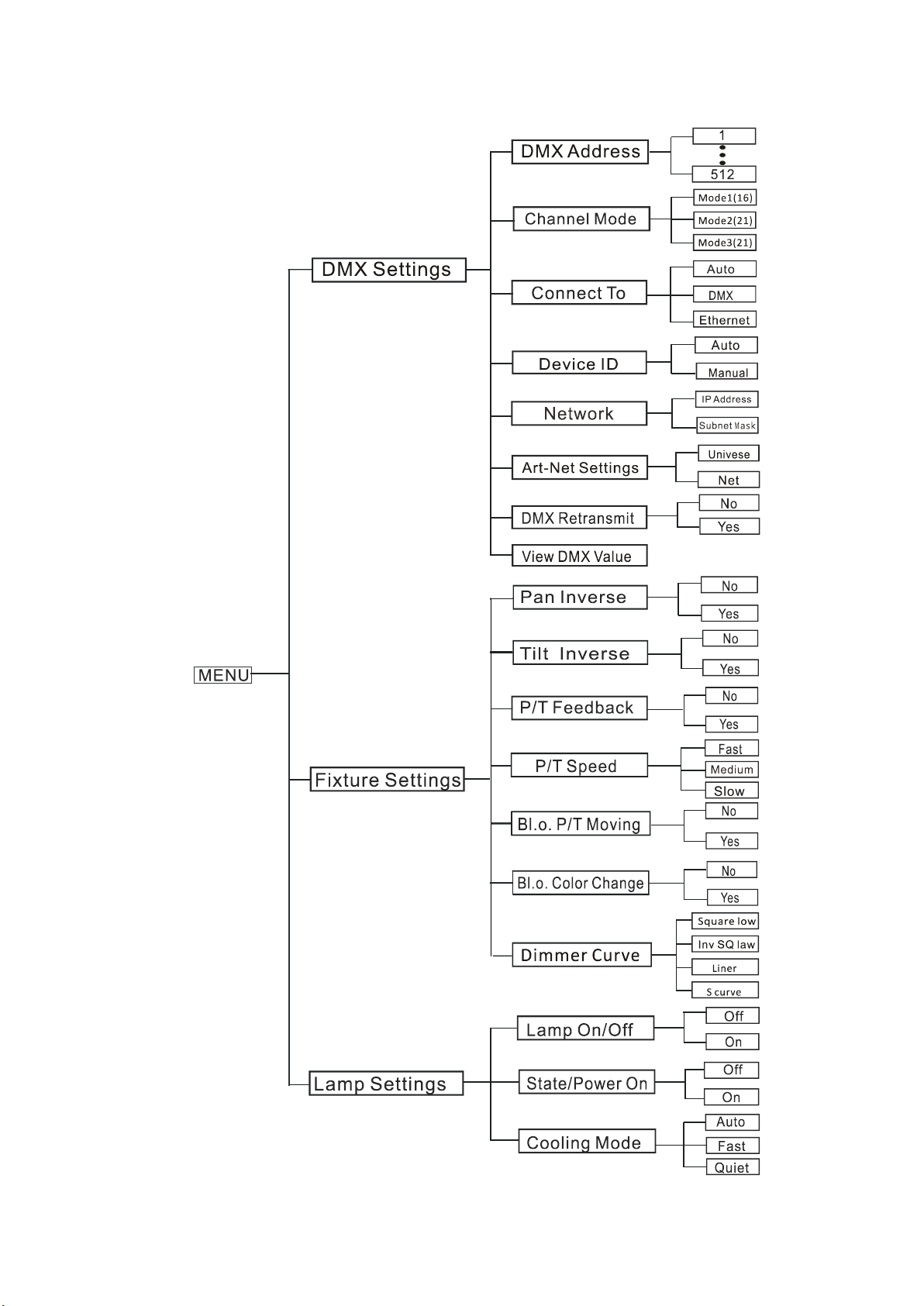

The main functions are shown below:

A 8C

A 9C
