ACME LED-0408 Manuel utilisateur

15-

Technical Specification

Power Input .................…………………………..…...9-12 DC

DMX Output .........................................……………..3 pin female XLR

Audio Input .....................……………….....………….By built-in microphone

Dimensions.....................……………….........……….280 x 170 x 66 mm

Weight......... ...................……............ ......................1.8 kgs

Innovation, Quality, Performance

LIGHT AND EASY

LED-0408

User Guide

Please read these instructions carefully before use

CONTENTS

1. Features.......................................................................................................2

2. General Instruction.......................................................................................3

3. Overview......................................................................................................4

3.1 Front View...........................................................................................4

3.2 Rear View ...........................................................................................5

4. Operation Guide...........................................................................................5

4.1 Store Colour Preset.............................................................................6

4.2 Delete Colour preset...........................................................................6

4.3 Program Chase...................................................................................7

4.4 Insert step to Chase............................................................................7

4.5 Delete Step From Chase.....................................................................8

4.6 Delete Chase......................................................................................9

4.7 Factory Reset......................................................................................9

4.8 Manual Mode....................................................................................10

4.9 Run Colour preset.............................................................................10

4.10 Run CHASE....................................................................................10

4.11 Over control.....................................................................................12

4.12 Strobe .............................................................................................12

4.13 Black Out Mode ..............................................................................12

4.14 Foot Controller (CA-8F )..................................................................13

14-

EC Declaration of Conformity

We declare that our products (lighting equipments) comply with the following

specification and bears CE mark in accordance with the provision of the

Electromagnetic Compatibility (EMC) Directive 89/336/EEC.

EN55103-1:199601-2; EN55103-2:1996;

EN61000-3-2:2000+A2:2005;

EN61000-3-3:1995+A1:2001+A2:2005.

Harmonized Standard

EN 60598-1: 2004

IEC 60598-1:2003+ corrigendum 2004

Part 1:General requirements and test

Following the provisions of the low voltage directive 73/23/EEC and 93/68/EEC

13-

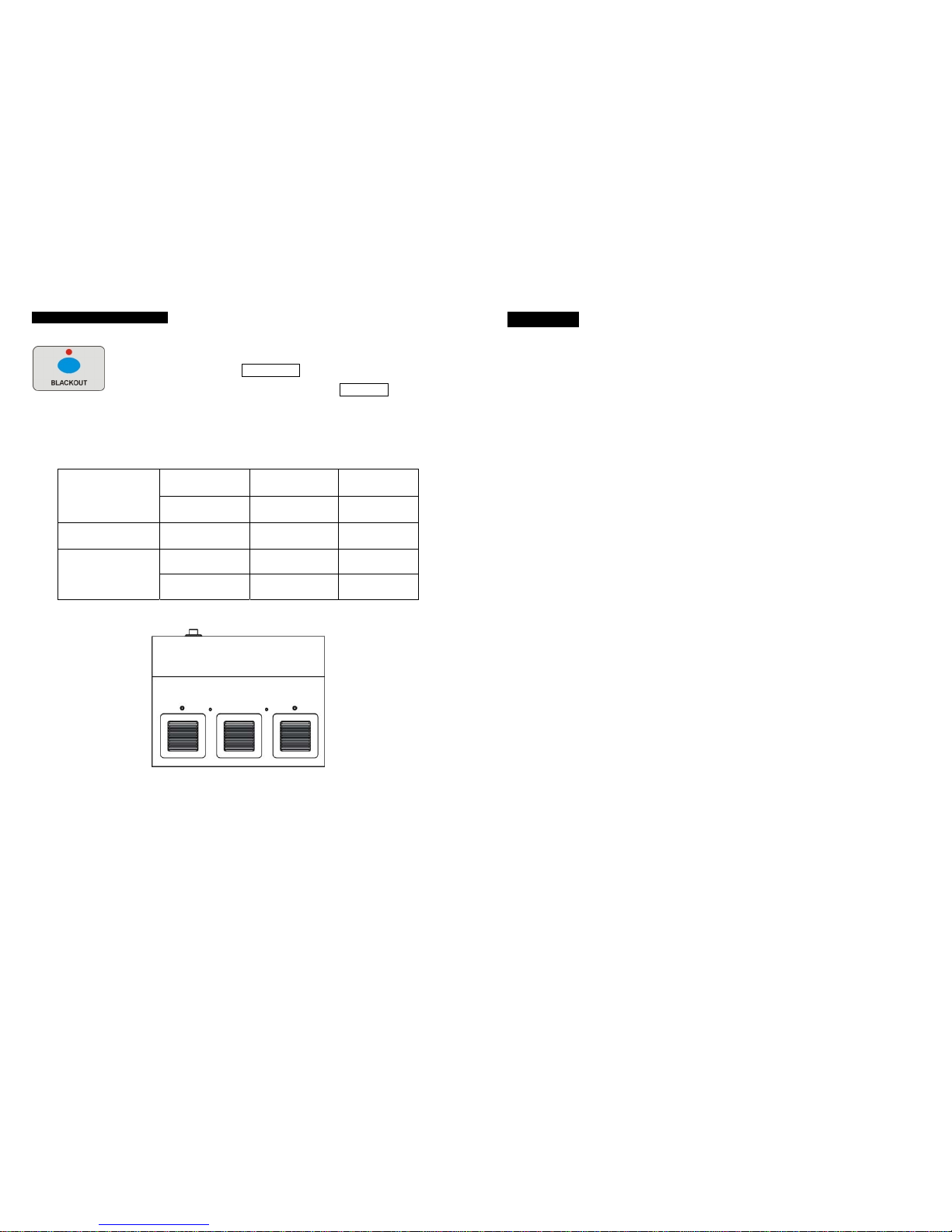

4.14 Foot Controller (CA-8F)

LED-0408 can work with CA-8F, when the CA-8F connect with the

LED-0408, pressing the BLACKOUT button on LED-0408 for 3

seconds to active the CA-8F; pressing the STANDBY button on

CA-8F for 3 seconds to active the LED-0408. When the STAND BY indicator is blinking,

means the LED-0408 is active, when the indicator is not blinking, means the CA-8F is

active. The functions are shown below:

CA-8F

STAND BY (LED1) LED blinking LED off LED on

SWITCH TO

LED-0408 CA-8F

ACTIVATE STAND BY

FUNCTION CHASE

SELECT NEXT STEP STROBE

ACTIVATE

MODE(LED2) LED on LED blinking LED off

MUSIC RUN MANUAL RUN STROBE

1. Features

1. Light and Easy is an user friendly LED controller.

2. Designed to work on all 4-Channel LED lighting fixtures

3. Control up to 32 channels of 8 LED groups

4. 8 individual button s for selecting 8 groups of lighting fixtures

5. LED display for easy navigation

6. 8 Colour pre-set buttons with 4 Banks, 32 pre-set colours in total.

7. 8 Chases, each can save up to 32 scenes

8. 3 operation modesAuto, Sound, Manual.

9. Blackout function and instant strobe access button with variable speed.

10. Optional Foot Controller (CA-8F) for ease of operation.

NOTE:

A knowledge of DMX is required to fully utilize this unit.

2. General Instruction

Please read the user manual carefully, as it includes important information regarding

details of operation, maintenance, and technical data. Keep this manual with the unit for

future consult.

WARNINGS！

yAvoid any inflammable liquids, water or metal objects entering the unit.

yShould any liquid be spilled on the unit, DISCONNECT the power supply to the unit

immediately.

ySTOP using the unit immediately In the event of serious operation problems and either

contact your local dealer for a check immediately.

yDO NOT open the unit--there are no user serviceable parts inside.

yNEVER try to repair the unit yourself. Repairs by unqualified people could cause

damage or malfunction.

CAUTIONS！

yThis unit is NOT intended for home use.

yAfter removing the packing Make that the unit is NOT damaged in any way. If in doubt,

DON'T use it and contact an authorized dealer.

yPackaging material (plastic bags, polystyrene foam, nails, etc.) MUST NOT be left

within children's reach, as it can be dangerous.

yThis unit must only be operated by adults. DO NOT allow children to tamper or play

with it.

yNEVER use the unit under the following conditions:

In places subject to excessive humidity.

In places subject to vibrations or bumps.

In places with a temperature of over 45 C/113 F or less than 2 C/35.6 F.

yProtect the unit from excessive dryness or humidity (ideal conditions are between 35%

and 80%).

yDO NOT dismantle or modify the unit.

12-

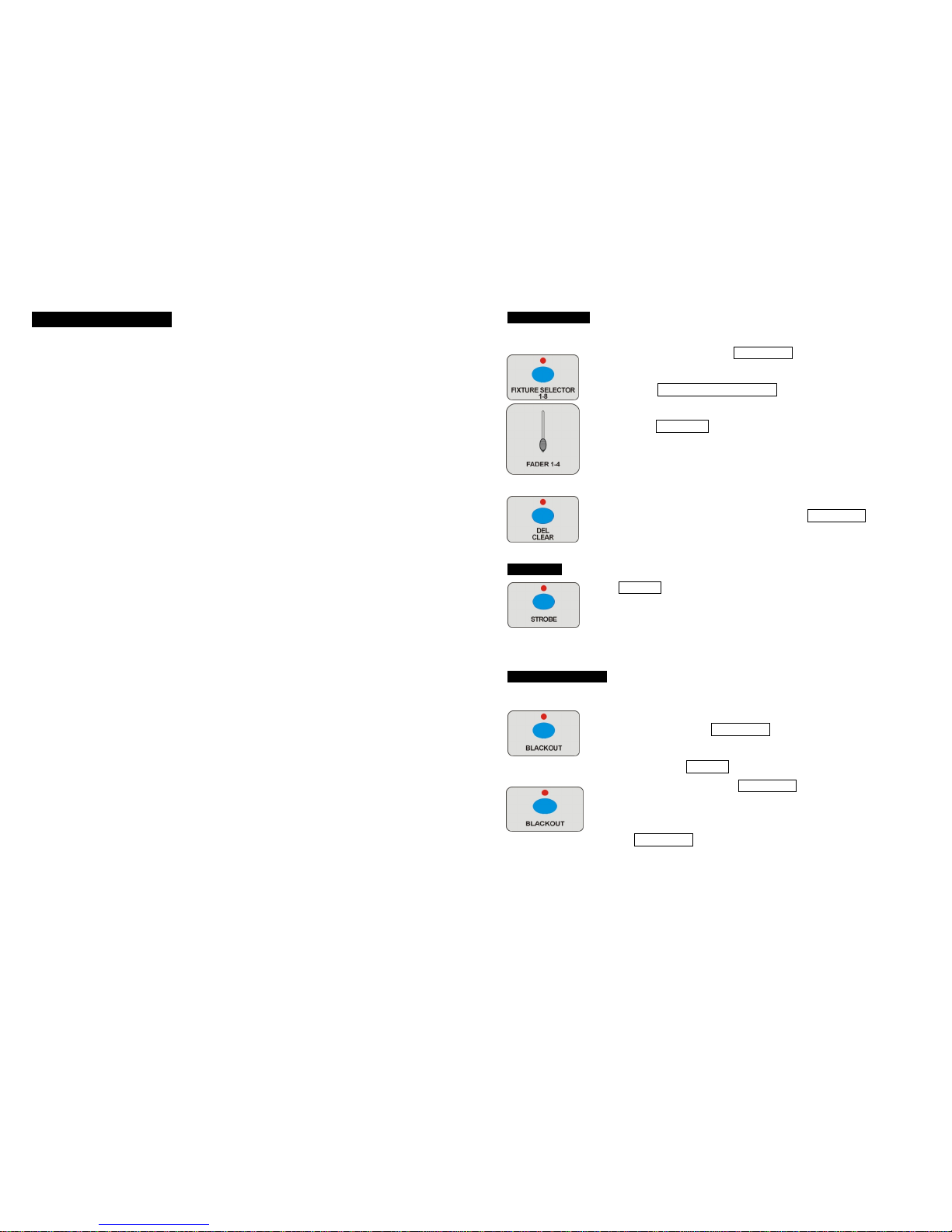

4.11 Over control

It can be used to manually control units when running COLOUR PRESET or CHASE.

1 Ensure the LED above BLACK OUT button is off.

2 Run COLOUR PRESET or CHASE directly.

3 Press FIXTURE SELECTOR 1-8 button to choose units.

4 Push FADER 1-4 to adjust the lighting effect, the changes of the

channel values are in dependent of the COLOUR PRESET or

CHASE.

5 Back to the normal mode, please press DEL/CLEAR button.

4.12 Strobe

Press STROBE button when BLACK OUT LED on or off, all the units will

strobe, at the same time you can jog STROBE SPEED fader to adjust the

strobe speed (1Hz-20Hz).

4.13 Black Out Mode

There are 3 kinds of black out mode that indicate by the LED.

1 LED off: LED-0408 is active.

2 LED on: Pressing BLACK OUT button, corresponding LED on,

all units blackout and outputs become “0” (exception

the STROBE is still active).

3 LED blinking: Pressing BLACK OUT button for 3 seconds,

corresponding LED blinking, the units control by FOOT

CONTROLLOER (CA-8F), all the buttons will not work expect

BLACK OUT button, so you can press to back to LED off mode

and control by LED-0408.

11-

the MANUAL LED on indicating into Manual Mode.

4 Press UP/DOWN button to change the step, UP to the last step,

DOWN to the next step.

B. Sound Mode

1 Insure the LED above BLACK OUT is off.

2 Press CHASE 1-8 button to run the CHASE, the display will

show the present CHASE.

3 Press MANUAL/MUSIC/AUTO button to choose Sound

Mode, the MUSIC LED on indicating Sound Mode.

4 Press UP/DOWN button to adjust the sound sensitivity, the

CHASE will run to the music.

C. Auto mode

1 Insure the LED above BLACK OUT button is off.

2 Press CHASE 1-8 button，the display will show the present

CHASE.

3 Press MANUAL/MUSIC/AUTO button to choose Auto Mode,

the AUTO LED on indicating Auto Mode.

4 Push CHASE SPEED FADER to adjust the CHASE speed, push

FADE FADER to adjust the fade time (the percent of the chase

speed). Press UP/DOWN button to set the run time for CHASE

(It’s useful when you run more than one CHASE at one time).

You can also change the CHASE speed via INSERT/TAP

button. When running the CHASE, press the INSERT/TAP

button and the indicator will blinking, then press the

INSERT/TAP button and the indicator off, the blinking time will

be the CHASE speed.

3. Overview

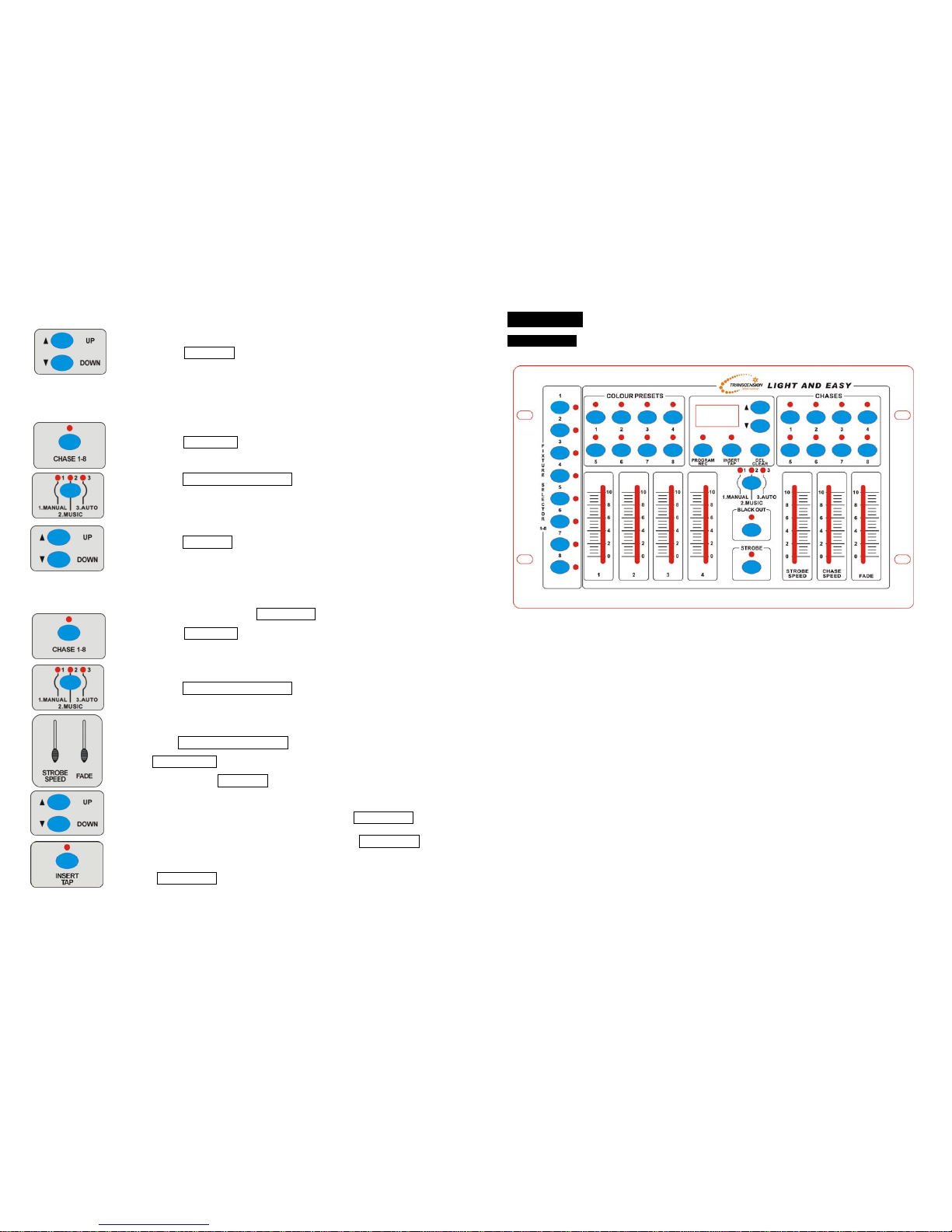

3.1 Front View

FIXTURE SELECTOR 1-8 use to select fixtures

COLOUR PRESETS 1-8 select 32 colours by UP/SOWN button

CHASE 1-8 use to select chase 1-8

PROGRAM/REC enter or exit program/record function

INSERT/TAP Insert one step/set up a tap for chase

DEL/CLEAR delete preset colour, chase or step/clean output,

UP/DOWN select bank, run chase manually, adjust the sound

sensitivity and the times chase auto run.

MANUAL/MUSIC/AUTO use to select running mode, the corresponding LED on

indicating Manual Mode, Sound Mode or Auto Mode.

BLACK OUT use to select black out mode or switch to CA-8 control

FLASH strobe function

FADER 1-4 use to adjust the output of 1-4 channels

STROBE SPEED FADER use to adjust the strobe speed (1-20Hz)

CHASE SPEED FADER use to adjust the chase speed, the run time of each step

can be set from 0.1S to 60M.

FADE FADER use to adjust the fade which show as percentage of the

run time

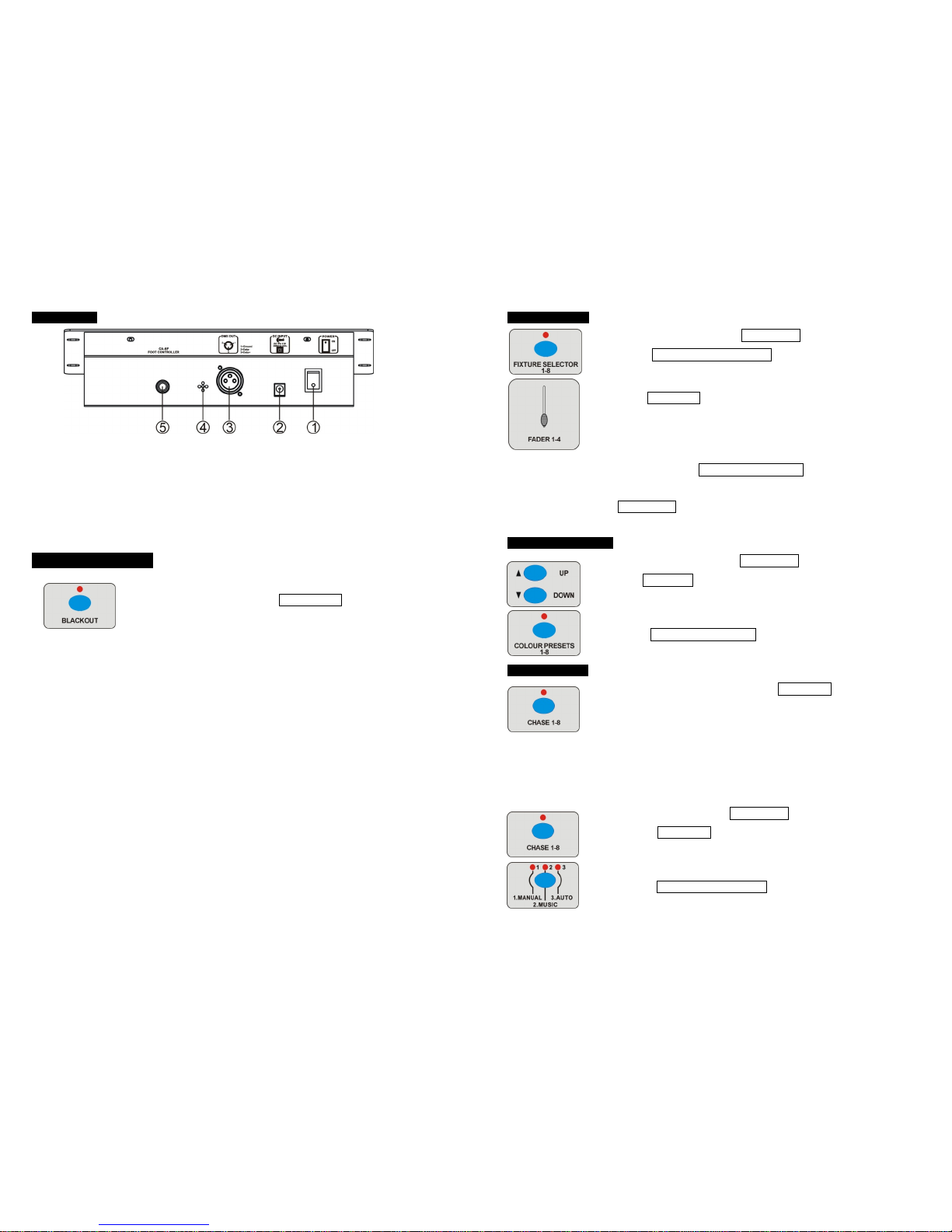

3.2 Rear View

①POWER SWITCH Turn on/off the power

②POWERIN 9-12DC

③DMX Out DMX-512 output

④MICROPHONE Receive music for running chase in sound mode

⑤CA-8F FOOT CONTROLLER CA-8F connector

4. Operation Guide

Turn on the power, the controller access to the last control status of

LED-0408 or CA-8F. Pressing BLACK OUT button to switch to

LED-0408 or CA-8F control. Follow functions will be available under

LED-0408 controlling.

1、CP1.1-CP4.8 colour preset, 4 banks, each bank with 8 presets

2、CAS1-CAS8 chase

3、ST01-ST32 chase step

4、D000-D255 data

5、F01.0-F20.0 strobe speed

6、0.1 /08.8

21.30 /60.00

chase speed (the time interval of two steps)

(1) one digital after radix point: the unit is second

(2) two digital after radix point: the digital before radix

point is minutes, and the digital after radix point is

seconds.

7、P000---P100 fade time: the percent of the chase speed

8、M001-M100 sound sensitivity

9、L001-L200 loop

10、NULL null

10-

4.8 Manual Mode

1 Insure the LED above the BLACK OUT button is off.

2 Press FIXTURE SELECTOR 1-8 button to choose units desired.

3 Push FADER 1-4 to adjust the effect.

ATTENTION: The LED which besides FIXTURE SELECTOR button on indicating the

correspond units could be control by faders, you can delete the setting that you do not

want to store by press DEL/CLEAR button.

4.9 Run Colour preset

1 Insure the LED above the BLACK OUT is off.

2 Use UP/DOWN button to choose BANK 1-4 which store the

COLOUR PRESET desired.

3 Press COLOUR PRESET 1-8 button to run COLOUR PRESET.

4.10 Run CHASE

Be sure there are CHASES stored. Press CHASE 1-8 buttons to

run CHASE directly, the correspond LED will be on. If you choose

more than one CHASE at a time, then the first correspond LED will be on

and others will blinking (1Hz), all the CHASE will circuit run one by one.

There are three modes: Manual Mode, Sound Mode and Auto mode.

A. Manual mode

1 Insure the LED above BLACK OUT button is off.

2 Press CHASE 1-8 button to run the CHASE, the display will

show the present CHASE.

3 Press MANUAL/MUSIC/AUTO button to choose Manual Mode,

stored).

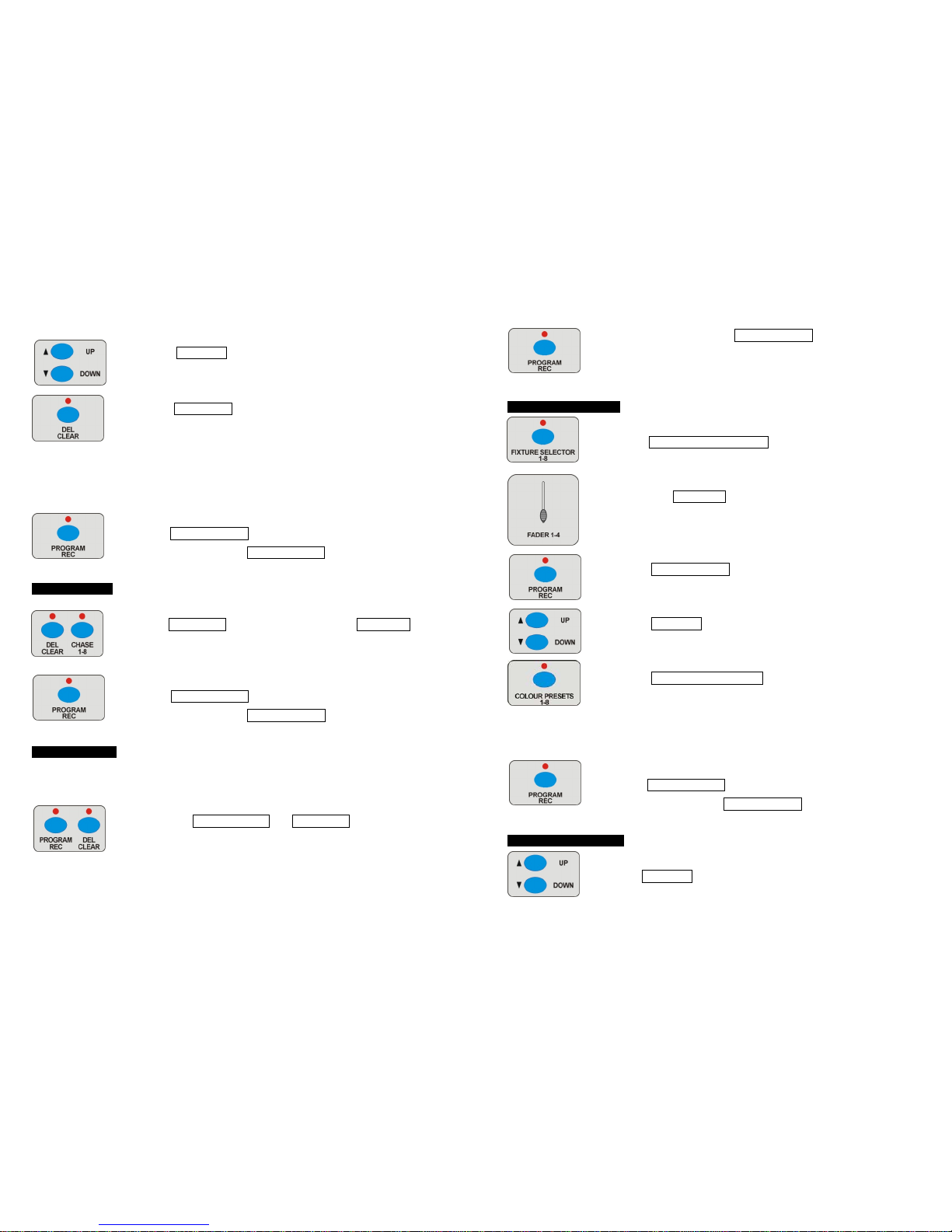

4 Press UP/DOWN button to choose the step desired to delete ( if

you want to delete the fifth step, set the present display to “ST05”).

5 Press DEL/CLEAR button, all LEDs blinking for 3 times

indicating deleted succeed. ( the steps behind it will move forward

one step, for example, if you delete the fifth step, the sixth step will

move to be the fifth step. If there is none step behind the step

deleted, It will show the last step. Delete all steps, then it will show

“NULL”.)

6 Repeat steps 4-6 to delete more steps.

7 Hold PROGRAM/REC button for 3 seconds to exit programming

mode, the LED above PROGRAM/REC button will be off.

4.6 Delete Chase

1 Enter programming mode.

2 Hold DEL/CLEAR button, and press one of the CHASE 1-8 button,

all LEDs blinking for 3 times, the opposite LED off indicating

deleted succeed.

3 Repeat steps 2-3 to delete more chases.

4 Hold PROGRAM/REC button for 3 seconds to exit programming

mode, the LED above PROGRAM/REC button will be off.

4.7 Factory Reset

Be careful, factory reset will delete all the settings!

1 Turn off the power.

2 Press the PROGRAN/REC and DEL/CLEAR button at the same

time, turn on the power, wait until all LEDs blinking, loose the

buttons, the LEDs stop blinking indicating factory reset succeed.

Enter programming mode: hold PROGRAM/REC button for 3 seconds,

the LED above the button blinking indicating program in active.

4.1 Store Colour Preset

1 Enter programming mode.

2 Press FIXTURE SELECTOR 1-8 button to choose units.

3 Push fader FADER 1-4 to adjust the output.

4 Press PROGRAM/REC button.

5 Press UP/DOWN button to choose bank 1-4 to store colour preset

(jump this step if you chose a bank before).

6 Press COLOUR PRESETS 1-8 button, all LED blinking for 3

times, the corresponding LED blinking indicating store succeed

(when the LED indicator off, means there is null colour preset,

when the LED indicator blinking means one colours preset is

stored).

7 Repeat steps 2-6 to store more colour presets.

8 Hold PROGRAM/REC button for 3 seconds to exit programming

mode, the LED above PROGRAM/REC button will be off.

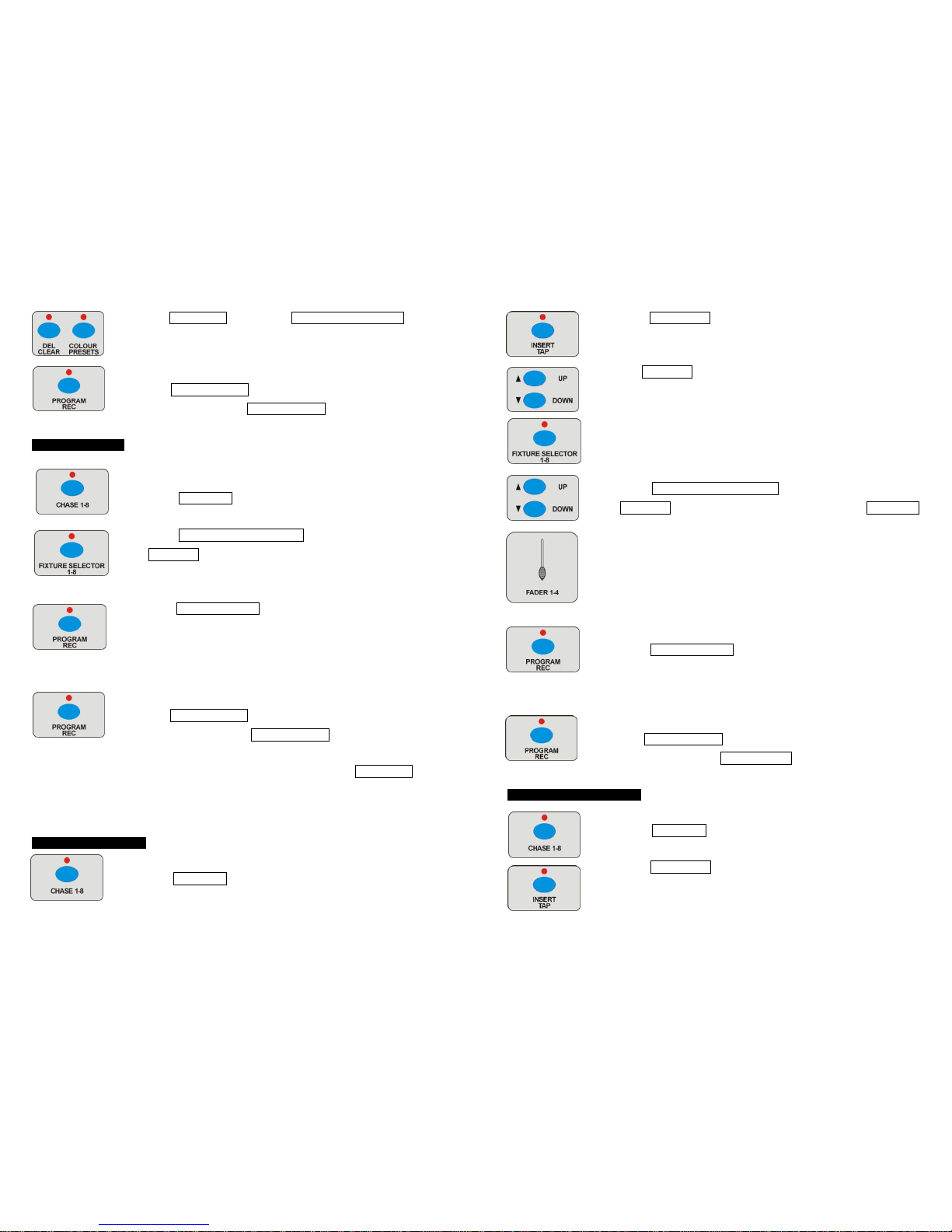

4.2 Delete Colour preset

1 Enter programming mode.

2 Use UP/DOWN button to choose bank 1-4 to store colour preset

(jump this step if you have choose bank before).

3 Hold DEL/CLEAR button, press COLOUR PRESETS 1-8

button, all LED blinking for 3 times, the corresponding LED off

indicating the colour preset deleted succeed.

4 Repeat 2-3 steps to delete more colour presets.

5 Hold PROGRAM/REC button for 3 seconds to exit programming

mode, the LED above PROGRAM/REC button will be off.

4.3 Program Chase

1 Enter programming mode.

2 Press CHASE 1-8 button to choose chase which desired to store

in.

3 Press FIXTURE SELECTOR 1-8 button to choose units, use

UP/DOWN button to choose bank 1-4 that desired to store colour

preset, push fader 1-4 to adjust the light effect, or open a colour

preset stored.

4 Press PROGRAM/REC button, all LEDs blinking for 3 times

indicating one step stored succeed ( it will show “NULL” and do not

store if all outputs are ”0” ).

5 Repeat steps 3-4 to store more steps, each chase 32 steps

maximum, it will show “FULL” when up to 32 steps.

6 Repeat steps 2-5 to store more chases.

7 Hold PROGRAM/REC button for 3 seconds to exit programming

mode, the LED above PROGRAM/REC button will be off.

ATTENTION: Before using any colour preset or lighting effect, press DEL/CLEAR button

to clean the output you set inadvertently, so that you can avoid storing the lighting effect

that unwished.

4.4 Insert step to Chase

1 Enter programming mode.

2 Press CHASE 1-8 button to choose the chase desired to insert

step.

3 Press INSERT/TAP button, the LED above it will on, the present

step will show on the display (for example, it will show “ST00”

when there is no step).

4 Use UP/DOWN button to select the position of inserted steps ( If

you want to insert fifth step, you should set the present step to be

“ST05”).

5 Press FIXTURE SELECTOR 1-8 button to choose units, use

UP/DOWN button to choose colour preset or push the FADER 1-4

to adjust the lighting effect.

6 Press PROGRAM/REC button, all LEDs blinking for 3 times

indicating insert one step succeed.

7 Repeat steps 3-6 to insert more steps, 32 steps maximum, more

than this it will show “FULL”.

8 Hold PROGRAM/REC button for 3 seconds to exit programming

mode, the LED above ROGRAM/REC button will be off.

4.5 Delete Step From Chase

1 Enter programming mode.

2 Press CHASE 1-8 button, choose the chase whose step desired

to delete.

3 Press INSERT/TAP button, the LED above it will on, the present

step show on the display (it will show “ST00” if none step has been

Table des matières

Autres manuels ACME Équipement d'éclairage

ACME

ACME LED-245/2 Manuel utilisateur

ACME

ACME Energy Spot PRO Manuel utilisateur

ACME

ACME Oxygen Manuel utilisateur

ACME

ACME Xperior XP-380 BEAM IP F Manuel utilisateur

ACME

ACME Sunrise Manuel utilisateur

ACME

ACME CB-16TC Manuel utilisateur

ACME

ACME LED-HC50 II Manuel utilisateur

ACME

ACME CM-150 PAGEANT 150 Manuel utilisateur

ACME

ACME CA-DC6S Manuel utilisateur

ACME

ACME Thunderstruck LP-2304 Manuel utilisateur

ACME

ACME GLAMOUR 700Z RGBY Manuel utilisateur

ACME

ACME ENERGY SPOT XA-400 SPOT Manuel utilisateur

ACME

ACME LED-PS10 Manuel utilisateur

ACME

ACME DMX512 Dynamic Scan Manuel utilisateur

ACME

ACME VENOM LED-460 Manuel utilisateur

ACME

ACME XP-5000SZ F Manuel utilisateur

ACME

ACME Theatre Spot 150 Manuel utilisateur

ACME

ACME LED Move 600SE Manuel utilisateur

ACME

ACME Building wash Manuel utilisateur

ACME

ACME STAGE PAR 100 COLOUR IP Manuel utilisateur

ACME

ACME LED-WAV-10W Manuel utilisateur

ACME

ACME Pageant CM-200Z Manuel utilisateur

ACME

ACME COMET Manuel utilisateur

ACME

ACME IM-250 SP Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
