ACME Ozone 3 Manuel utilisateur

CONTENTS

1. Safety Instructions ......................................................................................... 2

2. Technical Specifications ................................................................................. 4

3. How To Set The Unit....................................................................................... 6

3.1 Control Panel ........................................................................................... 6

3.2 Main Function.......................................................................................... 6

3.3 Home Position Adjustment .................................................................... 13

4. Control By Universal DMX Controller ........................................................... 18

4.1 DMX512 Connection.............................................................................. 18

4.2 Address Setting ...................................................................................... 19

4.3 DMX512 Configuration........................................................................... 20

5. Error Information......................................................................................... 28

6. Troubleshooting........................................................................................... 29

7. Fixture Cleaning........................................................................................... 30

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully that there is no transportation damage before using the unit.

This product is suitable for indoor use and wet locations. Do not immerse in water.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.

DO NOT connect the device to any dimmer pack.

During initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.

Make sure there are no flammable materials close to the unit while operating to avoid fire

hazard.

Examine the power wires carefully; replace them immediately if there is any damage.

Unit’s surface temperature may reach up to 75℃. DO NOT touch the housing bare-handed

during its operation.

Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

off the mains power immediately.

DO NOT operate in dirty or dusty environment, do clean fixtures regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid power wires together twist other cables.

The minimum distance between light output and the illuminated surface must be more than

0.5 meters.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the unit as there are no user serviceable parts inside.

Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance center if

needed.

Disconnect the mains power if the fixture is has not been used for a long time.

DO use the original packing materials before transporting it again.

DO NOT look directly at the light while the bulb is on.

DO NOT start on the unit without bulb enclosure or when housing is damaged.

Installation:

The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the

unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure

to which you are attaching the unit is secure and is able to support a weight of 10 times of the

fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when

installing.

The equipment must be installed by professionals. It must be installed in a place where is out of the

reach of people and no one can pass by or under it.

2. Technical Specifications

Power Voltage:

AC 100~240V, 50/60Hz

Power Consumption:

370W

Light Source:

7x40W RGBW LED

Zoom Range:

Beam Angle：6°~40°

Field Angle：10°~60°

Dimmer/Shutter:

Smooth dimming from 0-100%; outstanding strobe effect with variable speed

Movement:

Pan: 540°

Tilt: 250°

Pan/Tilt Resolution: 16bit

Control:

DMX Channel: 17/37 Channels

Control Mode: DMX512, RDM

Firmware Upgrade: via DMX link & USB disk

Construction:

Display: LCD Display

Data In/Out: 3-pin IP XLR

Power In/Out: Waterproof Power Connector in/out

Protection Rating: IP65

Features:

Variable CTO

Pixel control, outstanding color macro effect

Motorized liner zoom system

Fast and silent operation; Flicker-free management

Protection Rating: IP65, can be used outdoors all year round

Dimension/Weight:

303x210x457mm, 15.8kgs

11.9"x8.3"x18"in, 34.8lbs

Photometric Diagram:

3. How To Set The Unit

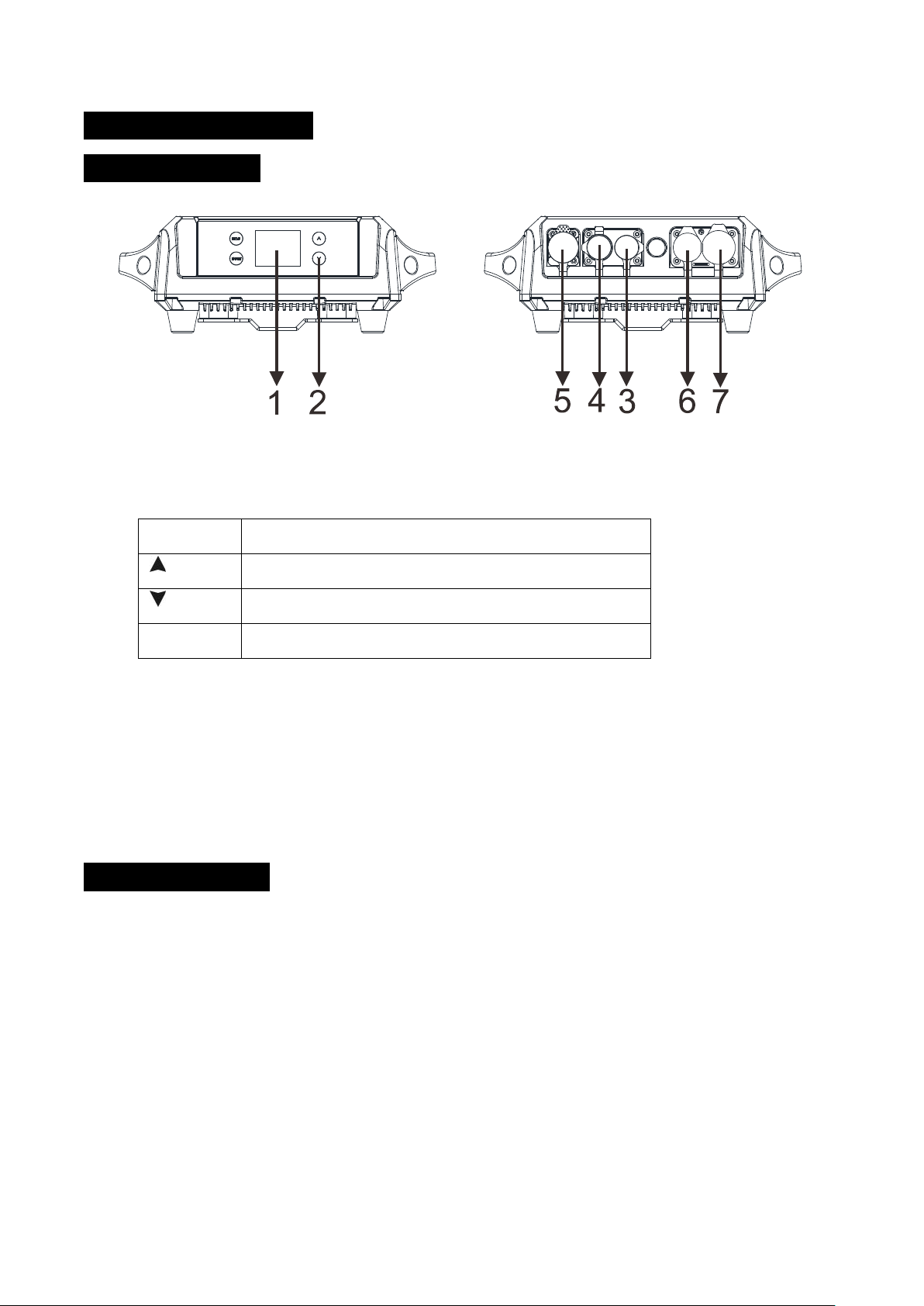

3.1 Control Panel

1. Display: To show the various menus and the selected function

2. Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

3. DMX IN: DMX512 link, use 3-pin XLR cable to link the unit and DMX controller

4. DMX OUT: DMX512 link, use 3-pin XLR cable to link the next units

5. FIRMWARE UPGRADE

6. POWER IN: To connect to supply power

7. POWER OUT: To connect to the next fixture

3.2 Main Function

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until

the required function is shown on the monitor. Select the function by the ENTER button. Use the

UP/DOWN button to choose the submenu, press the ENTER button to store and automatically

return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.

The screen will be automatically locked if there is no operation for a long time, and can be unlocked

by long-pressing the MENU button.

The main functions are shown below:

DMX Settings

To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select

DMX Address, DMX Channel Mode, No DMX Status or View DMX Value.

DMX Address

To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the

address from 001 to 496/4 7 6, press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle 30 seconds to exit menu mode.

DMX Channel Mode

To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to

select Mode1 (17) or Mode2 (37), press the ENTER button to store. Press the MENU button back to

the last menu or let the unit idle 30 seconds to exit menu mode.

No DMX Status

To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select

Blackout(fixture blacks out if DMX signal stops) or Hold(fixture continues to obey the last command

it received Via DMX if DMX signal stops), press the ENTER button to store. Press the MENU button

back to the last menu or let the unit idle 30 seconds to exit menu mode.

View DMX Value

To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view

the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30

seconds to exit menu mode.

Fixture Settings

To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select

Pan Invert, Tile Invert, P/T Feedback, Dimmer Speed, Dimmer Curve or White Balance.

Pan Invert

To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select

No(normal) or Yes(pan invert), press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle 30 seconds to exit menu mode.

Tilt Invert

To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select

No(normal) or Yes(tilt invert), press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle 30 seconds to exit menu mode.

P/T Feedback

To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select

No(Pan or tilt’s position will not feedback while out of step) or Yes(Feedback while pan/tilt out of

step), press the ENTER button to store. Press the MENU button back to the last menu or let the unit

idle 30 seconds to exit menu mode.

Dimmer Speed

To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select

Fast or Smooth, press the ENTER button to store. Press the MENU button back to the last menu or

let the unit idle 30 seconds to exit menu mode.

Dimmer Curve

To select Dimmer Curve, press the ENTER button to confirm. Use the UP/DOWN button to select

Linear, Square law, Inv SQ law or S Curve, press the ENTER button to store. Press the MENU button

back to the last menu or let the unit idle 30 seconds to exit menu mode.

Mode 1(Optically Linear):

The increase in light intensity appears to be linear as DMX value is increased.

Mode 2(Square Law):

Light intensity control is finer at low levels and coarser at high levels.

Mode 3(Inverse Square Law):

Light intensity control is coarser at low levels and finger at high levels.

Mode 4(S-Curve):

Light intensity control is finger at low levels and high levels and coarser at medium levels.
