ACME COMET Manuel utilisateur

- 1 -

CONTENTS

01/ Safety Instructions.................................................................................................. 2

02/ Technical Specifications ........................................................................................ 4

03/ Control Panel........................................................................................................... 6

04/ Fixture Installation.................................................................................................. 8

05/ How To Set The Unit............................................................................................ 10

5.1 Main Functions..............................................................................................10

5.2 Home Position Adjustment ......................................................................... 20

06/ Control By Universal DMX Controller.............................................................. 22

6.1 DMX512 Connection................................................................................... 22

6.2 Address Setting..............................................................................................23

6.3 DMX512 Configuration............................................................................... 23

07/ Error Information .................................................................................................. 25

08/ Troubleshooting ....................................................................................................29

09/ Fixture Cleaning....................................................................................................30

- 2 -

01/ Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be

sure that they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer

will not accept liability for any resulting defects or problems.

Unpack and check carefully to ensure that there is no transportation damage before

using the unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of

head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from

adjacent surfaces.

Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.

Before operation, ensure that you are connecting this product to the proper voltage in

accordance with the specifications in this manual or on the product’s specification label.

It’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do

not operate this product at a lower or higher temperature.

DO NOT connect the device to any dimmer pack.

Keep flammable materials away from the fixture while operating to avoid fire hazard.

Make sure the power cord is not crimped or damaged; replace it immediately if damaged.

Unit’s surface temperature may reach up to 75 ℃. DO NOT touch the housing

bare-handed during its operation.

Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut

Please read the instruction carefully which includes important information

about the installation, usage and maintenance.

- 3 -

off the mains power immediately.

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid entanglement of the power cord with other wires.

The minimum distance to objects/surface must be more than 5 meters.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly

damaged.

DO NOT open the housing as there are no user serviceable parts inside.

DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any

repairs yourself. Repairs carried out by unskilled people can lead to damage or

malfunction. Please contact the nearest authorized technical assistance center if needed.

Disconnect this product from its power source before servicing.

DO use the original packaging if the device is to be transported.

Avoid direct eye exposure to the light source while the product is on.

DO NOT operate this product if you see damage on the housing, shields, or cables. Have

the damaged parts replaced by an authorized technician at once.

- 4 -

02/ Technical Specifications

Power Voltage

180-240V~ 50/60Hz

Power Consumption

2180W

Light Source

SCL1800-65-R95

Color Temperature

6000K

Zoom Range

5°-15°

Dimmer/Strobe

0-100% smooth dimming; outstanding strobe effect with variable

speed

Control

DMX Channel

7 Channels

Control Mode

DMX512

RDM

Manual Control

Touch Screen

Firmware Upgrade

Firmware Upgrade via DMX link

Construction

Display

LCD display

Data In/Out

3-pin XLR (5-pin XLR is optional)

Power In/Out

Power Cord in

Protection Rating

IP20

Features

Color Rendering: Ra≥95, R9≥90, R15≥95, TLCI≥95, CCI: 0-1.2G

1 x color wheel: 6 colors

1 x color temperature wheel: 6 color temperature plates

1 x minus green wheel: 3 minus-green plates

Power Mode: three power modes

Manually adjust dimmer

Manually adjust frost, focus, zoom and iris

Dimensions

786.7x1052x1425mm

31"x41.4"x56.1"in

Weight

74.5kgs

164.2lbs

- 5 -

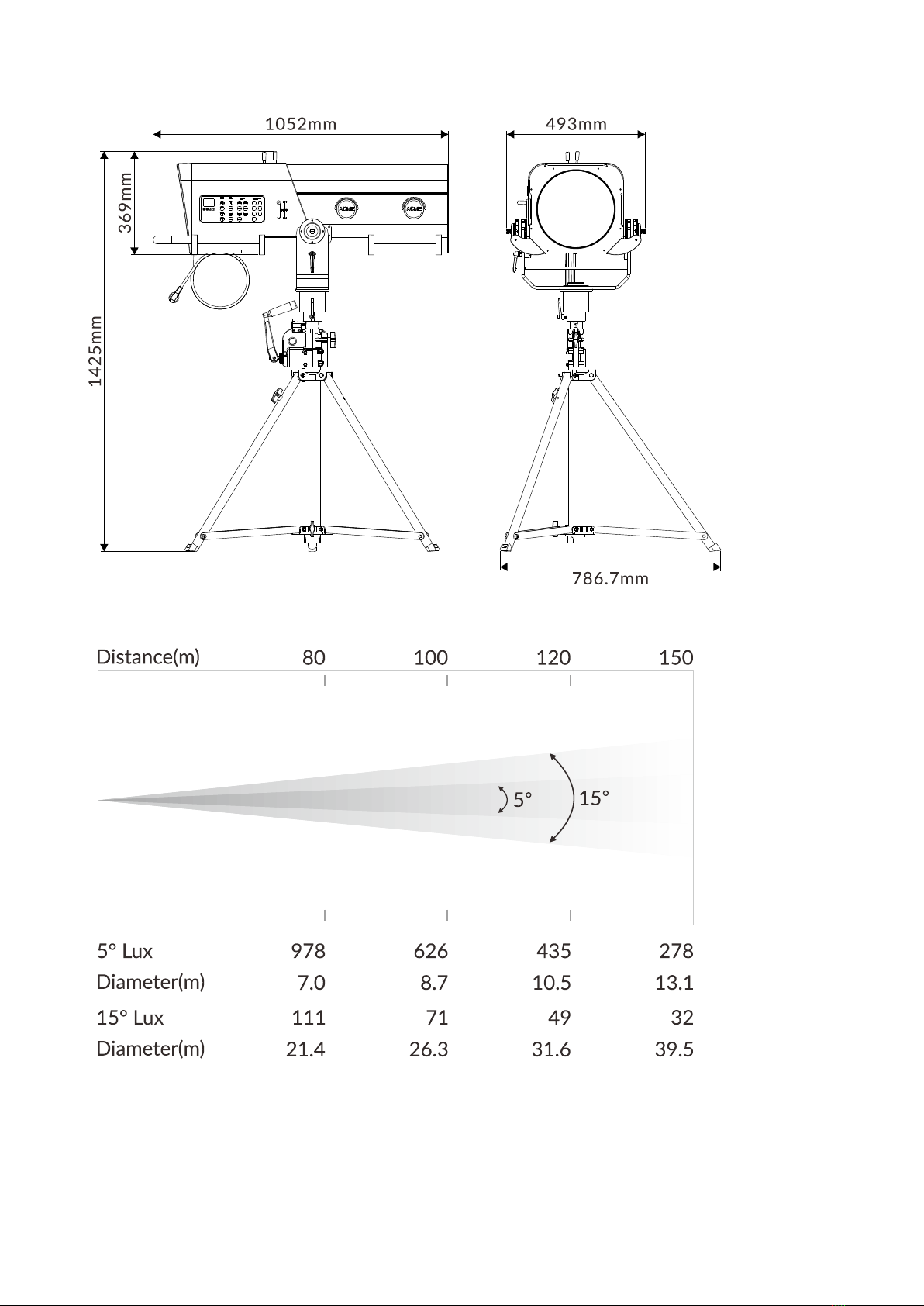

Photometric Diagram:

- 6 -

03/ Control Panel

- 7 -

1. Display

To show the various menus and the selected function

2. Buttons

To enter into move backward or leave the menu

UP

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

3. MASTER

DIMMER

100%

Full power

MODE 1

Power mode 1

MODE 2

Power mode 2

MODE 3

Power mode 3

4. MINUS GREEN

3 minus-green modes

5. CCT

7 color temperatures are available.

6. COLOR

6 colors and white are available.

7. FROST

Manually adjust the frost value

8. FOCUS

Manually adjust the focus value

9. ZOOM

Manually adjust the zoom value

10. DIMMER

Manually adjust the dimmer value

11. IRIS

Manually adjust the iris value

12. DMX IN

For DMX512 link, use 3-pin XLR cable to link the unit and DMX

controller to input DMX signal (5-pin XLR cable is optional)

13. DMX OUT

For DMX512 link, use 3-pin XLR cable to link the next units to

output DMX signal (5-pin XLR cable is optional)

14. POWER

To connect to supply power

15. POWER

SWITCH

Turns on/off the power

- 8 -

04/ Fixture Installation

DO install and operate by qualified operator. Fixture(s) should be installed in areas

outside walking paths, seating areas, or away from areas were unauthorized personnel

might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging,

removing or servicing.

Always ensure that the unit is firmly fixed to avoid vibration and slipping off during

operation. Ensure that the trussing or area of installation must be able to hold 10 times

the weight without any deformation. Always attach a safety cable that can hold at least

12 times the weight of the fixture whenever installing this fixture in a suspended

environment to ensure that the fixture will not fall if the clamp fails.

1. Align the column of the fixture holder with the column of the tripod and insert it, then lock

the handle.

- 9 -

2. Align the bearing of the fixture with the groove of the fixture holder, then align the bolts

with the bolt holes and insert them, and lock two screws. The tripod is installed.
