ACME CHIRON Manuel utilisateur

CONTENTS

1. Safety Instructions ......................................................................................... 2

2. Technical Specifications ................................................................................. 4

3 Control Panel .................................................................................................. 6

4. Color/Gobo and Lamp.................................................................................... 7

4.1 Color/Gobo .............................................................................................. 7

4.2 Light Source ............................................................................................. 7

4.3 Change The Lamp..................................................................................... 8

4.4 Lamp Replacement Warning .................................................................. 10

5. How To Set The Unit..................................................................................... 10

5.1 Main Function........................................................................................ 10

5.2 Home Position Adjustment .................................................................... 18

6. Control By Universal DMX Controller ........................................................... 21

6.1 DMX512 Connection.............................................................................. 21

6.2 Address Setting ...................................................................................... 22

6.3 DMX512 Configuration........................................................................... 22

7. Error Information......................................................................................... 27

8. Troubleshooting........................................................................................... 32

9. Fixture Cleaning........................................................................................... 33

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully that there is no transportation damage before using the unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.

DO NOT connect the device to any dimmer pack.

During initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.

Make sure there are no flammable materials close to the unit while operating to avoid fire

hazard.

Examine the power wires carefully; replace them immediately if there is any damage.

Unit’s surface temperature may reach up to 90℃. DO NOT touch the housing bare-handed

during its operation.

Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

off the mains power immediately.

DO NOT operate in dirty or dusty environment, do clean fixtures regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid power wires together twist other cables.

The minimum distance between light output and the illuminated surface must be more than 12

meters.

Disconnect mains power before fuse/lamp replacement or servicing.

Replace fuse/lamp only with the same type.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the unit as there are no user serviceable parts inside.

Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance center if

needed.

Disconnect the mains power if the fixture is has not been used for a long time.

DO use the original packing materials before transporting it again.

Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.

DO replace the bulb once it is damaged, deformed or life-expired.

DO NOT look directly at the light while the bulb is on.

Never touch bulb with bare fingers, as it is very hot after using.

DO NOT start on the unit without bulb enclosure or when housing is damaged.

Installation:

The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the

unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure

to which you are attaching the unit is secure and is able to support a weight of 10 times of the

fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when

installing.

The equipment must be installed by professionals. It must be installed in a place where is out of the

reach of people and no one can pass by or under it.

2. Technical Specifications

Power Voltage:

AC 100~240V, 50/60Hz

Power Consumption:

540W

Light Source (Optional):

OSRAM SIRIUS HRI 370W LL

PHILIPS MSD Platinum 18 R LL

Color Temperature:

7650K

Beam Angle:

2°

Movement:

Pan: 540°

Tilt: 270°

Pan/Tilt Resolution: 16 bit

Dimmer/Shutter:

Smooth dimming from 0-100%; outstanding strobe effect with variable speed

Color wheel:

1 color wheel with 14 colors plus open and rainbow effect

Gobo wheel:

1 static gobo wheel with 16 gobos plus open

Control:

DMX Channel: 14/17 Channels

Protocols: DMX512, RDM

Firmware Upgrade via DMX link

Construction:

Display: LCD Color display

Data In/Out: 3-pin XLR

Power In/Out: Power Connector in/out

Protection Rating: IP20

Features:

Motorized focus

2 prisms: 8-facet prisms + 24-facet prisms, rotatable in both directions and overlayable

Outstanding color macro effect

Independent frost effect

2 fixed clamps for 50mm truss, 2 pairs locking points of removable clamp for 70mm truss

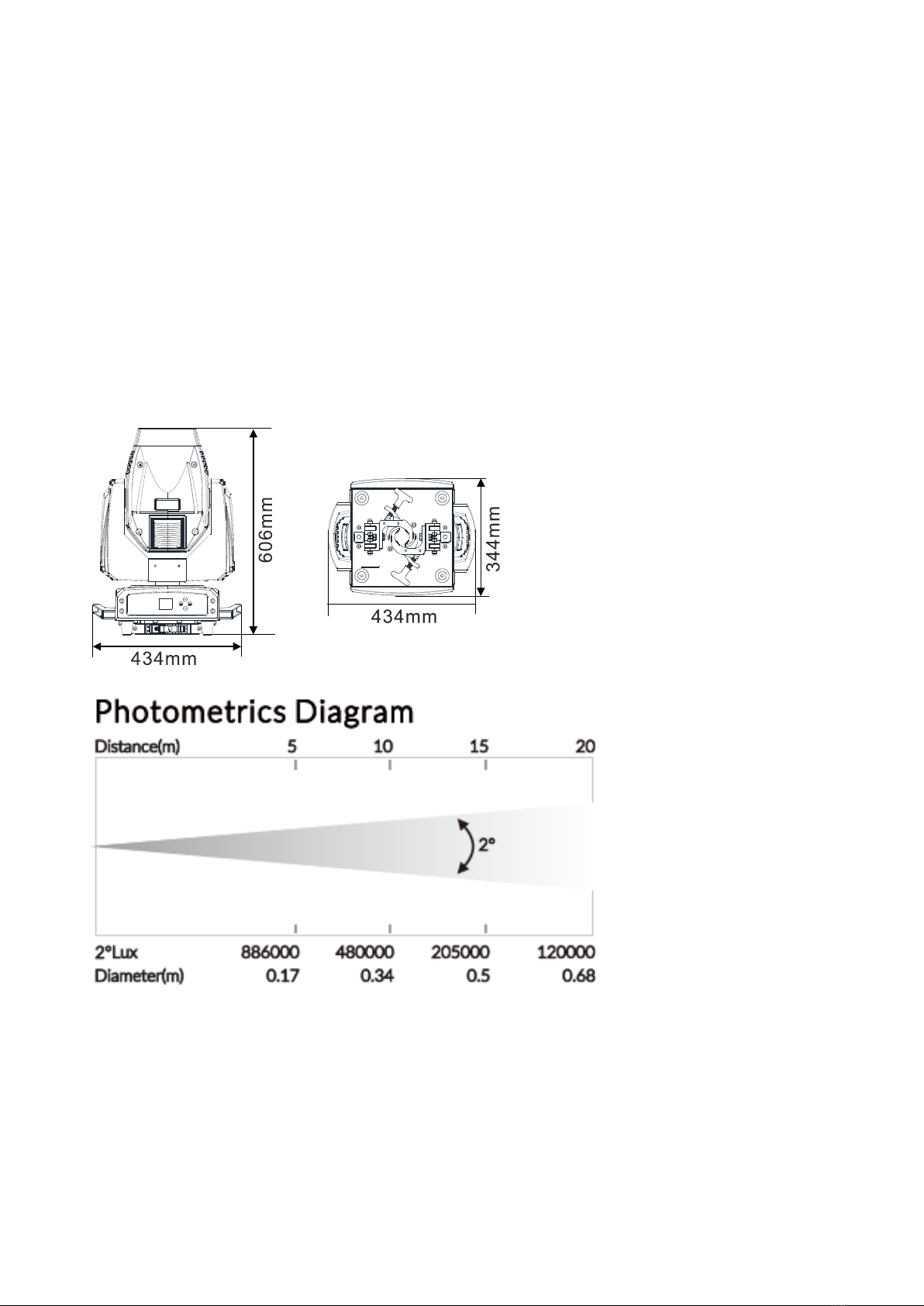

Dimension/Weight:

434x344x606mm, 21.3kgs

17.1"x13.5"x23.9"in, 47lbs

3 Control Panel

Wire Version 1:

Wire Version 2:

POWERCON Version:

1. DISPLAY: To show the various menus and the selected function

2. Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

3. BATTERY DISPLAY

4. DMX IN:

For DMX512 operation, use 3-pin XLR cable to link the unit and DMX controller

5. DMX OUT:

For DMX512 operation, use 3-pin XLR cable to link the next units

6. POWER SWITCH:

Turn On/Off the power

7. FUSE(T 10A):

Protect the unit from damage of over current

8. POWER IN:

Use to connect to supply power

9. POWER OUT:

Use to connect to the next fixture

4. Color/Gobo and Lamp

4.1 Color/Gobo

DANGER!

Install the color wheel/gobo wheels with the device switched off only.

Unplug from mains before changing the color wheel/gobo wheels!

4.2 Light Source

OSRAM SIRIUS HRI 370W LL

PHILIPS MSD Platinum 18 R LL

Because of its high internal pressure, there might be a risk that the Discharge lamp

would explode during operation. The lamp emits intense UV radiation which is harmful

to the eyes and skin. The high luminance of the arc can cause severe damage to the

retina if you take a close look at the lamp.

To protect the lamp, always turn off the lamp first (via control panel or DMX controller)

and let the unit run at least five minutes to cool down before switching off the mains

supply. Never handle the lamp or luminary when it is hot.

Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured

alcohol and wipe it with a lint free cloth before installation.

The lamp generates UV radiation. Never operate the lamp without appropriate shielding.

When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube

rupture. The risk increases with age, temperature and improper handling of the lamp. Do not

use the lamp longer than its lifespan.

Make sure the lamp is located in the center of the reflector for the best projection.

4.3 Change The Lamp

Attention: The entire light path and lens of the luminaire must be thoroughly cleaned before

changing the bulb.

In the Work Mode, the lamp life is 1500 hours; when the Work Mode and the Sleep Mode are used

alternately, the lamp life is between 1500 and 6000 hours according to the ratio of lamp use time; in

the Sleep Mode, the lamp life is 6000 hours. Do not use the bulb beyond its lifetime, otherwise it

may damage the luminaire. Check the Lamp Use Hour regularly. When the lamp replacement

warning appears, we strongly recommend that you replace the bulb. After replacing the bulb, the

use hours of the bulb must be cleared and reset.

To replace the lamp:

1. Ensure that the fixture is detached from power and has cooled down completely. It is a good

idea to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the

cooling fans have time to works.

2. Loosen the screws on the head of the fixture and open the fixture head covers.

3. Loosen the screw that holds the lamp in place. Unplug the leads of the lamp and lift the lamp

out of its recess, disconnect the lamp and connect a new lamp that must be the same type with

the old one. And then place the new lamp into the lamp recess.

Finally reinstall the head cover, fastening it securely before reapplying power.

Warning:

The installing direction of lamp:
