ACME Colortec 250 Manuel utilisateur

Colortec 250

Colour Changer

Order code: COLO01

User Guide

Please read the instruction carefully before using

Contents

1. Safety Instructions............................................................................................................................2

2. Features ............................................................................................................................................3

3. Technical Specifications ..................................................................................................................3

4. How To Set The Unit .......................................................................................................................4

4.1 Control Panel..............................................................................................................................4

4.2 Main Function............................................................................................................................5

5. How To Set The Unit .......................................................................................................................9

5.1 Master/Slave Built In Preprogrammed Function .....................................................................10

5.2 Easy Controller ........................................................................................................................10

5.3 DMX Controller.......................................................................................................................10

5.4 DMX 512 Configuration..........................................................................................................11

5.5 DMX512 Connection...............................................................................................................12

6. Troubleshooting .............................................................................................................................13

7. Cleaning And Maintenance............................................................................................................14

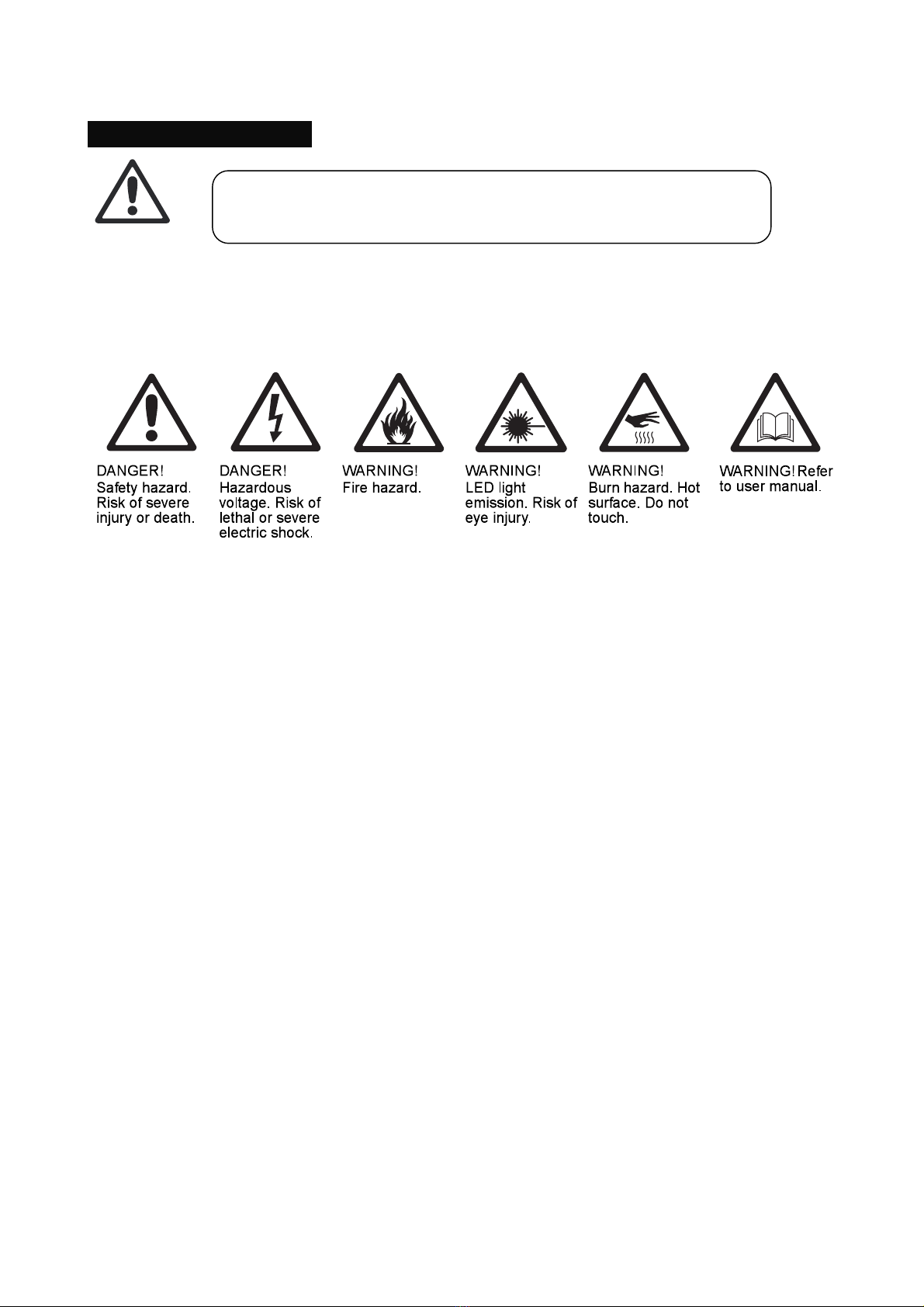

1. Safety Instructions

Please keep this User Guide for future consultation. If you sell the fixture to another user,

be sure that they also receive this instruction booklet.

Cautions:

All fixtures are intact from the manufacturer, to operate please refer to the user manual.

Unpack and check carefully there is no transportation damage before using the fixture.

Be sure that no ventilation slots are blocked, otherwise the fixture will overheat.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the fixture.

Use in a dry location.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Maximum ambient temperature is 40°. Do not operate when the temperature is higher than this.

Make sure there are no flammable materials close to the fixture while operating,

as it is fire hazard.

Examine power wires carefully, replace immediately if there is any damage.

Fixture surface temperature may reach up to 65°. Do not touch the housing with bare-hands

during its operation.

Running for prolonged periods of time will shorten the products life span.

Do not operate in dirty and dusty environments, also clean fixtures regularly.

Do not allow children to operate the fixture.

Never turn on and off the fixture time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

Please read the instructions carefully which includes important

information about the installation, operation and maintenance.

Do not open the fixture as there are no user serviceable parts inside. Never try to repair the

fixture by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.

Please contact the nearest authorized technical assistance center.

Disconnect the mains power if the fixture is not used for a long time.

2. Features

•Featuring 60W LED, one colour wheel for creating different saturated colours.

•Three Operation Modes: DMX, Master / Slave and Sound Active

DMX 512 Control Mode: 3 / 8 channels

•Great built-in lighting shows under Master / Slave mode triggered by music

•0~100% full range dimmer and variable strobe speed

•Optional easy controller CA-8 or CA-9 RTX for instant lighting shows at your fingers

•Two different angles selectable, 9° as standard and 14° as an accessory

•Ideal for restaurants, clubs, bars, discos, parties, mobile Djs and more

3. Technical Specifications

•Input Voltage：AC 100~240V, 50-60Hz

•Power Consumption: 96W

•Light Source: 1 ×60W LED

•Fuse: T 6.3A

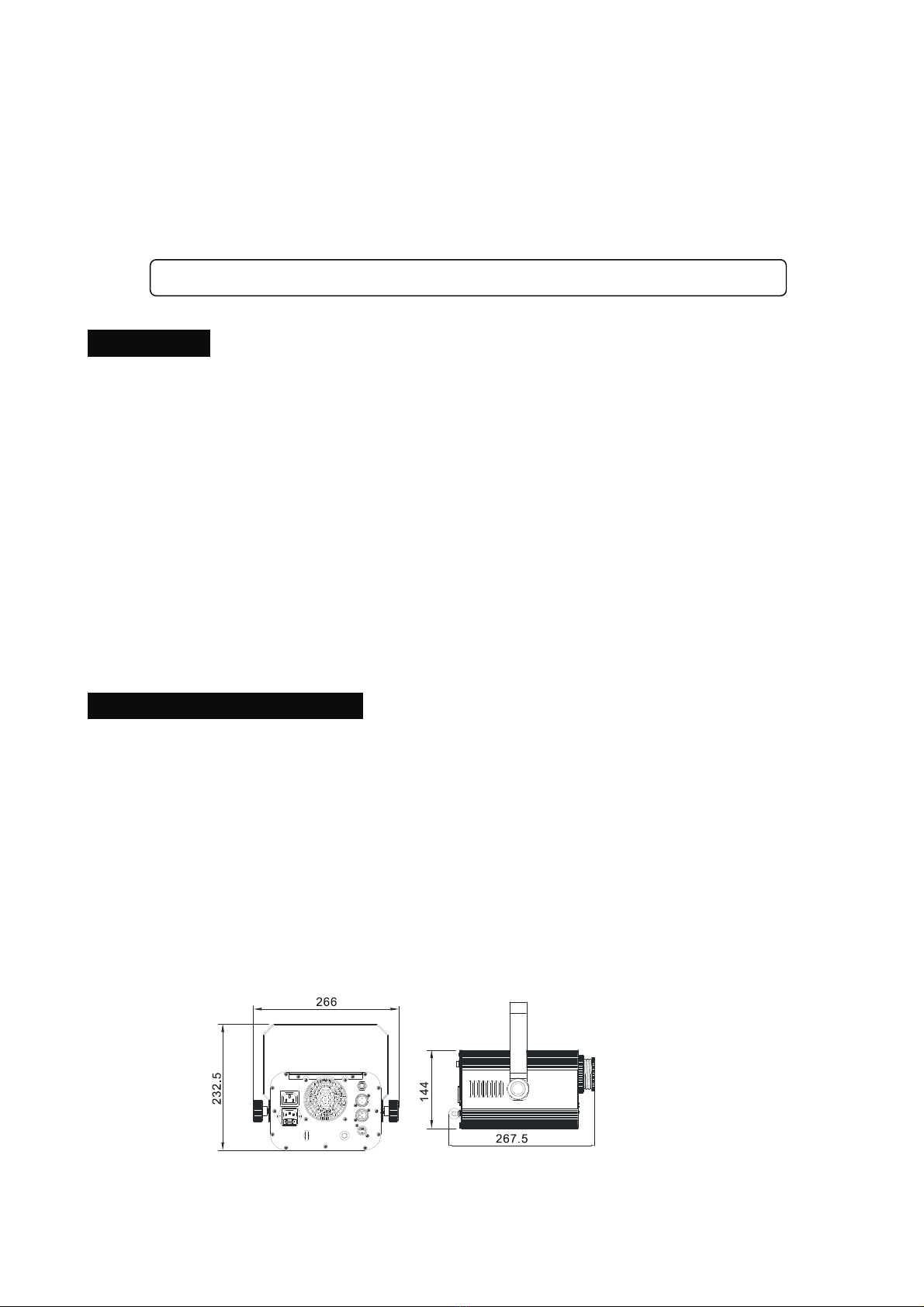

•Dimension:265×255×235mm

•Weight:4.2kgs

For 230V 50Hz power supply, maximum fixtures that can be connected on one power cable is 7.

4. How To Set The Unit

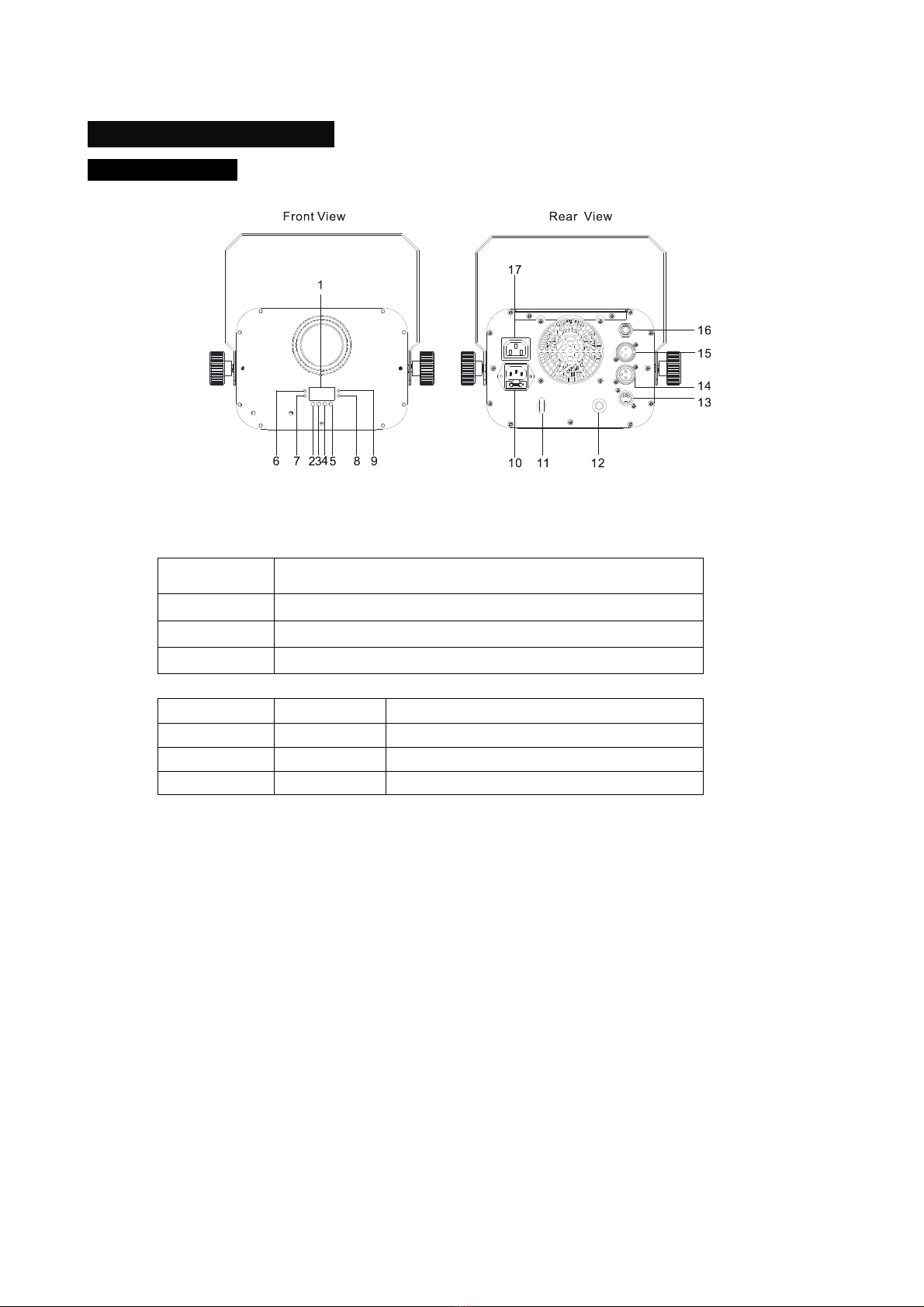

4.1 Control Panel

1. Display

Show the various menus and the selected functions.

Button

2.MENU

To select the programming functions

3.DOWN

To go backward in the selected functions

4.UP

To go forward in the selected functions

5.ENTER

To confirm the selected functions

LED

6.DMX

DMX input present

7.MASTER

Master Mode

8.SOUND

Flashing

Sound activation

9.SLAVE

Slave Mode

10. Power in: Power connection to power source.

11. Safety hook: Used to connect safety cable to.

12. Microphone: Receive music for the sound active.

13. Only for wireless receiver: Connect with CA-9 RTX to control the unit for Stand by, Function

and Mode function.

14. DMX in: For DMX 512 link, use 3-pin XLR plug cable to input DMX signal.

15. DMX out: For DMX 512 link, use 3-pin XLR plug cable to link the next fixture.

16.Only for remote control: Connect with CA-8 to control the unit for Stand by, Function and

Mode function.

17. Power out: Connect to supply mains power for the next fixture.

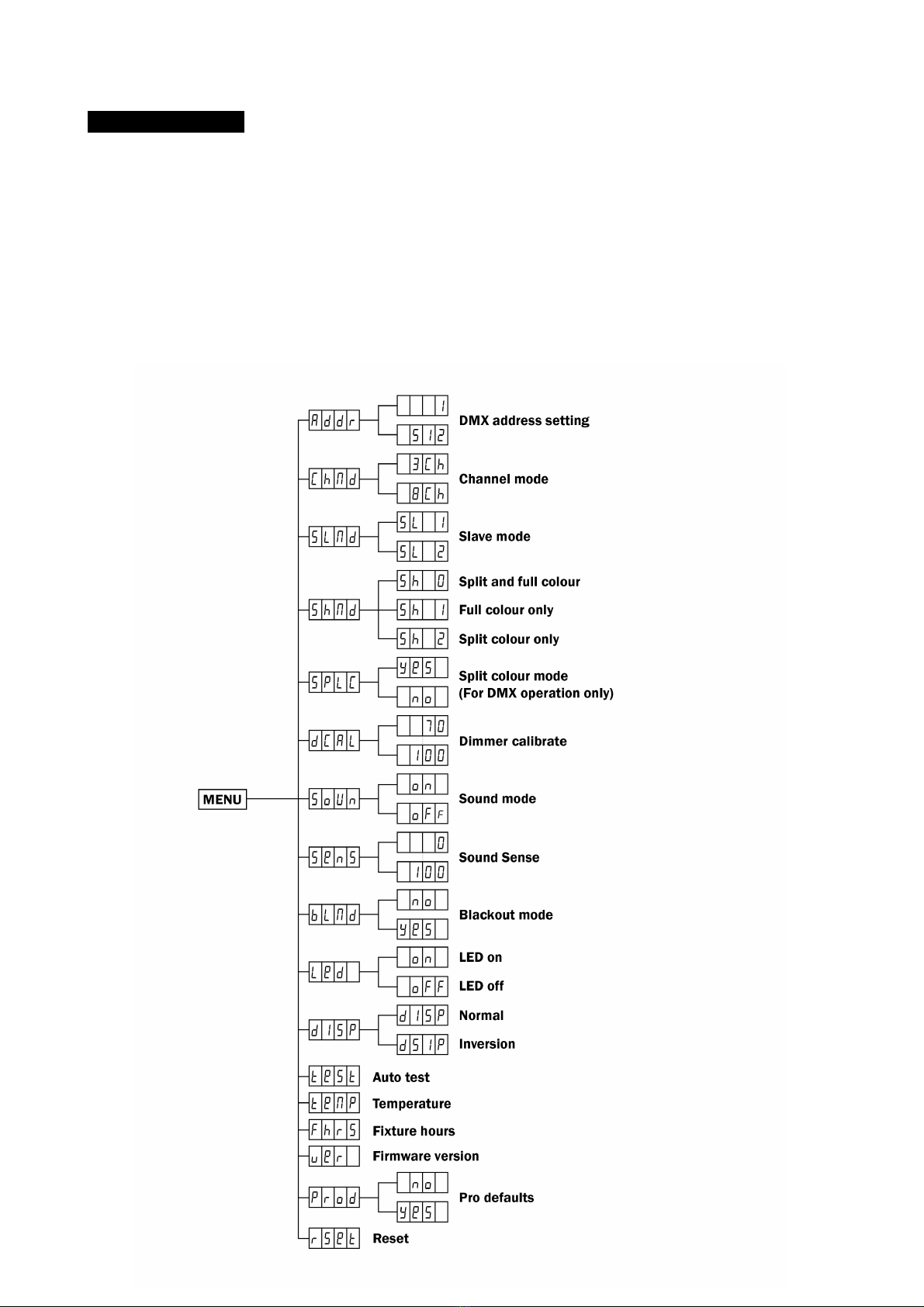

4.2 Main Function

To select any of the given functions, press the MENU button up to when the required one is

showing on the display. Select the function by the ENTER button and the display will blink. Use

the DOWN and UP button to change the mode. Once the required mode has been selected, press

the ENTER button to setup or it will automatically return to the main functions without any change

after idling 8 seconds. To go back to the functions without any change press the MENU button.

The main functions are showing below:

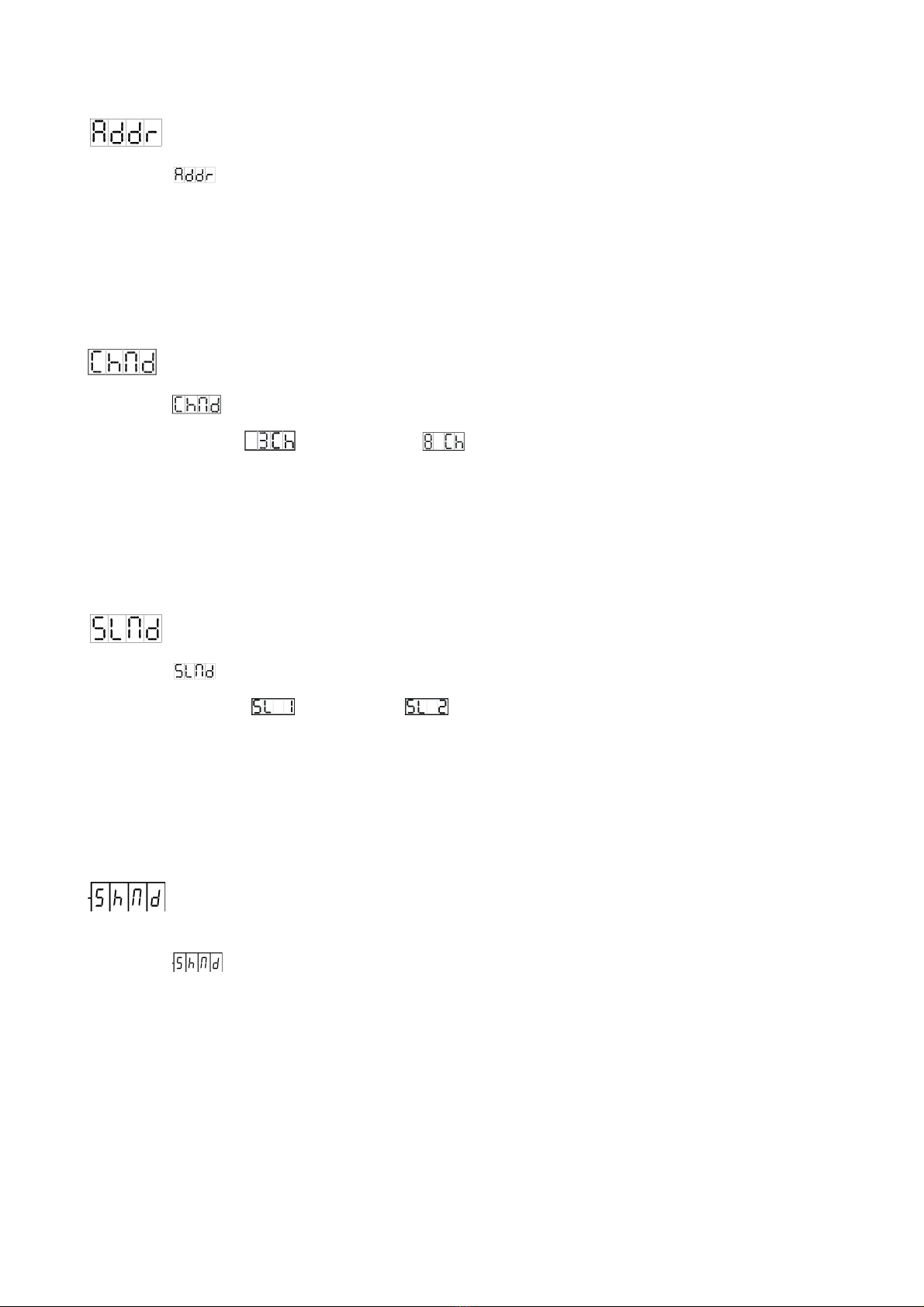

DMX 512 Address Setting

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to change the DMX512 address. Once the address has been selected, press the ENTER

button to setup or automatically return to the main functions without any change after 8 seconds.

To go back to the functions without any change press the MENU button again.

Channel Mode

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to select the (3 channel) or (8 channel) mode. Once the channel mode has

been selected, press the ENTER button to setup, to go back to the functions without any change

press the MENU button again. Hold and press the MENU button about one second or wait for one

minute to exit the menu mode.

Slave Mode

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to select the (normal) or (2 light show) mode. Once the mode has been

selected, press the ENTER button to setup, to go back to the functions without any change press

the MENU button again. Hold and press the MENU button about one second or wait for one

minute to exit the menu mode.

Show Mode

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to select the desired show mode. Once the mode has been selected, press the ENTER button

to setup, to go back to the functions without any change press the MENU button again. Hold and

press the MENU button about one second or wait for one minute to exit the menu mode.

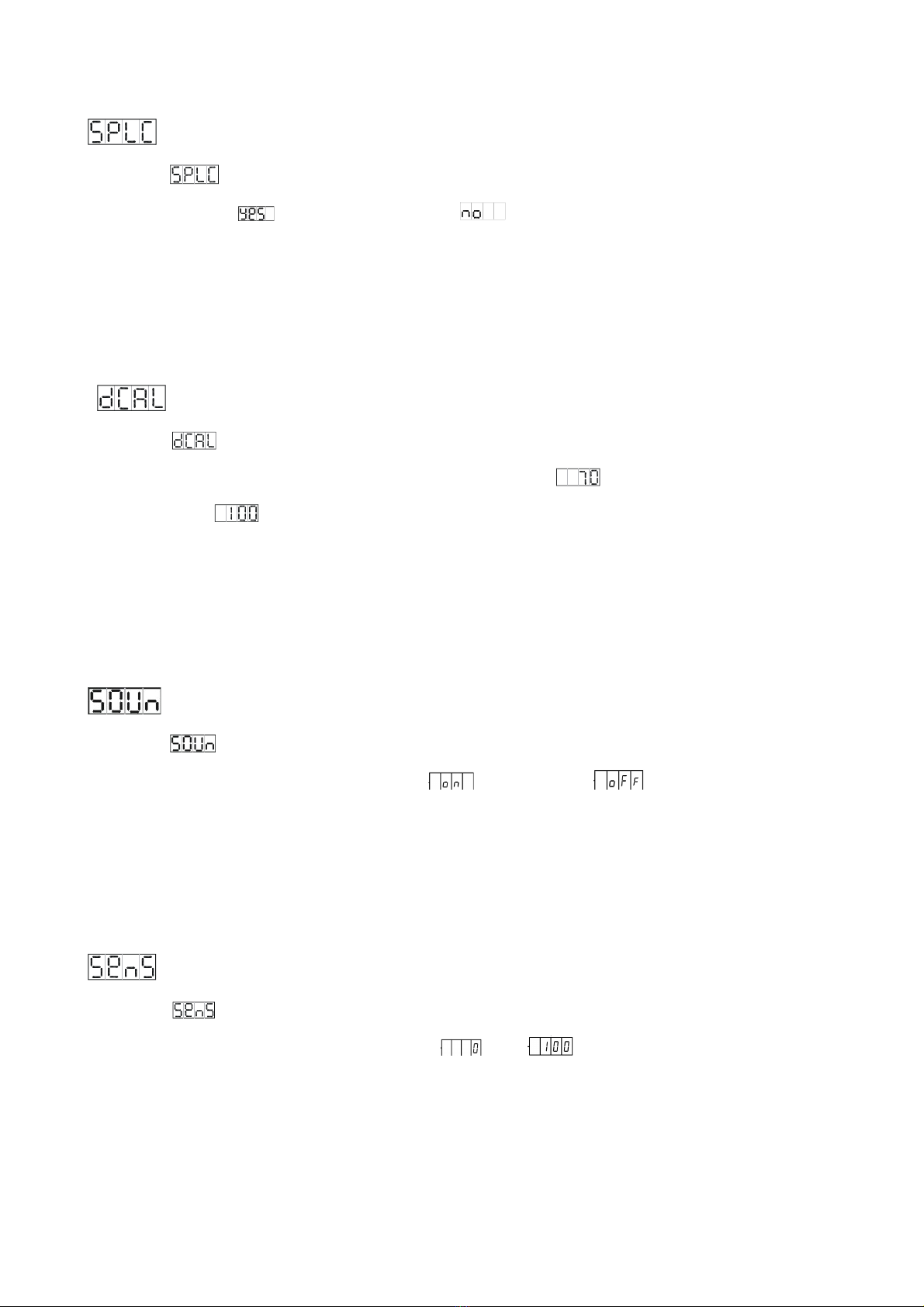

Split Colour Mode

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to select the (Split colour mode) or (normal). Once the mode has been

selected, press the ENTER button to setup, to go back to the functions without any change press

the MENU button again. Hold and press the MENU button about one second or wait for one

minute to exit the menu mode.

Dimmer Calibrate

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to calibrate the dimmer for a maximum output from (limited to 70% of the really

max. output) to (maximum output is not limited). Once the mode has been selected, press

the ENTER button to setup, to go back to the functions without any change press the MENU

button again. Hold and press the MENU button about one second or wait for one minute to exit the

menu mode.

Sound Mode

Select the is showing on the display. Pressing the ENTER button and the display will blink.

Use the DOWN and UP button to select the (sound on) or (sound off) mode. Once

the mode has been selected, press the ENTER button to setup or automatically return to the main

functions without any change after 8 seconds. To go back to the functions without any change press

the MENU button again.

Sound Sense

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to adjust the sound sensitivity between and . Once selected, press the ENTER

button to setup, to go back to the functions without any change press the MENU button again. Hold

and press the MENU button about one second or wait for one minute to exit the menu mode.

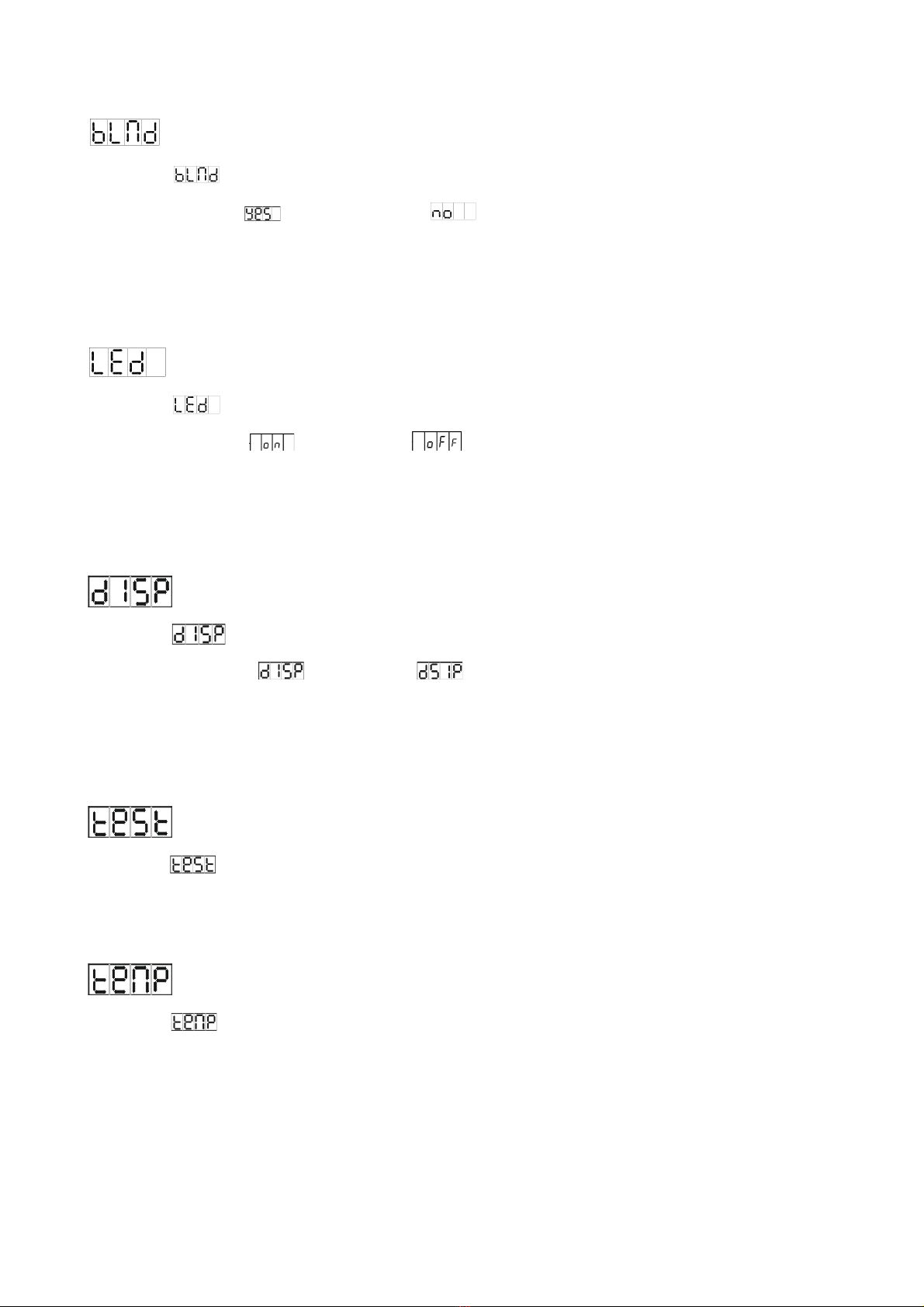

Blackout Mode

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to select the (yes blackout) or (no blackout) mode. Once selected, press the

ENTER button to setup or automatically return to the main functions without any change after 8

seconds. To go back to the functions without any change press the MENU button again.

LED Display

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to select the (LED on) or (LED off). Once the mode has been selected,

press the ENTER button to setup or automatically return to the main functions without any change

after 8 seconds. To go back to the functions without any change press the MENU button again.

Display Inversion

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to select the (normal) or (display inversion). Once selected, press the

ENTER button to setup or automatically return to the main functions without any change after 8

seconds. To go back to the functions without any change press the MENU button again.

Auto Test

Select the , press the ENTER button and the fixture will run the built-in program to test the

fixture. To go back to the functions press the MENU button again.

Temperature Test

Select the , press the ENTER button and the display will show the temperature of the unit.

To go back to the functions press the MENU button again.

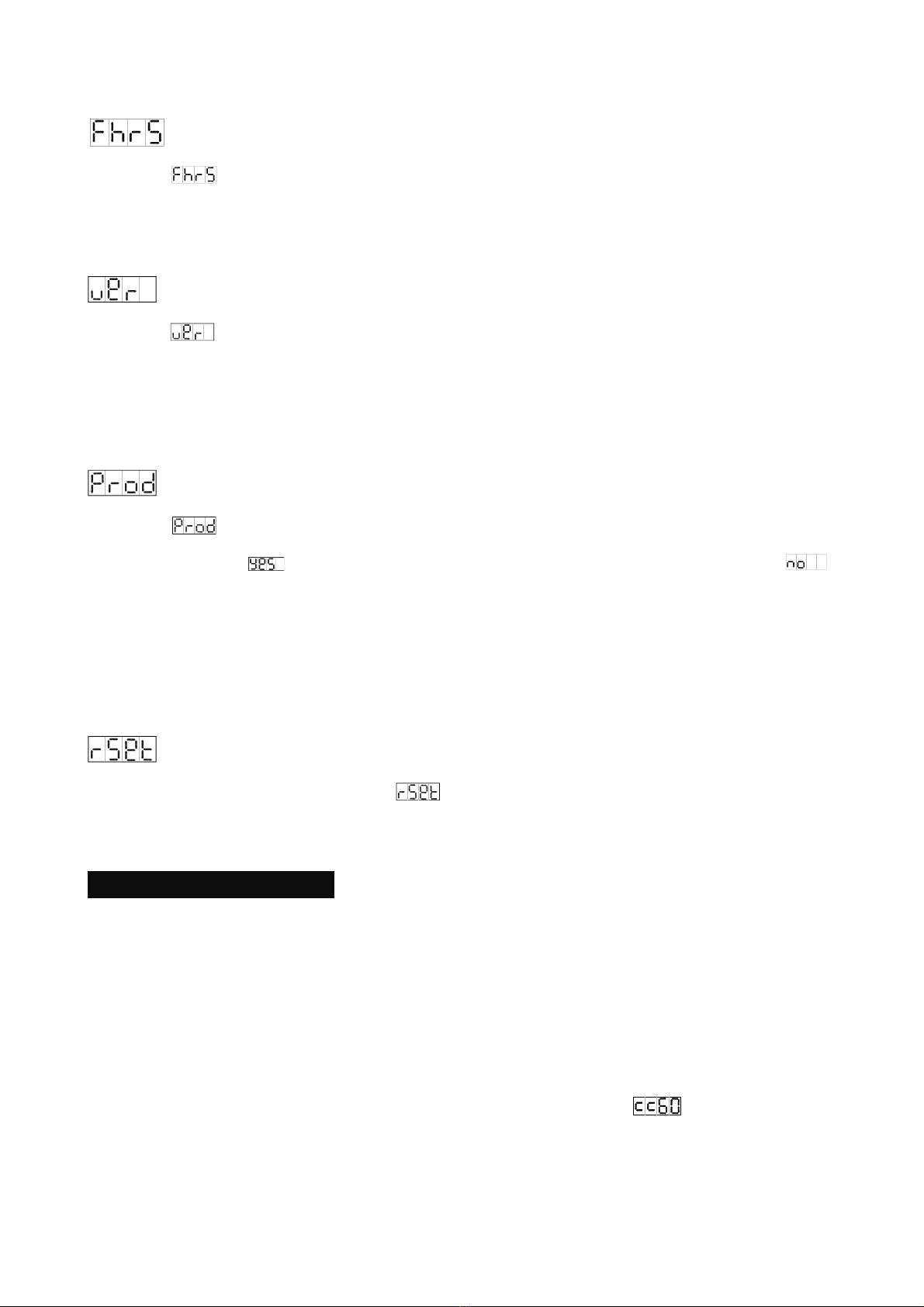

Fixture Hours

Select the , press the ENTER button and the display will show the number of working hours

of the unit. To go back to the functions press the MENU button again.

Software version

Select the , press the ENTER button and the display will show the version of software of the

unit. To go back to the functions press the MENU button again. Hold and press the MENU button

about one second or wait for one minute to exit the menu mode.

PRO Defaults

Select the , press the ENTER button and the display will blink. Use the DOWN and UP

button to select the (run built-in program to set the fixture to factory settings) or .

Press the ENTER button to setup, to go back to the functions without any change press the MENU

button again. Hold and press the MENU button about one second or wait for one minute to exit the

menu mode.

Reset

Press the MENU button to show the on the display. Press the ENTER button and all

channels of the unit will return to their standard position.

5. How To Set The Unit

You can operate the unit in three ways:

1. By master/slave built-in preprogram function

2. By easy controller

3. By universal DMX controller

No need to turn the unit off when you change the DMX address, as new DMX address setting will

be effected at once. Every time you turn the unit on, it will show the on the display and

move all the motors to their ‘home’ position and you may hear some noises for about 20 seconds.

After that the unit will be ready to receive DMX signal or run the built-in programs.
