ACME LED-7871 Manuel utilisateur

MATRIX!LED!

LED-7871

User Manual

Please read the instructions carefully before use

TABLE OF CONTENTS

1. Safety Instructions

2. Technical Specifications

3. How To Set The Fixture

4. How To Control The Fixture

5. DMX 512 Configuration

6. DMX 512 Connections

7. Troubleshooting

8. Fixture Cleaning

1.SafetyIntroductions

WARNING

Please

keep this User Manual for future consultation. If you sell the fixture to another user, be

sure that they also receive this instruction booklet.

Unpack and check carefully there is no transportation damage before using the fixture.

It’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

Disconnect main power before servicing and maintenance.

Maximum ambient temperature is Ta : 40℃. Don’t operate it where the temperature is

higher than this.

In the event of serious operating problem, stop using the fixture immediately. Never try

to repair the fixture by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance

center. Always use the same type spare parts.

Do not connect the device to any dimmer pack.

Do not touch any wire during operation and there might be a hazard of electric shock.

To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain

or moisture.

The housing must be replaced if they are visibly damaged.

Do not look directly at the LED light beam while the fixture is on.

There are no user serviceable parts inside the fixture. Do not open the housing or

attempt any repairs by yourself. In the unlikely event your fixture may require service,

please contact your nearest dealer.

Due to the magnifying type lens, please keep the lens out of contact with direct sunlight.

Direct sunlight can cause heat to build up inside of the unit, which will seriously damage

unit.

Please read the instructions carefully which includes important

information about the installation, operation and maintenance.

For power supply, do not connect in series much more than 20 units, use

another mains supply for next 20 units.

2. Technical Specifications

The Matrix 4 LED features 4 high brightness red, green, blue and white LEDs clusters,

cresting stunning text patterns, geometric figures, dynamic scanning, rolling and

rotating effects.

Great built-in lighting shows under Master/Slave operation triggered by music

Optional CA-8 easy controller for enjoying instant lighting shows at you fingertips

LED display for easy navigation

Input Voltage: 100V~240V 50/60Hz

Power consumption:29W

LED: Total 256pcs,

Red 64pcs, Green 64pcs, Blue 64pcs, White 64pcs

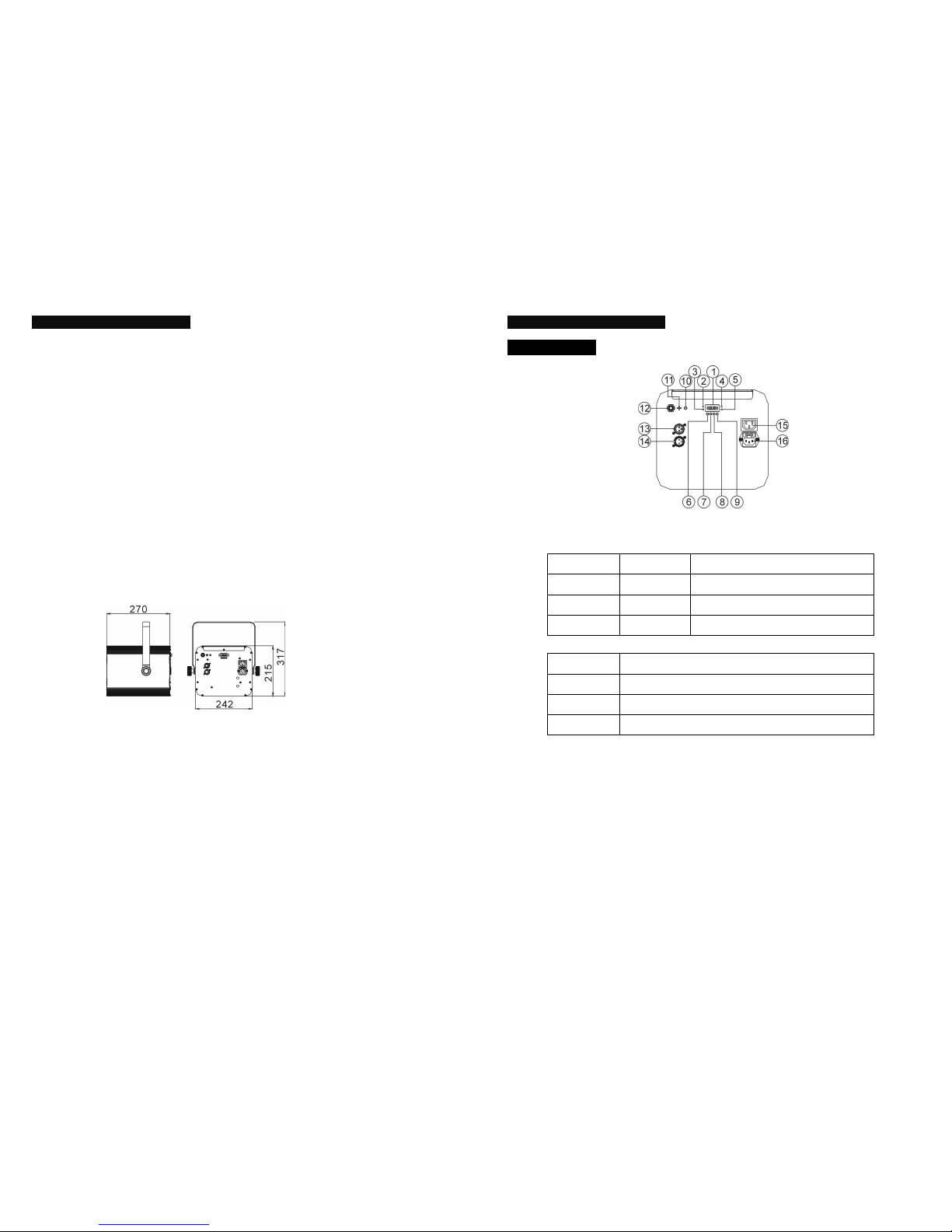

Dimension: 270 x 242 x 317mm

Weight:3.8 kgs

3.How To Set The Fixture

3.1 Control Panel

○

1Display: To show the various menusand the selected functions

LED:

○

2DMX

DMX input present

○

3MASTER

Master Mode

○

4SLAVE

Slave Mode

○

5SOUND

Flashing

Sound activation

Button:

○

6MENU

To select the programming functions

○

7DOWN

To go backward in the selected functions

○

8UP

To go forward in the selected functions

○

9ENTER

To confirm the selected functions

○

10 Sensitivity: Adjust sensitivity of the sound control.

○

11 Microphone: Receive music for the sound active.

○

12 Only for remote control: By connect to the 1/4’’ microphone jack to control the unit for

Stand by, Function and Mode function.

○

13 DMX output: For DMX512 link, use 3-pin XLR plug cable to link the next unit.

○

14 DMX input: For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal

○

15 Mains output: Connect to supply mains power for the next unit.

○

16 Mains input: Connect to supply mainspower.

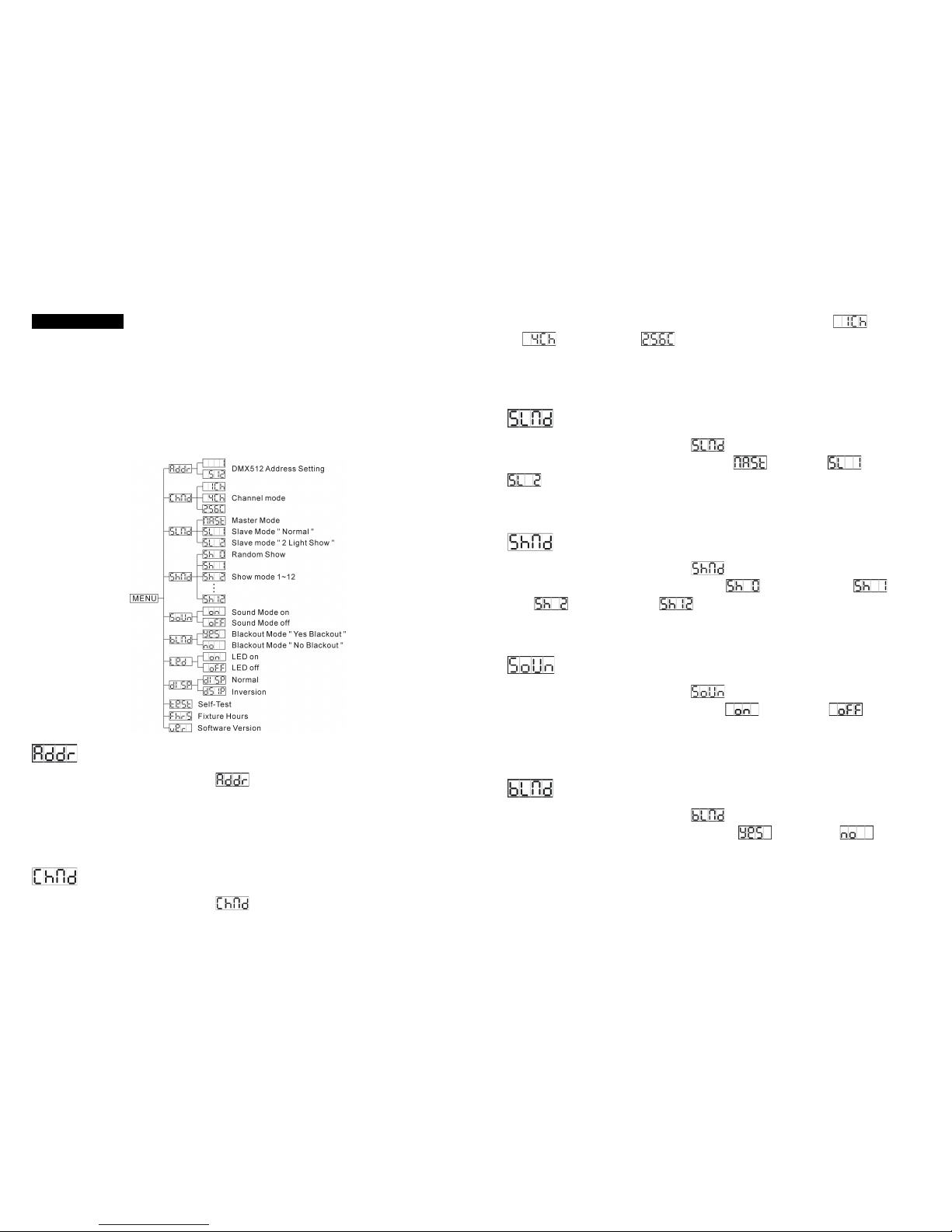

3.2 Main Function

To select any functions, press MENU button until the required one is shown on the display.

Select the function by ENTER button and the display will blink. Use DOWN and UP button to

change the mode. Once the required mode has been selected, press ENTER button to

setup or it will automatically return to the main functions without any change after idling 10

seconds. Back to the functions without any change press MENU button. The main functions

are shown below:

DMX 512 Address Setting

Press the MENU button up to when the is shownonthe display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to change the DMX 512 address.

Once the address has been selected, press ENTER button to setup or automatically exit

menu mode without any change after 10 seconds. Back to the previous functions without

any change press MENU button.

Channel Mode

Press the MENU button up to when the is shownon the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to select the (1channel)

or (4 channels) or (256 Channels) mode. Once the mode has been

selected, press the ENTER button to setup or automatically exit menu mode without any

change after 10 seconds. To go back to the functions without any change press the MENU

button.

Slave Mode

Press the MENU button up to when the is shown on the display. Pressing ENTER

button,Use DOWN and UP button to select the (master) or (slave 1) or

(Slave 2) mode.Once select, press the ENTER button to setup or automatically exit

menu mode without any change after 10 seconds. To go back to the functions without any

change press the MENU button

ShowMode

Press the MENU button upto when the is shown on the display. Pressing ENTER

button,Use DOWN and UP button to select the (Randomshow)or (show

1) or (Show 2) or … or (show 12).Once select, press ENTER button to

setup or automatically exit menu mode without any change after 10 seconds. To go back to

the functions without any change press the MENU button

Sound

Press the MENU button up to when the is shown on the display. Pressing ENTER

button,Use DOWN and UP button to select the (soundon)or (sound off).

Onceselect, press ENTER button to setup or automatically exit menu mode without any

change after 10 seconds. To go back to the functions without any change press the MENU

button

Blackoutmode

Press the MENU button up to when the is shown on the display. Pressing ENTER

button,Use DOWN and UP button to select the (blackout) or (normal).

Once select, press ENTER button to setup or automatically exit menu mode without any

change after 10 seconds. To go back to the functions without any change press the MENU

button

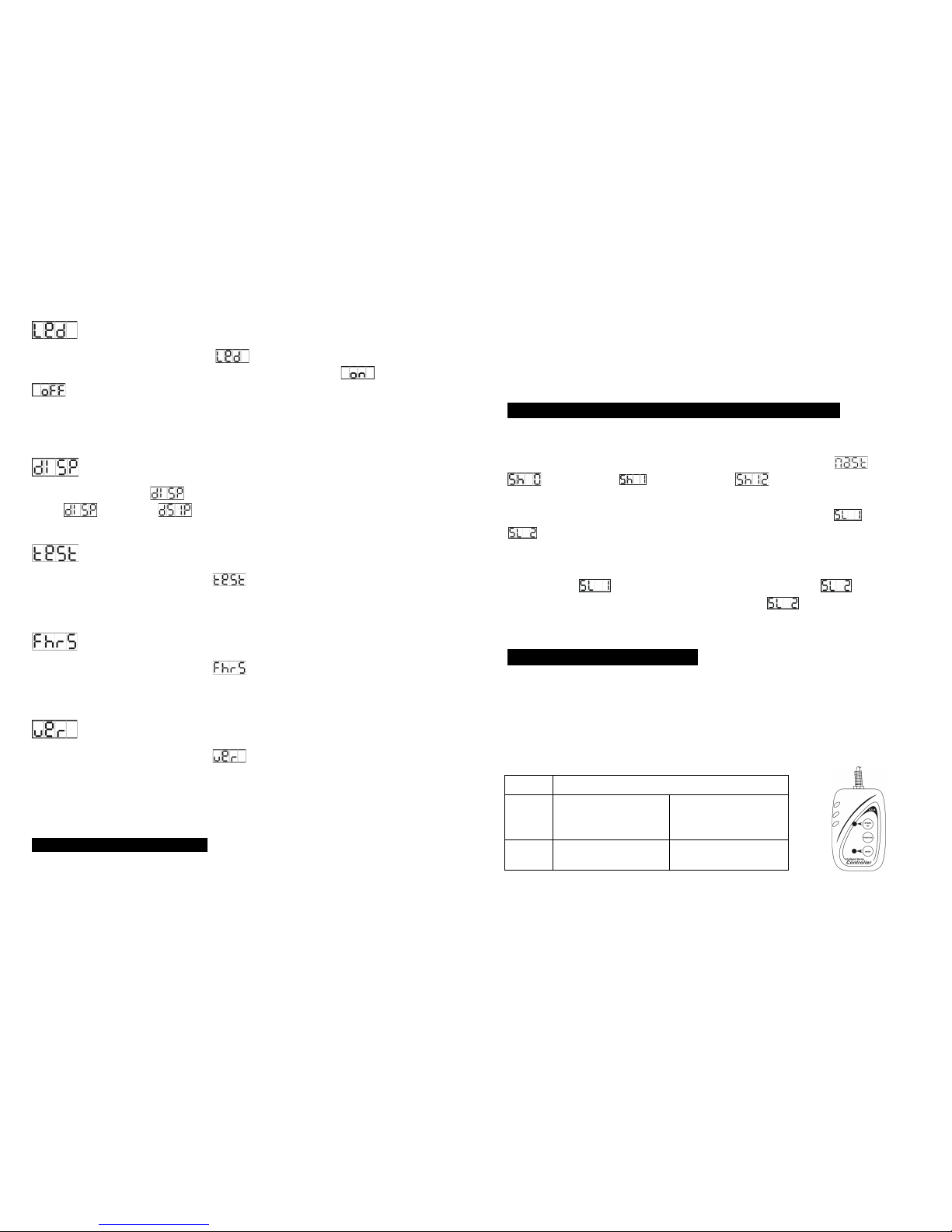

LED display

Press the MENU button up to when the is shown on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to select (display on) or

(display off) mode. Once select, press ENTER button to setup or exit menu mode

without any change after 10 seconds. Back to the functions without any change press

MENU button again.

Display Inverse

Press MENU button until is blinking on the display. Use DOWN and UP button to

select (normal) or (inverse), press ENTER button to setup. Back to the

functions without any change press MENU button.

Self-Test

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the unit will run the built-in programmer for self-test. To go back to the functions

press the MENU button.

Fixture Hours

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the display will show the number of working hours of the unit. To go back to the

functions press the MENU button.

Software version

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the display will show the version of software of the unit. To go back to the

functions press the MENU button again.

4. How To Control The Fixture

You can operate the unit in three ways:

1. By master/slave built-in preprogram function

2.Byeasycontroller

3. By DMX controller

No need to turn the unit off when you change the DMX address, as new DMX address

setting will be effected at once. Every time you turn the unit on, it will show “7871” on the

display. After that the unit will be ready to receive DMX signal or run the built in programs.

4.1 Master/Slave Built In Preprogrammed Function

By linking the units in master/slave connection, the first unit will control the other units to

give an automatic, sound activated, synchronized light show. This function is good when

you want an instant show. You have to set the first unit in master mode andselect

(random show), (show 1) or or (show 12)and speed. Its DMX

input jack will have nothing plugged into it, and Its master LED will be constantly on and

sound LED will flash to the music. The other units will have to select (normal) or

(2 light show) mode, Their DMX cables plugged into the DMX input jacks (daisy

chain) and the slave led lights will constantly on.

2-light show

In slave mode, means the unit works as the master unit and means 2-light

show. In order to create a great light show, you can set on the second unit to get

contrast movement to each other, even if you have two units only.

4.2. Easy Controller (by CA-8)

The easy remote control is used only in master/slave mode. There is a terminator for

connect the easy controller inside the fixture. By connecting the cable into DMX IN

waterproof cable entry gland to the CA-8 terminator of the first fixture,you will find that the

remote control on the first fixture will control all the other fixtures for Stand by, Function and

Mode functions.

Blackout

Blackout the unit

Function

1. Sound White Strobe

2. Sound Color Strobe

Select Show

(Show 1-12)

Mode

Sound/Strobe

(LED OFF)

Show

(LED ON)

10-

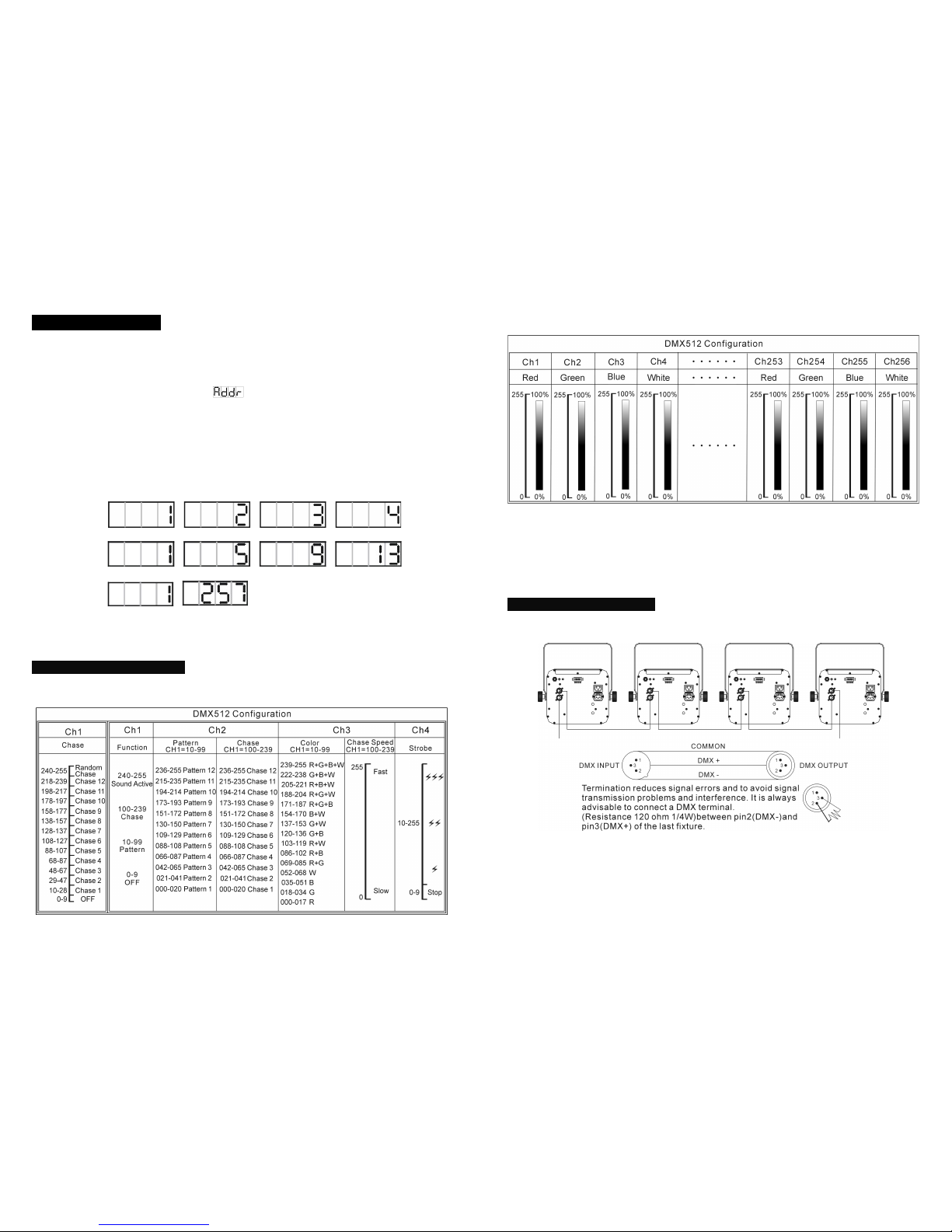

4.3 DMX Controller

Using universal DMX controller to control the units, you have to set DMX address from 1 to

512 channel so that the units can receive DMX signal.

Press the MENU button up to when the is showing on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to change the DMX512 address.

Once the address has been selected, press and keep ENTER button pressed up to when

the display stops blinking or storing automatically 8 seconds later. To go back to the

functions without any change press the MENU button again. If you use please refer to the

following diagram to address your DMX512 channel for the first 4/2 units.

1 channel:

4 channels:

256 channels:

5.DMX512 Configuration

1 & 4-CH modes:

11-

256-CH mode:

4 channels as a group, please refer to the DMX configuration of 1-4 channels to control the

other channels when you choose 256 channels mode. Under this mode, you can control the

256 LEDs separately.

6.DMX512Connections

The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the

fixture to the input of the next fixture. The cable cannot be branched or split to a “Y”

cable. Inadequate or damaged cables, soldered joints or corroded connectors can

easily distort the signal and shut down the system

12-

2. The DMX output and input connectors are pass-through to maintain the DMX circuit

when one of the units’ power is disconnected.

3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal

errors. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a

3-pin XLR-plug and plug it in the DMX-output of the last fixture.

4. Each lighting fixture needs to have an address set to receive the data sent by the

controller. The address number is between 0-511 (usually 0 & 1 are equal to 1).

5. 3 pin XLR connectors are more popular than 5 pins XLR.

3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+),

Pin4/5: not used

7.Troubleshooting

Following are a few common problems that may occur during operation. Here are some

suggestions for easy troubleshooting:

A. The fixture does not work, no light

1. Check the connection of power and main fuse.

2. Measure the mains voltage on the main connector.

B. Not responding to DMX controller

1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.

2. If the DMX LED is on and no response to the channel, check the address settings and

DMX polarity.

3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB

of the fixture or the previous one.

4. Try to use another DMX controller.

5. Check if the DMX cables run near or run alongside to high voltage cables that may

cause damage or interference to DMX interface circuit.

C. Some fixtures don’t respond to the easy controller

1. You may have a break in the DMX cabling. Check the LED for the response of the

13-

master/ slave mode signal.

2. Wrong DMX address in the fixture. Set the proper address.

D. No response to the sound

1. Make sure the fixture does not receiveDMX signal.

2. Check microphone to see if it is good by tapping the microphone.

E. One of the channels is not working well

1. The stepper motor might be damaged or the cable connected to the PCB is broken.

2. The motor’s drive IC on the PCB might be out of condition.

8.Fixture Cleaning

The cleaning of internal must be carried out periodically to optimize light output. Cleaning

frequency depends on the environment in which the fixture operates: damp, smoky or

particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.

Clean with soft cloth using normal glass cleaning fluid.

Always dry the parts carefully.

Clean the external optics at least every 20 days. Clean the internal optics at least every

30/60 days.

14-

EC - Declaration of Conformity

We declare that our products (lighting equipments) comply with the following

specification and bears CE mark in accordance with the provision of the

Electromagnetic Compatibility (EMC) Directive 89/336/EEC.

EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002;

EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6: 1996,

EN61000-4-11: 1994.

Harmonized Standard

EN60598-1: 2000+ALL: 2000+A12: 2002

Safety of household and similar electrical appliances

Part 1: General requirements

15-

Innovation, Quality, Performance

Table des matières

Autres manuels ACME Matériel de DJ

ACME

ACME MH-640S-ELC Manuel utilisateur

ACME

ACME IM-5S-ELC Manuel utilisateur

ACME

ACME FURY LED RGB Manuel utilisateur

ACME

ACME XP-1200F Manuel utilisateur

ACME

ACME Super Dotline Manuel utilisateur

ACME

ACME Stage Panel 1080 Manuel utilisateur

ACME

ACME PAGEANT 300ZR Manuel utilisateur

ACME

ACME MP-90 RGBW Manuel utilisateur

ACME

ACME LED-635S Manuel utilisateur

ACME

ACME XA-500 Manuel utilisateur

ACME

ACME O2 Oxygen Manuel utilisateur

ACME

ACME MP-400Z IP Manuel utilisateur

ACME

ACME LED-245 II Manuel utilisateur

ACME

ACME CEILING 40 Manuel utilisateur

ACME

ACME Festival LED-787 Manuel utilisateur

ACME

ACME MACE Manuel utilisateur

ACME

ACME ASTRO LED-256D Manuel utilisateur

ACME

ACME ENERGY SPOT XA-400 SPOT Manuel utilisateur

ACME

ACME LED-256D RGB Manuel utilisateur

ACME

ACME LED-MTX25 IP Manuel utilisateur

ACME

ACME SAMBA Color Manuel utilisateur

ACME

ACME ORION XP-260 BEAM Manuel utilisateur

ACME

ACME IU-01 Manuel utilisateur

ACME

ACME RAYZOR HYBRID XA-100 BSW Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
